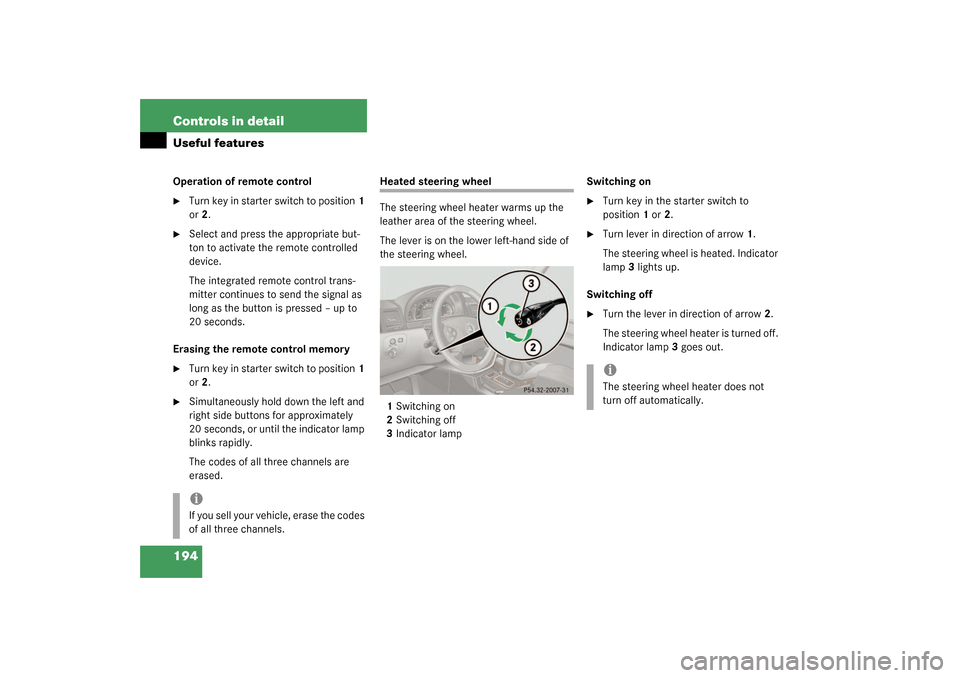

194 Controls in detailUseful featuresOperation of remote control
Turn key in starter switch to position1
or2.

Select and press the appropriate but-
ton to activate the remote controlled
device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the remote control memory

Turn key in starter switch to position1
or2.

Simultaneously hold down the left and
right side buttons for approximately
20 seconds, or until the indicator lamp
blinks rapidly.
The codes of all three channels are
erased.
Heated steering wheel
The steering wheel heater warms up the
leather area of the steering wheel.
The lever is on the lower left-hand side of
the steering wheel.
1Switching on
2Switching off
3Indicator lampSwitching on

Turn key in the starter switch to
position1 or2.

Turn lever in direction of arrow1.
The steering wheel is heated. Indicator
lamp3 lights up.
Switching off

Turn the lever in direction of arrow2.
The steering wheel heater is turned off.
Indicator lamp3 goes out.
iIf you sell your vehicle, erase the codes
of all three channels.
iThe steering wheel heater does not
turn off automatically.

214 OperationAt the gas station
At the gas stationThe fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control automatically
locks/unlocks the fuel filler flap.

Turn off the engine.

Remove the key from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.

To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or overfill.

Replace the fuel cap by turning it to the
right.
You should hear the fuel filler cap en-
gage.

Close the fuel filler flap.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Failure to remove the fuel cap slowly could
result in personal injury.
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.!The fuel filler cap is tethered to the fuel
f i l l e r n e c k . D o n o t d r o p t h e c a p . I t c o u l d
damage the vehicle paint finish.
When refueling the vehicle, make cer-
tain that no gasoline comes into con-
tact with plastic tail lamp to prevent
damaging the lens.

336 IndexDigital speedometer 116
Direction of rotation (tires) 225
Discharged battery
Jump starting 297
Disconnecting
Vehicle battery 296
Display
Selecting 123
Displays
Digital speedometer 116
Messages 218, 246
Selecting 123
Service indicator 230
Showing malfunctions 118
Distance to empty (range)
Calling up 130
Door control panel 30
Door handle 30
Door sill panels
Cleaning 236
Door unlock
With Tele Aid 190
Doors
Message in display 254
Opening from inside vehicle 87
Opening from outside 85Downhill driving
Cruise control 163
Downshifting 136
Drink holders see Cup holders
Drinking and driving 197
Driving
General instructions 40, 197
In winter 202
Problems 49
Safety systems 71
Through standing water 203
Driving abroad 211
Driving and safety systems
4-ETS 74
ABS 71
BAS 73
EBB 75
ESP 75
Driving instruction
Passenger compartment 203
Driving instructions 197
Driving off 199
Driving systems 162
Cruise control 162
Driving safety systems 71
Driving through water 207E
Easy-entry/exit feature 91
Activating 128
Interrupting movement 129
EBB 71, 75
Electrical fuses 303
Electrical outlet 181
Electrical system
Technical data 314
Electronic Stability Program see ESP 25
Electronic stability program see ESP 326
Electronic Traction System (ETS) 74
Electronic Brake Booster (EBB) 75
Emergency call system 183
Emergency calls
Initiating an emergency call 186
With Tele Aid 185
Emergency operation
(Limp Home Mode) 140
Emergency operations
Closing sliding/pop-up roof 276
Locking the vehicle 273
Opening sliding/pop-up roof 276
Remote door unlock 190
Unlocking the vehicle 272

340 IndexInterior storage spaces 176
Cup holder 178
Cup holders 178, 179
Glove box 176
Parcel net in front passenger
footwell 179
Storage compartment below
armrest 177
Storage compartment in front of
armrest 177
Interval wiping 48
Switching off 48
Switching on 48
J
Jack 268, 269
Jump starting 297
K
Key dependency memory
Settings 129
Key positions in starter switch 33
Key, mechanical 272
Key, SmartKey
Battery check lamp 85
Changing the batteries 273
Checking the batteries 86Factory setting 85
Global locking 85
Global unlocking 85
Loss of 86
Positions in starter switch 33
Remote controls 84
Restoring to factory setting 85
Selective setting 85
Starting the engine 44
Unlocking with 32
Keys 84
Kickdown 139, 326
Kilometers/miles in speedometer 122
Km/h or mph in speedometer 122
L
Labels, identification 310
Lamp bulbs, exterior 279
Lamps, exterior
Front 279
Light sensor 261
Messages in display 259, 261
Rear 280
Replacing bulbs for rear 286
Lamps, indicator and warning
ABS 240
Battery (SmartKey) 85Brakes 241, 242
CHECK ENGINE 243
Engine diagnostics 243
ESP 238, 239
Fuel reserve 243, 244
Instrument cluster 243, 244
Seat belts 243
Service indicator 230
SRS 55
Turn signals 25
Language
Multifunction display 123
Setting 123
LATCH child seat anchors 68
LATCH child seat mounts 68
Layout of poly-V-belt drive 311
Leather upholstery
Cleaning 236
License plate lamps
Messages in display 261
Replacing bulbs 280, 288
Light alloy wheels
Cleaning 235
Technical data 313
Light sensor 261
Lighter see Cigarette lighter 181
