280 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.


Have the LEDs for the following lamps
replaced by an authorized Mer-
cedes-Benz Light Truck Center.

The additional turn signals in the ex-
terior rear view mirrors


The high mounted brake lamp
Lamp
Type
7
High mounted brake
lamp
LED
8
Turn signal lamp
PY 21 W
Brake lamp
P 21 W
Tail, parking and
standing lamps
R 5 W
9
Backup lamp
P 21 W
10
License plate lamps
C 5 W
11
Side marker lamp
T 4 W
12
Rear fog lamp
P 21 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
iHave the headlamp settings checked
regularly by a Mercedes-Benz Light
Truck Center.
Do not turn the headlamp adjusting
screws. If the adjusting screws are
turned, the headlamp setting must be
checked by a Mercedes-Benz Light
Truck Center.

283 Practical hints
Replacing bulbs

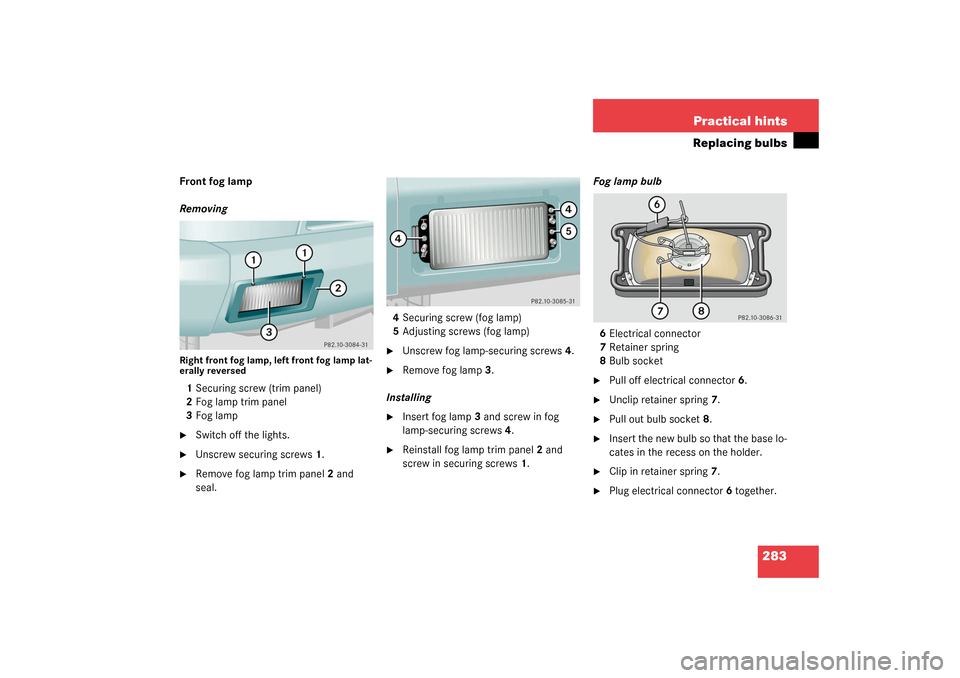

Front fog lamp
RemovingRight front fog lamp, left front fog lamp lat-
erally reversed1Securing screw (trim panel)
2Fog lamp trim panel
3Fog lamp
Switch off the lights.

Unscrew securing screws1.

Remove fog lamp trim panel2 and
seal.4Securing screw (fog lamp)
5Adjusting screws (fog lamp)

Unscrew fog lamp-securing screws4.

Remove fog lamp3.
Installing

Insert fog lamp3 and screw in fog
lamp-securing screws4.

Reinstall fog lamp trim panel2 and
screw in securing screws1.Fog lamp bulb
6Electrical connector
7Retainer spring
8Bulb socket

Pull off electrical connector6.

Unclip retainer spring7.

Pull out bulb socket8.

Insert the new bulb so that the base lo-
cates in the recess on the holder.

Clip in retainer spring7.

Plug electrical connector6 together.

287 Practical hints
Replacing bulbs

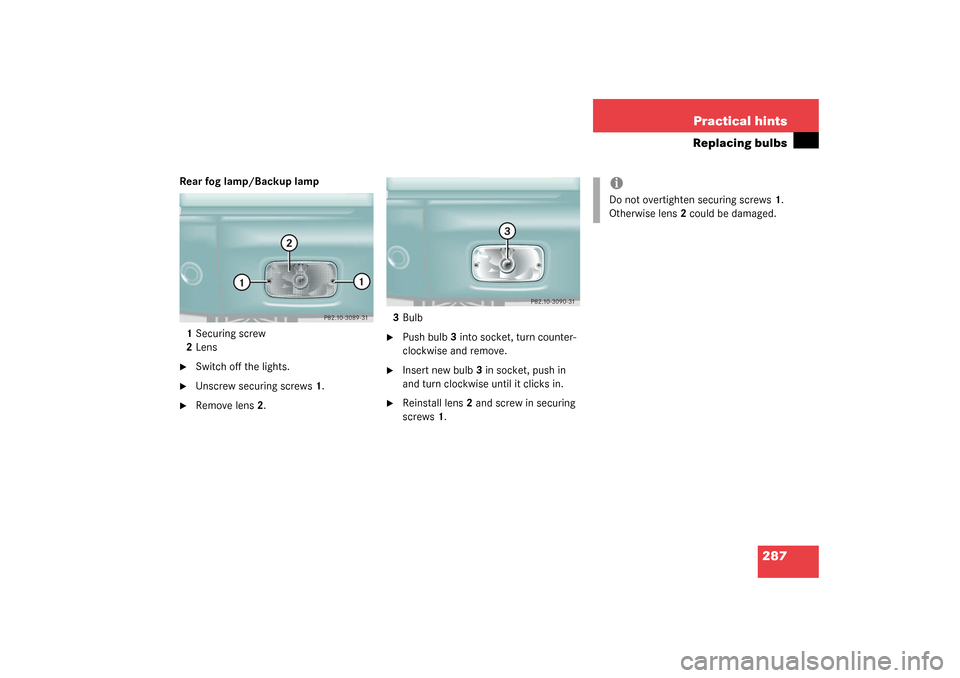

Rear fog lamp/Backup lamp
1Securing screw
2Lens
Switch off the lights.

Unscrew securing screws1.

Remove lens2.3Bulb

Push bulb3 into socket, turn counter-
clockwise and remove.

Insert new bulb3 in socket, push in
and turn clockwise until it clicks in.

Reinstall lens2 and screw in securing
screws1.
iDo not overtighten securing screws1.
Otherwise lens2 could be damaged.
