2003 MERCEDES-BENZ G55AMG check transmission fluid

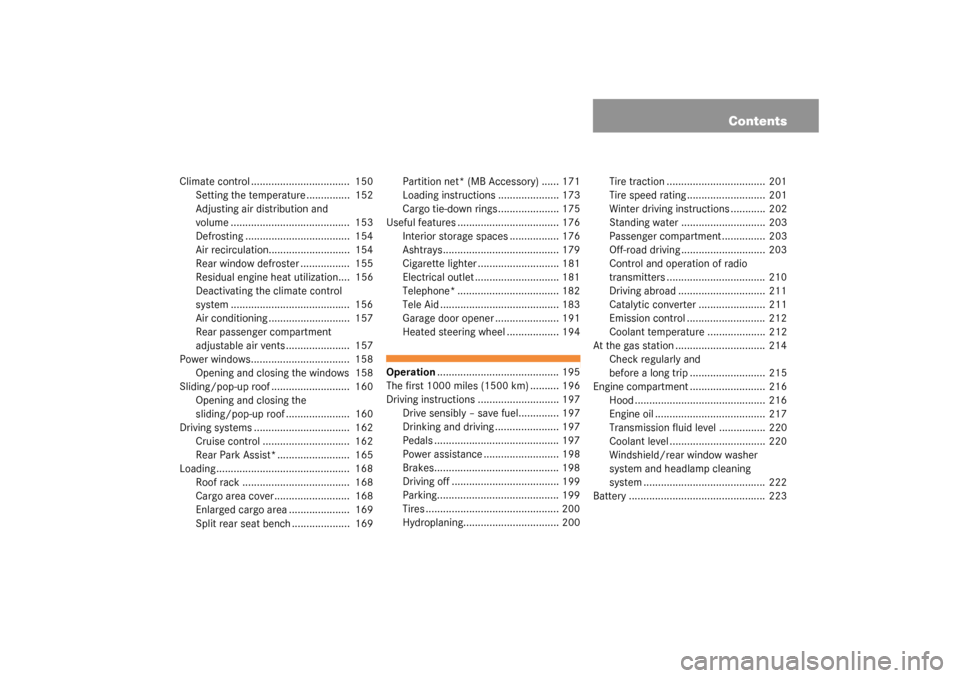

Contents
Climate control .................................. 150
Setting the temperature ............... 152
Adjusting air distribution and
volume ......................................... 153
Defrosting .................................... 154
Air recirculation............................ 154
Rear window defroster ................. 155
Residual engine heat utilization.... 156
Deactivating the climate control
system ......................................... 156
Air conditioning ............................ 157
Rear passenger compartment
adjustable air vents ...................... 157
Power windows.................................. 158
Opening and closing the windows 158
Sliding/pop-up roof ........................... 160
Opening and closing the
sliding/pop-up roof ...................... 160
Driving systems ................................. 162
Cruise control .............................. 162
Rear Park Assist* ......................... 165
Loading.............................................. 168
Roof rack ..................................... 168
Cargo area cover.......................... 168
Enlarged cargo area ..................... 169
Split rear seat bench .................... 169Partition net* (MB Accessory) ...... 171
Loading instructions ..................... 173
Cargo tie-down rings ..................... 175
Useful features ................................... 176
Interior storage spaces ................. 176
Ashtrays........................................ 179
Cigarette lighter ............................ 181
Electrical outlet ............................. 181
Telephone* ................................... 182
Tele Aid ......................................... 183
Garage door opener ...................... 191
Heated steering wheel .................. 194
Operation.......................................... 195
The first 1000 miles (1500 km) .......... 196
Driving instructions ............................ 197
Drive sensibly – save fuel.............. 197
Drinking and driving ...................... 197
Pedals ........................................... 197
Power assistance .......................... 198
Brakes........................................... 198
Driving off ..................................... 199
Parking.......................................... 199
Tires .............................................. 200
Hydroplaning................................. 200Tire traction .................................. 201
Tire speed rating ........................... 201
Winter driving instructions ............ 202
Standing water ............................. 203
Passenger compartment............... 203
Off-road driving ............................. 203
Control and operation of radio
transmitters .................................. 210
Driving abroad .............................. 211
Catalytic converter ....................... 211
Emission control ........................... 212
Coolant temperature .................... 212
At the gas station ............................... 214
Check regularly and
before a long trip .......................... 215
Engine compartment .......................... 216
Hood ............................................. 216
Engine oil ...................................... 217
Transmission fluid level ................ 220
Coolant level ................................. 220
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 222
Battery ............................................... 223

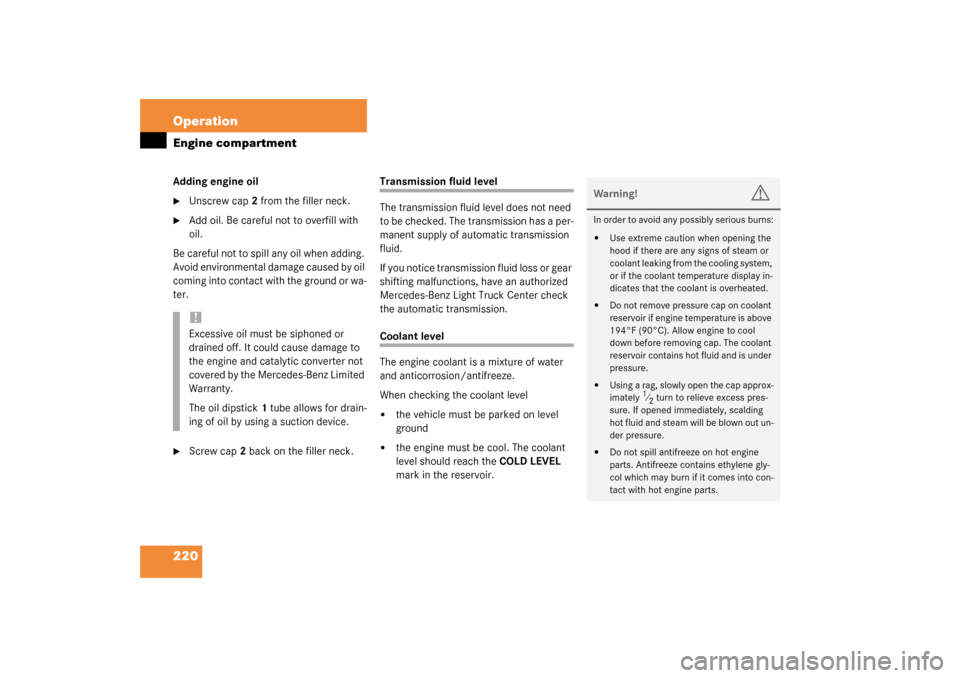

220 OperationEngine compartmentAdding engine oil
Unscrew cap2 from the filler neck.

Add oil. Be careful not to overfill with
oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
coming into contact with the ground or wa-
ter.

Screw cap2 back on the filler neck.
Transmission fluid level
The transmission fluid level does not need
to be checked. The transmission has a per-
manent supply of automatic transmission
fluid.
If you notice transmission fluid loss or gear
shifting malfunctions, have an authorized
Mercedes-Benz Light Truck Center check
the automatic transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level

the vehicle must be parked on level
ground


the engine must be cool. The coolant
level should reach the COLD LEVEL
mark in the reservoir.
!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
The oil dipstick1 tube allows for drain-
ing of oil by using a suction device.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display in-
dicates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1⁄2turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

332 IndexAlarm system
Anti-theft 79
Anticorrosion/antifreeze 320
Antiglare
Automatic 147
Antilock brake system (ABS) 325
Anti-theft alarm system
Arming 79
Canceling alarm 80
Disarming 80
Anti-theft systems 79
Anti-theft alarm system 79
Tow-away alarm 80
Aquaplaning see Hydroplaning 200
Armrest
Storage compartment below 177
Storage compartment in front of 177
Ashtrays 179
At the gas station 214
ATF (automatic transmission fluid) 220
AUDIO menu 116
Selecting radio station 117
Automatic antiglare for
rear view mirror 147Automatic central locking
Activating/deactivating (control
system) 128
Automatic climate control
Deactivating 157
Automatic headlamp mode 101
Automatic lighting control
Activating 104
Deactivating 105
Automatic locking when driving 89
Automatic transmission 135
Accelerator position 139
Emergency operation
(Limp Home Mode) 140
Fluid level 220
Gear ranges 137
Gear selector lever position 138
Gear shifting malfunctions 140
Kickdown 139
Manual shifting 136
One-touch gearshifting 136
Selector lever position 135
Transmission fluid 220B
BabySmart
TM
Airbag deactivation system 65
Compatible child seats 65, 325
Self-test 66
BabySmart
TM airbag deactivation
system 325
Backup lamp
Replacing bulbs 287
Backup lamps 280
Bulbs 280
BAS 71, 73, 325
Messages in display 248
Batteries, SmartKey
Changing 273
Check lamp 85
Checking 86
Batteries, vehicle 223
Battery box
Fuse box in 303
Battery discharged
Jump starting 297
