272 Practical hintsUnlocking/locking in an emergency
Unlocking/locking in an emergencyUnlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey, open the driver’s door and
the tailgate using the mechanical key.
The passenger door cannot be unlocked
manually.
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of ar-
row and slide the mechanical key2 out
of the housing.Unlocking the driver’s door

Unlock the door with the mechanical
k e y . T o d o s o , p u s h t h e m e ch a n i c a l k e y
in the lock until it stops and turn it to
the left.
Unlocking the tailgate

Unlock the tailgate with the mechani-
cal key. To do so, push the mechanical
key in the lock until it stops and turn it
to the left.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button
Œ
or
‹
on the
SmartKey.


Insert the key in the starter switch.

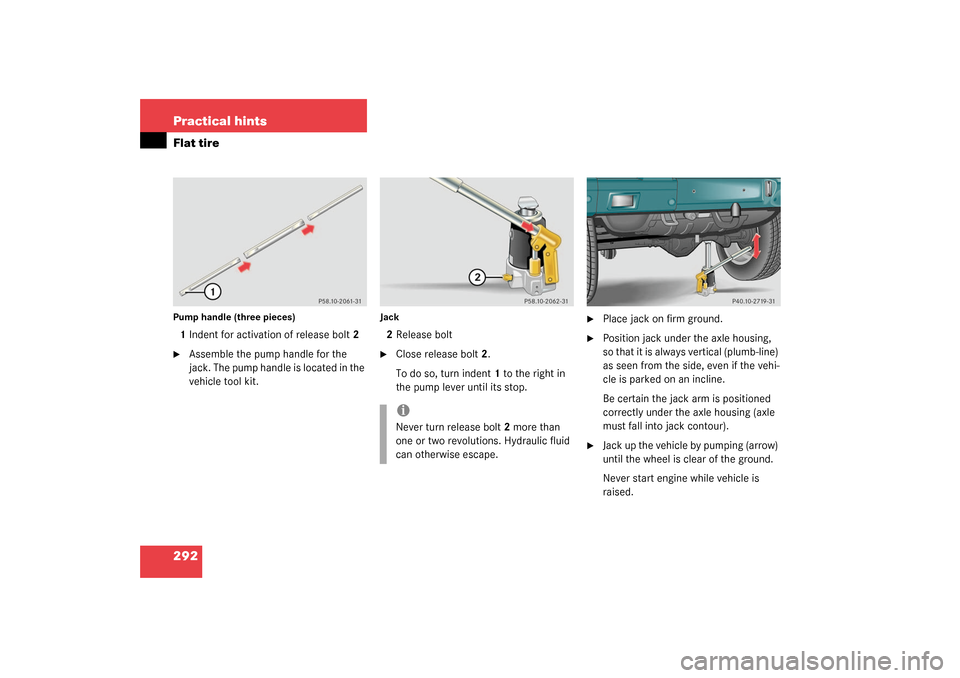

292 Practical hintsFlat tirePump handle (three pieces)1Indent for activation of release bolt2
Assemble the pump handle for the
jack. The pump handle is located in the
vehicle tool kit.
Jack2Release bolt
Close release bolt2.
To do so, turn indent1 to the right in
the pump lever until its stop.

Place jack on firm ground.

Position jack under the axle housing,
so that it is always vertical (plumb-line)
as seen from the side, even if the vehi-
cle is parked on an incline.
Be certain the jack arm is positioned
correctly under the axle housing (axle
must fall into jack contour).

Jack up the vehicle by pumping (arrow)
until the wheel is clear of the ground.
Never start engine while vehicle is
raised.
iNever turn release bolt2 more than
one or two revolutions. Hydraulic fluid
can otherwise escape.

348 IndexSRS 61, 328
Indicator lamp 242
Standing lamp, front
Replacing bulbs 281
Standing lamps 100
Replacing bulbs 279, 280
Standing water
Driving instructions 203
Starter switch 23, 33
Positions 33
Starting difficulties 44
Starting position 33
Starting the engine 43
Station (radio)
Search 117
Station selection
Setting 127
Steep terrain 206
Steering column
Height adjustment 37
Length adjustment 37
Steering wheel
Adjusting 37
Buttons 26
Cleaning 235
Heated 194Height adjustment 37
Stolen vehicle
Tracking services 191
Stopping
Sliding/pop-up roof 160
Windows 159
Storage compartments
Armrest 177
Glove box 176
Storage spaces
Cup holders 177
Storing (Memory function)
Positions into memory 98
Submenus 115
Convenience 128
For settings 113
In control system 115
Instrument cluster 122
Lighting 124
Resetting functions in Control
system 120
Selecting 120
Settings menu 120
Vehicle 127
Summer opening feature 159
Sun visors 149Supplemental Restraint System (SRS) 328
Switching off
Automatic central locking (control sys-
tem) 128
Delayed (exterior lamps) 125
Differential locks 146
Engine 51
ESP 76
Hazard warning flasher 104
Headlamps 51
Heated steering wheel 194
Seat heating, front 95
Seat heating, rear 96
Switching on
Automatic central locking (control sys-
tem) 128
Differential locks 145
ESP 78
Front axle differential lock 146
Front fog lamps 102
Hazard warning flasher 104
Headlamps 46
Heated steering wheel 194
High beams 103
Rapid seat heating, front 95
Rapid seat heating, rear 96
