2003 MERCEDES-BENZ G500 sensor

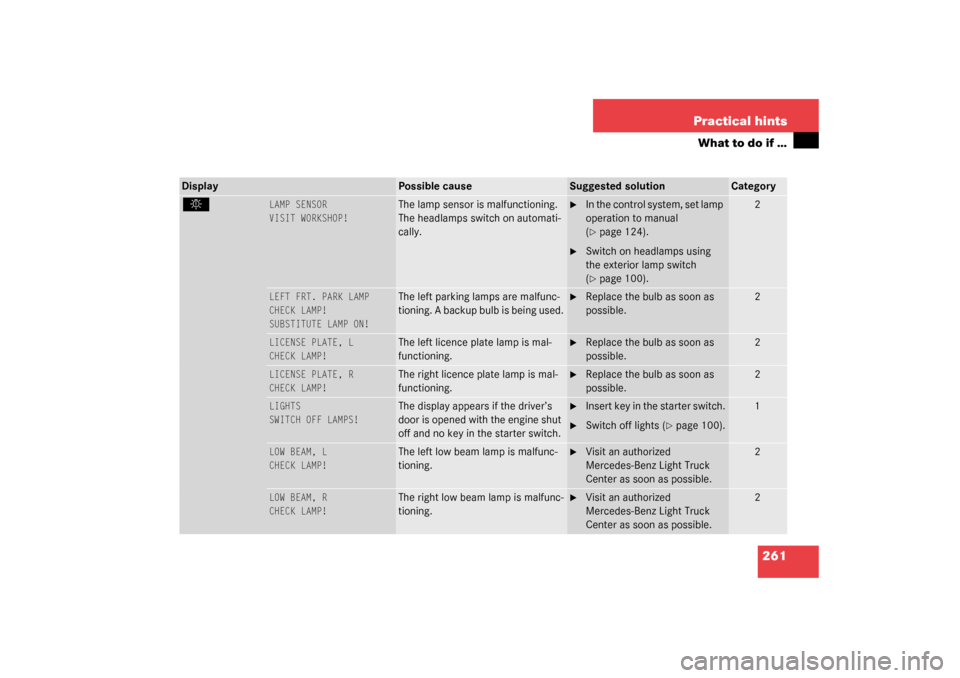

261 Practical hints
What to do if …
.
LAMP SENSOR
VISIT WORKSHOP!
The lamp sensor is malfunctioning.
The headlamps switch on automati-
cally.

In the control system, set lamp
operation to manual
(page 124).

Switch on headlamps using
the exterior lamp switch
(page 100).
2
LEFT FRT. PARK LAMP
CHECK LAMP!

SUBSTITUTE LAMP ON!

The left parking lamps are malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as
possible.
2
LICENSE PLATE, L
CHECK LAMP!

The left licence plate lamp is mal-
functioning.

Replace the bulb as soon as
possible.
2
LICENSE PLATE, R
CHECK LAMP!

The right licence plate lamp is mal-
functioning.

Replace the bulb as soon as
possible.
2
LIGHTS
SWITCH OFF LAMPS!
The display appears if the driver’s
door is opened with the engine shut
off and no key in the starter switch.

Insert key in the starter switch.

Switch off lights (
page 100).
1
LOW BEAM, L
CHECK LAMP!
The left low beam lamp is malfunc-
tioning.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
2
LOW BEAM, R
CHECK LAMP!
The right low beam lamp is malfunc-
tioning.

Visit an authorized
Mercedes-Benz Light Truck
Center as soon as possible.
2
Display
Possible cause
Suggested solution
Category

325 Technical terms
ABS
(A
ntilock B
rake S
ystem)
Prevents the wheels from locking up
during braking so that the vehicle can
continue to be steered.
BabySmart
TM
airbag deactivation
system
This system detects if a special system
compatible child restraint seat is in-
stalled on the front passenger seat. The
system will automatically deactivate
the passenger front airbag when such a
seat is properly installed (indicator
lamp
7
in the center console lights
up). See your authorized
Mercedes-Benz Light Truck Center for
availability.
BabySmartTM
compatible child seats
Special restraint system for children.
The sensor system for the passenger
seat prevents deployment of the pas-
senger front airbag if a BabySmart
TM
compatible child seat is installed.BAS
(B
rake A
ssist S
ystem)
System for potentially reducing braking
distances in emergency braking situa-
tions. The system is activated when it
senses an emergency based on how
fast the brake is applied.
CAC
(C
ustomer A
ssistance C
enter)
Mercedes-Benz customer service cen-
ter, which can help you with any ques-
tions about your vehicle and provide
assistance in the event of a break-
down.
CAN system
(C
ontroller A
rea N
etwork)
Data bus network serving to control ve-
hicle functions such as door locking or
windshield wiping.
Cockpit
All instruments, switches, buttons and
indicator/warning lamps in the passen-
ger compartment needed for vehicle
operation and monitoring.COMAND
(C
ockpit M
anagement and D
ata Sys-
tem)
Information and operating center for
vehicle sound and communications
systems, including the radio and the ra-
dio and navigation system, as well as
for other optional equipment (CD
changer, telephone, etc.).
Control system
The control system is used to call up
vehicle information and to change
component settings. Information and
messages appear in the multifunction
display. The driver uses the buttons on
the multifunction steering wheel to
navigate through the system and to ad-
just settings.

334 IndexCHECK ENGINE malfunction indicator
lamp 243
Checking
Coolant level 215, 220
Oil level 215, 217, 218
Checklist
Off-road driving 205
Child safety 63
Infant and child restraint systems 54,
60, 63
LATCH child seat mounts 68
Child safety switch see Blocking of rear
door window operation 69
Cigarette lighter 181
Cleaning
Cup holder 235
Gear selector lever 235
Hard plastic trim items 236
Headlamps 148
Headliner 236
Illuminated door sill panels 236
Instrument cluster 235
Leather upholstery 236
Light alloy wheels 235
MB Tex upholstery 236
Plastic and rubber parts 236Rear Park Assist sensors* 234
Seat belts 236
Steering wheel 235
Windows 235
Windshield 47
Wiper blades 235
Climate control 150
Adjusting 153
Defogging windshield 153
Defrosting 154
Rear window defroster 155
Setting the temperature 152
Clock 25
Closing
Glove box 176
Hood 217
Side windows 158
Sliding/pop-up roof 160, 276
Sliding/pop-up roof
with SmartKey 161
Tailgate 88
Windows 158
Windows with SmartKey 159
Closing sliding/pop-up roof
In an emergency 276
Cockpit 22, 325Cockpit management and data system
(COMAND) 325
COMAND 325
COMAND see separate operating
instructions
Combination switch 23, 103
High beam flasher 46, 103
Turn signals 46
Windshield wipers 47
Consumer information 322
Control and operation of
radio transmitters 210
Control system 111, 325
AUDIO menu 116
Convenience submenu 128
Display digital speedometer 116
Functions 112, 115
Instrument cluster submenu 122
Lighting submenu 124
Malfunction memory menu 118
Menus 114, 115, 327
Multifunction display 111
Multifunction steering wheel 112
NAVI menu 118
Selecting radio system 117
Settings menu 119

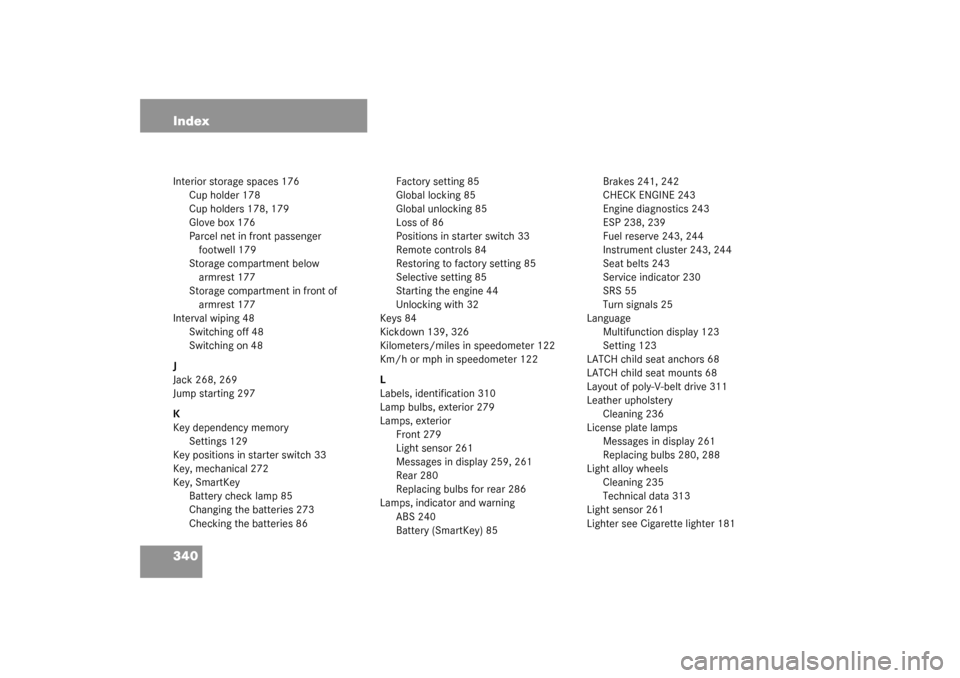

340 IndexInterior storage spaces 176
Cup holder 178
Cup holders 178, 179
Glove box 176
Parcel net in front passenger
footwell 179
Storage compartment below
armrest 177
Storage compartment in front of
armrest 177
Interval wiping 48
Switching off 48
Switching on 48
J
Jack 268, 269
Jump starting 297
K
Key dependency memory
Settings 129
Key positions in starter switch 33
Key, mechanical 272
Key, SmartKey
Battery check lamp 85
Changing the batteries 273
Checking the batteries 86Factory setting 85
Global locking 85
Global unlocking 85
Loss of 86
Positions in starter switch 33
Remote controls 84
Restoring to factory setting 85
Selective setting 85
Starting the engine 44
Unlocking with 32
Keys 84
Kickdown 139, 326
Kilometers/miles in speedometer 122
Km/h or mph in speedometer 122
L
Labels, identification 310
Lamp bulbs, exterior 279
Lamps, exterior
Front 279
Light sensor 261
Messages in display 259, 261
Rear 280
Replacing bulbs for rear 286
Lamps, indicator and warning
ABS 240
Battery (SmartKey) 85Brakes 241, 242
CHECK ENGINE 243
Engine diagnostics 243
ESP 238, 239
Fuel reserve 243, 244
Instrument cluster 243, 244
Seat belts 243
Service indicator 230
SRS 55
Turn signals 25
Language
Multifunction display 123
Setting 123
LATCH child seat anchors 68
LATCH child seat mounts 68
Layout of poly-V-belt drive 311
Leather upholstery
Cleaning 236
License plate lamps
Messages in display 261
Replacing bulbs 280, 288
Light alloy wheels
Cleaning 235
Technical data 313
Light sensor 261
Lighter see Cigarette lighter 181

344 IndexPassenger compartment 203
Fuse box in 303
Inside rear view mirror 38
Interior lighting 104
Parcel net in front passenger
footwell 179
Passenger footwell
Fuse box in 304
Passenger safety see Occupant safety 54
Pedals 197
Phone book
Loading 133
Quick search 133
Phone number
Dialing 133
Redialing 134
Plastic and rubber parts
Cleaning 236
Poly-V-belt drive 327
Layout 311
Positions (Memory function)
Storing into memory 98
Positions (Memory function*)
Recalling from memory 98
Power assistance 198Power seat
Adjusting backrest tilt 36
Adjusting head restraint height 36
Adjusting head restraint tilt 36
Adjusting seat cushion tilt 36
Adjusting seat height 36
Seat fore and aft adjustment 35
Power train 327
Power washer 233
Power windows 158
Blocking of rear door window
operation 69
Convenience feature 159
Side windows 158
Summer opening feature 159
Practical hints
First aid kit 268
Fuses 303
Lamp in center console 244
Lamps in instrument cluster 238
Messages in the display 246
Spare wheel 270
Towing the vehicle 299
Vehicle jack 269
Vehicle tool kit 268
Premium unleaded gasoline 318Problems
While driving 49
Product information 9
Q
Quick search
Phone book 133
R
Radio
Selecting stations 117
Station search 117
Station selection setting 127
Radio transmitters, control and
operation 210
Range (distance to empty)
Calling up 131
Range of sensor
Rear Park Assist* 166
Rapid seat heating, front
Switching on 95
Rapid seat heating, rear
Switching on 96
Reading lamp 29
Rear axle differential lock
Switching on 146

345 Index
Rear bench seat
Foldable 169
Rear door window
Blocking operation 69
Rear fog lamp
Replacing bulbs 287
Switching on 103
Rear lamps see Tail lamps
Rear Park Assist* 165, 327
Cleaning sensors 234
Malfunction 167
Monitoring reach 166
Warning indicators 167
Rear seat head restraints 93
Installing 93
Removing 93
Rear towing eye 302
Rear view mirror automatic antiglare 147
Rear view mirrors see Mirrors
Rear window defroster 155
Activating 155
Deactivating 155
Rear window wiper/washer 48
Reconnecting
Vehicle battery 296Refrigerant
Air conditioning 317
Regular checks 215
Remote controls
SmartKey 84
Remote door unlock
With Tele Aid 190
Remote Vehicle Diagnostics 328
Removing
Cargo area cover 169
Wheel 293
Wiper blades 289
Replacing
Brake lamp bulbs 280
Bulbs 279
Front lamp bulbs 281
Rear lamp bulbs 280, 286
Wiper blades 289
Reset knob in the instrument cluster 119
Resetting
All functions (control system) 119
All functions of a submenu 120
Fuel consumption 131
Service indicator (FSS) 231
Trip odometer 109
Residual heat utilization 328REST (Residual engine heat utilization) 328
Restraint system 328
Restraint system see Infant and child
restraint systems 63, 67
Restraint systems 54
Airbags 54
Child seat recognition 54
Child seats 54
Emergency Tensioning Device (ETD) 54
Lower anchors and tethers for children
(LATCH) 54
Seat belts 54
Returning from off-road driving 209
Rims 313
Roadside assistance
Tele Aid 187
RON 215
RON (Research Octane Number) 328
Roof rack 168
Rotating wheels 226
Rubber parts
Cleaning 236
S
Safety
Occupant 54
Safety belts see Seat belts 40
