2003 MERCEDES-BENZ G500 winter tires

Contents
Climate control .................................. 150
Setting the temperature ............... 152
Adjusting air distribution and
volume ......................................... 153
Defrosting .................................... 154
Air recirculation............................ 154
Rear window defroster ................. 155
Residual engine heat utilization.... 156
Deactivating the climate control
system ......................................... 156
Air conditioning ............................ 157
Rear passenger compartment
adjustable air vents ...................... 157
Power windows.................................. 158
Opening and closing the windows 158
Sliding/pop-up roof ........................... 160
Opening and closing the
sliding/pop-up roof ...................... 160
Driving systems ................................. 162
Cruise control .............................. 162
Rear Park Assist* ......................... 165
Loading.............................................. 168
Roof rack ..................................... 168
Cargo area cover.......................... 168
Enlarged cargo area ..................... 169
Split rear seat bench .................... 169Partition net* (MB Accessory) ...... 171
Loading instructions ..................... 173
Cargo tie-down rings ..................... 175
Useful features ................................... 176
Interior storage spaces ................. 176
Ashtrays........................................ 179
Cigarette lighter ............................ 181
Electrical outlet ............................. 181
Telephone* ................................... 182
Tele Aid ......................................... 183
Garage door opener ...................... 191
Heated steering wheel .................. 194
Operation.......................................... 195
The first 1000 miles (1500 km) .......... 196
Driving instructions ............................ 197
Drive sensibly – save fuel.............. 197
Drinking and driving ...................... 197
Pedals ........................................... 197
Power assistance .......................... 198
Brakes........................................... 198
Driving off ..................................... 199
Parking.......................................... 199
Tires .............................................. 200
Hydroplaning................................. 200Tire traction .................................. 201
Tire speed rating ........................... 201
Winter driving instructions ............ 202
Standing water ............................. 203
Passenger compartment............... 203
Off-road driving ............................. 203
Control and operation of radio
transmitters .................................. 210
Driving abroad .............................. 211
Catalytic converter ....................... 211
Emission control ........................... 212
Coolant temperature .................... 212
At the gas station ............................... 214
Check regularly and
before a long trip .......................... 215
Engine compartment .......................... 216
Hood ............................................. 216
Engine oil ...................................... 217
Transmission fluid level ................ 220
Coolant level ................................. 220
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 222
Battery ............................................... 223

ContentsTires and wheels ................................ 224
Important guidelines .................... 224
Life of tire ..................................... 225
Direction of rotation ..................... 225
Checking tire inflation pressure ... 225
Rotating wheels............................ 226
Winter driving..................................... 228
Winter tires................................... 228
Block heater (Canada only) .......... 228
Snow chains ................................. 229
Maintenance ...................................... 230
Clearing the service indicator....... 230
Service term exceeded................. 230
Calling up the service indicator .... 231
Resetting the service indicator ..... 231
Vehicle care ....................................... 232
Cleaning and care of the vehicle .. 232Practical hints.................................. 237
What to do if … .................................. 238
Lamps in instrument cluster ......... 238
Lamp in center console ................ 244
Messages in the display ............... 246Where will I find ................................ 268
First aid kit ................................... 268
Vehicle tool kit ............................. 268
Vehicle jack.................................. 269
CD-changer .................................. 269
Spare wheel ................................. 270
Unlocking/locking in an emergency .. 272
Unlocking the vehicle ................... 272
Locking the vehicle ...................... 273
Changing batteries in
the SmartKey ............................... 273
Fuel filler flap ............................... 274
Manually unlocking the
transmission selector lever .......... 275
Opening/closing in an emergency ..... 276
Sliding/pop-up roof ..................... 276
Brush guard* ..................................... 277
Lowering and raising brush guard 278
Replacing bulbs ................................. 279
Bulbs ............................................ 279
Replacing bulbs for front lamps ... 281
Replacing bulbs for rear lamps..... 286
Replacing wiper blades ...................... 289
Removal ....................................... 289
Installation ................................... 289Flat tire .............................................. 290
Preparing the vehicle ................... 290
Mounting the spare wheel............ 291
Battery............................................... 295
Charging the battery .................... 295
Disconnecting the battery ............ 296
Reconnecting the battery............. 296
Jump starting ..................................... 297
Towing the vehicle ............................. 299
Transporting the vehicle .............. 301
Towing the vehicle with
various faults ............................... 301
Front towing eye .......................... 302
Rear towing eye ........................... 302
Freeing a stranded vehicle ........... 302
Fuses ................................................. 303
Fuse box in passenger
compartment ............................... 303
Fuse box in battery box................ 303
Fuse box in front passenger
footwell ........................................ 304
Fuse box in middle tunnel ............ 305

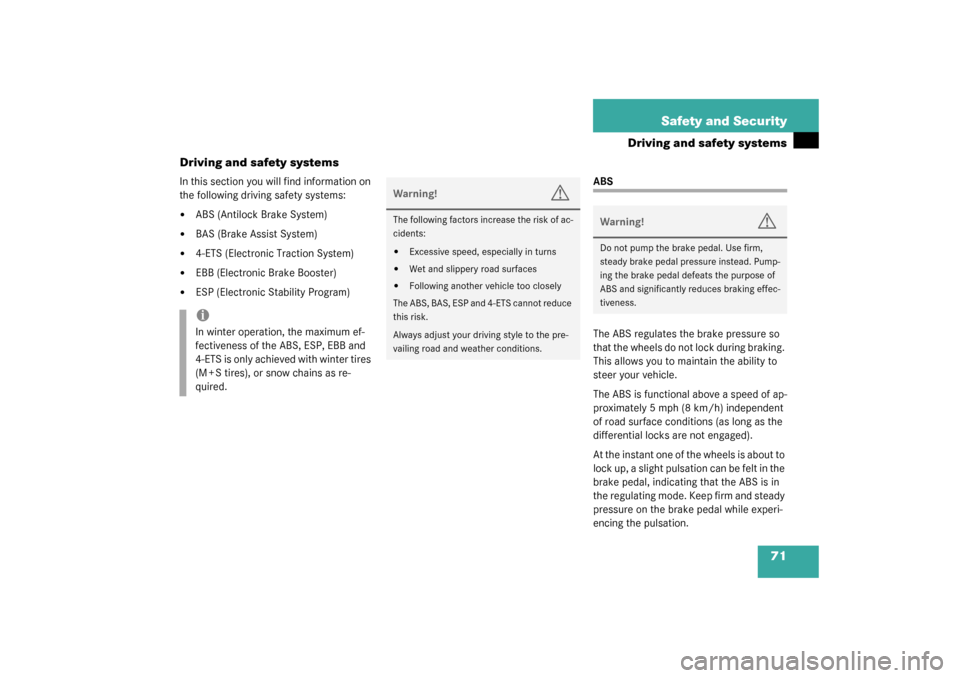

71 Safety and Security
Driving and safety systems
Driving and safety systems
In this section you will find information on
the following driving safety systems:

ABS (Antilock Brake System)


BAS (Brake Assist System)


4-ETS (Electronic Traction System)


EBB (Electronic Brake Booster)


ESP (Electronic Stability Program)
ABS
The ABS regulates the brake pressure so
that the wheels do not lock during braking.
This allows you to maintain the ability to
steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions (as long as the
differential locks are not engaged).
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode. Keep firm and steady
pressure on the brake pedal while experi-
encing the pulsation.
iIn winter operation, the maximum ef-
fectiveness of the ABS, ESP, EBB and
4-ETS is only achieved with winter tires
(M + S tires), or snow chains as re-
quired.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP and 4-ETS cannot reduce
this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
ABS and significantly reduces braking effec-
tiveness.

195 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Battery
Tires and wheels
Winter driving
Maintenance
Vehicle care

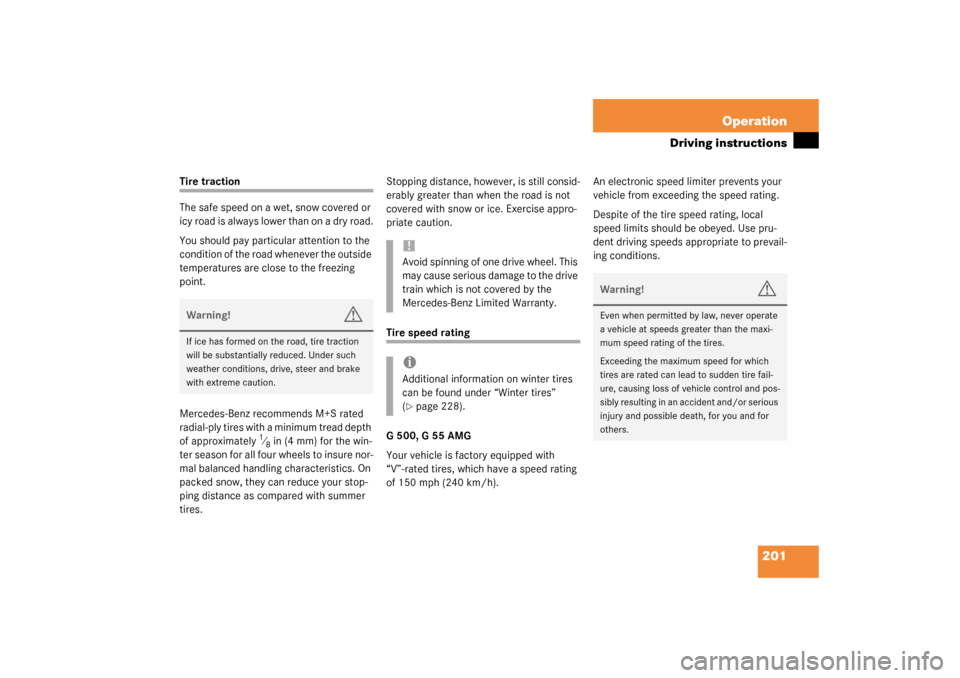

201 Operation
Driving instructions
Tire traction
The safe speed on a wet, snow covered or
icy road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside
temperatures are close to the freezing
point.
Mercedes-Benz recommends M+S rated
radial-ply tires with a minimum tread depth
of approximately
1⁄8in (4 mm) for the win-
ter season for all four wheels to insure nor-
mal balanced handling characteristics. On
packed snow, they can reduce your stop-
ping distance as compared with summer
tires.Stopping distance, however, is still consid-
erably greater than when the road is not
covered with snow or ice. Exercise appro-
priate caution.
Tire speed rating
G500, G55AMG
Your vehicle is factory equipped with
“V”-rated tires, which have a speed rating
of 150 mph (240 km/h).An electronic speed limiter prevents your
vehicle from exceeding the speed rating.
Despite of the tire speed rating, local
speed limits should be obeyed. Use pru-
dent driving speeds appropriate to prevail-
ing conditions.
Warning!
G
If ice has formed on the road, tire traction
will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
!Avoid spinning of one drive wheel. This
may cause serious damage to the drive
train which is not covered by the
Mercedes-Benz Limited Warranty.iAdditional information on winter tires
can be found under “Winter tires”
(page 228).
Warning!
G
Even when permitted by law, never operate
a vehicle at speeds greater than the maxi-
mum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire fail-
ure, causing loss of vehicle control and pos-
sibly resulting in an accident and/or serious
injury and possible death, for you and for
others.

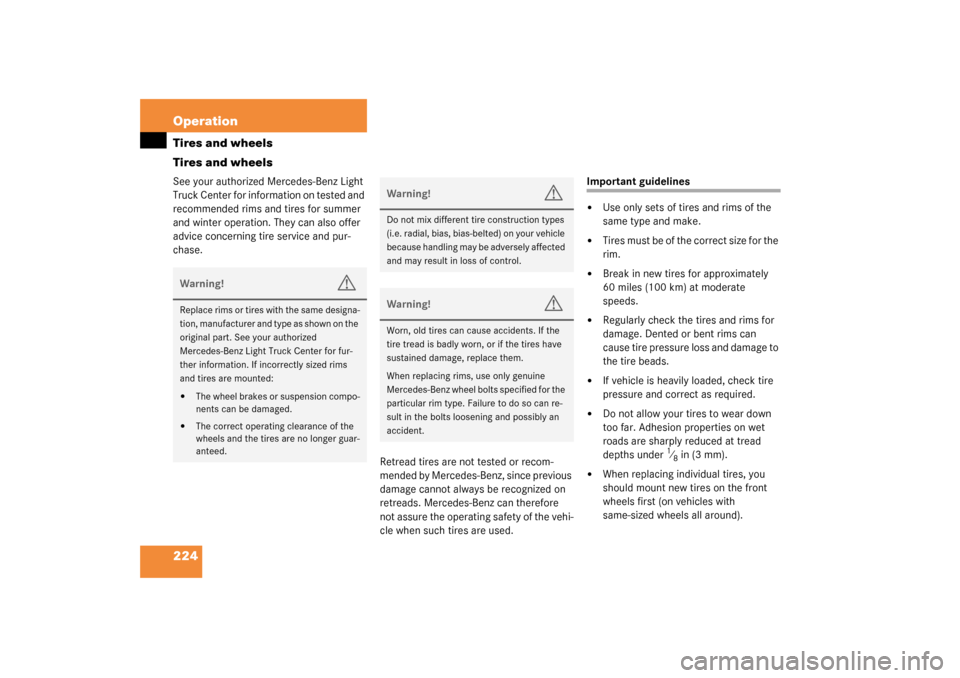

224 OperationTires and wheels
Tires and wheelsSee your authorized Mercedes-Benz Light
Truck Center for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and pur-
chase.
Retread tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. Mercedes-Benz can therefore
not assure the operating safety of the vehi-
cle when such tires are used.
Important guidelines

Use only sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire pressure loss and damage to
the tire beads.


If vehicle is heavily loaded, check tire
pressure and correct as required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1⁄8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See your authorized
Mercedes-Benz Light Truck Center for fur-
ther information. If incorrectly sized rims
and tires are mounted:

The wheel brakes or suspension compo-
nents can be damaged.


The correct operating clearance of the
wheels and the tires are no longer guar-
anteed.
Warning!
G
Do not mix different tire construction types
(i.e. radial, bias, bias-belted) on your vehicle
because handling may be adversely affected
and may result in loss of control.Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, use only genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can re-
sult in the bolts loosening and possibly an
accident.

228 OperationWinter driving
Winter drivingBefore the onset of winter, have your vehi-
cle winterized at an authorized
Mercedes-Benz Light Truck Center. This
service includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent/antifreeze which is formulated
for below freezing temperatures
(page 321).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to ensure
that the engine can be started even at
low ambient temperatures.


Tire change. We recommend M+S rat-
ed radial-ply tires on all four wheels for
the winter season.
Winter tires
Always use winter tires at temperatures
below 39°F (4°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum ef-
fectiveness of the ABS, ESP, EBB and
4-ETS in winter operation.
For safe handling, ensure that all winter
tires mounted are of the same make and
have the same tread design.
Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your ve-
hicle, you must place a notice to this effect
where it will be seen by the driver. Such no-tices are available from your tire dealer or
from any authorized Mercedes-Benz Light
Truck Center.
Block heater (Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Warning!
G
Winter tires with a tread depth under 0.16 in
(4 mm) must be replaced. They are no long-
er suitable for winter operation.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Light Truck Center.

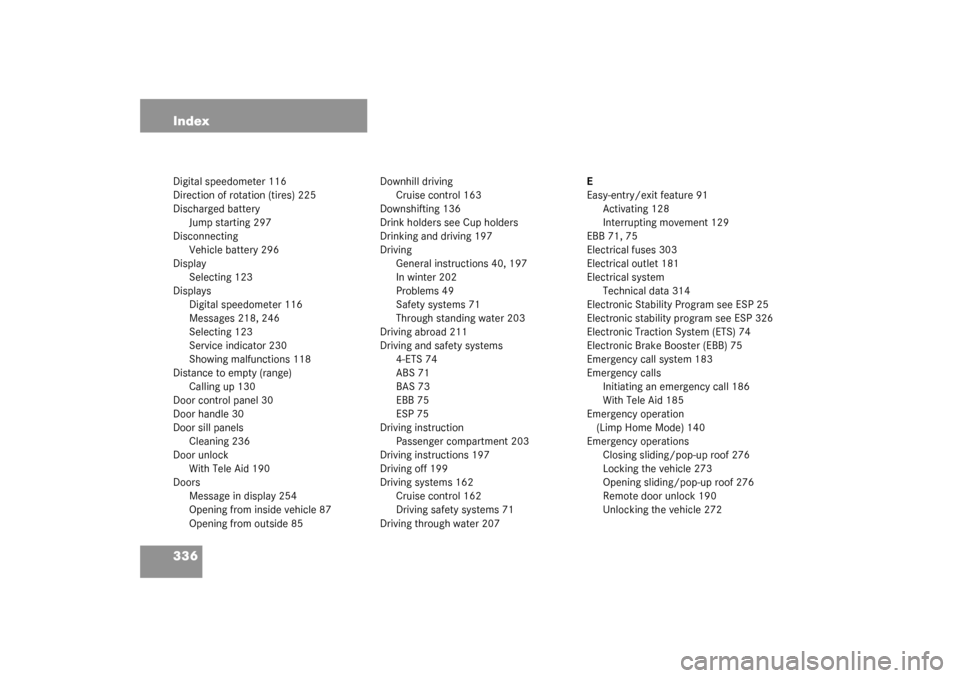

336 IndexDigital speedometer 116
Direction of rotation (tires) 225
Discharged battery
Jump starting 297
Disconnecting
Vehicle battery 296
Display
Selecting 123
Displays
Digital speedometer 116
Messages 218, 246
Selecting 123
Service indicator 230
Showing malfunctions 118
Distance to empty (range)
Calling up 130
Door control panel 30
Door handle 30
Door sill panels
Cleaning 236
Door unlock
With Tele Aid 190
Doors
Message in display 254
Opening from inside vehicle 87
Opening from outside 85Downhill driving
Cruise control 163
Downshifting 136
Drink holders see Cup holders
Drinking and driving 197
Driving
General instructions 40, 197
In winter 202
Problems 49
Safety systems 71
Through standing water 203
Driving abroad 211
Driving and safety systems
4-ETS 74
ABS 71
BAS 73
EBB 75
ESP 75
Driving instruction
Passenger compartment 203
Driving instructions 197
Driving off 199
Driving systems 162
Cruise control 162
Driving safety systems 71
Driving through water 207E
Easy-entry/exit feature 91
Activating 128
Interrupting movement 129
EBB 71, 75
Electrical fuses 303
Electrical outlet 181
Electrical system
Technical data 314
Electronic Stability Program see ESP 25
Electronic stability program see ESP 326
Electronic Traction System (ETS) 74
Electronic Brake Booster (EBB) 75
Emergency call system 183
Emergency calls
Initiating an emergency call 186
With Tele Aid 185
Emergency operation
(Limp Home Mode) 140
Emergency operations
Closing sliding/pop-up roof 276
Locking the vehicle 273
Opening sliding/pop-up roof 276
Remote door unlock 190
Unlocking the vehicle 272
