2003 MERCEDES-BENZ CL500 Owner's Manual

217 Controls in detail
Useful features
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen vehicle tracking services
In the event your vehicle was stolen:

Report the incident to the police.
The police will issue a numbered inci-
dent report.

Give this number to the Mercedes-Benz
Response Center along with the pass-
word which was issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is lo-
cated, the Response Center will con-
tact the local law enforcement and you.
The vehicle’s location will only be pro-
vided to law enforcement.
Garage door opener
The built-in remote control is capable of
operating up to three separately controlled
objects.
1Indicator lamp
2, 3, 4Signal transmitter key
5Hand-held remote control trans-
mitter (not part of vehicle equip-
ment)
iThe remote door unlocking feature is
available if the relevant cellular phone
network is available.
The SOS button will flash and the mes-
sage
EMERGENCY CALL –
CALL CONNECTED
will appear in the mul-
tifunction display to indicate receipt of
the door unlock command.
Once the vehicle is unlocked, a Re-
sponse Center specialist will attempt
to establish voice contact with the ve-
hicle occupants.
If the trunk button was pressed for
more than 20 seconds before door un-
lock authorization was received by the
Response Center, you must wait
15 minutes before pressing the trunk
lock again.

218 Controls in detailUseful features
Programming or reprogramming the in-
tegrated remote control
Turn key in the starter switch to
position1 or2.

Hold the end of the hand-held transmit-
ter of the device you wish to train
approximately 2 to 5 inches (5 cm to
12 cm) away from the surface of the in-
tegrated remote control located on the
inside rear view mirror, keeping the in-
dicator lamp in view.

Using both hands, simultaneously push
the hand-held transmitter button and
the desired integrated remote trunk lid
switch. Do not release the buttons until
completing next step.
Warning!
G
When programming a garage door opener,
the door moves up or down.
When programming or operating the remote
control, make sure there is no possibility of
anyone being injured by the moving door.iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact your authorized
Mercedes-Benz Center, or call
Mercedes-Benz Customer Assistance
Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference.
(2) This device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

219 Controls in detail
Useful features

The indicator lamp on the integrated
remote control will flash, first slowly
and then rapidly. The rapid flashing
lamp indicates successful program-
ming of the new frequency signal.

When the indicator lamp flashes rapid-
ly, release both buttons.

To program the remaining two buttons,
repeat the above steps.Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion of
this text. (A second person may make the
following training procedures quicker and
easier.)

Locate training button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
If there is difficulty locating the trans-
mitting button, refer to garage door
opener operator’s manual.

Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.You have 30 seconds time to initiate the
following step.

Firmly press and release the pro-
grammed integrated remote control
transmit button.

Press and release same button a sec-
ond time to complete the training pro-
cess.
Some garage door openers may require
you to do this procedure a third time to
complete the training.

Confirm the garage door operation by
pressing the programmed button on
the integrated remote control transmit-
ter.
iIf, after several attempts, you do not
successfully program the integrated re-
mote control device to learn the signal
of the hand-held transmitter, the ga-
rage door opener could be equipped
with the “rolling code feature”.

220 Controls in detailUseful featuresCanadian programming
During programming, your hand-held
transmitter may automatically stop trans-
mitting.
Continue to press and hold the inte-
grated remote control transmitter but-
ton (refer to steps two through four in
the “Programming” portion) while you
repeatedly press (“cycle”) your
hand-held transmitter every two sec-
onds until the frequency signal has
been learned.
Upon successful training, the indicator
lamp will flash slowly and then rapidly
after several seconds.Operating the remote control

Turn key in starter switch to position1
or2.

Select and press the appropriate but-
ton to activate the remote controlled
device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.Erasing the remote control memory

Turn key in ignition to position1 or2.

Simultaneously hold down the left and
right side buttons for approximately
20 seconds, or until the indicator lamp
blinks rapidly.
The codes of all three channels are
erased.iIf you sell your vehicle, erase the codes
of all three channels.

221 Controls in detail
Useful features

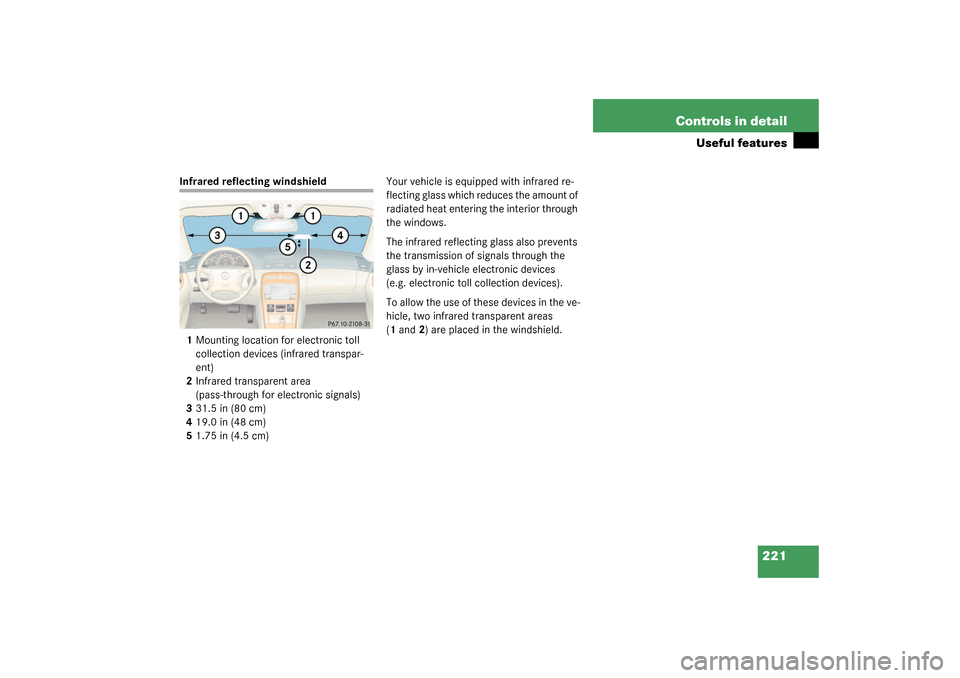

Infrared reflecting windshield
1Mounting location for electronic toll
collection devices (infrared transpar-
ent)
2Infrared transparent area
(pass-through for electronic signals)
331.5 in (80 cm)
419.0 in (48 cm)
51.75 in (4.5 cm)Your vehicle is equipped with infrared re-
flecting glass which reduces the amount of
radiated heat entering the interior through
the windows.
The infrared reflecting glass also prevents
the transmission of signals through the
glass by in-vehicle electronic devices
(e.g. electronic toll collection devices).
To allow the use of these devices in the ve-
hicle, two infrared transparent areas
(1and2) are placed in the windshield.

222

223 Operation
The first 1000 miles (1500 km)
Driving instructions
At the gas station
Engine compartment
Tires and wheels
Winter driving
Maintenance
Vehicle care

224OperationThe first 1000 miles (1500 km)In the “Operation” section you will find de-
tailed information on operating, maintain-
ing and caring for your vehicle.
The first 1000 miles (1500 km)The more cautiously you treat your vehicle
during the break-in period, the more satis-
fied you will be with its performance later
on.

Drive your vehicle during the first
1000 miles (1500 km) at varying but
moderate vehicle and engine speeds.


During this period, avoid heavy loads
(full throttle driving) and excessive en-
gine speeds (no more than
2⁄3 of maxi-
mum rpm in each gear).


Avoid accelerating by kick-down.


Do not attempt to slow the vehicle
down by shifting to a lower gear using
the selector lever.


Select gear positions3,2or1 only
when driving at moderate speeds (for
hill driving).
After 1000 miles (1500 km), you may
gradually increase vehicle and engine
speeds to the permissible maximum.
!Additional instructions for AMG vehi-
cles:

During the first 1000 miles
(1500 km) do not exceed a speed
of 85 mph (140 km / h).


During this period, avoid engine
speeds above 4500 rpm in each
gear.
!All of the above instructions, as may
apply to your vehicle type, also apply
when driving the first 1000 miles
(1500 km) after the engine or the rear
differential has been replaced.iAlways obey applicable speed limits.
