2003 MERCEDES-BENZ C320 COUPE Owner's Manual

113 Controls in detail
Control system

Press button
è
or
ÿ
repeatedly
until you see the malfunction message
memory in the display.
No malfunction messages
If no malfunctions have occurred, the mes-
sage in the display is:
NO MALFUNCTION
Malfunctions have occurred
If malfunctions have occurred, you will see
the number of malfunctions in the display:
1Number of malfunctions
Press button
k
or
j
.
The stored messages will now be dis-
played in order. See the “Practical
hints” section for malfunction and
warning messages (
page 252).Should any malfunctions occur while driv-
ing, the number of malfunctions will reap-
pear in the display when the key in the
starter switch is turned to position0 or re-
moved from the starter switch.
iThe message memory will be cleared
when you turn the key in the starter
switch to position1 or2. You will then
only see Priority 1 malfunctions
(page 252).

114 Controls in detailControl systemSettings menu
In the
SETTINGS
menu there are two func-
tions:


The function
RESET TO FACTORY SET-
TINGS
, with which you can reset all the
settings to the original factory settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press button
è
or
ÿ
repeatedly
until the
SETTINGS
menu is seen in the
display.Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset knob in the instrument
cluster (
page 22) for approximately
three seconds.
In the display you will see the request
to press the reset knob again to con-
firm.

Press the reset knob again.
The functions of all the submenus will
reset to factory settings.Submenus in the Settings menu

Press button
k
or
j
.
In the display you see the collection of
the submenus.

Press button
ç
.
The selection marker moves to the next
submenu.
The submenus are arranged by hierarchy.
Scroll down with theç
button, scroll up
with the
æ
button.
Move within the submenus with the
k

or
j
button to the individual functions.
The settings themselves are made with
buttonæ
or
ç
.
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset knob a second
time.

115 Controls in detail
Control system
Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.
Move to a function in the submenu.

Press the reset knob in the instrument
cluster for approximately three sec-
onds.
In the display you will see the request
to press the reset knob again to con-
firm.

Press the reset knob again.
All functions of the submenu will reset
to factory settings.
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.
INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Set time (hours)
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Set time (minutes)
Set locator lighting
Set automatic locking
Set key dependency
Select time display mode
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirror
Select temperature display
mode
Interior lighting delayed shut-off
Select speedometer display
modeSelect languageSelect display (speed display or
outside temperature)

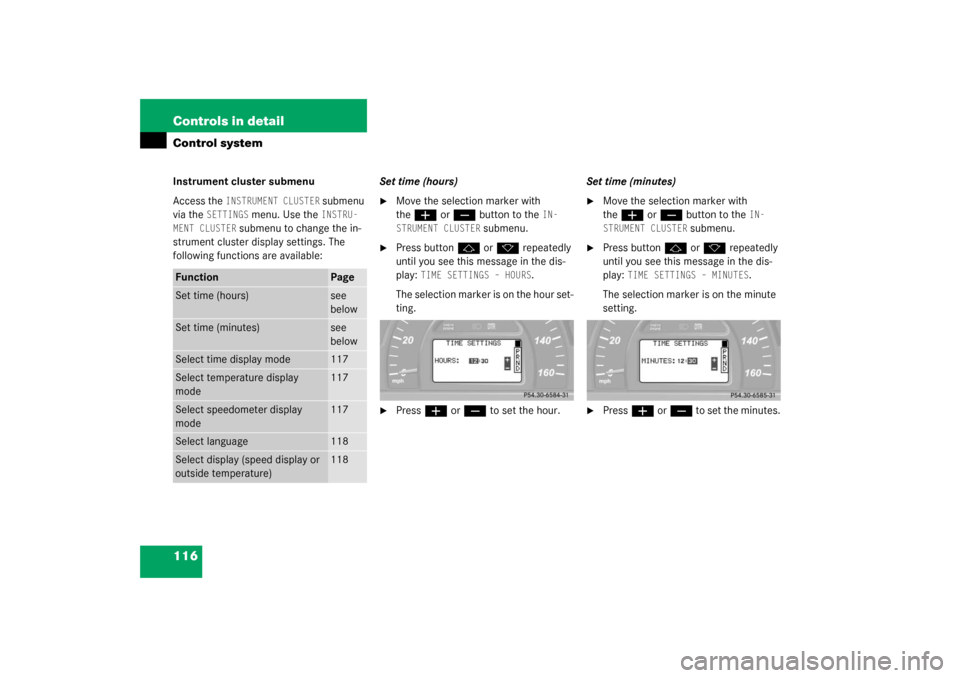

116 Controls in detailControl systemInstrument cluster submenu
Access the
INSTRUMENT CLUSTER
submenu
via the
SETTINGS
menu. Use the
INSTRU-
MENT CLUSTER
submenu to change the in-
strument cluster display settings. The
following functions are available:Set time (hours)

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TIME SETTINGS – HOURS
.
The selection marker is on the hour set-
ting.

Press
æ
or
ç
to set the hour.Set time (minutes)

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TIME SETTINGS – MINUTES
.
The selection marker is on the minute
setting.

Press
æ
or
ç
to set the minutes.
Function
Page
Set time (hours)
see
below
Set time (minutes)
see
below
Select time display mode
117
Select temperature display
mode
117
Select speedometer display
mode
117
Select language
118
Select display (speed display or
outside temperature)
118

117 Controls in detail
Control system
Selecting time display mode
Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
12/24 Hour
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set the
12h
or
24h
time display mode.Selecting temperature display mode

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TEMP. INDICATOR
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set temperature
unit to degrees Celsius (°C) or degrees
Fahrenheit (°F).Selecting speedometer display mode

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
DISPLAY VALUES IN
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set speedome-
ter unit to
km or
miles
.

118 Controls in detailControl systemSelecting language
Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
TEXT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the lan-
guage to be used for the multifunction
display messages.
Available languages:


German


English


Italian


French


SpanishSelecting display (speed display or out-
side temperature)

Move the selection marker with
the
æ
or
ç
button to the
IN-
STRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SELECT DISPLAY
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the dis-
play permanently shown in the multi-
function display.

119 Controls in detail
Control system
Lighting submenu
Access the
LIGHTING
submenu via the
SET-
TINGS
menu. Use the
LIGHTING
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
LAMP CIRCUIT HEADLAMP MODE
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:


Parking lamps and low beam head-
lamps


License plate lamps in low ambient
light conditions
Function
Page
Set daytime running lamp mode
(USA only)
see
below
Set locator lighting
120
Exterior lamps delayed shut-off
120
Interior lighting delayed shut-off
121
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the LIGHTING
submenu to factory settings
(
page 115) will not reset the daytime
running lamp mode.
In the display you will then see the mes-
sage:
LIGHTING – CANNOT BE COM-
PLETELY RESET TO FACTORY SETTINGS
WHILE DRIVING
.

120 Controls in detailControl systemSetting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position
U
, the locator lighting fea-
ture is activated, and the vehicle is un-
locked by remote control:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
To activate locator lighting:

Make sure the function
LOCATOR
LIGHTING
is set.

Turn the exterior lamp switch to posi-
tion
U
.
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired setting.
The locator lighting will be switched on
or off.
Setting night security illumination
(Exterior lamps delayed shut-off)
Use the
HEADLAMPS DELAYED SHUT-OFF

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed.When the delayed shut-off feature is acti-
vated and the exterior lamp switch is in po-
sition
U
, the following lamps will
remain lit after you remove the key from
the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
To activate night security illumination:

Select delayed shut-off period (see be-
low).

Turn the exterior lamp switch to posi-
tion
U
.
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the key, the lamps will automatical-
ly switch off after 60 seconds.
