2003 MERCEDES-BENZ C CLASS COUPE rear view mirror

ContentsControls in detail ............................... 81
Locking and unlocking ......................... 82 SmartKey ........................................ 82
Opening the doors from the inside . 85
Opening the trunk lid ...................... 85
Closing the trunk lid ....................... 86
Trunk lid emergency release .......... 86
Automatic central locking .............. 87
Locking and unlocking from
the inside ....................................... 87
Seats .................................................... 89 Easy-entry/exit feature* ................ 89
Head restraints............................... 90
Heated seats* ................................ 91
Memory function* ................................ 93 Storing positions into memory ....... 94
Recalling positions from memory ... 94
Storing exterior rear view mirror
parking position ............................. 95
Lighting ................................................ 96 Exterior lamp switch ....................... 96
Combination switch ........................ 99
Hazard warning flasher ................... 99
Interior lighting ............................. 100 Instrument cluster ............................. 102
Instrument cluster illumination .... 102
Coolant temperature gauge ......... 102
Trip odometer .............................. 103
Tachometer .................................. 103
Outside temperature indicator ..... 104
Control system .................................. 105 Multifunction display .................... 105
Multifunction steering wheel ........ 106
Menus .......................................... 108
Standard display menu ................ 110
AUDIO menu ................................ 110
NAV menu .................................... 112
Malfunction memory menu .......... 112
Settings menu .............................. 114
Trip computer menu ..................... 125
TEL menu* ................................... 126
Manual transmission ......................... 130 Shifting into reverse ..................... 131
Automatic transmission* ................... 132 One-touch gearshifting ................. 133
Gear ranges .................................. 134
Gear selector lever position ......... 135
Program mode selector switch ..... 136
Accelerator position ..................... 137 Emergency operation
(Limp Home Mode) ...................... 137
Good visibility .................................... 138 Rear view mirror ........................... 138
Headlamp cleaning system* ........ 140
Sun visors .................................... 141
Climate control .................................. 142 Setting the temperature ............... 145
Adjusting air distribution and
volume ......................................... 145
Defrosting .................................... 146
Air recirculation mode .................. 146
Rear window defroster ................. 147
Air conditioning ............................ 148
Ventilated storage compartment . 148
Rear passenger compartment
adjustable air vents ...................... 149
Deactivating the climate control
system ......................................... 149
Automatic climate control*
(Canada only) .................................... 150 Setting the temperature ............... 152
Adjusting air distribution .............. 153
Adjusting air volume .................... 153
Maximum cooling MAXCOOL ....... 154
Defrosting .................................... 154

26 At a glanceOverhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
100
2
Panorama sliding/pop-up
roof*
186
3
Right reading lamp on/off
101
4
Interior lighting control
100
5
Hands-free microphone for
Tele Aid* (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
200
6
Rear view mirror
39,
138
7
Garage door opener
209
8
Left reading lamp on/off
101
9
Tele Aid* (emergency call
system) button
204

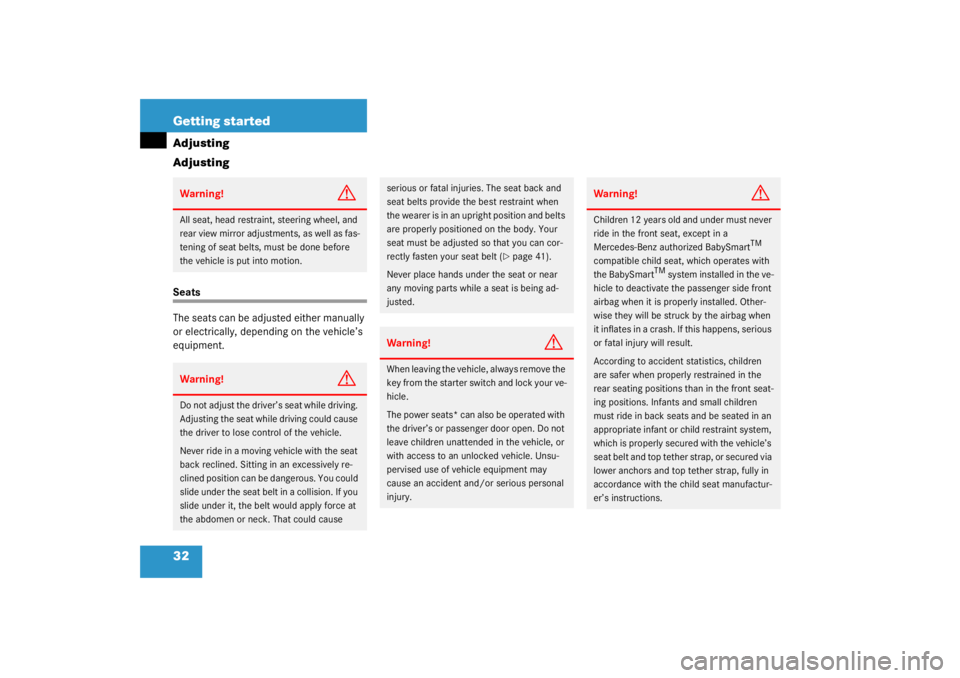

32 Getting startedAdjusting
AdjustingSeats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause
serious or fatal injuries. The seat back and
seat belts provide the best restraint when
the wearer is in an upright position and belts
are properly positioned on the body. Your
seat must be adjusted so that you can cor-
rectly fasten your seat belt (
page 41).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock your ve-
hicle.
The power seats* can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.

34 Getting startedAdjusting1Release knob
Manually adjust the height of the head
restraint by pulling it upward. To lower
the head restraint, push release knob 1
and press down on the head restraint.
Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information can be found in the
“Controls in detail” section (
page 89) Power seat*

Turn the key in the starter switch to
position
1 or 2.
or

Open the driver’s or front passenger
door.
The seat adjustment switches are located
in each front door.
1 Head restraint height
2 Seat height
3 Seat cushion tilt
4 Seat fore and aft adjustment
5 Backrest tilt Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow
4.
Adjust to a comfortable seating posi-
tion that still allows you to reach the
accelerator / brake pedal safely. The
position should be as far to the rear as
possible, consistent with ability to
properly operate controls.iWhen moving the seat, be sure that
there are no items in the footwell or be-
hind the seat. Otherwise you could
damage the seat.
With the memory function*
(page 93) you can store seat posi-
tions together with settings for the
steering wheel and the exterior rear
view mirrors.

39
Getting started
Adjusting
Steering column, lengthen or shorten
Move stalk forward or backward in the
direction of arrow
1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move stalk up or down in the direction
of arrow 2. Make sure that your legs
can move freely and that all the dis-
plays (including malfunction and indi-
cator lamps) on the instrument cluster
are clearly visible.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions. Inside rear view mirror

Manually adjust the inside rear view
mirror.
More information can be found in the
“Controls in detail” section (
page 138).
iWith the memory function*
(page 93) you can store settings for
the steering wheel together with set-
tings for the exterior rear view mirrors
and seat positions.
Warning!
G
In the case of an accident liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

40 Getting startedAdjustingExterior rear view mirrorsThe buttons are located above the exterior
lamp switch.
1 Adjustment button
2 Passenger side mirror
3 Driver’s side mirror

Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.

Press button 3 for the left mirror or
button 2 for the right mirror.

Push adjustment button 1 up, down,
left or right according to the setting de-
sired.
More information can be found in the
“Controls in detail” section (
page 138).
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes. !Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state by applying plenty of water.
iWith the memory function*
(page 93) you can store settings for
the exterior rear view mirrors together
with seat positions and settings for the
steering wheel.
!If an exterior rear view mirror housing
is forcibly pushed forward or backward,
reposition it by applying firm pressure
until it snaps into place. The mirror
housing is now properly positioned and
you can adjust the mirror normally.

93
Controls in detail
Memory function*
Memory function*
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per key.
The following settings are saved for each
stored position:

Driver’s seat and backrest position


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position


Front passenger seat position
These key-dependent memory settings
can be deactivated if desired
(
page 124).
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see air-
bag section (
page 57) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

94 Controls in detailMemory function*1Memory button
2 Stored position button
Make sure that the ignition is switched
on or the relevant door is open and the
SmartKey is inserted in the starter
switch.
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 32).

Turn button 2 to selected memory po-
sition.

Press memory button 1.

Release memory button and push
button 2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Turn button 2 to selected memory po-
sition.

Press and hold button 2 until the seat,
steering wheel and rear view mirrors
have fully moved to the stored posi-
tions.iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move backrest to an upright position.
