2003 MERCEDES-BENZ C CLASS COUPE belt

Contents
Introduction ......................................... 9
Product information ............................... 9
Operator’s Manual ............................... 10 Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership .... 12
Operating your vehicle outside
the USA or Canada ......................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16 Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects ...................... 18 Reporting Safety Defects ............... 18
At a glance .......................................... 19
Cockpit .................................................20
Instrument cluster ................................22
Multifunction steering wheel ................24
Center console .....................................25
Overhead control panel ........................26
Door control panel ................................27Getting started ...................................29
Unlocking .............................................30 Unlocking with the SmartKey ..........30
Adjusting ..............................................32 Seats ...............................................32
Steering wheel ................................37
Mirrors ............................................39
Driving ..................................................41 Fastening the seat belt ...................41
Starting the engine .........................44
Switching on headlamps .................47
Turn signals and high beam ............47
Windshield wipers ...........................48
Problems while driving ....................50 Parking and locking .............................. 51
Parking brake .................................. 51
Switching off headlamps ................. 52
Turning off engine ........................... 52
Safety and Security ........................... 55
Occupant safety ................................... 56Airbags ........................................... 57
Seat belts ....................................... 62
Children in the vehicle .................... 65
Panic alarm* ........................................ 72 Activating ........................................ 72
Deactivating .................................... 72
Driving safety systems ......................... 73 ABS ................................................. 73
BAS ................................................. 74
ESP ................................................. 75
Anti-theft systems ................................ 78 Immobilizer ..................................... 78
Anti-theft alarm system* ................ 78
Tow-away alarm* ............................ 79

Contents
Technical data................................. 305
Spare parts service ............................ 306
Warranty coverage ............................. 307 Loss of Service and Warranty
Information Booklet ..................... 307
Identification labels ........................... 308 Certification label ......................... 308
Vehicle Identification Number
(VIN) ............................................. 308
Identification labels and numbers 308
Layout of poly-V-belt drive ................. 309 C 230 Kompressor ....................... 309
C 320 ........................................... 309
Engine ................................................ 310
Rims and Tires ................................... 311 Same size tires ............................. 311
Mixed size tires ............................ 312
Spare wheel ................................. 313 Electrical system ................................ 314
Main Dimensions ................................ 315
Weights .............................................. 316
Fuels, coolants, lubricants etc. .......... 317
Capacities ..................................... 317
Engine oils .................................... 319
Engine oil additives ....................... 319
Air conditioning refrigerant .......... 319
Brake fluid .................................... 319
Premium unleaded gasoline ......... 320
Fuel requirements ........................ 320
Gasoline additives ........................ 321
Coolants ...................................... 321
Windshield and headlamp
washer system ............................. 324
Consumer information ....................... 325 Uniform tire quality grading ......... 325
Technical terms ...............................327Index .................................................333

23
At a glance
Instrument cluster
Item
Page
1
Reset knob for:

Resetting trip odome-
ter
103


Instrument cluster illu-
mination
102


Resetting individual
settings
114
2
Tachometer with:?
Engine malfunction
indicator lamp
250
-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
247
;
Brake warning
lamp, except Cana-
da
249
3
Brake warning
lamp, Canada only
249
Item
Page
3
Speedometer with:L
Left turn signal indi-
cator lamp
K
Right turn signal in-
dicator lamp
v
Electronic Stability
Program (ESP)
warning lamp
246
A
High beam head-
lamp indicator
99
E
Indicator lamp with-
out function
1
1The indicator lamp illuminates briefly when you
turn the key in the starter switch to position
2
DTRIndicator lamp with-
out function
1
Item
Page
4
Multifunction display
with:Trip odometer
103
Main odometerOutside temperature dis-
play
104
Digital clock
116
5
Display for program
mode and selector lever
position
135
136
6
Fuel gauge with:Fuel reserve warning lamp
250
<
Seat belt nonusage
warning lamp
250
1
Supplemental re-
straint system indi-
cator lamp
248

32 Getting startedAdjusting
AdjustingSeats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause
serious or fatal injuries. The seat back and
seat belts provide the best restraint when
the wearer is in an upright position and belts
are properly positioned on the body. Your
seat must be adjusted so that you can cor-
rectly fasten your seat belt (
page 41).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock your ve-
hicle.
The power seats* can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.

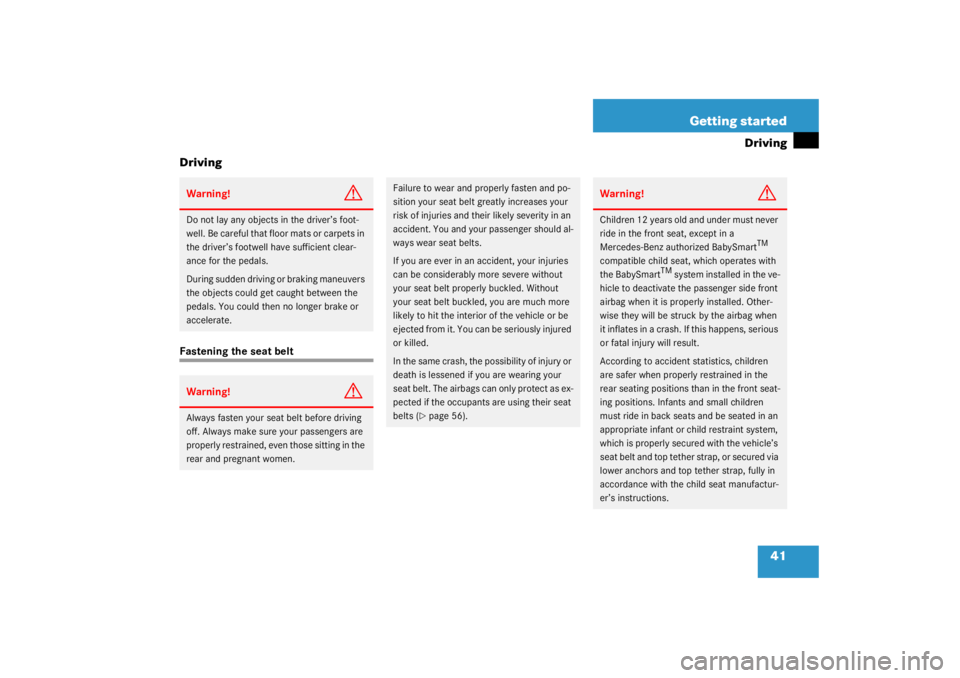

41
Getting started
Driving
Driving
Fastening the seat beltWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passenger should al-
ways wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The airbags can only protect as ex-
pected if the occupants are using their seat
belts (
page 56).
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.

42 Getting startedDriving
The seat belt presenter for driver and pas-
senger makes it easier to put on the seat
belt.1 Seat belt presenter
Manually adjust the seat belt presenter
to the desired position
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint. Warning!
G
Never ride in a moving vehicle with the seat
backrest reclined. Sitting in an excessively
reclined position can be dangerous. You
could slide under the seat belt in a collision.
If you slide under it, the belt would apply
force at the abdomen or neck. That could
cause serious or even fatal injuries. The seat
backrest and seat belt provide the best re-
straint when the wearer is in an upright po-
sition and the belt is properly positioned on
the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt - even
those in the rear.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 60).
iThe seat belt presenter must be put
back to its original position before lean-
ing the seat backrest toward the rear or
letting someone enter the rear passen-
ger compartment.

43
Getting started
Driving
1
Latch plate
2 Release button
3 Buckle
With a smooth motion, pull the belt
from the belt outlet.

Place the belt over your shoulder.

Push latch plate 1 into buckle 3 until it
clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Belt outlet height adjustment
1 Button for belt outlet height adjust-
ment

To raise, slide belt outlet upward.

To lower, press button 1 and slide belt
outlet downward. Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck or pass under the
arm). For this purpose, you can adjust
the height of the belt outlet.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time.


Check your seat belt during travel to
ensure that it is properly positioned.

44 Getting startedDriving

Ensure that the seat belt is always fit-
ted snugly. You should avoid wearing
bulky clothing, such as winter coats,
when traveling in the vehicle.
Starting the engineManual transmission
Gearshift pattern for manual transmission
Make sure that the gearshift lever is in
Neutral position.

Do not depress accelerator.

Fully depress clutch pedal.
Otherwise the engine cannot be start-
ed due to the integrated safety inter-
lock.
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced by
an authorized Mercedes-Benz Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.
