2003 MERCEDES-BENZ C CLASS COUPE display

203
Controls in detail
Useful features
function display. All information relevant to
the emergency, such as the location of the
vehicle (determined by the GPS satellite lo-
cation system), vehicle model, identifica-
tion number and color are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
When a voice connection is established the
audio system mutes and the message TELE AID – EMERGENCY CALL ACTIVE
ap-
pears in the multifunction display. The Re-
sponse Center will attempt to determine
more precisely the nature of the accident
provided they can speak to an occupant of
the vehicle. The Tele Aid system is available if:


it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the response cen-
teriLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the re-
sponse center.
Warning!
G
If the indicator lamp in the SOS button is il-
luminated continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
EMERGENCY CALL –
CALL FAILED appears in the multifunction
display for approx. 10 seconds.
Should this occur, assistance must be sum-
moned by other means.

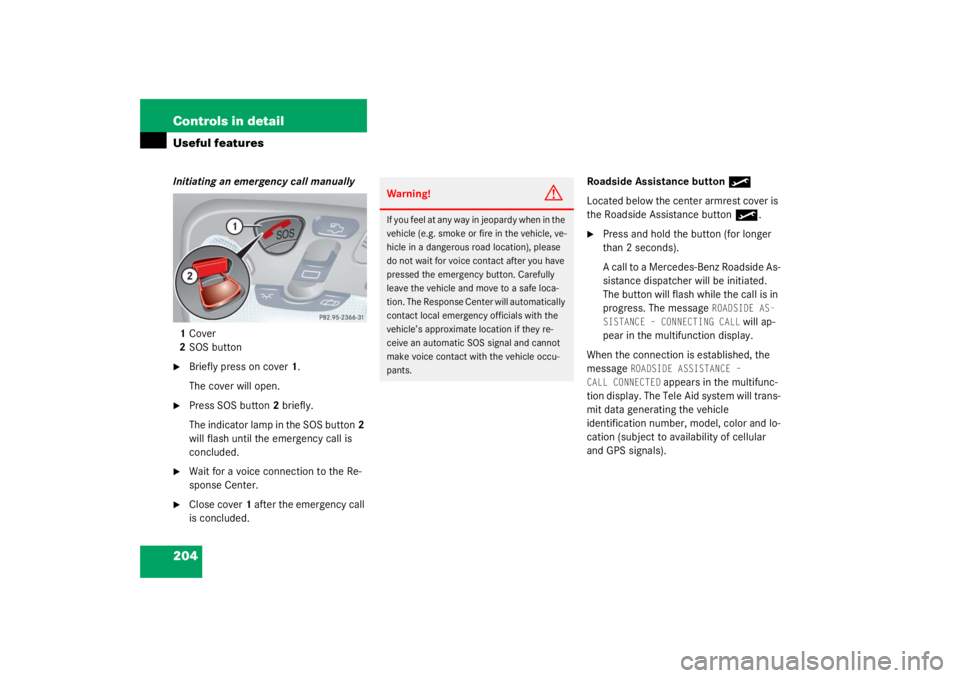

204 Controls in detailUseful featuresInitiating an emergency call manually1 Cover
2 SOS button
Briefly press on cover 1.
The cover will open.

Press SOS button 2 briefly.
The indicator lamp in the SOS button 2
will flash until the emergency call is
concluded.

Wait for a voice connection to the Re-
sponse Center.

Close cover 1 after the emergency call
is concluded. Roadside Assistance button
•
Located below the center armrest cover is
the Roadside Assistance button
•
.

Press and hold the button (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
ROADSIDE AS-
SISTANCE – CONNECTING CALL
will ap-
pear in the multifunction display.
When the connection is established, the
message
ROADSIDE ASSISTANCE –
CALL CONNECTED
appears in the multifunc-
tion display. The Tele Aid system will trans-
mit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

205
Controls in detail
Useful features
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established. When a
voice connection is established the audio
system mutes and the message
TELE AID
– ROADSIDE ASSISTANCE CALL ACTIVE
ap-
pears in the multifunction display.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information. These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.


Remote Vehicle Diagnostics: This func-
tion permits the Mercedes-Benz Road-
side Assistance dispatcher to
download malfunction codes and actu-
al vehicle data.iThe indicator lamp in the Roadside As-
sistance button
•
remains illumi-
nated in red for approx. 10 seconds
during the system self-check after turn-
ing the key in the starter switch to
position 2 (together with the “SOS”
button and the Information
button
¡
).
See system self-check (
page 202)
when the indicator la mp does not light
up in red or stays on longer than ap-
proximately 10 seconds.
If the indicator lamp in the Roadside
Assistance button
•
is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
ROADSIDE ASSISTANCE –
CALL FAILED
appears in the multifunc-
tion display.
Roadside Assistance calls can be ter-
minated using the
ì
button on the
multifunction steering wheel.

206 Controls in detailUseful featuresInformation button
¡
Located below the center armrest cover is
the Information button
¡
.

Press and hold the button (for longer
than 2 seconds).
A call to the Customer Assistance Cen-
ter will be initiated. The button will
flash while the call is in progress. The
message
INFO – CONNECTING CALL
will
appear in the multifunction display.
When the connection is established, the
message
INFO – CALL CONNECTED
appears
in the multifunction display. The Tele Aid
system will transmit data generating the
vehicle identification number, model, color
and location (subject to availability of cel-
lular and GPS signals).
A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. When a voice connection is estab-
lished the audio system mutes and the
message
TELE AID – INFO CALL ACTIVE

appears in the multifunction display. Infor- mation regarding the operation of your ve-
hicle, the nearest Mercedes-Benz Center
or Mercedes-Benz USA products and ser-
vices is available to you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Information
button
¡
remains illuminated in red
for approx. 10 seconds during the sys-
tem self-check after turning key in the
starter switch to position 2 (together
with the “SOS” button and the Road-
side Assistance button
•
).
See System self-check (
page 202)
when the indicator lamp does not light
up in red or stays on longer than ap-
proximately 10 seconds.
If the indicator lamp in the Information
button
¡
is illuminated continuous-
ly and there was no voice connection to
the Response Center established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
INFO –
CALL FAILED
appears in the multifunc-
tion display.
Information calls can be terminated us-
ing the
ì
button on the multifunc-
tion steering wheel.

208 Controls in detailUseful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. key inside vehicle), and the
reserve key is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull the
trunk lid recessed handle for minimum
of 20 seconds until the “SOS” button is
flashing.
The message
EMERGENCY CALL –
CALL CONNECTED appears in the multi-
function display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call. T h e R e s p o n s e C e n t e r w i l l t h e n u nl o c k y o u r
vehicle with the remo
te door unlocking
feature.
iWhen a Tele Aid call has been initiated,
the audio system or the COMAND* sys-
tem audio is muted and the selected
mode (radio, tape or CD) pauses. The
optional cellular phone (if installed)
switches off. If you must use this
phone, the vehicle must be parked. Dis-
connect the coiled cord and place the
call. The COMAND* navigation system
(if engaged) will continue to run. The
display in the instrument cluster is
available for use and spoken com-
mands are only available by pressing
the RPT button on the COMAND* unit.
A pop-up window will appear in the CO-
MAND* display to indicate that a
Tele Aid call is in progress.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The “SOS” button will flash and the
message
EMERGENCY CALL –
CALL CONNECTED
will appear in the mul-
tifunction display to indicate receipt of
the door unlock command.
Once the vehicle is unlocked, a Re-
sponse Center specialist will attempt
to establish voice contact with the ve-
hicle occupants.
If the trunk lid recessed handle was
pulled for more than 20 seconds be-
fore door unlock authorization was re-
ceived by the Response Center, you
must wait 15 minutes before pulling
the trunk lid recessed handle again.

228 OperationEngine compartmentYou can check the engine oil level on the
multifunction display.
Turn the key in the starter switch to
position2.
The standard display showing the trip
odometer and the main odometer
(
page 105) should appear in the multi-
function display.

Press button
k
or
j
, on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:
ENGINE OIL LEVEL - MEASUREMENT IN
PROCESS!
CORRECT MEASUREMENT ONLY
IF VEH. LEVEL
After about three seconds this mes-
sage is displayed:ENGINE OIL LEVEL-MEASURING NOWOne of the following messages will sub-
sequently appear in the indicator:

ENGINE OIL LEVEL - O.K.



ENGINE OIL LEVEL - ADD 1 QUART
(1.o LITER)!


ENGINE OIL LEVEL - ADD 1.5
QUARTS (1.5 LITERS)!


ENGINE OIL LEVEL - ADD 2.0
QUARTS (2.0 LITERS)!
Adding engine oil
1 Filler neck
Unscrew the cap from filler neck 1. Be
careful not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.


229
Operation
Engine compartment

Screw the cap back on the filler neck.
Other display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear:
ENGINE OIL LEVEL - REDUCE OIL LEVEL
Have excess oil siphoned.
If the key is not turned to position 2 in the
starter switch:
FOR ENGINE OIL LEVEL IGNITION ON
PLEASE!
Switch on the ignition.
If you see the message:
OBSERVE WAITING PERIOD
Wait five minutes before repeating
check procedure.
If you see the message:
ENGINE OIL LEVEL - NOT WHEN ENGINE ON!
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en- gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.
If a proper oil level check cannot be per-
formed, the following message will appear:
ENGINE OIL LEVEL - MASURING NOT POS-
SIBLE
Repeat the engine oil level check after
a short while.
See “Practical hints” (
page 262) if an en-
gine oil level indicator appears on the dis-
play when the engine is running.
More information on engine oil can be
found in the “Technical data” section
(
page 317).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.

238 OperationMaintenance
MaintenanceWe strongly recommend that you have
your vehicle serviced by your authorized
Mercedes-Benz Center, in accordance with
the Service Booklet at the times called for
by the FSS (F
lexible S
ervice S
ystem).
Failure to have the vehicle maintained in
accordance with the Service Booklet at the
designated times /mileage called for by
the FSS may result in vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.
FSS will notify you when your next service
is due.
Approximately one month before your next
service is due, one of the following mes-
sages will appear in the multifunction dis-
play while you are driving or when you
switch on the ignition (example service A):
SERVICE A - IN xx DAYS
SERVICE A - IN xx MILES (KM)
SERVICE A - DUE NOW
The type of service due is indicated in the
multifunction display field:9
Minor service (A)
´
Major service (B)
Clearing the service indicator
The service indicator is automatically
cleared

after 10 seconds when you switch on
the ignition or when reaching the ser-
vice threshold while driving.


after 30 seconds, once the suggested
service term had passed.
You can also clear it yourself by pressing
the reset knob on the instrument cluster
(
page 22).
Service term exceeded
If you have exceeded the suggested ser-
vice term a signal sounds every time when
you switch on the ignition and you will see
the following message in the multifunction
display:SERVICE A EXCEEDED BY xx DAYS
SERVICE A EXCEEDED BY xx MILES (KM)
iThe interval between services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short distance trips will
lengthen the interval between services.
