2003 MERCEDES-BENZ C CLASS COUPE Owners Manual

193
Controls in detail
Loading

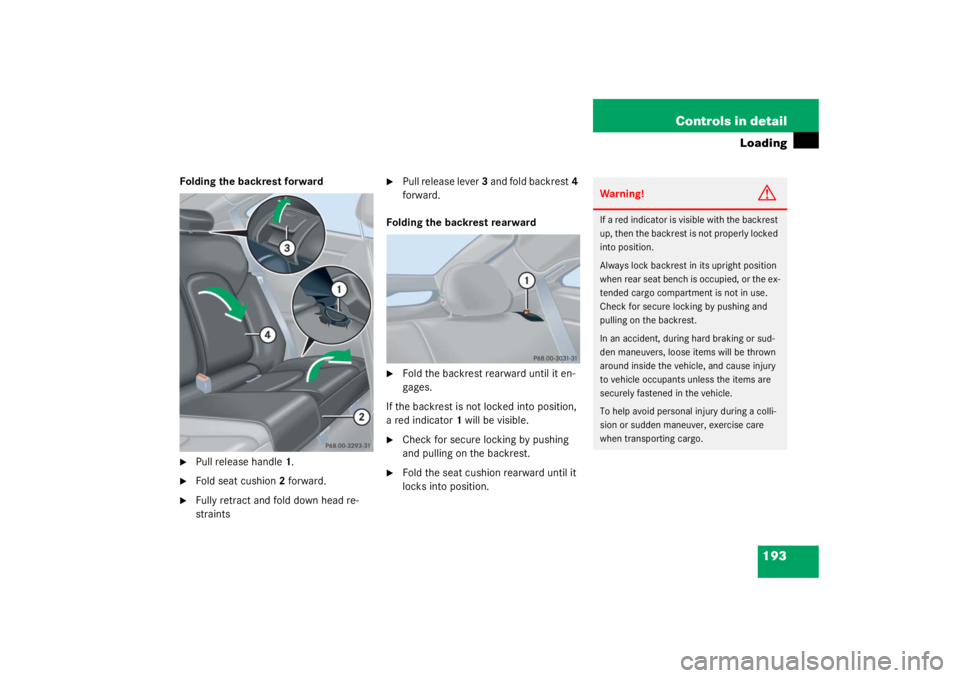

Folding the backrest forward
Pull release handle
1.

Fold seat cushion 2 forward.

Fully retract and fold down head re-
straints

Pull release lever 3 and fold backrest 4
forward.
Folding the backrest rearward

Fold the backrest rearward until it en-
gages.
If the backrest is not locked into position,
a red indicator 1 will be visible.

Check for secure locking by pushing
and pulling on the backrest.

Fold the seat cushion rearward until it
locks into position.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the ex-
tended cargo compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.

194 Controls in detailLoadingLoading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the vehicle capacity weight indicated
on the certification tag which can be found
on the left door pillar.
The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible. The heaviest portion of the cargo should al-
ways be kept as low as possible since it in-
fluences the handling characteristics of
the vehicle.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.
Never drive vehicle with trunk lid open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

195
Controls in detail
Useful features
Useful features

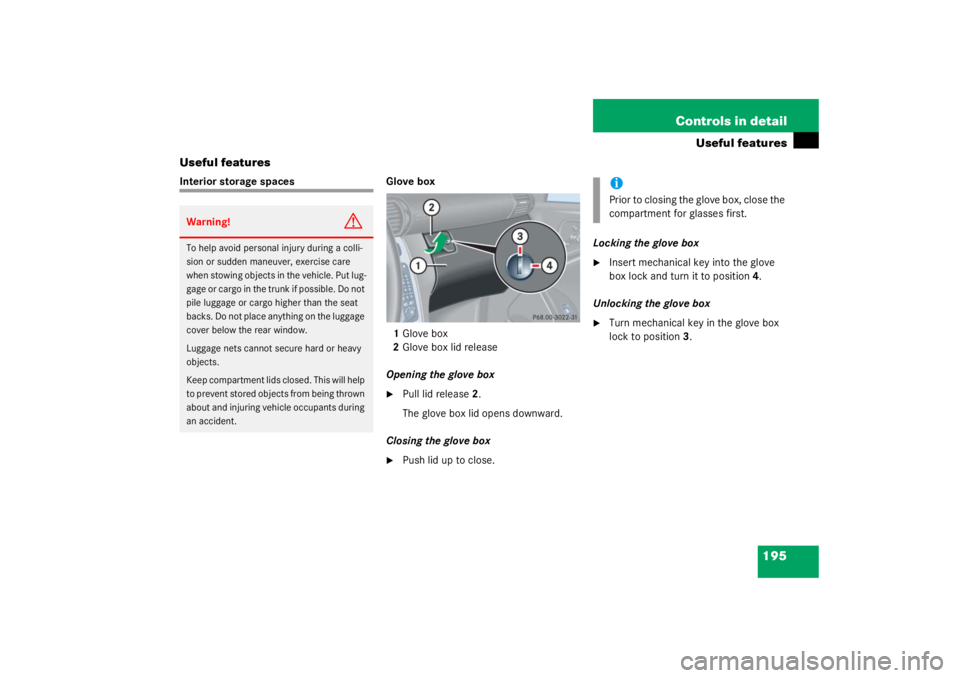

Interior storage spaces Glove box
1 Glove box
2 Glove box lid release
Opening the glove box

Pull lid release 2.
The glove box lid opens downward.
Closing the glove box

Push lid up to close. Locking the glove box

Insert mechanical key into the glove
box lock and turn it to position
4.
Unlocking the glove box

Turn mechanical key in the glove box
lock to position 3.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
g a g e o r c a r g o i n t h e t r u n k i f p o s s i b l e . D o n o t
pile luggage or cargo higher than the seat
backs. Do not place anything on the luggage
cover below the rear window.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iPrior to closing the glove box, close the
compartment for glasses first.

196 Controls in detailUseful featuresStorage compartment in front of arm-
rest
Opening
Slide cover1 rearward.
The compartment contains a cigarette
lighter (
page 199), a coin holder, and
a cup holder.
Closing

Slide cover 1 forward. Cup holder
Opening cup holder

Slide cover rearward.

Push button1.
The cup holder opens automatically.
Warning!
G
When not in use, keep the cup holder
closed. Place only containers that fit into the
cup holder to prevent spills. Use lids on
open containers and do not fill containers to
a height where the contents, especially hot
liquids, could spill during vehicle maneu-
vers.

197
Controls in detail
Useful features

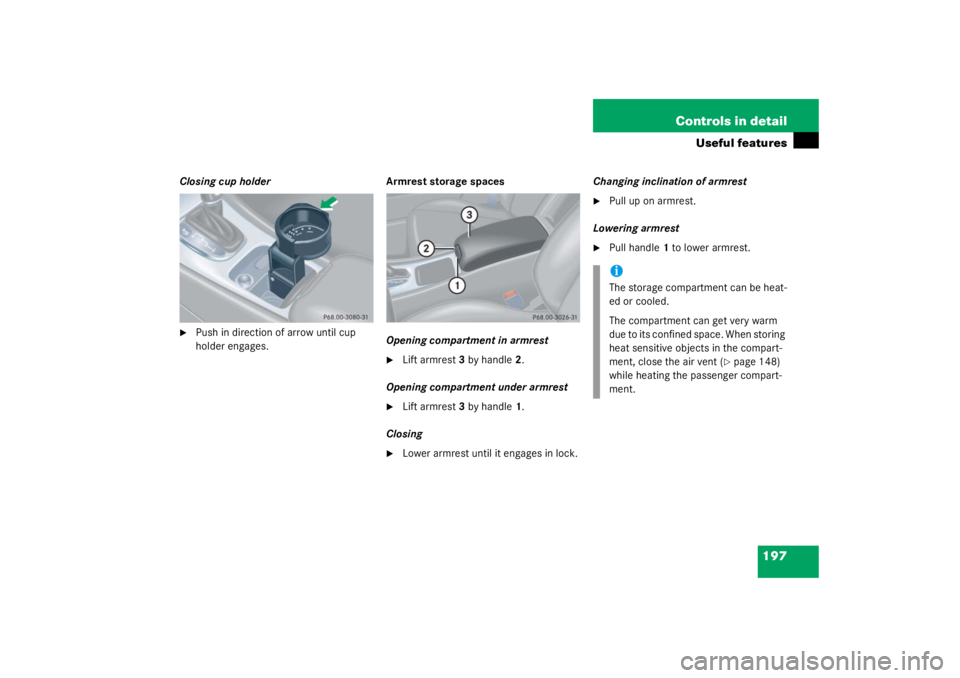

Closing cup holder
Push in direction of arrow until cup
holder engages.
Armrest storage spaces
Opening compartment in armrest

Lift armrest
3 by handle 2.
Opening compartment under armrest

Lift armrest 3 by handle 1.
Closing

Lower armrest until it engages in lock. Changing inclination of armrest

Pull up on armrest.
Lowering armrest

Pull handle 1 to lower armrest.iThe storage compartment can be heat-
ed or cooled.
The compartment can get very warm
due to its confined space. When storing
heat sensitive objects in the compart-
ment, close the air vent (
page 148)
while heating the passenger compart-
ment.

198 Controls in detailUseful featuresParcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.
Ashtrays
Center console ashtray
Opening ashtray
Briefly touch cover plate1.
The ashtray opens automatically. Removing ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the selec-
tor lever to position
N.
Now you have more room to take out
the insert.

Slide ashtray insert in direction of
arrow 2 until it disengages.

Grip ashtray at indents (arrows 3) and
remove insert from ashtray frame.
Reinstalling the ashtray insert

Install insert by pushing back into
frame until it engages again.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.
Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move gear se-
lector lever to position N. With gear selector
lever in position N, turn off the engine.

199
Controls in detail
Useful features
Rear seat ashtray
Opening ashtray
Pull at top of cover
2 to open ashtray.
Removing ashtray insert

Press latch 1 to disengage ashtray in-
sert and remove it.
Reinstalling the ashtray insert

Install ashtray insert.

Close the ashtray.
Cigarette lighter
1 Cigarette lighter
2 Cover
Turn key in the starter switch to
position 1 or 2.

Slide cover 2 rearward.

Push in cigarette lighter 1.
The cigarette lighter will pop out auto-
matically when hot.
Warning!
G
Never touch the heating element or sides of
the cigarette lighter; they are extremely hot.
Hold the knob only.
When leaving the vehicle, always remove the
key from the starter switch and lock your ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.iThe cigarette lighter socket can be
used to accommodate electrical acces-
sories up to a maximum 85 W.

200 Controls in detailUseful featuresTelephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.You can take and place telephone calls us-
ing the
í
and
ì
buttons on the
steering wheel. To carry out other tele-
phone functions, use the control system
(
page 126).
See separate operating manual for instruc-
tions on how to use the telephone.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his /her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Only operate the COMAND* (Cockpit Man-
agement and Data System)
1 if road, weather
and traffic conditions permit.
1Observe all legal requirements.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of approx. 44 feet (ap-
proximately 13.5 m) every second.Warning!
G
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle. Whether or not prohibited by law, for
safety reasons, the driver should not use the
cellular telephone while the vehicle is in mo-
tion.
Stop the vehicle in a safe location before an-
swering or placing a call.
