O Check your local regulations.
4. Loosen the oil filter with an oil filter wrench.
Remove the oil filter by turning it by hand.
5. Wipe the engine oil filter mounting surface
with a clean rag.
Be sure to remove any old rubber gasket
remaining on the mounting surface of
the engine.
6. Coat the gasket on the new filter with clean
engine oil.
7. Screw in the oil filter clockwise until a slight
resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:
11 to 15 ft-lb
(14.7 to 20.5 N z m)
8. Clean and re-install the drain plug with a
new washer. Securely tighten the drain plug
with a wrench.
Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N z m)
Do not use excessive force.
9. Refill engine with recommended oil and
install the cap securely. CAUTION The dipstick must be inserted in place to
prevent oil spillage from the dipstick
hole while filling the engine with oil.
See ªCapacities and recommended fuel/
lubricantsº in the ª9. Technical and con-
sumer informationº section for drain and
refill capacity. The drain and refill capacity
depends on the oil temperature and drain
time. Use these specifications for reference
only. Always use the dipstick to determine
the proper amount of oil in the engine.
CAUTION When filling oil, do not pull out the
dipstick.
10.Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11.Turn the engine off and wait more than 10
minutes. Check the oil level with the dip-
stick. Add engine oil if necessary. After the operation 1. Install the engine undercover into position
as the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into
the hole in the frame, then push the center
of the clip in to lock the clip in place.
d. Install the other bolts that hold the under-
cover in place. Be careful not to strip the
bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING O Prolonged and repeated contact with
used engine oil may cause skin can-
cer.
O Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
Do-it-yourself
8-9
Z 02.7.29/V35-D/V5.0
X

tor is visible, the tire should be re-
placed.
O Improper service for a spare tire may
result in serious personal injury. If it
is necessary to repair the spare tire,
contact your INFINITI retailer.
O For additional information regarding
tires, refer to ªImportant Tire Safety
Informationº (US) or ªTire Safety In-
formationº (Canada) in the INFINITI
Warranty Information Booklet.
Replacing wheels and tires When replacing a tire, use the same size,
speed rating and load carrying capacity as
originally equipped. See ªSpecificationsº in the
ª10. Technical and consumer informationº sec-
tion for recommended types and sizes of tires
and wheels.
WARNINGO The use of tires other than those
recommended or the mixed use of tires of different brands, construction
(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to
accidents and could result in serious
personal injury.
O If the wheels are changed for any
reason, always replace with wheels
which have the same offset dimen-
sion. Wheels of a different offset
could cause early tire wear, possibly
degraded vehicle handling character-
istics and/or interference with the
brake discs. Such interference can
lead to decreased braking efficiency
and/or early brake pad wear.
O Do not install a deformed wheel or
tire even if it has been repaired. Such
wheels or tires could have structural
damage and could fail without
warning. O The use of retread tires is not recom-
mended.
O For additional information regarding
tires, refer to ªImportant Tire Safety
Informationº (US) or ªTire Safety In-
formationº (Canada) in the INFINITI
Warranty Information Booklet.
Wheel balance Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore, they
should be balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the rear wheels on the vehicle could lead to
transmission damage.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the
INFINITI Warranty Information Booklet.
Care of wheels O Wash the wheels when washing the vehicle
to maintain their appearance.
O Clean the inner side of the wheels when the Do-it-yourself
8-33
Z 02.7.29/V35-D/V5.0
X

10 Technical and consumer information Capacities and recommended fuel/lubricants/
fluids ........................................................................ 10-2
Fuel recommendation ......................................... 10-3
Engine oil and oil filter recommendation ............ 10-5
Recommended SAE viscosity number ............... 10-6
Air conditioning system refrigerant and lubricant
recommendations ............................................... 10-6
Specifications .......................................................... 10-7
Engine ................................................................ 10-7
Wheels and tires ................................................ 10-8
Dimensions and weights .................................... 10-8
When traveling or registering your vehicle in
another country ....................................................... 10-9
Vehicle identification ............................................... 10-9
Vehicle identification number (VIN) plate ........... 10-9
Vehicle identification number
(Chassis number) ............................................... 10-9
Engine serial number ....................................... 10-10
F.M.V.S.S. certification label ............................ 10-10
Emission control information label ................... 10-11
Tire placard ...................................................... 10-11
Air conditioner specification label ..................... 10-12
Installing front bumper cover................................. 10-12
Installing front license plate................................... 10-13 Vehicle loading information ................................... 10-14
Terms ............................................................... 10-14
Determining vehicle load capacity.................... 10-14
Loading tips ...................................................... 10-15
Towing a trailer ..................................................... 10-15
Maximum load limits ......................................... 10-16
Towing safety ................................................... 10-17
Uniform tire quality grading ................................... 10-19
Emission control system warranty ........................ 10-20
Reporting safety defects (US only) ....................... 10-21
Readiness for inspection/maintenance (I/M) test
(US only) ............................................................... 10-21
Owner's Manual/Service Manual order
information............................................................. 10-22
In the event of a collision ................................. 10-22
Z 02.7.29/V35-D/V5.0
X

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
instructed in the ª8. Do-it-yourselfº section to determine the proper refill capacity. Capacity (Approximate)
Recommended
specificationsUS
measure Imp
measure Liter
Fuel 20 gal 16-5/8 gal 76 Unleaded gasoline with an octane rating of at least 91 AKI (RON 96)*1
Engine oil*7
Drain and refill
With oil filter change 5 qt 4-1/8 qt 4.7 O API Certification Mark*2, *3
O API grade SG/SH, Energy Conservin gI&IIorAPI grade SJ or SL, Energy
Conserving*2, *3
O ILSAC grade GF-I, GF-II, GF-III*2, *3Without oil filter change 4-5/8 qt 3-7/8 qt 4.4
Cooling system Sedan AT 9 qt 7-1/2 qt 8.5
With reservoir Coupe, Sedan MT 9-1/4 qt 7-5/8 qt 8.7
Genuine NISSAN anti-freeze coolant or equivalent
Reservoir 7/8 qt 3/5 qt 0.8
Automatic transmission fluid Ð Ð Ð Genuine Nissan ATF Matic Fluid J*4
Manual transmission gear oil Ð Ð Ð API GL-4, Viscosity SAE 75W-85
Differential gear oil Ð Ð Ð API GL-5, Viscosity SAE 80W-90*5
Power steering fluid
Refill to the proper oil level according to the instruc-
tions in the ª8. Do-it-yourselfº section. Genuine Nissan PSFII or equivalent*9
Brake and clutch fluid Genuine Nissan Brake Fluid*6 or equivalent DOT 3 (U.S. FMVSS No. 116)
Multi-purpose grease Ð Ð Ð NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant Ð Ð Ð HFC-134a (R-134a)*8
Air conditioning system lubricants Ð Ð Ð Nissan A/C System Oil Type S or exact equivalent
*1: For additional information, see later in this section for fuel recommendation.
*2: For additional information, see later in this section for engine oil and oil filter recommendation.
*3: For additional information, see later in this section for recommended SAE viscosity number.
*4: Using automatic transmission fluid other than Genuine Nissan ATF Matic Fluid J will cause deterioration in driveability and automatic transmission durability, and
may damage the automatic transmission, which is not covered by the INFINITI new vehicle limited warranty.
*5: For hot climates, viscosity SAE 90 is suitable for ambient temperatures always above 0ÉC (32ÉF).
*6: Available in mainland US through your INFINITI retailer.
*7: For additional information, see ªEngine oilº in the ª8. Do-it-yourselfº section for changing engine oil.
*8: For additional information, see ªVehicle identificationº in this section for air conditioner specification label.
*9: Genuine Nissan PSF, Canada Nissan Automatic Transmission fluid, Dexron TM
III/Mercon TM
or equivalent ATF may also be used.CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS/FLUIDS
10-2 Technical and consumer information
Z 02.11.15/V35-D/V5.0
X

ENGINE Model VQ35DE
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60É
Bore x Stroke in (mm) 3.760 x 3.205 (95.5 x 81.4)
Displacement cu in (cm 3
) 213.45 (3,498)
Firing order 1-2-3-4-5-6*
Idle speed rpm
See the emission control label on
the underside of the hood.Ignition timing (B.T.D.C.) degree/rpm
CO percentage at idle speed [No air] %
Spark plug Standard PLFR5A-11
Service option PLFR4A-11, PLFR6A-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain The spark ignition system of this vehicle
meets all requirements of the Canadian
Interference-Causing Equipment Regula-
tions. TI0001-A
SPECIFICATIONS
Technical and consumer information
10-7
Z 02.7.29/V35-D/V5.0
X

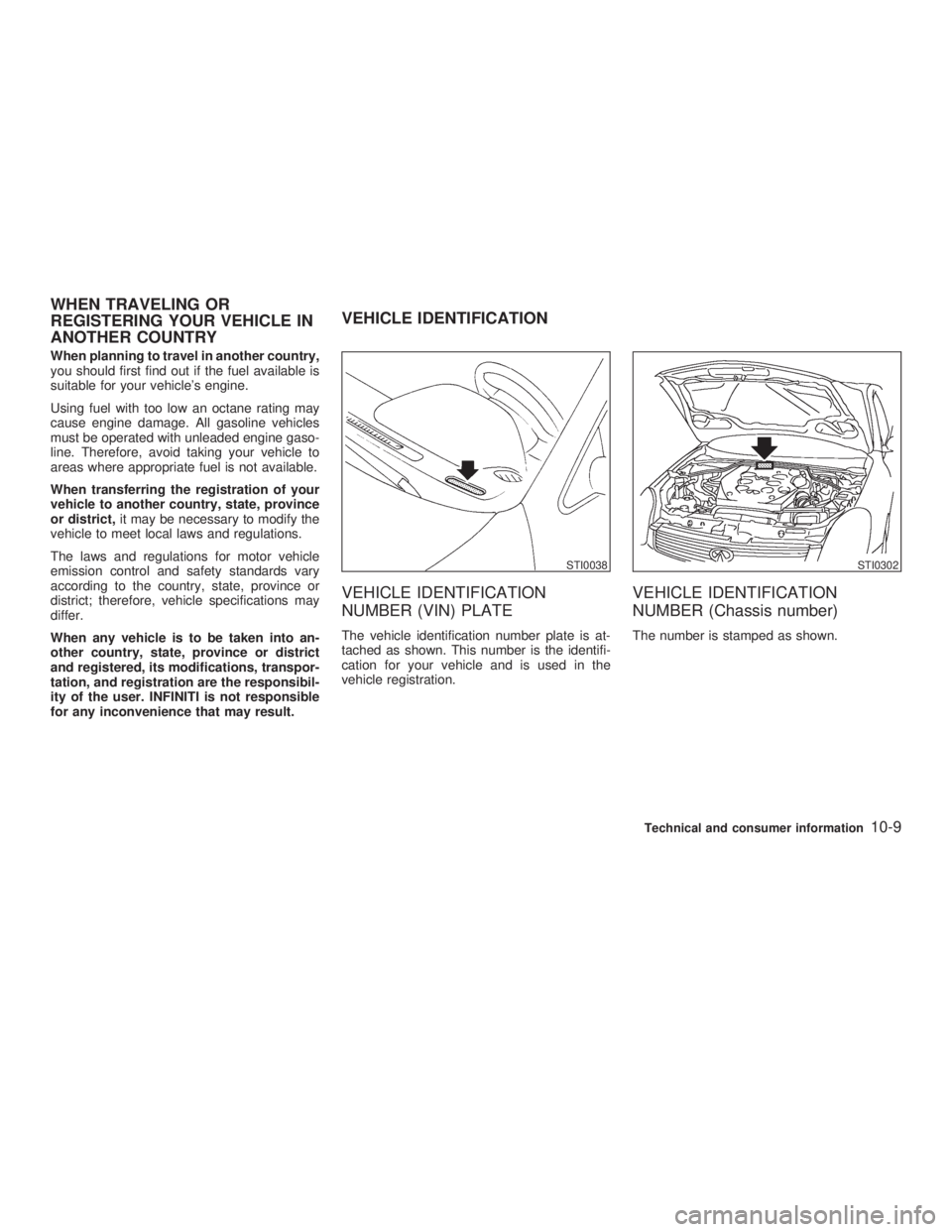

When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle's engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded engine gaso-
line. Therefore, avoid taking your vehicle to
areas where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. INFINITI is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE The vehicle identification number plate is at-
tached as shown. This number is the identifi-
cation for your vehicle and is used in the
vehicle registration.
VEHICLE IDENTIFICATION
NUMBER (Chassis number) The number is stamped as shown. STI0038 STI0302
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information
10-9
Z 02.7.29/V35-D/V5.0
X

TOWING LOAD/SPECIFICATION CHART
Unit: lb (kg)
MAXIMUM
TOWING LOAD 1,000 (454)
MAXIMUM
TONGUE LOAD 110 (49)
TOWING SAFETY
Trailer hitch Choose a proper hitch for your vehicle and
trailer. Make sure the trailer hitch is securely
attached to the vehicle, to help avoid personal
injury or property damage due to sway caused
by crosswinds, rough road surfaces or passing
trucks.
CAUTIONO Do not use axle-mounted hitches.
O The hitch should not be attached to
or affect the operation of the impact-
absorbing bumper.
O Do not modify the vehicle exhaust
system, brake system, etc. to install a
trailer hitch. O To reduce the possibility of additional
damage if your vehicle is struck from
the rear, where practical, remove the
hitch and/or receiver when not in use.
After the hitch is removed, seal the
bolt holes to prevent exhaust fumes,
water or dust from entering the pas-
senger compartment.
O Regularly check that all hitch mount-
ing bolts are securely mounted.
Tire pressures O When towing a trailer, inflate the vehicle
tires to the recommended cold tire pressure
indicated on the tire placard (located on the
inside of the rear left door opening (Sedan),
the driver side center pillar (Coupe).
O Trailer tire condition, size, load rating and
proper inflation pressure should be in ac-
cordance with the trailer and tire manufac-
turers' specifications.
Safety chain Always use a suitable chain between your
vehicle and the trailer. The chain should be
crossed and should be attached to the hitch, not to the vehicle bumper or axle. Be sure to
leave enough slack in the chain to permit
turning corners.
Trailer lights Trailer lights should comply with federal and/or
local regulations. When wiring the vehicle for
towing, connect the stop and tail light pickup
into the vehicle electrical circuit at a point
between the sensor and stop light or light
switch.
Trailer brakes If your trailer is equipped with a braking sys-
tem, make sure it conforms to federal and/or
local regulations and that it is properly in-
stalled.
WARNING Never connect a trailer brake system
directly to the vehicle brake system.
Pre-towing tips O Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if
it has an abnormal nose-up or nose-down Technical and consumer information
10-17
Z 02.7.29/V35-D/V5.0
X

A genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. Filled with wiring diagrams, illus-
trations and step-by-step diagnostic and ad-
justment procedures, this manual is the same
one used by the factory trained technicians
working at authorized INFINITI dealerships.
Also available are genuine INFINITI Owner's
Manuals, and genuine INFINITI Service and
Owner's Manuals for older INFINITI models.
In the USA:
For current pricing and availability of genuine
INFINITI Service Manuals for the 2000 model
year and later, contact:
Tweddle Litho Company
1-800-639-8841
www.nissan-techinfo.com
For current pricing and availability of genuine
INFINITI Service Manuals for the 1999 model
year and prior, see an authorized INFINITI
dealer, or contact:
DDS Distribution Services, Ltd.
20770 Westwood Road
Strongsville, OH 44136
1-800-247-5321
For current pricing and availability of genuine
INFINITI Owner's Manuals for the 2003
model year and prior, see an authorized INFINITI dealer, or contact:
DDS Distribution Services, Ltd.
20770 Westwood Road
Strongsville, OH 44136
1-800-247-5321
In Canada:
To purchase a copy of a genuine INFINITI
Service Manual or Owner's Manual please
contact your nearest INFINITI dealer. For the
phone number and location of an INFINITI
dealer in your area call the INFINITI Satisfac-
tion Center at 1-800-361-4792 and a bilingual
INFINITI representative will assist you.
Also available are genuine INFINITI Service
and Owner's Manuals for older INFINITI mod-
els.
IN THE EVENT OF A COLLISION Unfortunately, accidents do occur. In this un-
likely event, there is some important informa-
tion you should know. Many insurance compa-
nies routinely authorize the use of non-
genuine collision parts in order to cut costs,
among other reasons.
Insist on the use of Genuine Infiniti
Collision Parts! If you want your vehicle to be restored using parts made to INFINITI's original exacting
specifications Ð if you want to help it to last
and hold its resale value, the solution is
simple. Tell your insurance agent and your
repair shop to only use Genuine Infiniti
Collision Parts. INFINITI does not warrant
non-Infiniti parts, nor does Infiniti's warranty
apply to damage caused by a non-genuine
parts.
Using Genuine Infiniti Parts can help protect
your personal safety, preserve your warranty
protection and maintain the resale value of
your vehicle. And if your vehicle was leased,
using Genuine Infiniti Parts may prevent or
limit unnecessary excess wear and tear ex-
penses at the end of your lease.
INFINITI designs its hoods with crumple zones
to minimize the risk that the hood will penetrate
the windshield of your vehicle in an accident.
Non-genuine (imitation) parts may not provide
such built in safety features. Also, non-genuine
parts often show premature wear, rust and
corrosion.
Why should you take a chance? In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states/provinces have
enacted laws that restrict insurance compa-
nies from authorizing the use of non-genuineOWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION
10-22 Technical and consumer information
Z 02.7.29/V35-D/V5.0
X
