2003 Hyundai Tiburon Owner's Manual

FEATURES OF YOUR HYUNDAI
1- 41
B540A01F-AAT
TAIL GATE
Remote Tail Gate Release
To open the tail gate without using the key, pull
up the lid release lever.
To close, lower the tail gate, then press down
on it until it locks. To be sure the tail gate is
securely fastened, always try to pull it up again.
WARNING:The tail gate should always be kept com-
pletely closed while the vehicle is in motion.
If it is left open or ajar, poisonous exhaust
gases may enter the car resulting in serious
illness or death to the occupants. See addi-
tional warnings concerning exhaust gases
on page 2-1.
HGK103B540C01F-AAT
To Unlock Using the Key
To open the tail gate, insert the key and turn it
clockwise to unlock. The tail gate compartment
light illuminates when the tail gate is opened.
B540C02GK
NOTE:If the fuel-filler lid will not open because ice
has formed around it, tap lightly or push on
the lid to break the ice and release the lid.
Do not pry on the lid. If necessary, spray
around the lid with an approved deicer fluid
(do not use radiator anti-freeze) or move the
vehicle to a warm place and allow the ice to
melt.
HGK124
WARNING:o The fuel cap must be tightened at least 3
clicks, otherwise " " light will illumi-
nate.
o Gasoline vapors are dangerous. Before
refueling, always stop the engine and
never allow sparks or open flames near
the filler area. If you need to replace the
filler cap, use a genuine Hyundai replace-
ment part.
o If you open the fuel filler cap during high
ambient temperatures, a slight "pressure
sound" may be heard. This is normal and
not a cause for concern.
Whenever you open the fuel filler cap,
turn it slowly.
o Make sure the fuel filler cap is replaced
and securely seated after fueling. Failure
to replace or fully seat the fuel filler cap
will result in fuel vapors escaping into
the atmosphere and the MIL indicator
illuminating.
o Do not "TOP-OFF" after the first nozzle
shut off when refueling.

FEATURES OF YOUR HYUNDAI
1- 42
B140A01GK B140A01S-AAT
REAR SEAT WARNING
HGK227
WARNING:Do not close an open tailgate (rear hatch)
while a person(s) is sitting upright on the rear
seat. The tailgate or tailgate glass may contact
the head of a person sitting upright on the rear
seat. Closing the tailgate onto a person's head
may cause serious injuries, including death.
B540D01GK-GAT
When you close the tailgate
HGK226
For the safety of all passengers, luggage or
other cargo should not be piled higher than the
top of the seatback. In addition, do not place
objects on the rear shelf as they may move
forward during braking or in an accident and
strike vehicle passengers.
B580A01GK-AATSUN VISOR
HGK145
Vanity mirror
Your Hyundai is equipped with sun visors to
give the driver and front passenger either fron-
tal or sideward shade. The sun visors are fitted
on both sides on all models. To reduce glare or
to shut out direct rays of the sun, turn the sun
visor down to block the annoyance. A vanity
mirror is provided on the back of the sun visor
for the front passenger.
NOTE:The Supplemental Restraint System (SRS)
label containing useful information can be
found on the back of each sun visor.
WARNING:Do not place the sun visor in such a manner
that it obscures visibility of the roadway,
traffic or other objects.

FEATURES OF YOUR HYUNDAI
1- 43
B610A01S-AAT
HORN
Press the pad on the steering wheel to sound
the horn.
HGK141 B600A01HP-AAT
STEERING WHEEL TILT LEVER
(If installed)
To adjust the steering wheel:
1. Pull the lever toward you and hold it to
unlock.
2. Raise or lower the steering wheel to the
desired position.
3. After adjustment, release the lever.
WARNING:Do not attempt to adjust the steering wheel
while driving as this may result in loss of
control of the vehicle and serious injury or
death.
HGK127
B540D01GK-GAT
LUGGAGE NET (If installed)
Some objects can be kept in the net in the
luggage compartment.
Use the luggage net on the floor(If installed) or
at the back of the luggage compartment to
prevent objects from sliding.
HGK241
HGK129 B990A03Y-AAT
FLOOR MAT ANCHOR
To use a floor mat on the front floor carpet,
make sure it attaches to the floor mat anchor in
your vehicle.
This keeps the floor mat from sliding forward.
WARNING:o Make sure the floor mat is properly placed
on the floor carpet. If the floor mat slips
and interferes with the movement of the
pedals during driving, it may cause an
accident.
Working Zone
A Type
B Type

FEATURES OF YOUR HYUNDAI
1- 44
B660B01GK B660B01E-AAT
To Set the Cruise Speed
1. Push in the cruise control main switch on
the end of the barrel. The "CRUISE" indica-
tor light in the instrument cluster will be
illuminated. This turns the system on.
2. Accelerate to the desired cruising speed
above 25 mph (40 km/h).
3. Push the control switch downward to "SET
(COAST)" and release it.
4. Remove your foot from the accelerator pedal
and the desired speed will automatically be
maintained.
5. To increase speed, depress the accelerator
pedal enough for the vehicle to exceed the
preset speed. When you remove your foot
from the accelerator pedal, the vehicle will
return to the speed you have set. The cruise control system provides automatic
speed control for your comfort when driving on
freeways, tollroads, or other noncongested high-
ways. This system is designed to function above
approximately 25 mph (40 km/h).
B660C02E-AAT
To Cancel the Cruise Speed
Do one of the following:
o Pull the control switch toward the steering
wheel to "CANCEL" position.
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever to "N" position (Auto-
matic transaxle).
o Decrease the vehicle speed lower than the
memorized speed by 12 mph (20 km/h).
o Decrease the vehicle speed to less than 25
mph (40 km/h).
o Release the main switch.
B660C01GKB660A01GK
Main switch
B660A01S-AAT
CRUISE CONTROL (If Installed)
o Don't put an additional floor mat on the
top of the anchored mat, otherwise the
additional mat may slide forward and
interfere with the movement of the ped-
als.WARNING:To avoid accidental cruise control engage-
ment, keep the cruise control main switch
off when not using the cruise control

FEATURES OF YOUR HYUNDAI
1- 45
B660F01E-AAT
To Reset at a Slower Speed
B660B01GK
1. Push the control switch downward to "SET
(COAST)" and hold it. The vehicle will de-
celerate.
2. When the desired speed is obtained, re-
lease the control switch. While the control
switch is pushed, the vehicle speed will
gradually decrease.
WARNING:
o Keep the main switch off when not using
the cruise control.
o Do not use the cruise control when it may
not be safe to keep the car at a constant
speed, for instance, driving in heavy or
varying traffic, or on slippery (rainy, icy or
snow-covered) or winding roads or over
6% up-hill or down-hill roads.
o Pay particular attention to the driving con-
ditions whenever using the cruise control
system.
o During cruise-control driving with a
manual transaxle vehicle, do not shift into
neutral without depressing the clutch
pedal, or the engine will be overrevved. If
this happens, depress the clutch pedal or
release the main switch.
o With the cruise control engaged, when
the brake pedal is applied, it is normal to
hear the cruise control system deactivate.
This is an indication of normal system
operation.
o During normal cruise control operation,
when the "SET(COAST)" is activated or
reactivated after applying the brakes, the
cruise control will energize after approxi-
mately 3 seconds. This delay is normal.B660D01E-AAT
To Resume the Preset Speed
B660D01GK
The vehicle will automatically resume the speed
set prior to cancellation when you push the
control switch upward to "RESUME (ACCEL)"
position and release it, providing the vehicle
speed is above 25 mph (40 km/h).
B660E01E-AAT
To Reset at a Faster Speed
1. Push the control switch upward to "RE-
SUME (ACCEL)" position and hold it.
2. Accelerate to desired speed and release the
control switch. While the control switch is
held, the vehicle will gradually gain speed.

FEATURES OF YOUR HYUNDAI
1- 46
B710A01GK-GAT

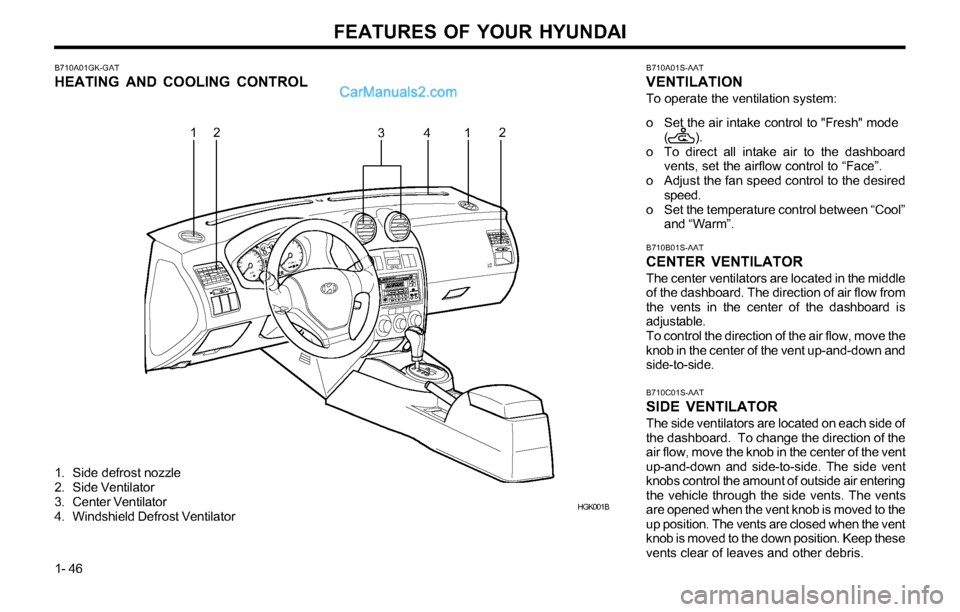

HEATING AND COOLING CONTROL
1. Side defrost nozzle
2. Side Ventilator
3. Center Ventilator
4. Windshield Defrost Ventilator
HGK001B
12
312
B710A01S-AAT
VENTILATION
To operate the ventilation system:
o Set the air intake control to "Fresh" mode
( ).
o To direct all intake air to the dashboard
vents, set the airflow control to “Face”.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between “Cool”
and “Warm”.
B710C01S-AAT
SIDE VENTILATOR
The side ventilators are located on each side of
the dashboard. To change the direction of the
air flow, move the knob in the center of the vent
up-and-down and side-to-side. The side vent
knobs control the amount of outside air entering
the vehicle through the side vents. The vents
are opened when the vent knob is moved to the
up position. The vents are closed when the vent
knob is moved to the down position. Keep these
vents clear of leaves and other debris.
B710B01S-AAT
CENTER VENTILATOR
The center ventilators are located in the middle
of the dashboard. The direction of air flow from
the vents in the center of the dashboard is
adjustable.
To control the direction of the air flow, move the
knob in the center of the vent up-and-down and
side-to-side.
4

FEATURES OF YOUR HYUNDAI
1- 47
HGK002 B670A01GK-GAT
ROTARY TYPE
This is used to turn the heating system on and
off and to select the degree of heating desired.
B670E01A-AAT
Temperature Control
Cool
Warm
B670B01A-AATFan Speed Control (Blower Control)
HGK006
This is used to turn the blower fan on or off and
to select the fan speed.
This blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" positions.
123
456
1. Air Conditioning switch
2. Air intake control switch
3. Rear window defroster switch
4. Air flow control switch
5. Fan speed control switch
6. Temperature control switch
HGK007

FEATURES OF YOUR HYUNDAI
1- 48
HGK016B670D02GK-AAT
Air Flow Control
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or wind-
shield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.
HGK005 B670C02S-AAT
Air Intake Control
This is used to select fresh outside air or
recirculation inside air.
To change the air intake control mode, (Fresh
mode, Recirculation mode) push the control
button.
FRESH MODE ( ) : The indicator light on
the button goes off when the air intake control
is fresh mode.
RECIRCULATION MODE ( ): The indicator
light on the button is illuminated when the air
intake control is recirculation mode.
With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooled
according to the function selected.With the "Recirculation" mode selected, air from
within the passenger compartment will be drawn
through the heating system and heated or cooled
according to the function selected.
NOTE:o It should be noted that prolonged opera-
tion of the heating in "Recirculation"
mode will give rise to fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use
of the air conditioning with the "Recircu-
lation" mode selected may result in the
air within the passenger compartment
becoming excessively dry.
o When the ignition switch is turned "ON"
the air intake control will change to "Re-
circulation" mode (regardless of switch
position). This is normal operation.
