Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Sunlight Sensor/T emperature
Sensor
134
SUNLIGHT SENSORTEMPERATURE SENSOR

Once the security system is set,
opening any door (without using the
key or the remote transmitter), or
the hood, will cause it to alarm. It
also alarms if the radio is removed
f rom the dashboard or the wiring is
cut.Do not attempt to alter this system
or add other devices to it. The security system will not set if
the hood, tailgate, or any door is not
f ully closed. If the system will not set,
check the Door and Tailgate Open
Monitor on the instrument panel
(see page ) to see if the doors and
tailgate are f ully closed. Since it is
notpartofthemonitordisplay,
manually check the hood.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights, and taillights f lash if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or two minutes,
then the system resets. To reset an
alarming system before the two
minutes have elapsed, unlock the
driver’s f ront door with the key or
the remote transmitter.
The security system sets auto-
matically, f if teen seconds af ter you
lock the doors, hood, and tailgate.
For the system to activate, you must
lock the doors f rom the outside with
the key, or remote transmitter. The
security system light next to the low
oil pressure indicator starts blinking
immediately to show you the system
is setting itself . 64
On EX model
Security System
Comf ort and Convenience Feat ures206
SECURITY SYSTEM LIGHT

Remove the f uel f ill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
Stop f illing the tank af ter the f uel
nozzle automatically clicks of f . Do
not try to ‘‘top off’’ the tank, leave
some room f or the f uel to expand
with temperature changes.Shift to Park or Neutral and set
the parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Screw the f uel f ill cap back on,
tighten it until it clicks several
times. If you do not properly
tighten the cap, the Malfunction
Indicator Lamp may come on (see
page ).
Push the f uel f ill door closed until
it latches.
Your vehicle has an on-board
ref ueling vapor recovery system to
help keep f uel vapors f rom going
into the atmosphere. If the fuel
nozzle keeps clicking of f even
though the tank is not full, there
maybeaproblemwiththissystem.
Consult your dealer. 1.
3.
4.
5.
6.
349
Service Station Procedures
Bef ore Driving
Opening the Hood
218
HOOD RELEASE HANDLE

Any object
attached to or placed on the covers
marked ‘‘SRS AIRBAG,’’ in the
center of the steering wheel and
on top of the dashboard, could
interf ere with the proper operation
of the airbags. Or, if the airbags
inf late, the objects could be
propelled inside the vehicle and
hurt someone.
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
Covering the outside edge of a
f ront seat-back, with a non-Honda
seat cover for example, could
prevent the airbag from inflating
properly.
Some examples are:
Lowering the vehicle with an
aftermarket suspension kit that
signif icantly reduces ground
clearance can allow the
undercarriage to impact speed
bumps or other raised objects,
which could cause the airbags to
deploy.
Raising the vehicle with an
af termarket suspension kit can
af f ect the handling and stability.
Af termarket wheels, because they
are a universal design, can cause
excessive stress on suspension
components. Do not modif y your steering wheel
or any other part of your
Supplemental Restraint System.
Modif ications could make the
system inef f ective.
If you plan to modif y your vehicle,
consult with your Honda dealer.
Larger or smaller wheels and tires
can interf ere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Removing parts f rom your vehicle,
or replacing components with non-
Honda (af termarket) components
could seriously af f ect your vehicle’s
handling, stability, and reliability. Modif ications
Additional Saf ety Precaution
A ccessories and Modif ications
Bef ore Driving
Do not at t ach or place object s on
the airbag covers.
Do not at t ach hard object s on ornear a f ront door.
Do not place any object s over t heoutsideedgeof afront seat-back.
224

All the electrical circuits in your
vehicle have fuses to protect them
f rom a short circuit or overload.
These f uses are located in three f use
boxes.Theinteriorfuseboxesarelocated
underneath the dashboard on each
side.Toopenthefuseboxonthe
passenger’s side, pull the right edge
of the cover.
Fuses
T aking Care of t he Unexpect ed352
DRIVER’S SIDE INTERIOR
PASSENGER’S SIDE INTERIOR

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation360

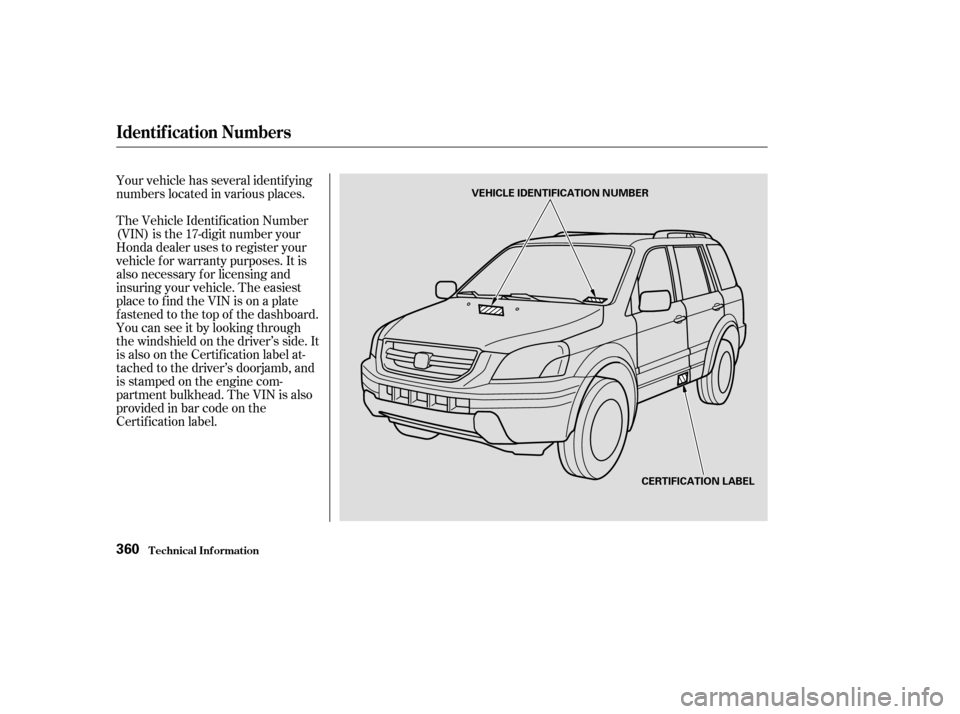

VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

µ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
T echnical Inf ormation363
Tires Alignment Engine
Fuses
Lights
Battery 60 W/55 W
12 V
Size
Pressure60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
T155/90D16 110M P235/70R16 104S
Toe-in
Camber
Caster
1°88’0°50’ 0°50’
0.00 in (0.0 mm)
0.00 in (0.0 mm)
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
10.0 : 1
211.8 cu-in (3,471 cm
)
3.50 x 3.66 in (89.0 x 93.0 mm)
Interior
Under-hood
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V Water cooled 4-stroke SOHC,
V6 gasoline engine
Headlights
Front side marker lights
Front turn signal lights/
Parking lights
Rear side marker lights
Rear turn signal/hazard lights
Stop/Taillights
Backup lights
License plate lights
High-mount brake light
Individual map lights
Tailgate light
Vanity mirror light
Door (Courtesy) light
Grabrail lights
Console lights 12 V
12 V
12 V
5W
27 W/8 W
5W
21 W/5 W
21 W/5 W
21 CP (18 W)
5W
18 W
6.2 W
5W
1.1 W
3.8 W
Capacity 12 V 65 AH/20 HR14 V 12 V 12.4 W
1.4 W See page
357or the fuse label
attached to the dashboard.
See page 357or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 356or the fuse box
cover.
See spark plug maintenance
section page 301 .
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Driver’s side
Passenger’s side
(1157 NA)
(168)
(7443)
(7443) (921)
(168)
(921)
(204)
(HB2)
(168)

Î
................................
Cancel Button .209
............................
Capacities Chart .362
.............
Carbon Monoxide Hazard . 56
.............................
Carrying Cargo .225
Cassette Player ............................................
Care .181
...................
Operation . 149,160,178
..............
CAUTION, Explanation of . ii
..................
CD Changer . 145,165,184
......................
CD Player .143, 163,182
........................
Certif ication Label .360
............................................
Chains .315
Change Oil ........................................
How to .285
.............................
When to .274, 276
....................
Changing a Flat Tire .335
............
Changing Engine Coolant . 289
...
Charging System Indicator . 62,348
............
Checklist, Bef ore Driving . 231
..................
Childproof Door Locks . 87
.....................................
Child Saf ety .21
.......................................
Child Seats .21
..........
Tether Anchorage Points . 42
....................
Cleaner Element, Air . 297Cleaning
....................
Aluminum Wheels .327
...................................
Carpeting .328
......................................
Exterior .326
.........................................
Fabric .329
.......................................
Interior .328
.......................................
Leather .329
...................................
Seat Belts .329
...........................................
Vinyl .329
....................................
Windows .330
...............
Climate Control System . 128
......................................
Coat Hook .111
.....................
Code, Audio System .189
........................
CO in the Exhaust .368
........................................
Coin Box .111
............
Cold Weather, Starting in . 232
..............................
Compact Spare .334
...............
Consumer Inf ormation . 374
.............
Controls, Instruments and . 59
Coolant ........................................
Adding .287
....................................
Checking .221
.........................
Proper Solution .287
...................................
Replacing .289
...................
Temperature Gauge . 68
....................
Corrosion Protection .331 Crankcase Emissions Control
........................................
System .368
............
Cruise Control Operation . 207
Customer Relations ................................
Inf ormation .374
................
DANGER, Explanation of . ii
...................................
Dashboard .2, 60
................
Daytime Running Lights . 73
............
Def ects, Reporting Saf ety . 376
................
Def ogger, Rear Window . 77
......
Def rosting the Windows . 125,133
....................................
Dimensions .362
...............
Dimming the Headlights . 72
Dipstick ..........
Automatic Transmission . 293
..................................
Engine Oil .220
..........................
Directional Signals .74
........
Disc Brake Wear Indicators . 241
.....................
Disposal of Used Oil .286
Doors ..............
Locking and Unlocking . 82
....................
Lockout Prevention . 83
......................
Power Door Locks .82
