2003 HONDA ACCORD COUPE Owners Manual

If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will not see a
station number on the corresponding
preset icon.
If you do not like the stations Auto
Select has stored, you can store
other f requencies in the preset icons.
UsetheTUNE,SEEK,orSCAN
function to find the desired
f requencies, then store them in the
selected preset icons as described
previously.
Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by touching the
AUTO SELECT icon. The preset
icons will then select the f requencies
you originally set.
Audio System
Comf ort and Convenience Feat ures190

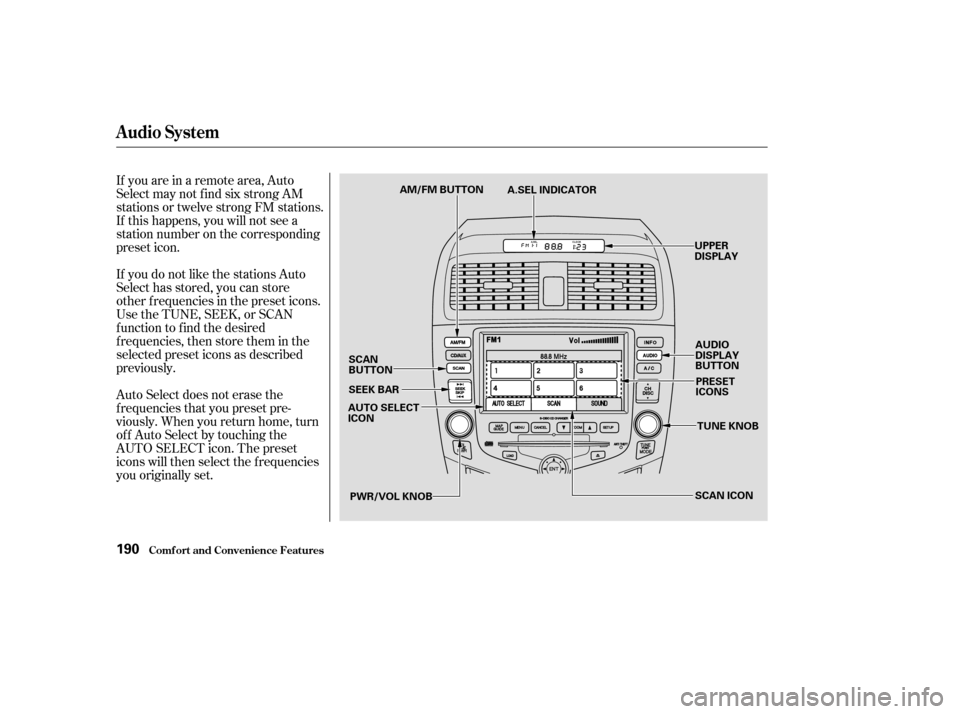

AM/FM BUTTONUPPER
DISPLAY
PWR/VOL KNOB A.SEL INDICATOR
SCAN ICON
SCAN
BUTTON
SEEK BAR
AUTO SELECT
ICON AUDIO
DISPLAY
BUTTON
PRESET
ICONS
TUNE KNOB

µµTo adjust the bass
and treble, touch the or arrows next to the BASS or
TRE icons. The adjustment bar
above each button shows you the
current setting.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. Bass, Treble, Balance, and Fader are
each adjustable. To adjust them,
enter the sound grid by touching the
SOUNDicononthedisplayor
pressing the TUNE knob.
CONT INUED
Adjusting the Sound
Treble/Bass
Balance/Fader
Audio System
Comf ort and Convenience Feat ures191

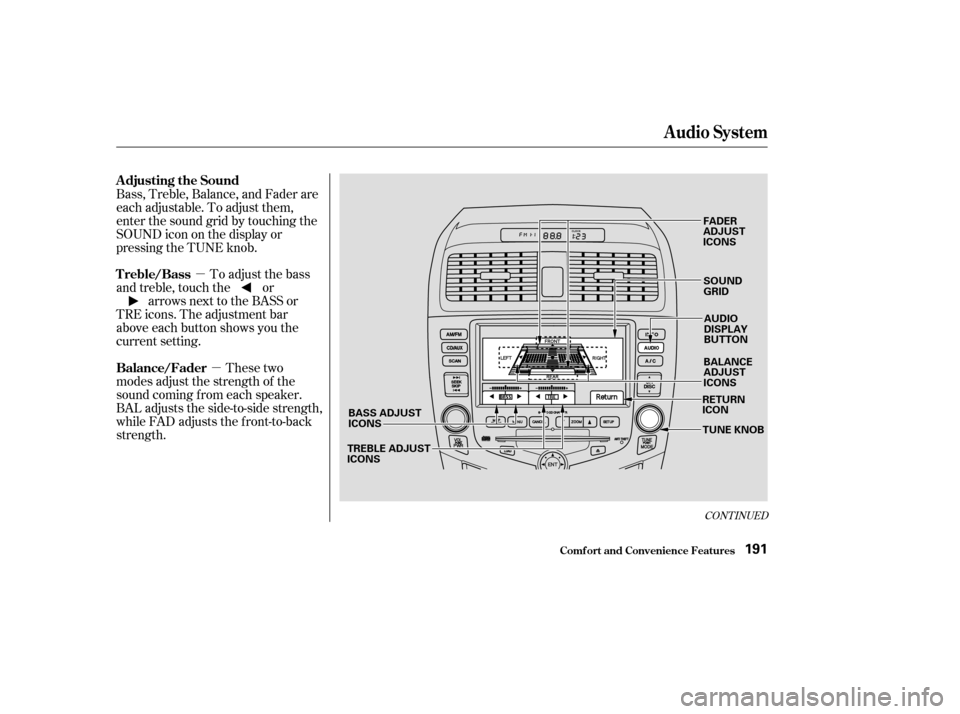

BASS ADJUST
ICONS
TREBLE ADJUST
ICONS RETURN
ICON
BALANCE
ADJUST
ICONS
SOUND
GRID
FADER
ADJUST
ICONS
AUDIO
DISPLAY
BUTTON
TUNE KNOB

To adjust the balance, touch the left
or right arrows on the sound grid.
When you touch an arrow, the pink
bars on the grid move toward it,
changing the balance left or right. To
equalize the balance, touch the lef t
or right arrow until each side has a
pink bar at the center of the sound
grid.
To adjust the fader, touch the front
or rear arrows on the sound grid.
When you touch an arrow, the blue
bars on the grid move toward it,
changing the fader to the front or
rear. To equalize the f ader, touch the
f ront or rear arrow until each side
has a blue bar at the center of the
sound grid.
To see the audio screen when you
are f inished adjusting the sound,
touch the RETURN icon or wait five
seconds.
Audio System
Comf ort and Convenience Feat ures192

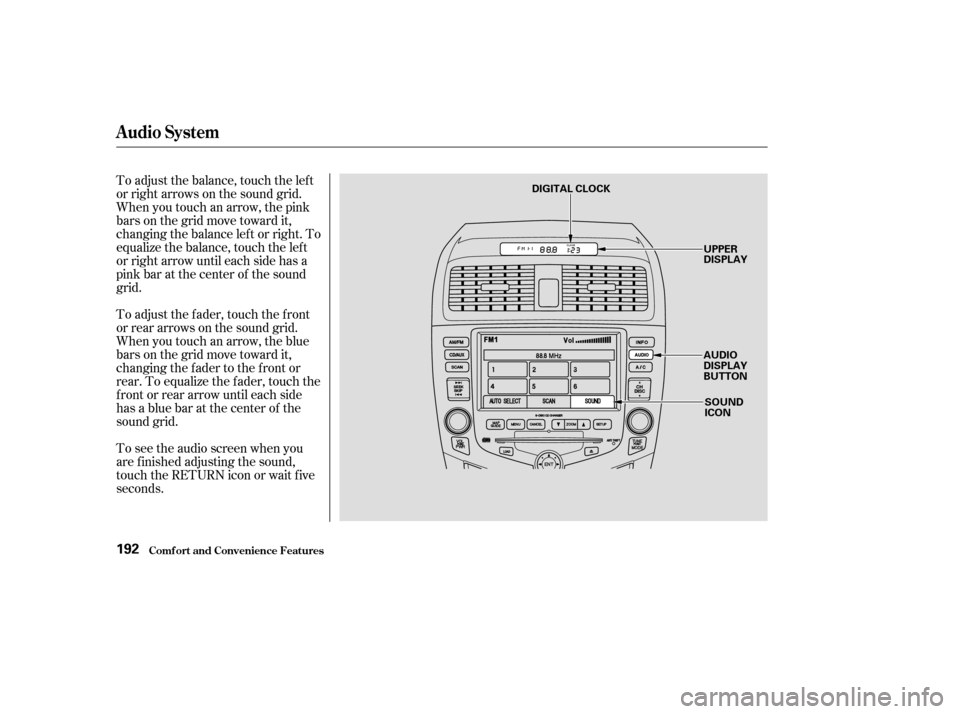

DIGITAL CLOCKUPPER
DISPLAY
AUDIO
DISPLAY
BUTTON SOUND
ICON

If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display.
To return to the previous display,
push the AUDIO DISPLAY button
again.The upper display shows the time
when the ignition switch is in
ACCESSORY (I) or ON (II). The
Navigation System receives signals
f rom the Global Positioning System
(GPS), and the displayed time is
updated automatically by the GPS.
Ref er to the Navigation System
Owner’s Manual to set up the time. Digital Clock
Audio System
Comf ort and Convenience Feat ures193

Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’How well your Honda’s radio
receives stations is dependent on
many f actors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Radio Frequencies
Radio Reception
Audio System
Comf ort and Convenience Feat ures194

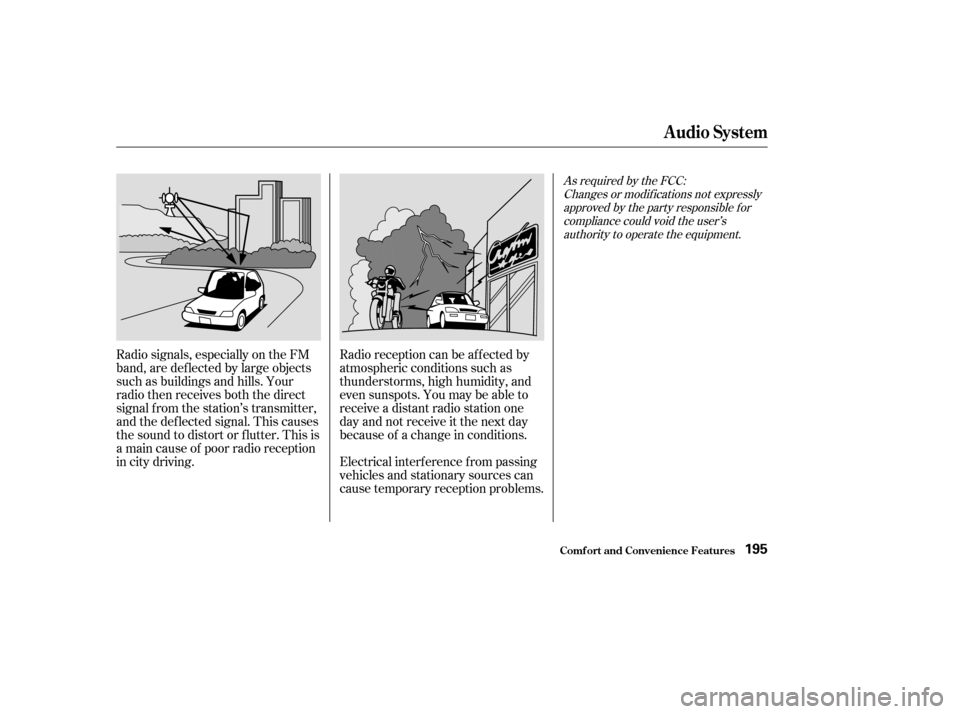

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Audio System
Comf ort and Convenience Feat ures195

Your Honda’s audio system has an
in-dash CD changer that holds up to
six discs, providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the radio.
To load CDs or operate the CD
changer, the ignition switch must be
in ACCESSORY (I) or ON (II).
Load and play only standard round
discs. Odd-shaped CDs may jam in
the drive or cause other problems.
Avoid using CDs that have adhesive-
type labels. The edges can curl up
and cause the CD to jam in the drive.
You cannot load and play 3-inch
(8-cm)discsinthissystem. Operating the CD Changer
Audio System
Comf ort and Convenience Feat ures196
PWR/VOL
KNOBCD SLOT
UPPER DISPLAY
CD/AUX
BUTTON
LOAD BUTTON AUDIO
DISPLAY
BUTTON
DISC BAR
CD LOAD
INDICATOR
EJECT
BUTTON

To load a single CD:Press and release the LOAD
button.
The disc number icon f or an
empty position is highlighted on
the Navigation System display and
the green CD load indicator comes
on. When you see ‘‘LOAd’’ in the
upper display, insert the disc into
the CD slot. Insert it only about
half way; the drive will pull it in the
rest of the way.
The system will load the CD, and
begin playing it.
When ‘‘LOAd’’ appears again in
the display, insert the next disc
into the CD slot.
Insert the disc into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD load indicator
turns red and blinks as the CD is
loaded. Press and hold the LOAD button
until you hear a beep and see
‘‘LOAd’’ in the upper display, then
release the button.
To load multiple CDs in one
operation: For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, the system will
wait f or ten seconds, then stop the
load operation and begin playing the
last CD loaded.
1.
2. 3.
4.
1.
2.
3.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
L oading CDs in t he Changer
197
