Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are
not needed. However,
if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset.
If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer
if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any
of your wheels, wheel bolts
or wheel nuts, replace them only with new
GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts
for your vehicle. Usin,
__ __ wrong replacement wheels,
whc
bolts or wheel nuts on your vehicle can be
dangerous.
It could affect the braking and
handling
of your vehicle, make your tires lose
air and make you
lose control. You could have
a collision
in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts
for replacement.
Notice: The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire clearance to the
body and chassis.
See
Changing a Flat Tire on page 5-69 for more
information.
5-67

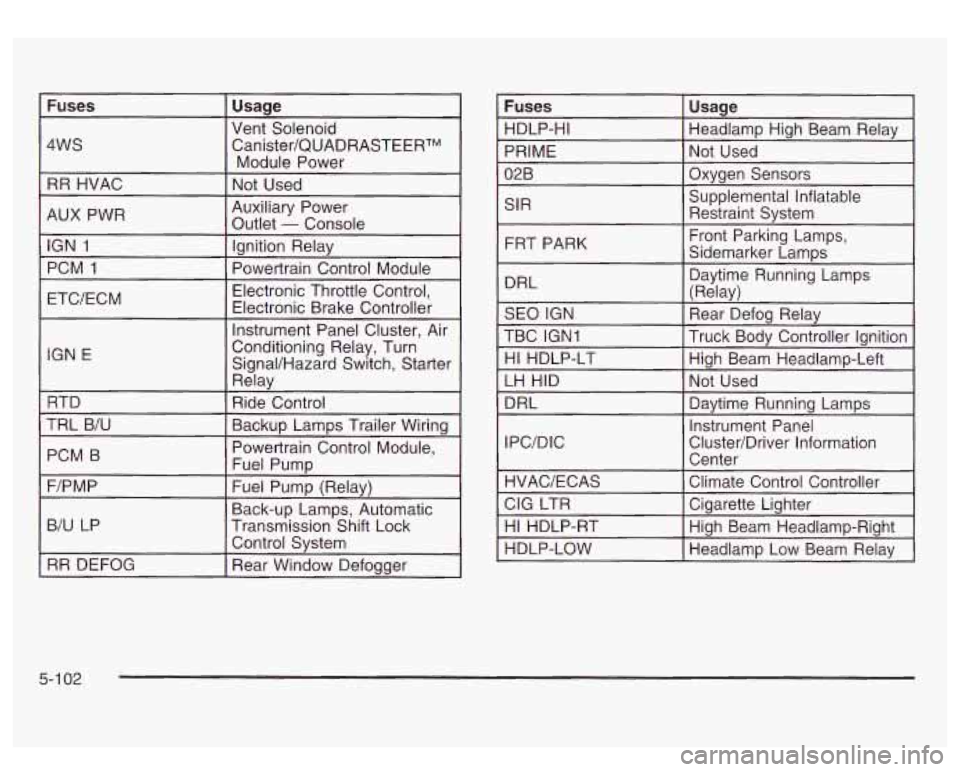

Fuses Usage
4WS Canister/QUADRASTEERTM
RR HVAC Not Used
Vent
Solenoid
Module Power
AUX PWR IGN
1 Ignition Relay
PCM
1
Auxiliary Power
Outlet
- Console
Electronic Throttle Control,
IGN E
Rday
RTD Ride Control
TRL B/U
PCM B
~~ ~-
Backup Lamps Trailer Wiring
Powertrain Control Module,
Fuel Pump
-. - . . -. . . .
F/PM P
B/U LP Transmission Shift Lock
r
Fuel Pump (Relay)
Back-up Lamps, Automatic
Control System
RR DEFOG Rear Window Defogger SIR
FRT PARK
DRL Daytime Running Lamps
I (Relav)
SEO IGN
TBC IGNI Truck Body Controller Ignition \~ ------I
Rear Defog Relay
HI HDLP-LT High Beam Headlamp-Left
LH HID Not Used
DRL Daytime Running Lamps
IPC/DIC Instrument
Panel
Cluster/Driver Information Center
5-1 02

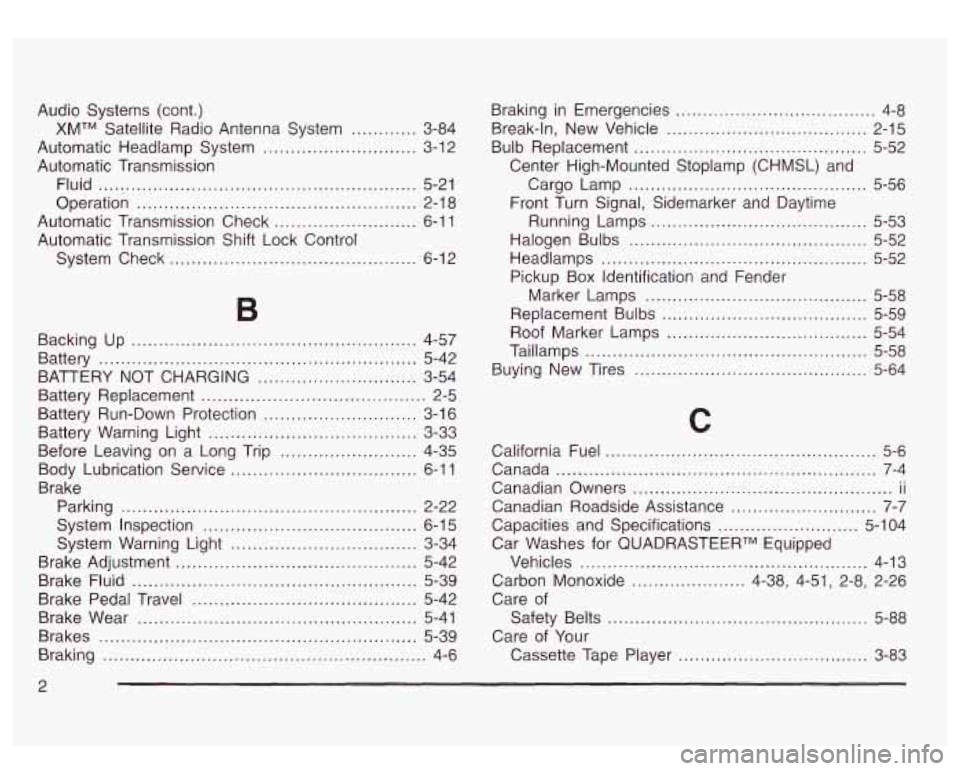

Audio Systems (cont.)
XMTM Satellite Radio Antenna System ............ 3-84
Automatic Headlamp System
............................ 3-1 2
Operation ................................................... 2-1 8
System Check
......................................... 6-12
Automatic
Transmission
Fluid
.......................................................... 5-21
Automatic Transmission Check
.......................... 6-1 1
Automatic Transmission Shift Lock Control
B
Backing Up .................................................... 4-57
Battery
.......................................................... 5-42
Battery Replacement
......................................... 2-5
Battery Run-Down Protection ............................ 3-1 6
BATTERY NOT CHARGING
............................. 3-54
Battery Warning Light
...................................... 3-33
Before Leaving on a Long Trip
......................... 4-35
Body Lubrication Service
.................................. 6-1 1
Brake Parking
...................................................... 2-22
System Inspection
....................................... 6-1 5
System Warning Light .................................. 3-34
Brake Adjustment
............................................ 5-42
Brake Fluid
.................................................... 5-39
Brake Pedal Travel
......................................... 5-42
Brake Wear
.................................... ....... 5-41
Brakes
.......................................................... 5-39
Braking ........................................................... 4-6 Braking
in Emergencies
..................................... 4-8
Break-In, New Vehicle
..................................... 2-15
Bulb Replacement
........................................... 5-52
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp
............................................ 5-56
Front Turn Signal, Sidemarker and Daytime
Running Lamps
........................................ 5-53
Halogen Bulbs
............................................ 5-52
Headlamps
................................................. 5-52
Pickup Box Identification and Fender
Marker Lamps
......................................... 5-58
Replacement Bulbs
...................................... 5-59
Roof Marker Lamps
..................................... 5-54
Buying New Tires
........................................... 5-64
Taillamps
.................................................... 5-58
C
California Fuel .................................................. 5-6
Canada
........................................................... 7-4
Canadian Owners
................................................ ii
Canadian Roadside Assistance ........................... 7-7
Capacities and Specifications
.......................... 5-1 04
Car Washes for QUADRASTEERTM Equipped Vehicles
..................................................... 4-13
Carbon Monoxide
..................... 4-38, 4-51, 2-8, 2-26
Care of
Safety Belts
................................ ..... 5-88
Care
of Your
Cassette Tape Player
................................... 3-83
2

Fluid Automatic Transmission
................................ 5-21
Power Steering
........................................... 5-37
Windshield Washer
...................................... 5-38
FM Stereo
..................................................... 3-82
Fog Lamps
.................................................... 3-14
Folding the Rear Seat
....................................... 1-7
Following Distance
.......................................... 4-57
Footnotes
........................................................ 6-5
Front Axle
...................................................... 5-51
Front Reading Lamps
...................................... 3-15
Fuel
............................................................... 5-5
Additives ...................................................... 5-6
California Fuel
.............................................. 5-6
Filling a Portable Fuel Container
..................... 5-9
Filling Your Tank
........................................... 5-7
Fuels in Foreign Countries .............................. 5-7
Gage ......................................................... 3-42
Gasoline Octane
........................................... 5-5
Gasoline Specifications .................................. 5-5
Low Warning Light ....................................... 3-42
System Inspection
....................................... 6-14
Fuel Information Button
.................................... 3-46
FUEL LEVEL LOW
......................................... 3-58
Fuses Fuses and Circuit Breakers
........................... 5-95
Windshield Wiper ......................................... 5-95
G
Gage
Engine Coolant Temperature
......................... 3-36
Fuel
.......................................................... 3-42
Oil Pressure
........................................... 3-40
Speedometer
.......................................... 3-26
Tachometer
................................................. 3-26
Transmission Temperature
............................. 3-36
Voltmeter Gage
........................................... 3-33
Garage Door Opener
....................................... 2-35
Gasoline
Octane
.................................................... 5-5
Specifications
............................................... 5-5
Glass Surfaces ............................................... 5-88
Glove Box
..................................................... 2-39
GM Mobility Program for Persons with
Disabilities
.................................................... 7-5
Gate
Operator and Canadian Programming
........ 2-37
Hazard Warning Flashers
............................... 3-3
Head Restraints
............................................... 1-6
Headlamp High/Low Beam Changer
.................... 3-6
Headlamps
.................................................... 5-52
Bulb Replacement
....................................... 5-52
Front Turn Signal, Sidemarker and Daytime
Running Lamps
........................................ 5-53

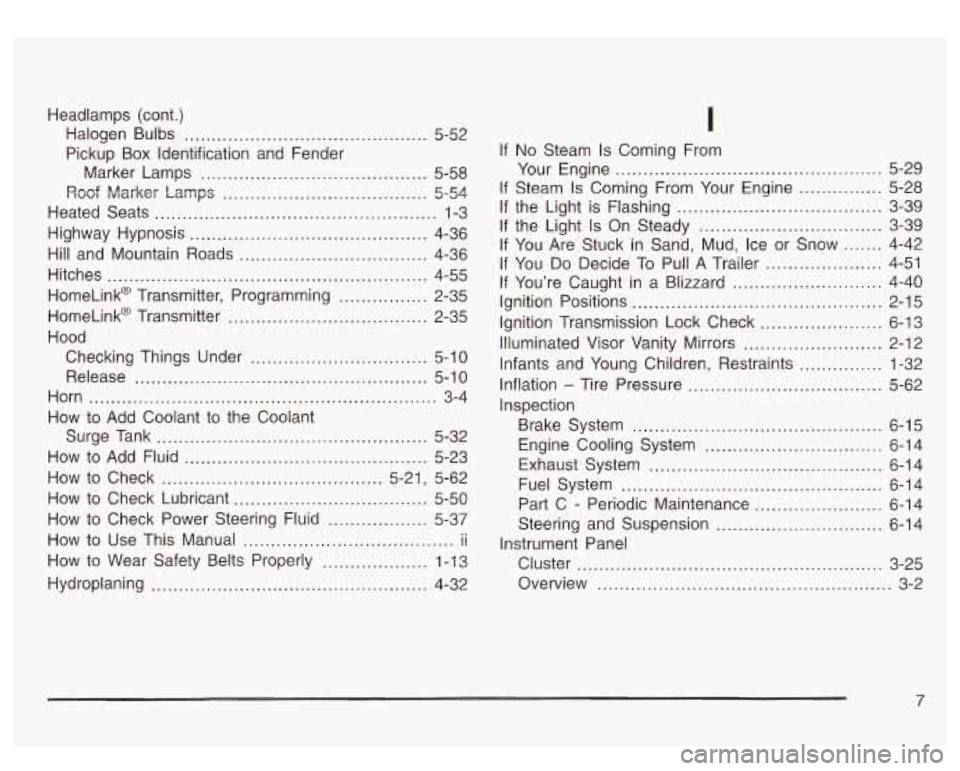

Headlamps (cont.) Halogen Bulbs
............................................ 5-52
Pickup Box Identification and Fender
Marker Lamps
......................................... 5-58
Roof Marker Lamps
..................................... 5-54
Heated Seats
................................................... 1-3
Highway Hypnosis
........................................... 4-36
Hill and Mountain Roads
.................................. 4-36
Hitches
.......................................................... 4-55
HomeLink@ Transmitter
.................................... 2-35
Hood Checking Things Under
................................ 5-10
Release
..................................................... 5-1 0
Horn ............................................................... 3-4
How to Add Coolant
to the Coolant
Surge Tank
................................................. 5-32
How
to Add Fluid ............................................ 5-23
How
to Check ........................................ 5-21, 5-62
How to Check Lubricant
................................... 5-50
How to Use This Manual
.............. ......... ii
How to Wear Safety Belts Properly ................... 1-1 3
HomeLink@ Transmitter, Programming
................ 2-35
How to Check Power Steering Fluid
.................. 5-37
Hydroplaning
.................................................. 4-32
I
if No Steam Is Coming From
Your Engine
................................................ 5-29
If Steam
Is Coming From Your Engine ............... 5-28
If the Light is Flashing ..................................... 3-39
If the Light is On Steady
................................. 3-39
If You Are Stuck in Sand, Mud, Ice or Snow
....... 4-42
If You Do Decide To Pull A Trailer ..................... 4-51
If You’re Caught in a Blizzard ........................... 4-40
Ignition Transmission Lock Check
...................... 6-13
Illuminated Visor Vanity Mirrors
......................... 2-12
infants and Young Children, Restraints
............... 1-32
Inflation
- Tire Pressure ................................... 5-62
inspection Ignition Positions
............................................. 2-15
Brake System
............................................. 6-15
Exhaust System
.......................................... 6-14
Fuel System
............................................... 6-14
Engine Cooling System
................................ 6-14
Part
C - Periodic Maintenance ....................... 6-14
Steering and Suspension
.............................. 6-14
Cluster
....................................................... 3-25
Overview
..................................................... 3-2
Instrument Panel
7
