REMOVAL AND INSTALLATION
Throttle Position (TP) Sensor
Removal
NOTE:
The 3.8L engine is shown; the 4.6L (2V) is similar.
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the throttle position (TP) sensor. zDisconnect the connector.
z Remove the screws, and remove the sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2214 of 4378
REMOVAL AND INSTALLATION
Throttle Position (TP) Sensor —
Cobra
Removal and Installation 1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the bolts and the TP sensor.
3. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2216 of 4378
REMOVAL AND INSTALLATION
Throttle Position (TP) Sensor —
Mach I
Removal and Installation 1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Remove the bolts and the TP sensor.
4. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2218 of 4378
REMOVAL AND INSTALLATION
Idle Air Control (IAC) Valve —

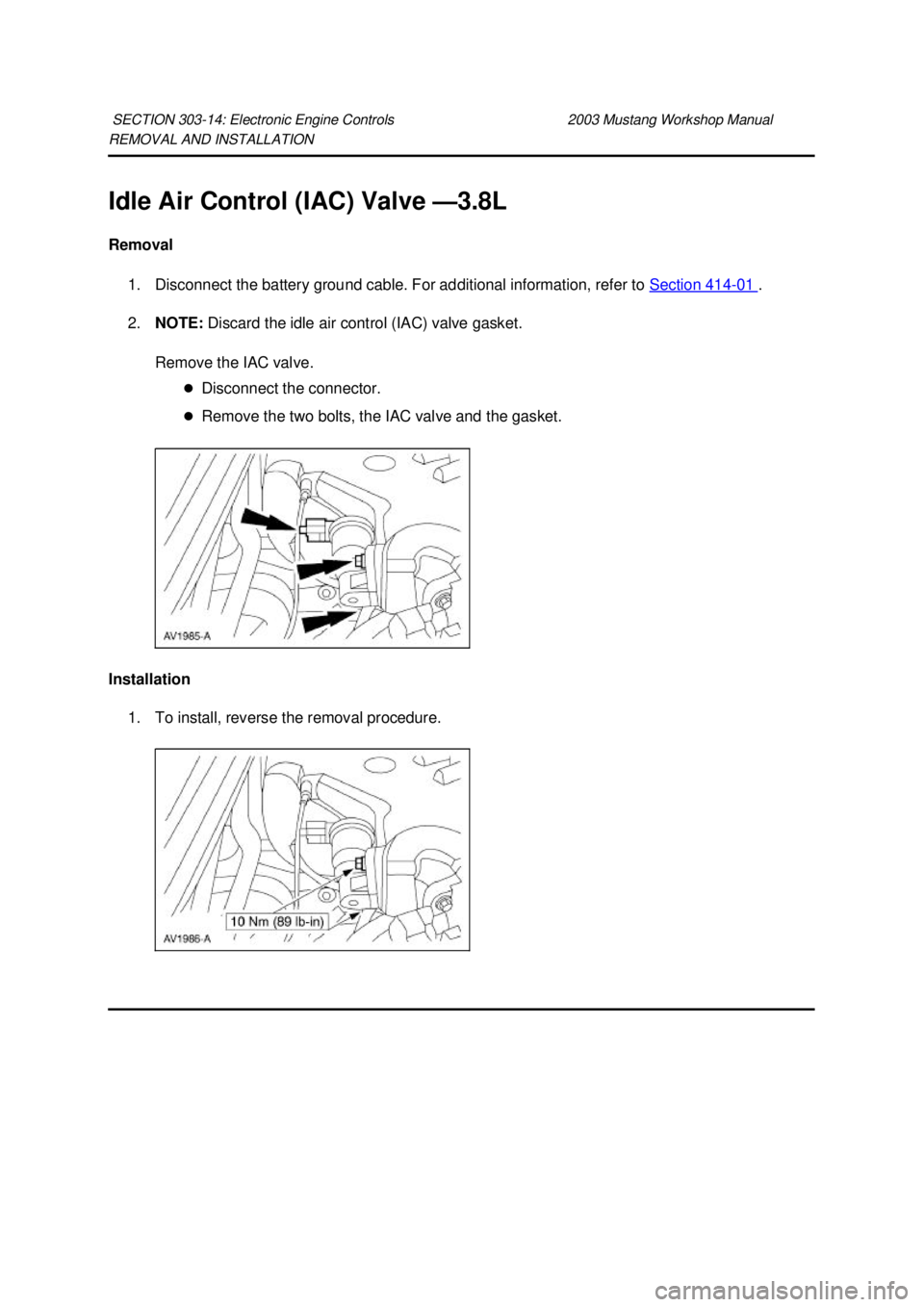

3.8L
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. NOTE: Discard the idle air control (IAC) valve gasket.
Remove the IAC valve. zDisconnect the connector.
z Remove the two bolts, the IAC valve and the gasket.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2220 of 4378
REMOVAL AND INSTALLATION
Idle Air Control (IAC) Valve —

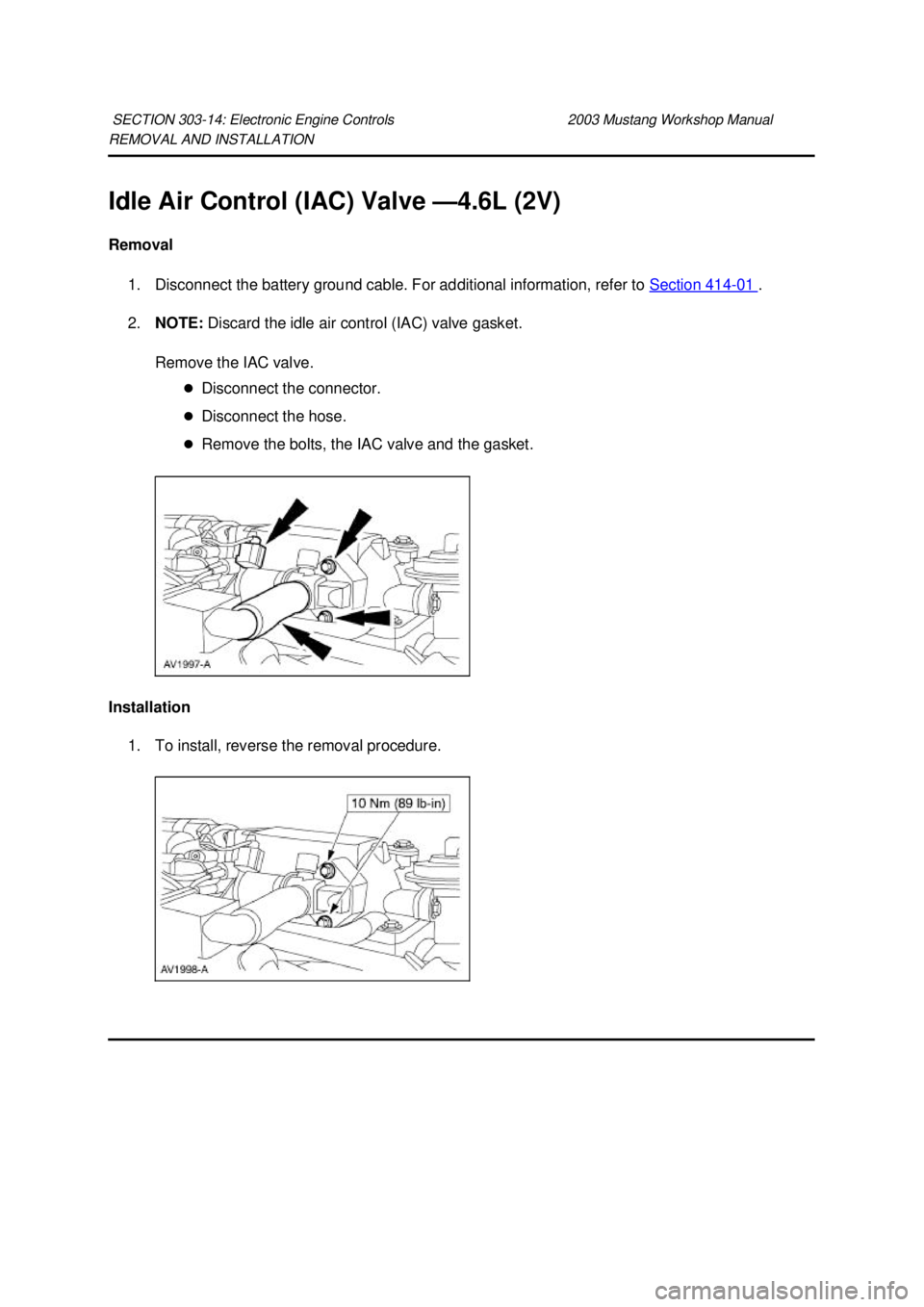

4.6L (2V)
Removal 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. NOTE: Discard the idle air control (IAC) valve gasket.
Remove the IAC valve. zDisconnect the connector.
z Disconnect the hose.
z Remove the bolts, the IAC valve and the gasket.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2222 of 4378
REMOVAL AND INSTALLATION
Idle Air Control (IAC) Valve —

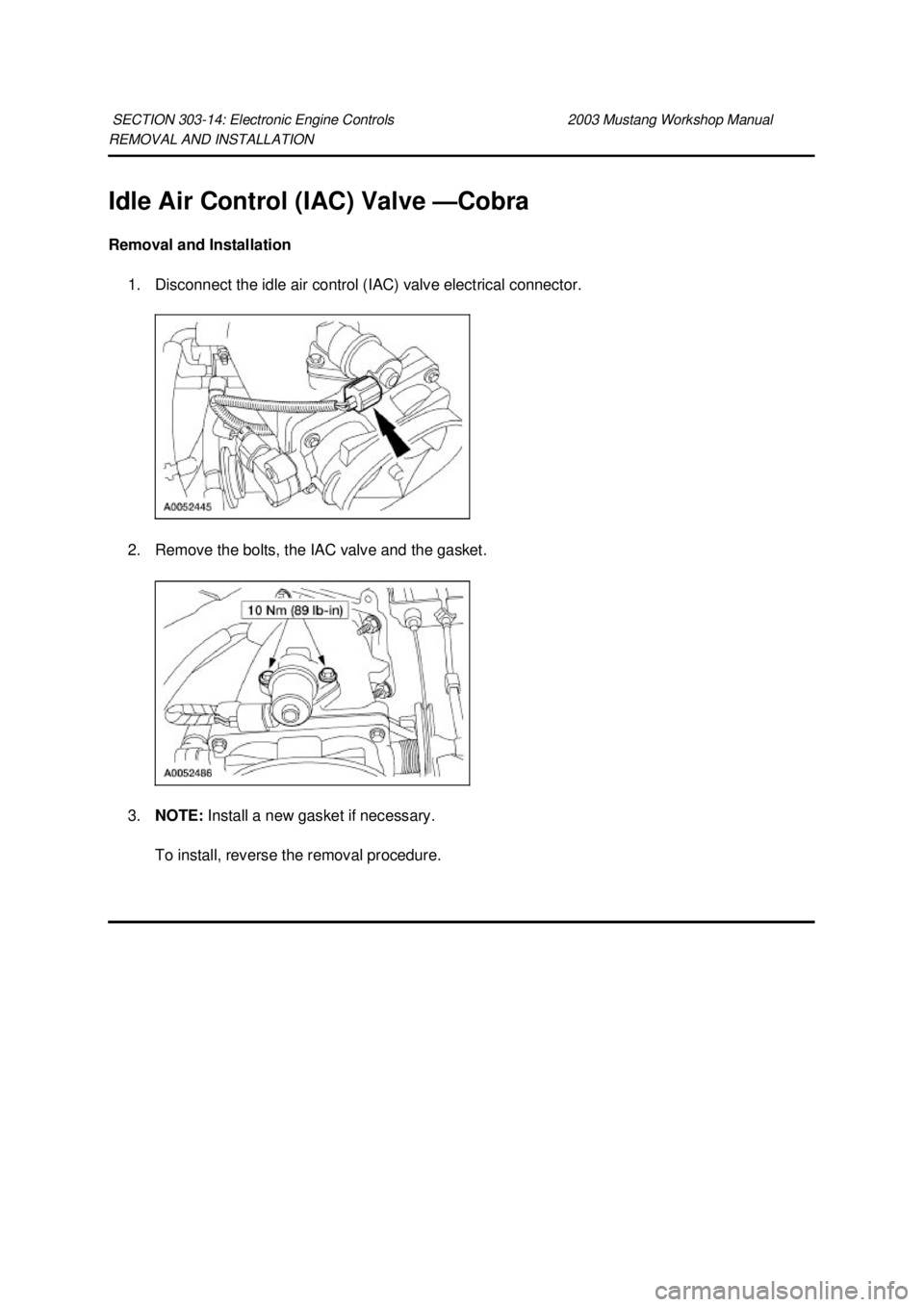

Cobra
Removal and Installation 1. Disconnect the idle air control (IAC) valve electrical connector.
2. Remove the bolts, the IAC valve and the gasket.
3. NOTE: Install a new gasket if necessary.
To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2224 of 4378
REMOVAL AND INSTALLATION
Idle Air Control (IAC) Valve —
Mach I
Removal and Installation 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
2. Disconnect the idle air control (IAC) valve electrical connector.
3. Remove the bolts, the IAC valve and the gasket.
4. NOTE: Install a new gasket if necessary.
To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 2226 of 4378
REMOVAL AND INSTALLATION
Cylinder Head Temperature (CHT) Sensor —
3.8L
Removal 1. Disconnect the battery ground cable. For additional information refer to Section 414 - 01 .
2. Disconnect the cylinder head temperature sensor connector.
3. Remove the CHT sensor.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
