2003 FORD MUSTANG light

2.
CAUTION: Cylinder head machining or milling is not authorized by the Ford Motor
Company. Cylinder head flatness must be within 0.0254 mm (0.001 in) across a 38.1 mm
(1.5 in) square area.
CAUTION: The use of sealing aids (aviation cement, copper spray and glue) is not
permitted. The gasket must be installed dry.
CAUTION: Do not allow the dowels to scratch the sealing surface of the cylinder
head during cylinder head installation.
NOTE: The new cylinder head bolts must be lightly oiled with a rag, and allowed to drain for a
few minutes prior to installation.
NOTE: RH head gasket shown; LH head gasket similar.
Install the cylinder head on the dowels and the head gasket. Loosely install new bolts.
NOTE: Position the cylinder head(s) over the dowels on the head gasket(s).
3. NOTE: LH shown, RH similar.
Tighten the bolts in six stages in the sequence shown. zStage 1: Tighten to 40 Nm (30 lb- ft).
z Stage 2: Tighten an additional 90 degrees.
z Stage 3: Loosen the bolts a minimum of one full turn.
z Stage 4: Tighten to 40 Nm (30 lb- ft).
z Stage 5: Tighten an additional 90 degrees.
z Stage 6: Tighten an additional 90 degrees. Klj . 3 ba
252003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

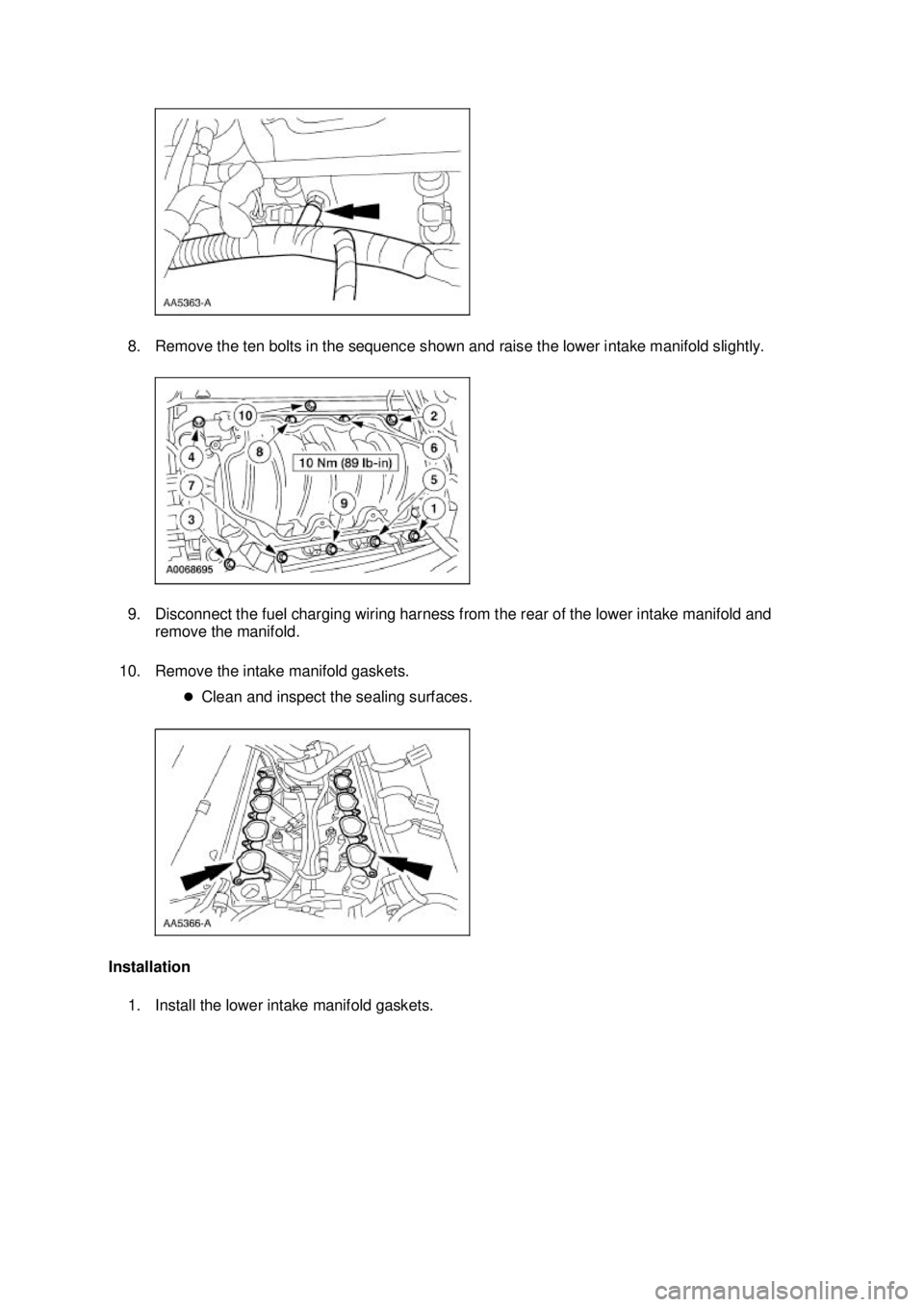

8. Remove the ten bolts in the sequence shown and raise the lower intake manifold slightly.
9. Disconnect the fuel charging wiring harness from the rear of the lower intake manifold and
remove the manifold.
10. Remove the intake manifold gaskets. zClean and inspect the sealing surfaces.
Installation 1. Install the lower intake manifold gaskets. Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

35.

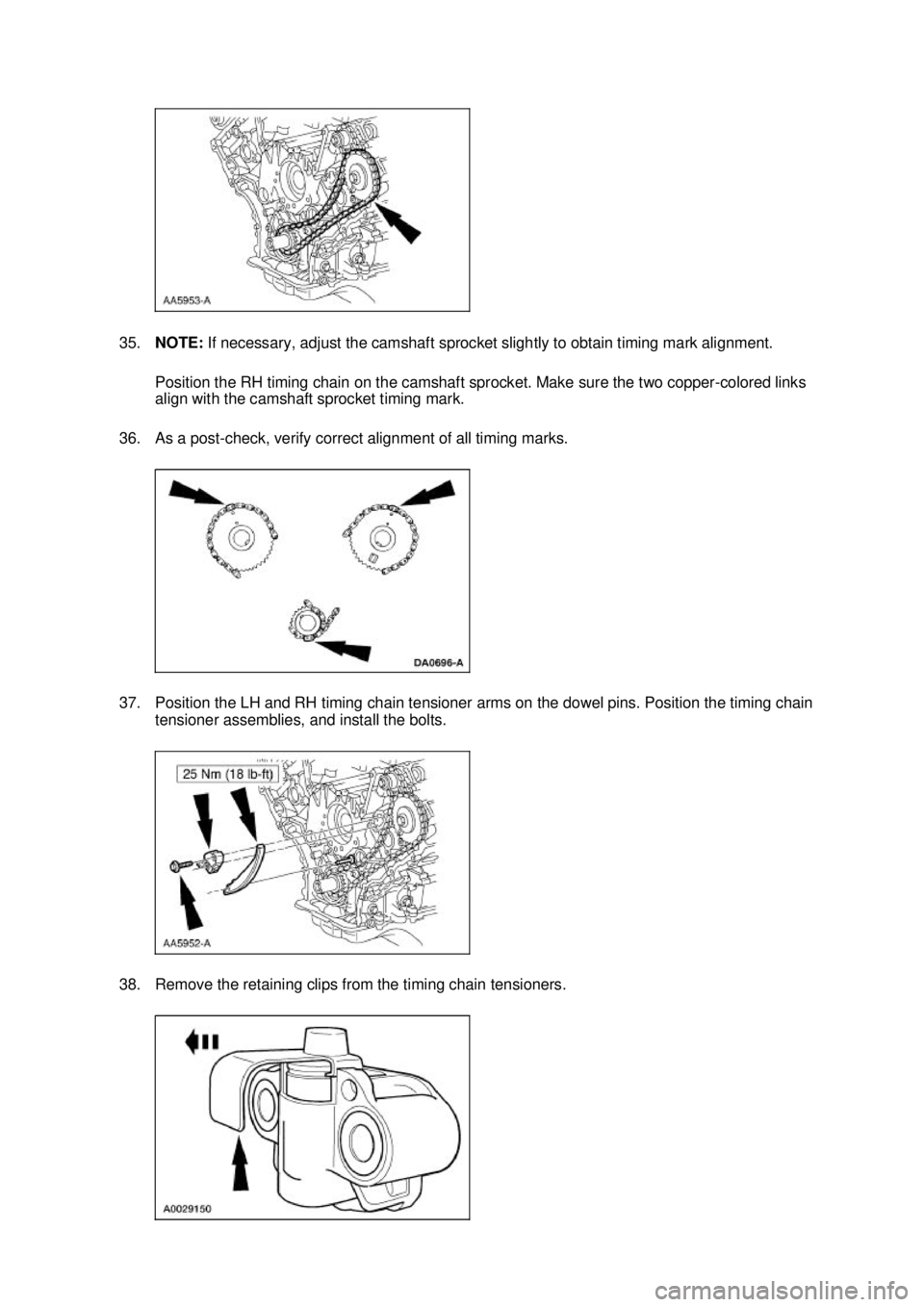

NOTE: If necessary, adjust the camshaft sprocket slightly to obtain timing mark alignment.
Position the RH timing chain on the camshaft sprocket. Make sure the two copper- colored links
align with the camshaft sprocket timing mark.
36. As a post- check, verify correct alignment of all timing marks.
37. Position the LH and RH timing chain tensioner arms on the dowel pins. Position the timing chain tensioner assemblies, and install the bolts.
38. Remove the retaining clips from the timing chain tensioners. Klj . 13 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3. If the inspection reveals an obvious concern that can be readily identified, repair as necessary.
4.
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Gold
Engine Coolant VC -7-A (in Oregon VC -7-B) or equivalent meeting Ford specification
WSS- M97B51- A1 (yellow color). Always fill the cooling system with the same coolant that
is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
Inspect the coolant condition. 1. Inspect the coolant color.
„If Motorcraft Premium Gold Engine Coolant (yellow color) VC-7- A (in Oregon VC-
7- B) or equivalent meeting Ford specification WSS-M97B51- A1 has a clear or
pale yellow color, this indicates higher water content than required.
„ Dark brown can indicate unauthorized stop leak may have been used. Use
Motorcraft Cooling System Stop Leak Pellets VC- 6 or equivalent meeting Ford
specification ESE-M99B37- 5 except as noted in ES-F6SE-19A511- AA only.
„ A light or reddish brown color indicates that rust may be present in the cooling
system. Flush the system and refill with the correct mixture of water and engine
coolant.
„ An iridescent sheen on top of the coolant can indicate a trace of oil is entering the
system. For additional information on engine diagnosis, refer to Section 303 - 00 .
„ A milky brown color may indicate that either engine oil or transmission fluid is
entering the cooling system. If transmission fluid is suspected, the cause may be a
leaky radiator. Pressure test the cooling system. For additional information, refer
to component tests in this section. If engine oil is suspected the cause of the leak
may be internal to the engine. For additional information, refer to Section 303 - 00 .
2. If the engine coolant appearance is acceptable, test the engine coolant freezing point
range with the battery and anti- freeze tester. The freezing point should be in the range -
40°C to - 20°C (-50°F to - 10°F). If the vehicle is driven in cold climates less than - 32°C (-
34°F), it may be necessary to increase the coolant concentration to get adequate freeze
protection.
„Maximum coolant concentration is 60% coolant/40% water.
„ Minimum coolant concentration is 40% coolant/60% water. 3. Adjust coolant range and level, if necessary: Visual Inspection Chart
Mechanical
z
Leaks
z Hoses
z Hose clamps
z Water gasket
z Head gaskets
z Intake manifold gasket
z Coolant pump
z Radiator
z Degas bottle/coolant expansion tank
z Heater core
z Fan/fan clutch
z Engine coolant temperature sensor (4.6L)
z Cylinder head temperature sensor (3.8L)
z Circuitry Klj . 2 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3.
NOTE: Running this test with the vehicle in gear or with the A/C compressor clutch engaged
(running) will cause incorrect diagnosis.
Place the transmission in PARK (P) or NEUTRAL (N).
4. Start the engine and allow the engine to idle throughout this test. Allow the engine to run for 2 minutes, then record the ECT (4.6L) or CHT (3.8L) voltage. Record the ECT (4.6L) or CHT
(3.8L) voltage every 60 seconds. When the ECT (4.6L) or CHT (3.8L) voltage trend changes
direction or only changes slightly (0.03 volts or less) from the previous reading, record this as
the thermostat opening voltage. Use the voltage and corresponding coolant temperature chart
listed below for 4.6L engines only.
5. If the thermostat opening voltage is greater than 0.75 volts and less than 82°C (180°F), install a new water thermostat.
6. If the thermostat opening voltage is less than 0.75 volts and greater than 82°C (180°F), the water thermostat is good and a new water thermostat should not be installed. GO to Symptom Chart for further instructions.
Thermostat — Mechanical Test
1. Remove the water thermostat.
2. Check the water thermostat for seating. Hold the water thermostat up to a lighted background. Leakage of light around the thermostat valve at room temperature indicates that a new water
thermostat should be installed. Some water thermostats have a small leakage notch at one
location on the perimeter of the thermostat valve, which is considered normal.
3. Immerse the water thermostat in a boiling coolant and water mixture.
4. See the General Specifications chart for water thermostat opening temperatures.
Radiator Leak Test, Removed From the Vehicle CAUTION: Never leak test an aluminum radiator in the same water that copper/brass
radiators are tested in. Flux and caustic cleaners may be present in the cleaning tank and they
will damage aluminum radiators.
NOTE: Always install plugs in the oil cooler fittings before leak- testing or cleaning any radiator.
NOTE: Clean the radiator before leak- testing to avoid contamination of tank. Coolant Temperature °C (°F) ECT (Volts)
22 (71) 3.00
43 (109) 2.01
71 (159) 1.01
82 (180) 0.75
91 (195) 0.059
97 (206) 0.050
105 (221) 0.040 Klj . 9 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Engine
Coolant VC -4-A (in Oregon VC- 5, in Canada CXC- 10) or equivalent meeting Ford specification
ESE- M97B44- A (green color). Others are filled with Motorcraft Premium Gold Engine Coolant
VC -7-A or equivalent meeting Ford specification WSS- M97B51-A1 (yellow color). Always fill the
cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
1. Verify the customer's concern by operating the engine to duplicate the condition.
2. Inspect to determine if any of the following mechanical or electrical concerns apply.
3. If the inspection reveals an obvious concern that can be readily identified, repair it as necessary.
4. Inspect the coolant condition. 1. WARNING: Never remove the pressure relief cap while the engine is
operating or when the cooling system is hot. Failure to follow these instructions
can result in damage to the cooling system or engine or personal injury. To avoid
having scalding hot coolant or steam blow out of the degas bottle when removing
the pressure relief cap, wait until the engine has cooled, then wrap a thick cloth
around the pressure relief cap and turn it slowly. Step back while the pressure is
released from the cooling system. When you are sure all the pressure has been
released, (still with a cloth) turn and remove the pressure relief cap.
Allow the engine to cool. Once pressure is released, remove the pressure relief cap.
2. CAUTION: Check the coolant and engine oil level and top off the coolant if
needed. If there is engine coolant in the engine oil the cause must be corrected
and oil/fluid changed or major component damage can occur.
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium
Engine Coolant VC -4-A (in Oregon VC- 5, in Canada CXC- 10) or equivalent meeting
Ford specification ESE- M97B44-A (green color). Others are filled with Motorcraft
Premium Gold Engine Coolant VC -7-A or equivalent meeting Ford specification
WSS- M97B51- A1 (yellow color). Always fill the cooling system with the same
coolant that is present in the system. Do not mix coolant types.
Inspect the coolant color:
„If Motorcraft Premium Engine Coolant (green color) VC-4- A or equivalent meeting
Ford specification ESE-M97B44- A has a clear, light green or blue color, this Visual Inspection Chart
Mechanical Electrical
z
Radiator brackets
z Leaks
z Damaged hoses
z Hose clamps
z Water pump
z Radiator
z Degas bottle
z Water pump bracket z
Damaged water pump wiring Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

indicates higher water content than required.
„ NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6,
darkens Motorcraft Premium Gold Engine Coolant from yellow to golden tan.
If Motorcraft Premium Gold Engine Coolant (yellow color) VC-7- A or equivalent
meeting Ford specification WSS- M97B51-A1 has a clear or pale yellow color, this
indicates higher water content than required.
„ Dark brown can indicate unauthorized stop leak may have been used. Use
Motorcraft Cooling System Stop Leak Pellets VC- 6 or equivalent meeting Ford
specification ESE-M99B37- 5 except as noted in ES-F65E-19A511- AA only.
„ A light or reddish brown color indicates that rust may be present in the cooling
system. Flush the system and refill with the correct mixture of water and engine
coolant.
„ An iridescent sheen on top of the coolant or a milky brown color can indicate a
trace of oil is entering the system. For additional information on engine diagnosis,
refer to Section 303 - 00 .
3. If the engine coolant appearance is acceptable, test the engine coolant freezing point
range with the special tool. The freezing point should be in the range - 50°F to -10°F. If
the vehicle is driven in cold climates less than - 34°F, it may be necessary to increase the
coolant concentration to get adequate freeze protection.
„Maximum coolant concentration is 60/40.
„ Minimum coolant concentration is 40/60.
4. Check the coolant system conditions:
„If the intercooler fluid is low, add the specified coolant mixture only.
„ If the intercooler coolant fluid tests weak, add straight engine coolant until the
readings are within acceptable levels.
„ If the engine coolant tests strong, remove some of the engine coolant and add
water until readings are within acceptable levels.
5. If the concern remains after the inspection, determine the symptom(s). GO to Symptom Chart .
6. Verify the cooling system is correctly filled and bled. Refer to Supercharger Cooling System Draining, Filling and Bleeding in this section.
Symptom Chart
Pinpoint Tests PINPOINT TEST A: LOSS OF COOLANT SYMPTOM CHART
Condition
Possible Sources Action
z Loss of intercooler
coolant z
Intercooler.
z Intercooler
radiator.
z Water pump.
z Coolant hoses.
z Degas bottle. z
Go To Pinpoint Test A . Klj . 3 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Throttle Body
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Disconnect the accelerator cable (9A758) and (if equipped) the speed control actuator cable (9A825).
4. NOTE: Discard the throttle body gasket after removing the throttle body.
Remove the throttle body. zRemove the nuts.
z Remove the bolts.
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
