2003 FORD MUSTANG lock

10. Turn the tool handle clockwise to expand the tool tip inside the shaft seal.
11. Pull the seal from the A/C compressor.
Installation 1. CAUTION: To prevent refrigerant system contamination, do not allow dirt or other
foreign materials to enter the A/C compressor.
Clean the A/C compressor nose area.
2. Place the shaft seal on the special tool. Lubricate the shaft seal and the special tool with PAG oil or equivalent.
3. Position the shaft seal and the special tool over the A/C compressor shaft. Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

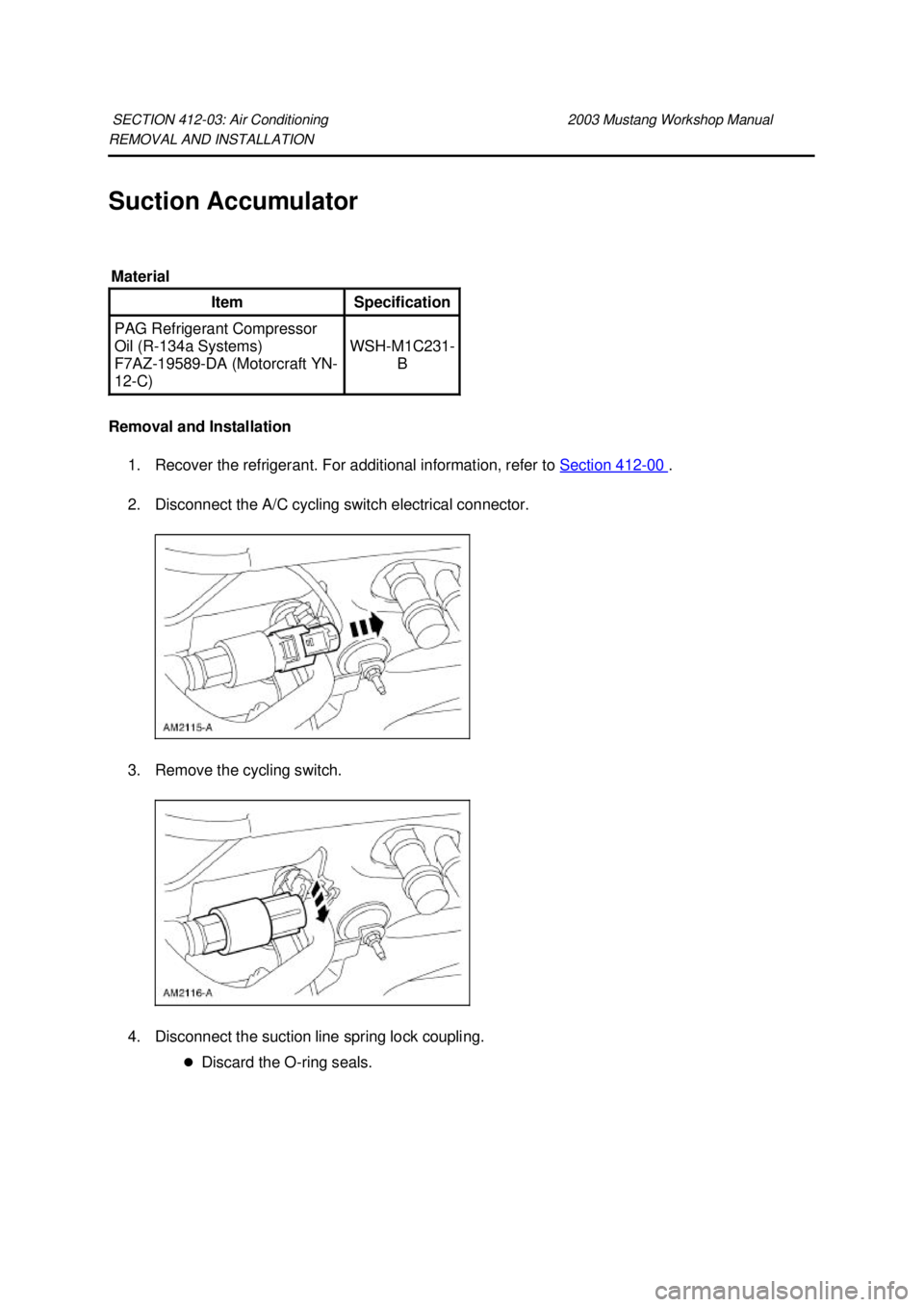

REMOVAL AND INSTALLATION
Suction Accumulator
Removal and Installation
1. Recover the refrigerant. For additional information, refer to Section 412 - 00 .
2. Disconnect the A/C cycling switch electrical connector.
3. Remove the cycling switch.
4. Disconnect the suction line spring lock coupling. zDiscard the O- ring seals.
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual Material
Item Specification
PAG Refrigerant Compressor
Oil (R-
134a Systems)
F7AZ- 19589- DA (Motorcraft YN-
12- C) WSH-
M1C231-
B Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

5. Disconnect the refrigerant containment switch (RCS) electrical connector.
6. Remove the RCS.
7. Remove the nut and disconnect A/C fitting.
zDiscard the O- ring seal.
8. Disconnect the spring lock coupling. zDiscard the O- ring seals. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Compressor Manifold and Tube Assembly —
4.6L
Removal and Installation
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning
system except when there is physical evidence of contamination from a failed A/C compressor or
damage to the suction accumulator.
1. Recover the refrigerant. For additional information, refer to Section 412 - 00 .
2. Disconnect the suction line spring lock coupling. zDiscard the O- ring seals.
3. Remove the A/C muffler bracket nut.
4. Disconnect the spring lock coupling. zDiscard the O- ring seals.
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual Material
Item Specification
PAG Refrigerant Compressor
Oil (R-
134a Systems)
F7AZ- 19589- DA (Motorcraft YN-
12- C) WSH-
M1C231-
B Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Suction Accumulator to Compressor Line —
4.6L
Removal and Installation
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning
system except when there is physical evidence of contamination from a failed A/C compressor or
damage to the suction accumulator.
1. Recover the refrigerant. For additional information, refer to Section 412 - 00 .
2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
3. Disconnect the spring lock coupling at the suction accumulator. zDiscard the O- ring seals.
4. Disconnect the spring lock coupling at the compressor manifold. zDiscard the O- ring seals. 5. Remove the suction accumulator to compressor line. SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual Material
Item Specification
PAG Refrigerant Compressor
Oil (R-
134a Systems)
F7AZ- 19589- DA (Motorcraft YN-
12- C) WSH-
M1C231-
B Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

5. Disconnect the spring lock coupling at the compressor manifold and tube.
zDiscard the O- ring seals.
6. Remove the compressor to condenser discharge line.
7. To install, reverse the removal procedure. zInstall new O- ring seals lubricated in clean PAG oil. For additional information, refer to
Section 412 - 00 .
z Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional
information, refer to Section 412 - 00 .
8. Evacuate, leak test and charge the refrigerant system. For additional information, refer to Section 412 - 00 . Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

7. Disconnect the spring lock coupling at the evaporator core.
zDiscard the O- ring seals.
8. Remove the condenser to evaporator line.
9. To install, reverse the removal procedure. zInstall new O- ring seals lubricated in clean PAG oil.
z Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional
information, refer to Section 412 - 00 .
10. Evacuate, leak test and charge the refrigerant system. For additional information, refer to Section 412 - 00 . Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Instrument Cluster Bulb
Removal and Installation
1. Remove the instrument cluster. For additional information, refer to Section 413 - 01 .
2. Remove the necessary instrument cluster bulbs by rotating the bulb one quarter turn counterclockwise and lifting straight out of the instrument cluster.
3. To install, reverse the removal procedure.
SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Klj . 1 ba
