65. Install the supercharger belt idler support bracket assembly.
66.
NOTE: Lubricate the O- rings with clean engine coolant.
NOTE: LH is shown, RH is similar.
Install the coolant bypass tube and mounting bolts.
67. NOTE: LH is shown, RH is similar.
Install the coolant bypass tube studs. Klj . 24 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1574 of 4378
68.
NOTE: Lubricate the O- ring with clean engine coolant.
Install the heater water inlet tube.
69. NOTE: Lubricate the O- rings with clean engine coolant.
Install the heater water outlet tube and the mounting bolts.
70. NOTE: Inspect the intake manifold gaskets and install new gaskets, if necessary.
Install the intake manifold, supercharger and fuel supply manifold as an assembly, and tighten
the bolts to 10 Nm (89 lb- in) in the sequence shown. Klj . 25 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1575 of 4378

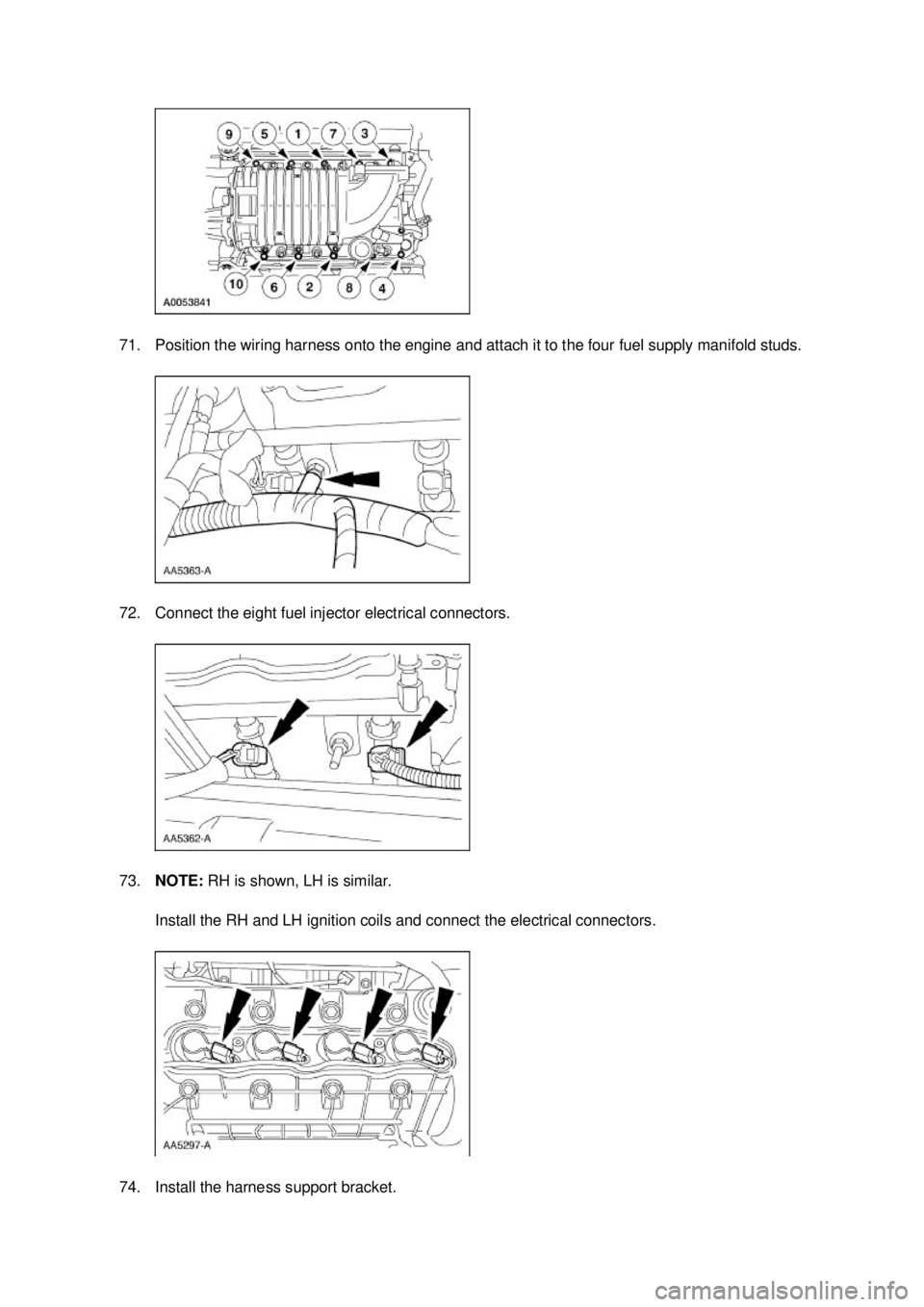

71. Position the wiring harness onto the engine and attach it to the four fuel supply manifold studs.
72. Connect the eight fuel injector electrical connectors.
73.
NOTE: RH is shown, LH is similar.
Install the RH and LH ignition coils and connect the electrical connectors.
74. Install the harness support bracket. Klj . 26 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1577 of 4378
79.
NOTE: LH is shown, RH is similar.
Install the RH and LH radio ignition interference capacitors.
80. NOTE: LH is shown, RH is similar.
Connect the two radio ignition interference capacitor electrical connectors.
81. Connect the engine coolant temperature (ECT) sensor electrical connector, and attach the harness to the stud. Klj . 28 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1582 of 4378

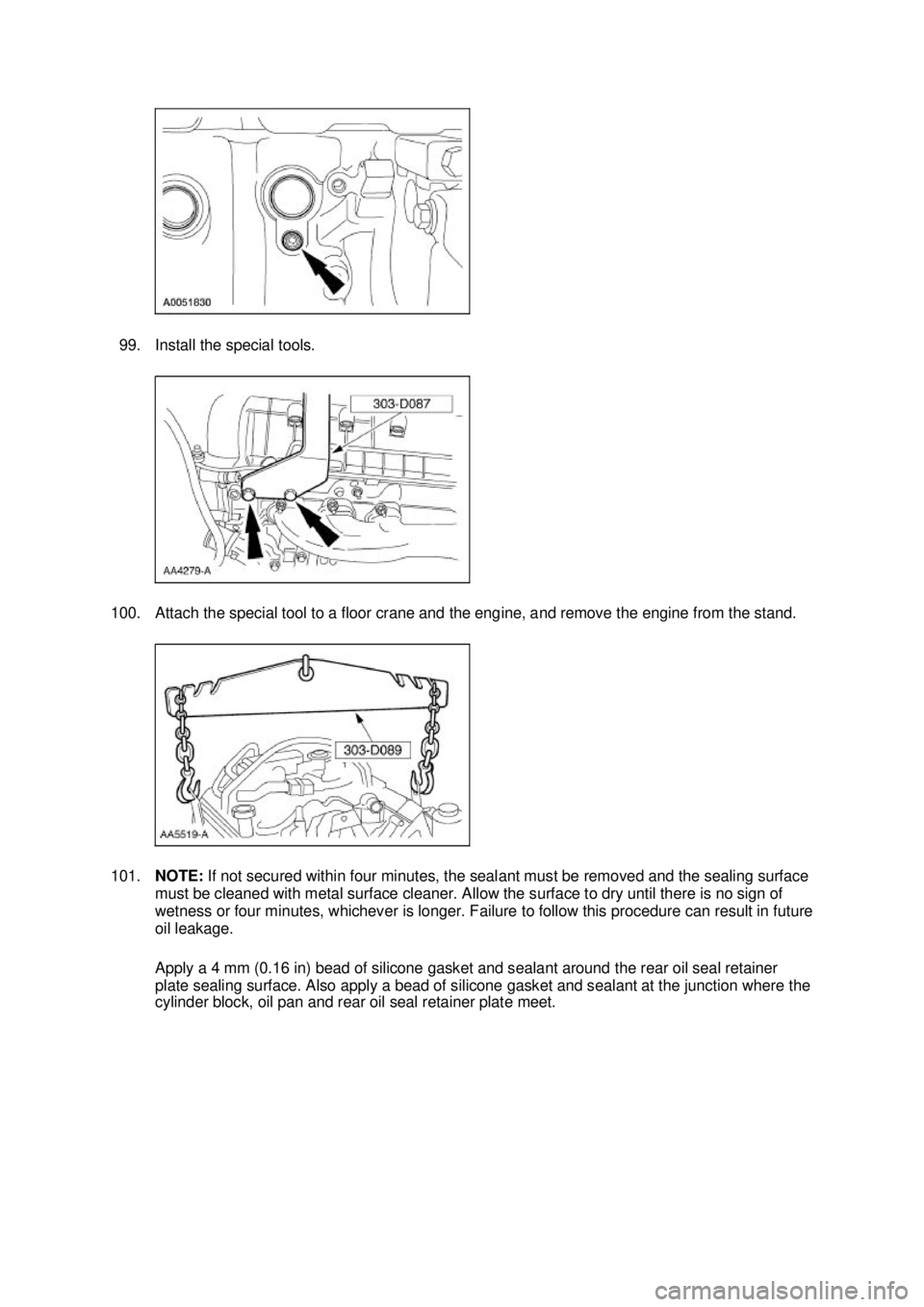

99. Install the special tools.
100. Attach the special tool to a floor crane and the engine, and remove the engine from the stand.
101. NOTE: If not secured within four minutes, the sealant must be removed and the sealing surface
must be cleaned with metal surface cleaner. Allow the surface to dry until there is no sign of
wetness or four minutes, whichever is longer. Failure to follow this procedure can result in future
oil leakage.
Apply a 4 mm (0.16 in) bead of silicone gasket and sealant around the rear oil seal retainer
plate sealing surface. Also apply a bead of silicone gasket and sealant at the junction where the
cylinder block, oil pan and rear oil seal retainer plate meet. Klj . 33 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1585 of 4378
INSTALLATION
Engine
Installation
1. Install the engine in the vehicle and remove the floor crane and the special tool.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D087 (D93P-6001- A1) Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) Spreader Bar
303-
D089 (D93P-6001- A3) or
equivalent
Material Item Specification
SAE 5W-
20 Premium Synthetic
Blend Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Motorcraft Premium Engine
Coolant
VC
-4-A (in Canada CXC- 10; in
Oregon VC- 5) or equivalent ESE-
M97B44-
A Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B) or
equivalent WSS-
M97B51-
A1 Threadlock and Sealer
E0AZ-
19554- AA WSK-
M2G351-
A5 PAG Refrigerant Compressor
Oil (R-
134a Systems)
F7AZ- 19589- DA (MC YN-12- C) WSH-
M1C231-
B Klj . 1 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1587 of 4378

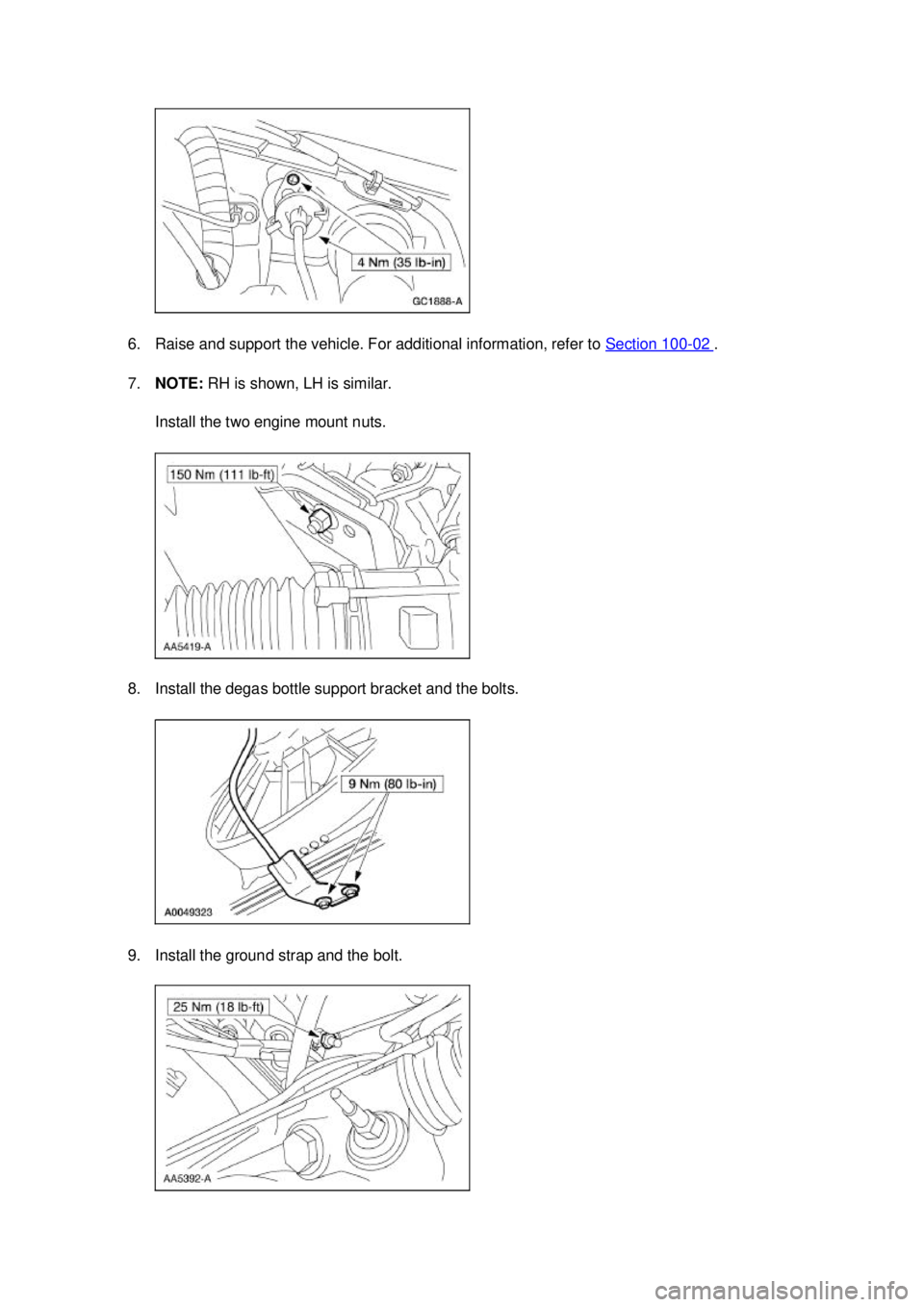

6. Raise and support the vehicle. For additional information, refer to
