Is the voltage greater than 12.5 volts? for an open. TEST the
system for normal operation.
A2 CHECK THE VOLTAGE TO THE STARTER MOTOR
SOLENOID z
Measure the voltage between the starter motor solenoid
positive terminal and ground.
z Is the voltage 12.5 volts or greater? Yes
GO to
A3 .
No
REPAIR circuit 2037 (RD) for
an open. TEST the system
for normal operation. A3 MANUALLY JUMP THE STARTER MOTOR
z
Connect one end of a fused (15A) jumper wire to the
positive terminal of the battery and touch the other end to
the starter solenoid S- terminal.
z Does the starter solenoid engage? Yes
GO to
A4 .
No
INSTALL a new starter
motor. REFER to Starter Motor — 3.8L or
Starter Motor — 4.6L . TEST the
system for normal operation. A4 TEST THE STARTER MOTOR RELAY
z
Carry out the relay component test on the starter motor
relay. Refer to the relay component test in this section.
z Does the starter motor relay test good? Yes
REPAIR circuit 33
(WH/PK)/262 (BN/PK) for an
open. TEST the system for
normal operation.
No
INSTALL a new starter motor
relay. TEST the system for
normal operation. Klj . 3 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

12, circuit 33 (WH/PK) and the starter motor relay pin 86, circuit
33 (WH/PK).
z Is the resistance less than 5 ohms? B4 CHECK DIGITAL TRANSMISSION RANGE (TR) SENSOR
ADJUSTMENT z
Carry out the digital TR sensor adjustment. Refer to Section 307 - 01 .
z Is the digital TR sensor adjusted correctly? Yes
INSTALL a new digital
TR sensor. TEST the
system for normal
operation.
No
ADJUST the digital TR
as necessary. TEST the
system for normal
operation.
B5 CHECK CIRCUIT 32 (RD/LB) FOR VOLTAGE AT THE CLUTCH
SWITCH OR JUMPER z
Key in OFF position.
z Disconnect: Clutch Pedal Switch C255.
z Key in START position.
z Measure the voltage between the clutch pedal switch C255 pin
2, circuit 32 (RD/LB) and ground while holding the key in the
START position.
z Is the voltage greater than 10 volts? Yes
GO to
B6 .
No
GO to B7 .
B6 CHECK CIRCUIT 33 (WH/PK)/32 (RD/LB) FOR OPEN
z
Key in OFF position.
z Measure the resistance between the clutch pedal switch C255
pin 1, circuit 33 (WH/PK)/32 (RD/LB) and the starter motor relay
pin 86, circuit 33 (WH/PK)/32 (RD/LB).
z Is the resistance less than 5 ohms? Yes
INSTALL a new clutch
pedal switch. TEST the
system for normal
operation.
No
REPAIR circuit 33
(WH/PK)/32 (RD/LB).
TEST the system for
normal operation.
B7 CHECK FOR VOLTAGE AT FUSE 6
z
Key in OFF position.
z Disconnect: Fuse #6.
z Key in START position. Yes
REPAIR circuit 32
(RD/LB). TEST the Klj . 5 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
Measure the voltage between the central junction box fuse 6,
circuit 33 (WH/PK) and ground while holding the key in the
START position.
z Is the voltage greater than 10 volts? system for normal
operation.
No
GO to
B8 .
B8 CHECK CIRCUIT 1050 (LG/VT) FOR VOLTAGE
z
Key in OFF position.
z Disconnect: Ignition Switch C209.
z Key in ON position.
z Measure the voltage between the ignition switch connector
C209 pin B4, circuit 1050 (LG/VT) and ground.
z Is the voltage greater than 10 volts? Yes
GO to
B9 .
No
REPAIR circuit 1050
(LG/VT). TEST the
system for normal
operation. B9 CHECK THE IGNITION SWITCH
z
Carry out the ignition switch component test. Refer to
Refer to Wiring Diagrams Cell 149 for schematic and connector
information.
.
z Does the ignition switch test good? Yes
REPAIR circuit 33
(WH/PK). TEST the
system for normal
operation.
No
INSTALL a new ignition
switch. TEST the
system for normal
operation.
B10 CHECK CIRCUIT 1205 (BK) FOR OPEN
z
Key in OFF position. Yes
INSTALL a new starter
motor relay. TEST the
system for normal
operation.
No
REPAIR circuit 1205
(BK). TEST the system
for normal operation. Klj . 6 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

10. Inspect for fused spot deposits.
zThis can be identified by melted or spotty deposits resembling bubbles or blisters.
z This can be caused by sudden acceleration.
z Clean the spark plug.
11. CAUTION: Be sure to orient the spark plug boots so the spark plug wires do not
contact the exhaust manifold.
NOTE: Apply silicone brake caliper grease and dielectric compound to the inside of the spark
plug wire boots.
To install, reverse the removal procedure.
zAdjust the spark plug gap as necessary. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

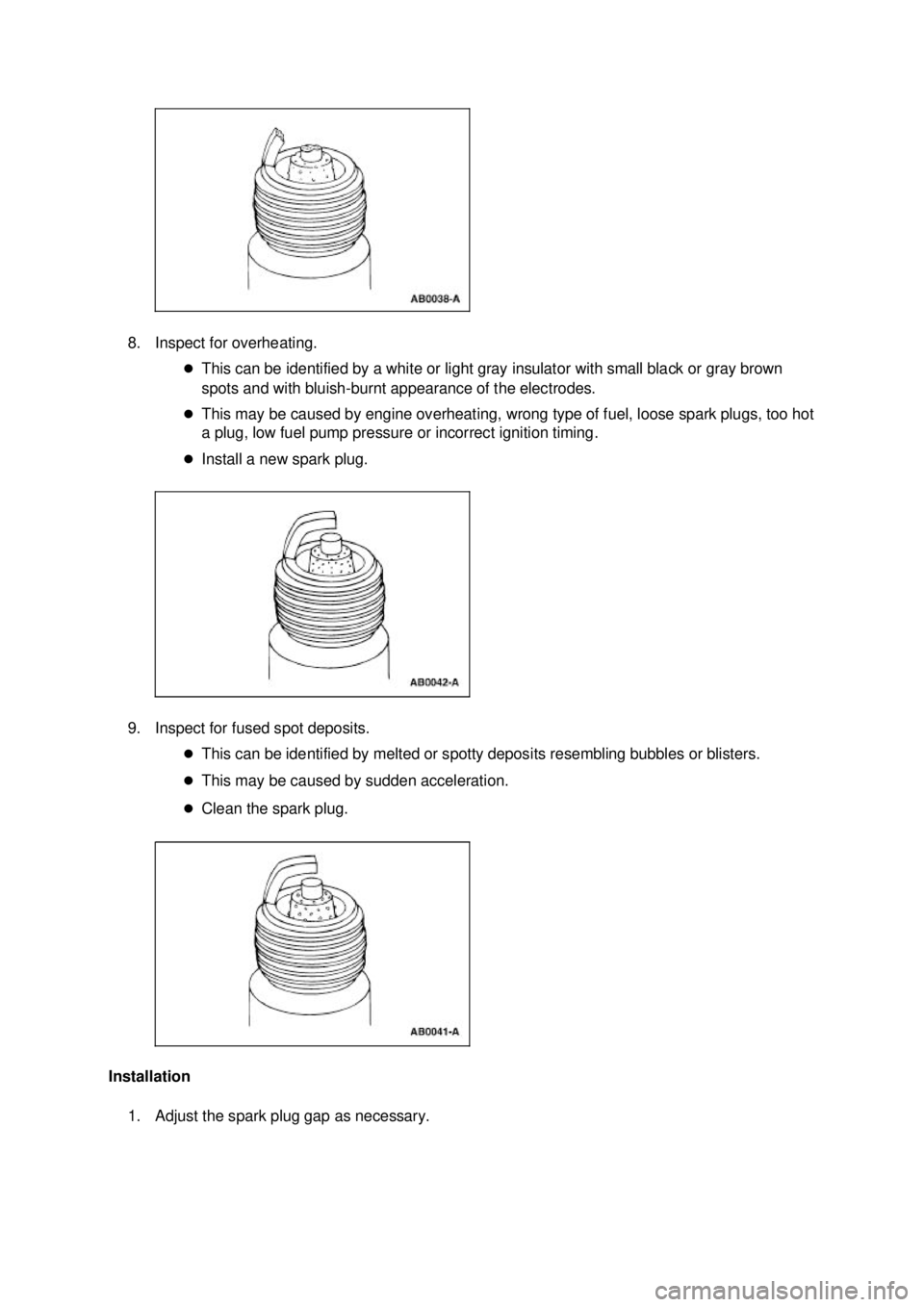

8. Inspect for overheating.
zThis can be identified by a white or light gray insulator with small black or gray brown
spots and with bluish- burnt appearance of the electrodes.
z This may be caused by engine overheating, wrong type of fuel, loose spark plugs, too hot
a plug, low fuel pump pressure or incorrect ignition timing.
z Install a new spark plug.
9. Inspect for fused spot deposits. zThis can be identified by melted or spotty deposits resembling bubbles or blisters.
z This may be caused by sudden acceleration.
z Clean the spark plug.
Installation 1. Adjust the spark plug gap as necessary. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Output Shaft Speed (OSS) Sensor Harness Connector 1 — NOT USED
2 — Signal Return
3 — TR3A
4 — TR1
5 — TR2
6 — TR4
7 — NOT USED
8 — NOT USED
9 — Fused Power Feed
10 — Starter Control
11 — Reverse
12 — Starter to Starter Interrupt Relay
Pin Number Circuit Circuit Function
1 — Output Shaft Speed (OSS) Sensor
2 — Signal Return
Digital Transmission Range (TR) Sensor Diagnosis Chart Selector Position PID: TR PID: TR_D PID: TR_V (volts)
TR4 TR3A TR2 TR1 TR3A (PCM Pin 64 to sigrtn)
PARK P/N 0 0 0 0 0.0 Volts
In Between REV 0 1 0 0 1.3 -
1.8 Volts REVERSE REV 1 1 0 0 1.3 -
1.8 Volts In Between REV 0 1 0 0 1.3 -
1.8 Volts NEUTRAL NTRL 0 1 1 0 1.3 -
1.8 Volts In Between
O/D
a 1 1 1 0 1.3 -
1.8 Volts OVERDRIVE
O/D
a 1 1 1 1 1.3 -
1.8 Volts In Between Man 2 1 0 1 1 0.0 Volts Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING
External Controls
Refer to Wiring Diagrams Cell
37 , Shift Lock for schematic and connector information.
Refer to Wiring Diagrams Cell 29 , Transmission Control for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:
3. If the concern is not visually evident, determine the symptom. GO to Symptom Chart .
Symptom Chart SECTION 307-
05: Automatic Transaxle/Transmission External Controls 2003 Mustang Workshop Manual Special Tool(s)
73 Digital Multimeter
105-
R0051 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Shift control linkage binding.
z Shift lock actuator.
z Shift control cable.
z Interlock cable. z
Circuitry.
z Central junction box (CJB) fuse:
„17 (15A)
„ 28 (15A)
„ 35 (15A)
z Brake pedal position (BPP) switch.
z Wiring harness.
z Loose or corroded connections.
z Bulb.
SYMPTOM CHART Condition
Possible Sources Action
z The shift interlock
system does not
release/lock correctly z
Circuitry.
z CJB Fuse 17 (15A)
or Fuse 35 (15A).
z Shift lock actuator.
z Brake pedal position
(BPP) switch. z
Go To Pinpoint Test A . Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT
RELEASE/LOCK CORRECTLY z
The shift control is
out of correct gear
relationship z
Transmission shift
cable and bracket.
z Retainer bracket.
z Shift control linkage
out of adjustment. z
Go To Pinpoint Test B .
z Transmission range
indicator does not
correspond to the
gear z
Transmission shift
cable bracket. z
TIGHTEN the bolts
holding transmission
shift cable bracket.
z Transmission shift
cable loose from the
transmission
retainer bracket. z
TIGHTEN the bolts.
z Shift linkage. zVERIFY digital
transmission range
(DTR) sensor range for
correct adjustment.
REFER to Section 307 -
01 .
z The Transmission
Control Switch (TCS)
Is Inoperative z
CJB Fuse 28 (15A).
z TCS.
z TCS not cycled
during self- test.
z Powertrain control
module (PCM).
z Circuitry. z
Go To Pinpoint Test C .
z The Transmission
Control Indicator
Lamp (TCIL) Is Not
Operating Correctly z
Bulb.
z Instrument cluster.
z Powertrain control
module. z
REFER to Section 413 -
01 .
z Excessive Shift Effort zTransmission shift
cable. z
INSTALL a new
transmission shift cable.
z Cable bracket. zADJUST the cable.
TIGHTEN the screws.
z Transmission Range
Selector Lever Will
Not Shift z
Transmission shift
cable. z
INSTALL a new
transmission shift cable.
z Broken transmission
shift cable. z
INSTALL a new
transmission shift cable. Test Step Result / Action to Take
A1 TEST THE BRAKE LIGHTS
z
Key in ON position.
z Apply the brake pedal and observe the stoplamps.
z Do the stoplamps illuminate? Yes
GO to
A2 .
No
REFER to Section 417 -Klj . 2 ba
