2003 FORD MUSTANG clock

4.
CAUTION: The camshaft timing marks must be correctly lined up or damage to the
valves and pistons can occur.
NOTE: The copper links on the timing chain may not line up with the timing marks on the
sprockets.
Make sure the timing marks on the camshaft sprockets are correctly positioned. If necessary,
turn the crankshaft one full turn clockwise to correctly position the sprockets.
5. NOTE: LH shown; RH similar.
Remove the two bolts, the timing chain tensioner (6L266) and tensioner arm (6L253).
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are
removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
Remove the LH and RH timing chains and the crankshaft sprocket (6306).
zRemove the special tool from the crankshaft.
z Remove the RH timing chain from camshaft sprocket.
z Remove the RH timing chain from the crankshaft sprocket.
z Remove the LH timing chain from the camshaft sprocket.
z Remove the LH timing chain and crankshaft sprocket. Klj . 2 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

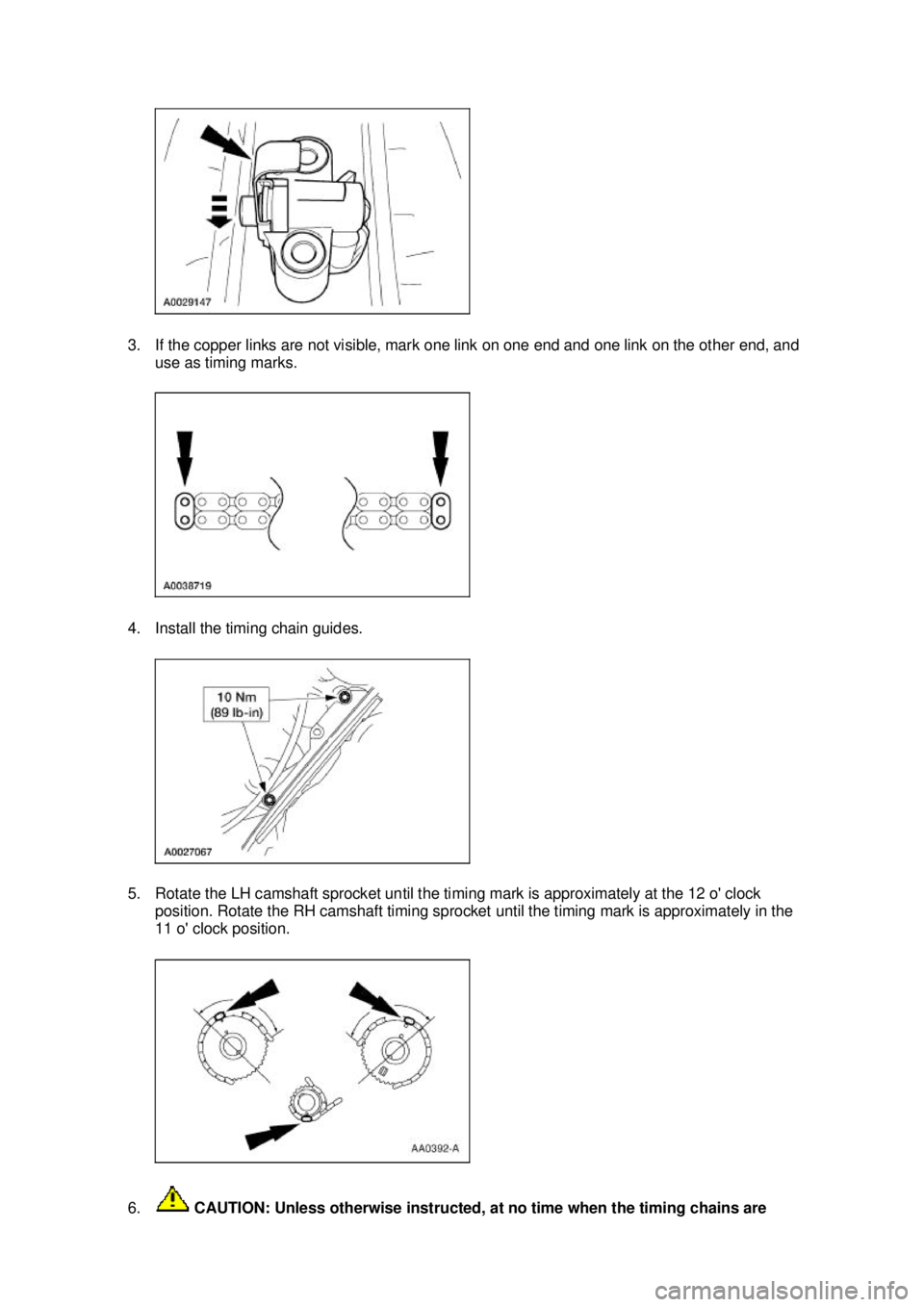

3. If the copper links are not visible, mark one link on one end and one link on the other end, and
use as timing marks.
4. Install the timing chain guides.
5. Rotate the LH camshaft sprocket until the timing mark is approximately at the 12 o' clock position. Rotate the RH camshaft timing sprocket until the timing mark is approximately in the
11 o' clock position.
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are Klj . 4 ba
72003 Mustang Workshop Manual

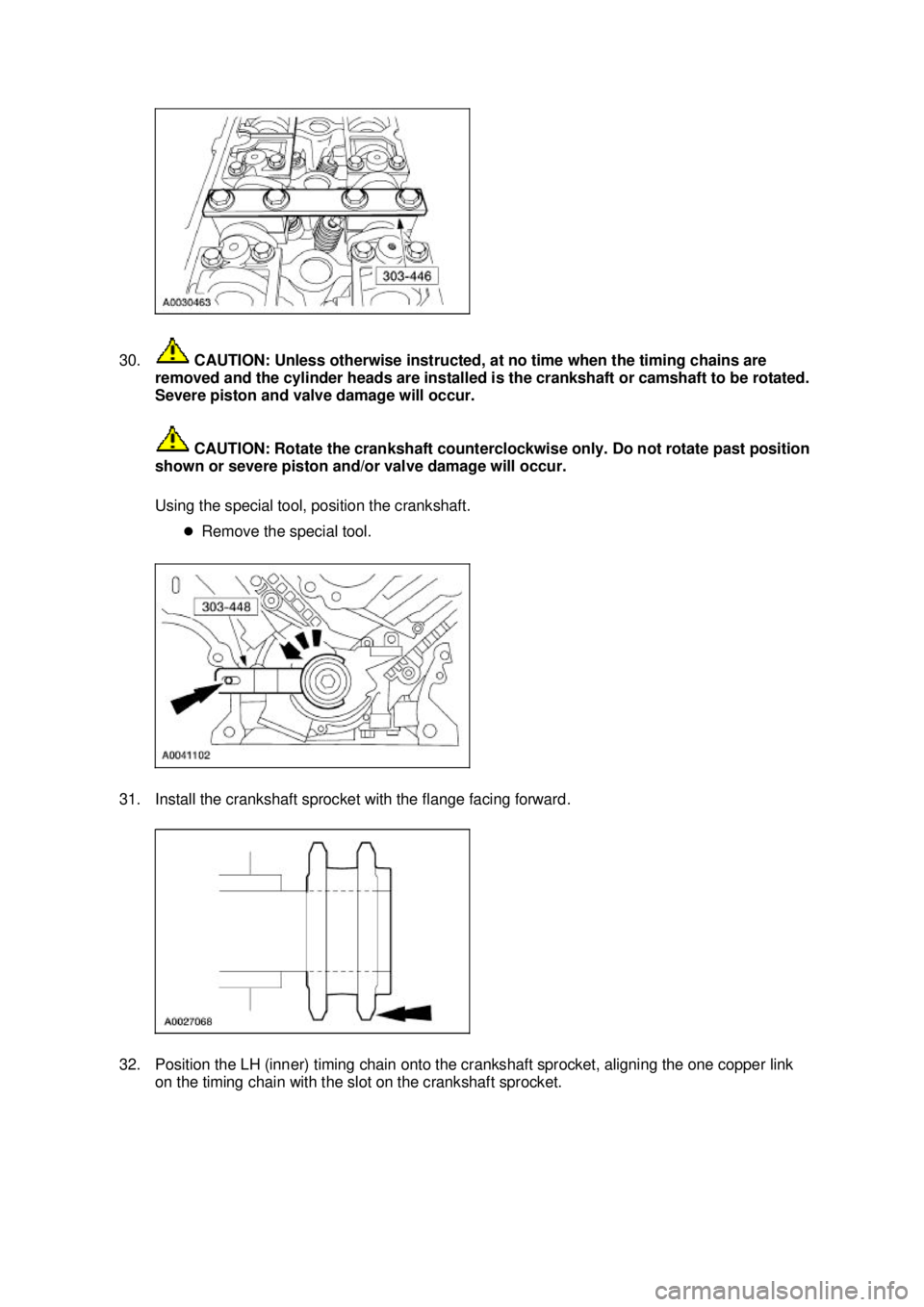

17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
CAUTION: Rotate the crankshaft counterclockwise only. Do not rotate past position
shown or severe piston or valve damage will occur.

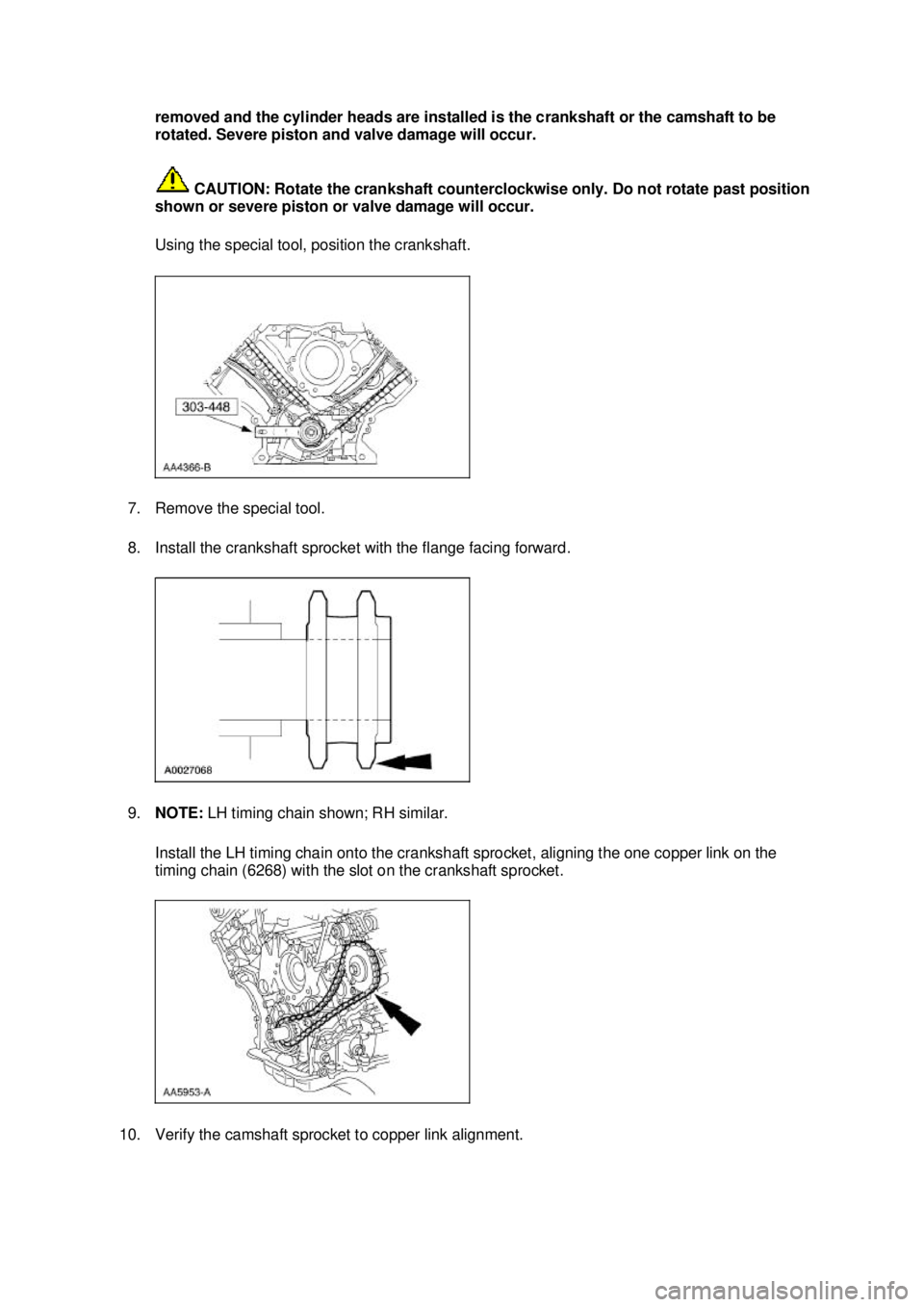

Using the special tool, position the crankshaft.
7. Remove the special tool.
8. Install the crankshaft sprocket with the flange facing forward.
9. NOTE: LH timing chain shown; RH similar.
Install the LH timing chain onto the crankshaft sprocket, aligning the one copper link on the
timing chain (6268) with the slot on the crankshaft sprocket.
10. Verify the camshaft sprocket to copper link alignment. Klj . 5 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

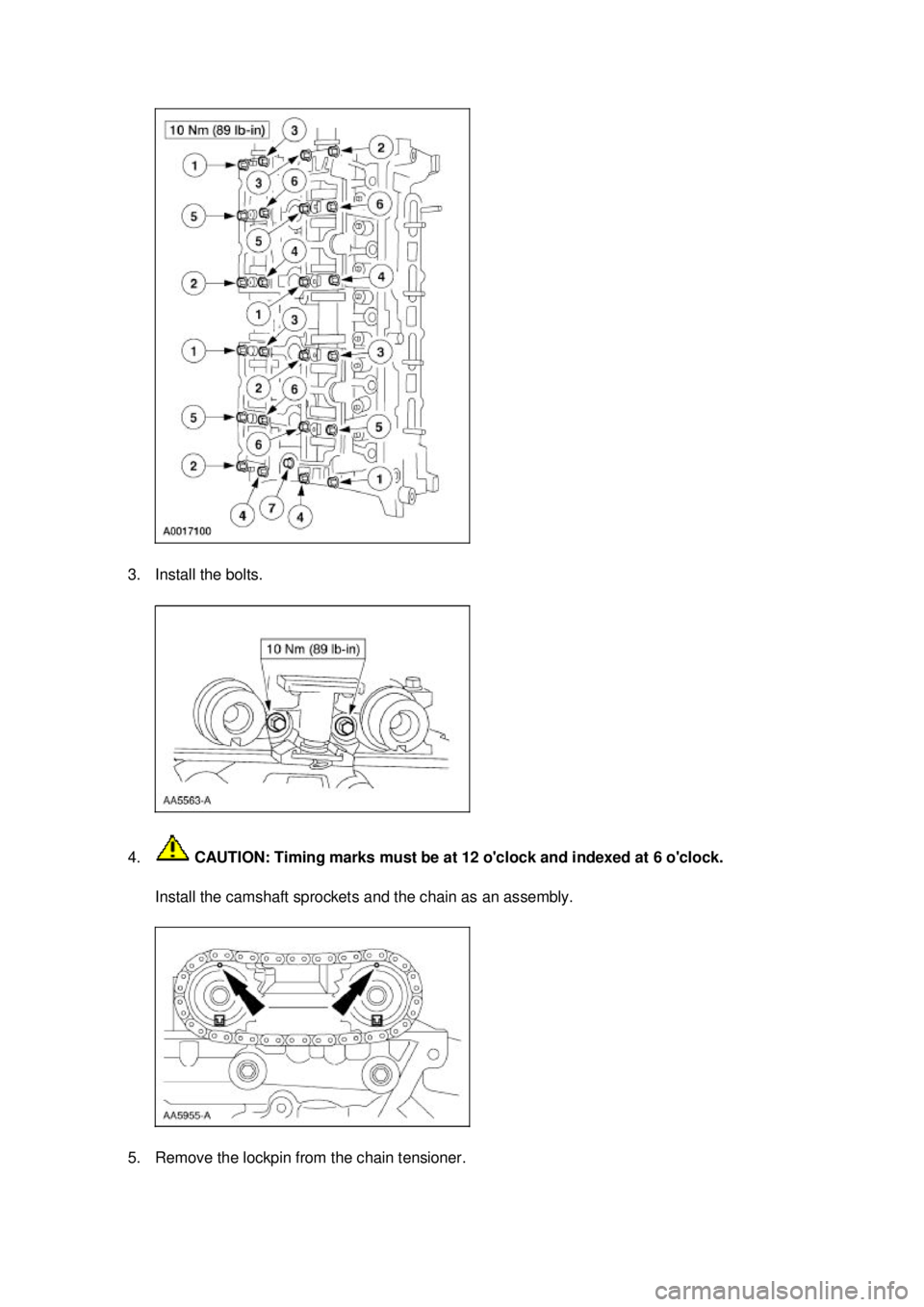

3. Install the bolts.
4.

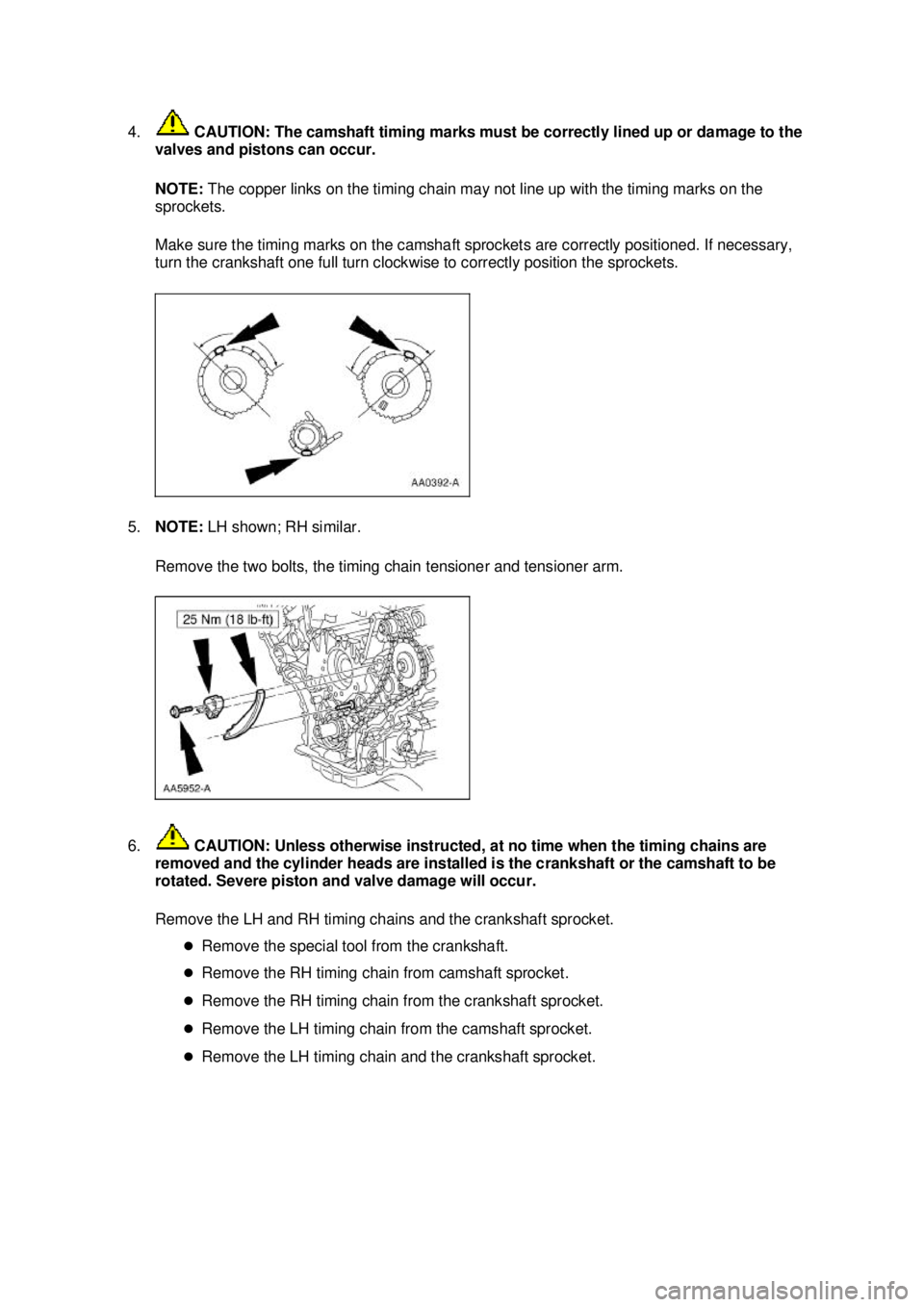

CAUTION: Timing marks must be at 12 o'clock and indexed at 6 o'clock.
Install the camshaft sprockets and the chain as an assembly.
5. Remove the lockpin from the chain tensioner. Klj . 5 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Install the tensioner.

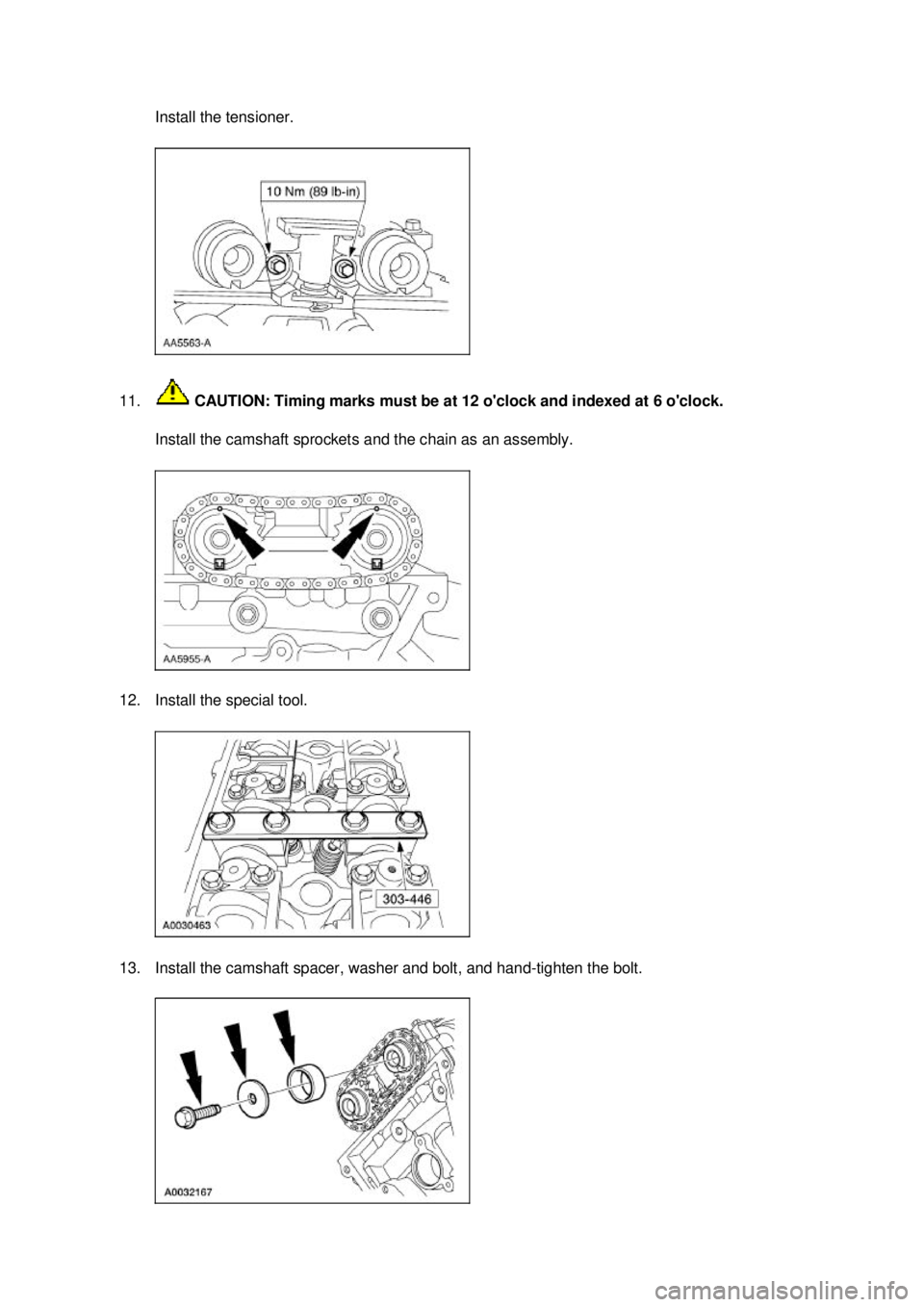

11. CAUTION: Timing marks must be at 12 o'clock and indexed at 6 o'clock.
Install the camshaft sprockets and the chain as an assembly.
12. Install the special tool.
13. Install the camshaft spacer, washer and bolt, and hand- tighten the bolt. Klj . 9 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

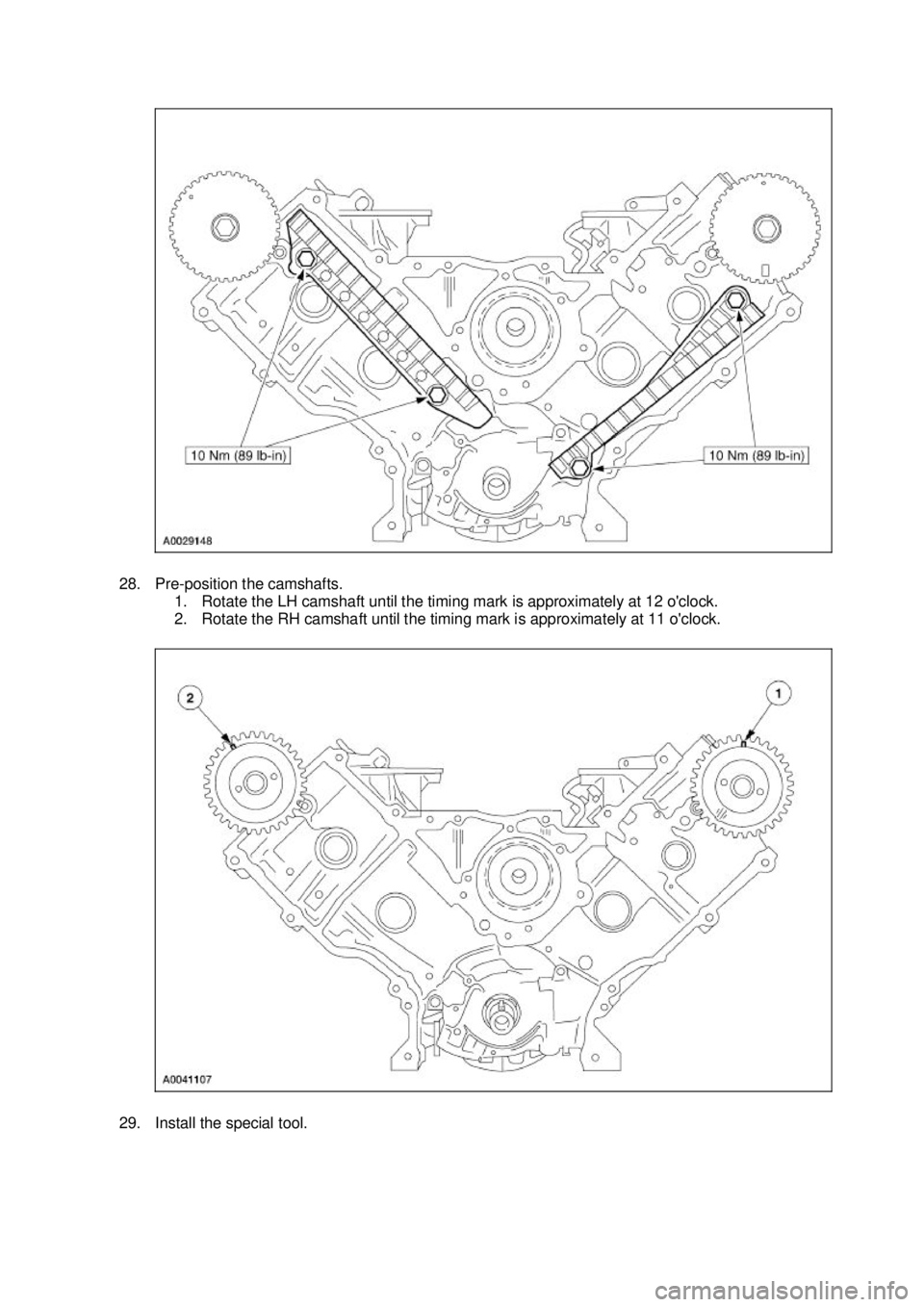

28. Pre-position the camshafts.
1. Rotate the LH camshaft until the timing mark is approximately at 12 o'clock.
2. Rotate the RH camshaft until the timing mark is approximately at 11 o'clock.
29. Install the special tool. Klj . 12 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

30.
CAUTION: Unless otherwise instructed, at no time when the timing chains are
removed and the cylinder heads are installed is the crankshaft or camshaft to be rotated.
Severe piston and valve damage will occur.
CAUTION: Rotate the crankshaft counterclockwise only. Do not rotate past position
shown or severe piston and/or valve damage will occur.
Using the special tool, position the crankshaft.
zRemove the special tool.
31. Install the crankshaft sprocket with the flange facing forward.
32. Position the LH (inner) timing chain onto the crankshaft sprocket, aligning the one copper link on the timing chain with the slot on the crankshaft sprocket. Klj . 13 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4.
CAUTION: The camshaft timing marks must be correctly lined up or damage to the
valves and pistons can occur.
NOTE: The copper links on the timing chain may not line up with the timing marks on the
sprockets.
Make sure the timing marks on the camshaft sprockets are correctly positioned. If necessary,
turn the crankshaft one full turn clockwise to correctly position the sprockets.
5. NOTE: LH shown; RH similar.
Remove the two bolts, the timing chain tensioner and tensioner arm.
6. CAUTION: Unless otherwise instructed, at no time when the timing chains are
removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
Remove the LH and RH timing chains and the crankshaft sprocket.
zRemove the special tool from the crankshaft.
z Remove the RH timing chain from camshaft sprocket.
z Remove the RH timing chain from the crankshaft sprocket.
z Remove the LH timing chain from the camshaft sprocket.
z Remove the LH timing chain and the crankshaft sprocket. Klj . 2 ba
