2003 FORD MUSTANG warning

An air bag tone warning indicator circuit short to battery or ignition can be caused by:
za short to battery or ignition on circuit 1083 (LB/BK).
z a damaged or inoperative GEM.
z an RCM internal concern.
PINPOINT TEST M: DTC B1891 — AIR BAG TONE WARNING
INDICATOR CIRCUIT SHORTED TO BATTERY OR IGNITION Test Step Result / Action to
Take M1 CHECK FOR A HARD OR INTERMITTENT DTC
z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this
pinpoint test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC B1891 retrieved during the on- demand self test? Yes
This is a hard fault.
The fault condition
is still present. This
fault cannot be
cleared until it is
corrected and the
DTC is no longer
retrieved during
the on-
demand
self test. GO to
M2 .
No
This is an
intermittent fault.
The fault condition
is not present at
this time. GO to
M4 .
M2 CHECK THE AIR BAG TONE WARNING INDICATOR CIRCUIT
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The
restraint system diagnostic tools must be removed prior to
operating the vehicle over the road. NOTE: After diagnosing or
repairing an SRS, the restraint system diagnostic tools must be
removed before operating the vehicle over the road. NOTE: After
diagnosing or repairing a seat system, the restraint system
diagnostic tools must be removed before operating the vehicle
over the road. NOTE: The SRS must be fully operational and free of
faults before releasing the vehicle to the customer. Yes
GO to
M3 .
No
REPAIR the
circuit. GO to M5 . Klj . 35 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Key in OFF position.
z Deactivate the system. Refer to Air Bag Supplemental Restraint System (SRS) in the Diagnosis and Testing portion of this section.
z Key in OFF position.
z Disconnect: RCM C2041.
z Disconnect: GEM C201e.
z Key in ON position.
z Measure the voltage between RCM C2041 pin 26, circuit 1083
(LB/BK), harness side and ground.
z Is the voltage less than 0.2 volt? M3 CHECK THE AIR BAG TONE WARNING INDICATOR
z
Key in OFF position.
z Connect: GEM C201e.
z Key in ON position.
z Jumper RCM C2041 pin 26, circuit 1083 (LB/BK), harness side to
ground.
z Does the GEM generate a tone? Yes
INSTALL a new
RCM. GO to
M5 .
No
INSTALL a new
GEM. GO to M5 .
M4 CHECK FOR AN INTERMITTENT FAULT
z
Refer to continuous DTCs recorded during Step M1.
z Was the continuous DTC retrieved during step M1 an
intermittent fault? Yes
Check for causes
of intermittent
short to ground or
open on circuit
1083 (LB/BK).
Attempt to recreate
the hard fault by
flexing the wire
harness and
cycling the ignition
key frequently.
REPAIR any
intermittent
concerns found.
GO to
M5 .
No
GO to M5 . Klj . 36 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Test Step Result / Action to
Take N1 CHECK FOR A HARD OR INTERMITTENT DTC
z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this
pinpoint test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC B1869 retrieved during the on- demand self test? Yes
This is a hard fault.
The fault condition
is still present. This
fault cannot be
cleared until it is
corrected and the
DTC is no longer
retrieved during
the on-
demand
self test. GO to
N2 .
No
This is an
intermittent fault.
The fault
conditions not
present at this
time. GO to N5 .
N2 CHECK THE RCM
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The
restraint system diagnostic tools must be removed prior to
operating the vehicle over the road. NOTE: After diagnosing or
repairing an SRS, the restraint system diagnostic tools must be
removed before operating the vehicle over the road. NOTE: After
diagnosing or repairing a seat system, the restraint system
diagnostic tools must be removed before operating the vehicle
over the road. NOTE: The SRS must be fully operational and free of
faults before releasing the vehicle to the customer.
z Key in OFF position.
z Deactivate the system. Refer to Air Bag Supplemental Restraint System (SRS) in the Diagnosis and Testing portion of this section.
z Key in OFF position.
z Disconnect: RCM C2041.
z Measure the resistance between RCM C2041 pin 20, component
side and a known good chassis ground. Yes
INSTALL a new
RCM. GO to
N6 .
No
GO to N3 . Klj . 38 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

circuit, it will store a diagnostic trouble code (DTC) B1870 in memory.
If the RCM detects an air bag indicator failure in addition to another SRS failure, the RCM will send a
signal to the generic electronic module (GEM) to produce five sets of five tone bursts.
Possible Causes
An air bag indicator short to battery condition can be caused by:
zdamaged wiring on circuit 608 (BK/YE).
z an instrument cluster malfunction.
z an RCM internal concern.
PINPOINT TEST O: DTC B1870 — AIR BAG INDICATOR SHORTED
TO BATTERY Test Step Result / Action to
Take O1 CHECK FOR A HARD OR INTERMITTENT DTC
z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this pinpoint
test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC B1870 retrieved during the on- demand self test? Yes
This is a hard
fault. The fault
condition is still
present. This fault
cannot be cleared
until it is corrected
and the DTC is no
longer retrieved
during the on-
demand self test.
GO to
O2 .
No
This is an
intermittent fault.
The fault condition
is not present at
this time. GO to
O4 .
O2 CHECK THE AIR BAG INDICATOR CIRCUIT
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The Yes
INSTALL a new
RCM. GO to
O5 .
No
GO to O3 . Klj . 41 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Test P: No Communication With The Restraints Control Module
Normal Operation
The RCM communicates with the scan tool using ISO 9141 communication mode through the data link
connector (DLC).
Possible Causes
A no communication condition can be caused by:
zdamage to circuit 70 (LB/WH).
z a damaged DLC.
z a damaged scan tool.
z an RCM internal concern.
PINPOINT TEST P: NO COMMUNICATION WITH THE RESTRAINTS
CONTROL MODULE resolved. GO to
the Restraints
Control Module
(RCM) Diagnostic
Trouble Code
(DTC) Priority
Table in this
section for pinpoint
test direction.
No
RECONNECT the
system.
REACTIVATE the
system. PROVE
OUT the system.
REFER to
Air Bag Supplemental
Restraint System
(SRS) in this
section. CLEAR all
DTCs. Test Step Result / Action to
Take P1 CHECK THE RCM CONNECTOR C2041 AND CONNECTOR PIN 5
FOR DAMAGE WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is Yes
GO to
P2 .
No
REPAIR RCM
C2041 or RCM
C2041 pin 5 as
necessary. Klj . 43 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

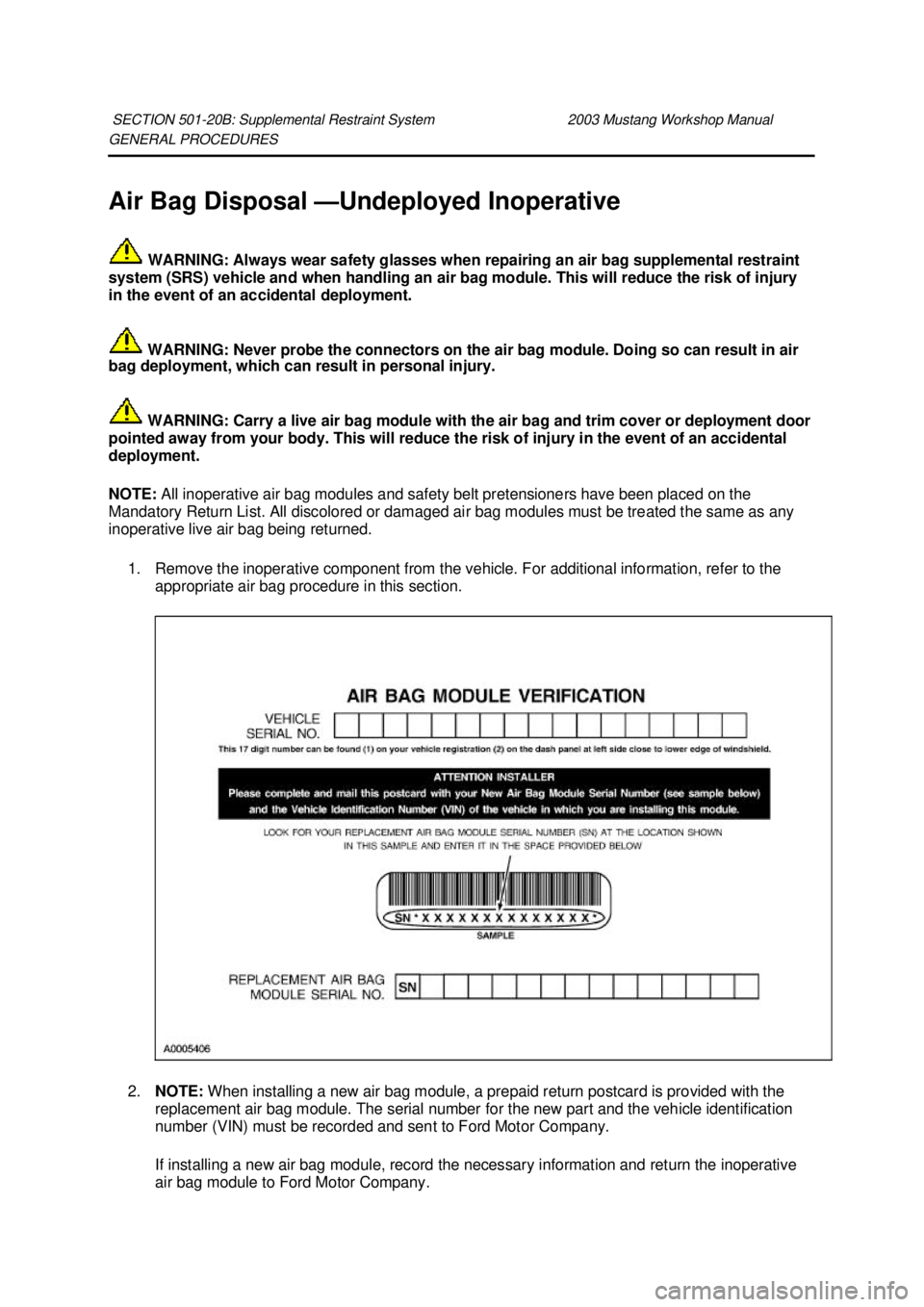

GENERAL PROCEDURES
Inspection and Repair After a Supplemental Restraint
System (SRS) Deployment
WARNING: If the supplemental restraint system (SRS) is being serviced, the system must
be deactivated and restraint system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed and the air bag modules
reconnected when the system is reactivated to avoid non- deployment in a collision, resulting in
possible personal injury.
NOTE: Diagnostics or repairs are not to be performed on a seat equipped with a seat side air bag with
the seat in the vehicle. Prior to attempting to diagnose or repair a seat concern when equipped with a
seat side air bag, the seat must be removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The restraint system diagnostic
tools must be removed prior to operating the vehicle over the road.
NOTE: After diagnosing or repairing a SRS the restraint system diagnostic tools must be removed
before operating the vehicle over the road.
NOTE: After diagnosing or repairing a seat system the restraint system diagnostic tools must be
removed before operating the vehicle over the road.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the
customer.
1. When any deployable device (driver air bag, passenger air bag, seat side air bag, safety belt pretensioner, etc.) or combination of devices are deployed and/or the RCM has the DTC B1231
(Crash Data Memory Full) in memory, the repair of the vehicle's supplemental restraint system
(SRS) is to include the removal of all deployed devices and installation of new deployable
devices, the removal and installation of new impact sensors, and the removal and installation of
a new RCM.
2. When any damage to the impact sensor mounting points or mounting hardware has occurred, repair or install new mounting points and mounting hardware as needed.
3. When the driver air bag module has deployed a new clockspring must be installed.
4. Inspect the entire vehicle for damage, including the following components: zsteering column.
z instrument panel knee bolsters and mounting points.
z instrument panel braces and brackets.
z instrument panel and mounting points.
z seats and seat mounting points.
z safety belts, safety belt buckles, and safety belt retractors. For additional information,
refer to Section 501 - 20A .
z supplemental restraint system (SRS) wiring, wiring harnesses, and connectors.
5. After carrying out the review and inspection of the entire vehicle for damage, repair or install new components as needed.
SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

GENERAL PROCEDURES
Air Bag Disposal —
Deployed Air Bag
1. WARNING: Always wear safety glasses when repairing an air bag supplemental
restraint system (SRS) vehicle and when handling an air bag module. This will reduce the
risk of injury in the event of an accidental deployment.
Dispose of the deployed air bag modules and safety belt pretensioners in the same manner as
any other part to be scrapped.
SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

GENERAL PROCEDURES
Air Bag Disposal —
Undeployed Inoperative
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint
system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury
in the event of an accidental deployment.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air
bag deployment, which can result in personal injury.
WARNING: Carry a live air bag module with the air bag and trim cover or deployment door
pointed away from your body. This will reduce the risk of injury in the event of an accidental
deployment.
NOTE: All inoperative air bag modules and safety belt pretensioners have been placed on the
Mandatory Return List. All discolored or damaged air bag modules must be treated the same as any
inoperative live air bag being returned.
1. Remove the inoperative component from the vehicle. For additional information, refer to the appropriate air bag procedure in this section.
2. NOTE: When installing a new air bag module, a prepaid return postcard is provided with the
replacement air bag module. The serial number for the new part and the vehicle identification
number (VIN) must be recorded and sent to Ford Motor Company.
If installing a new air bag module, record the necessary information and return the inoperative
air bag module to Ford Motor Company.
SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
