DIAGNOSIS AND TESTING

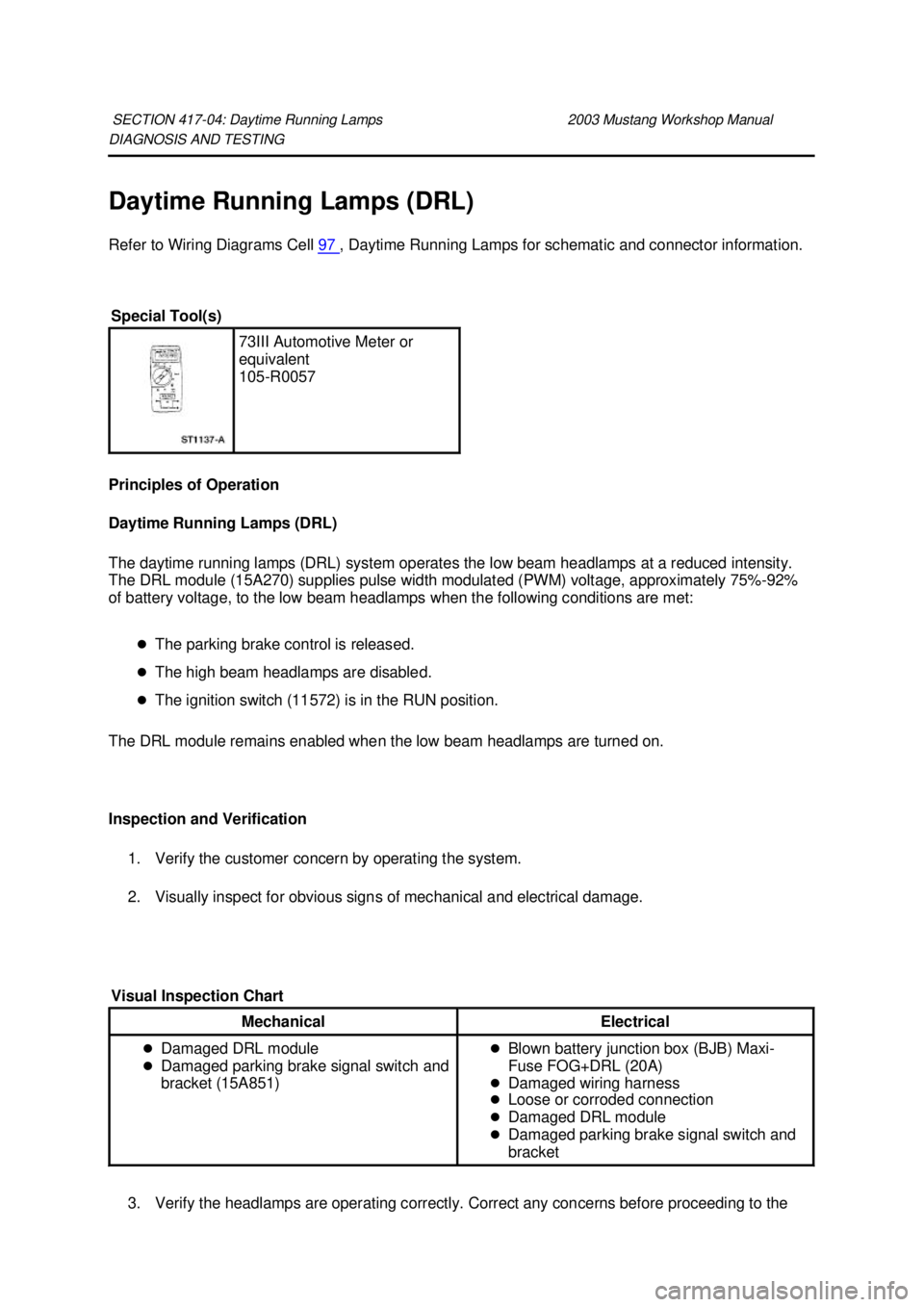

Daytime Running Lamps (DRL)
Refer to Wiring Diagrams Cell
97 , Daytime Running Lamps for schematic and connector information.
Principles of Operation
Daytime Running Lamps (DRL)
The daytime running lamps (DRL) system operates the low beam headlamps at a reduced intensity.
The DRL module (15A270) supplies pulse width modulated (PWM) voltage, approximately 75%- 92%
of battery voltage, to the low beam headlamps when the following conditions are met:
zThe parking brake control is released.
z The high beam headlamps are disabled.
z The ignition switch (11572) is in the RUN position.
The DRL module remains enabled when the low beam headlamps are turned on.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. Verify the headlamps are operating correctly. Correct any concerns before proceeding to the
SECTION 417-
04: Daytime Running Lamps 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged DRL module
z Damaged parking brake signal switch and
bracket (15A851) z
Blown battery junction box (BJB) Maxi-
Fuse FOG+DRL (20A)
z Damaged wiring harness
z Loose or corroded connection
z Damaged DRL module
z Damaged parking brake signal switch and
bracket Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING

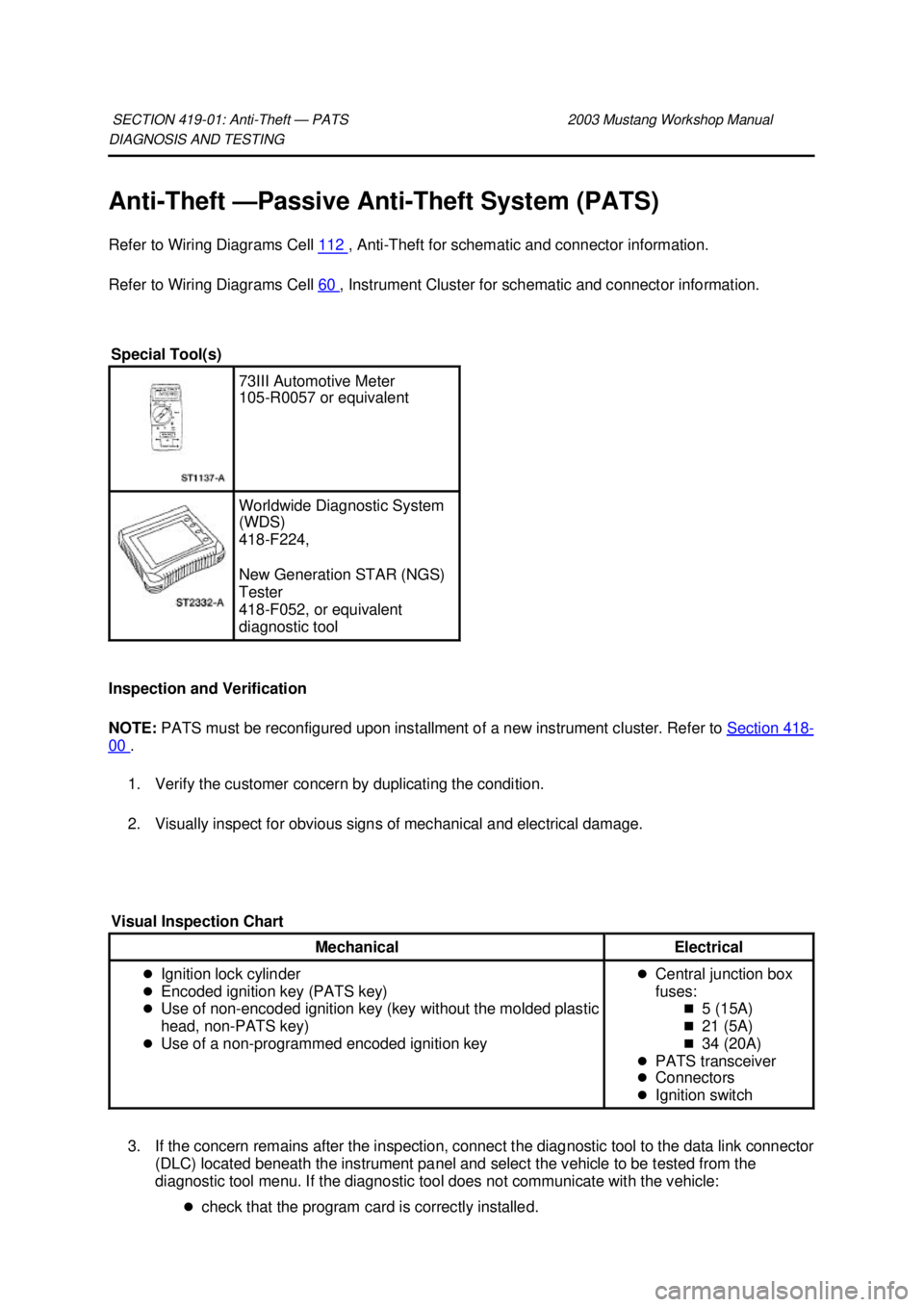

Anti-
Theft — Passive Anti- Theft System (PATS)
Refer to Wiring Diagrams Cell 112 , Anti-
Theft for schematic and connector information.
Refer to Wiring Diagrams Cell 60 , Instrument Cluster for schematic and connector information.
Inspection and Verification
NOTE: PATS must be reconfigured upon installment of a new instrument cluster. Refer to Section 418 -
00 .
1. Verify the customer concern by duplicating the condition.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool
Visual Inspection Chart Mechanical Electrical
z
Ignition lock cylinder
z Encoded ignition key (PATS key)
z Use of non- encoded ignition key (key without the molded plastic
head, non- PATS key)
z Use of a non- programmed encoded ignition key z
Central junction box
fuses:
„5 (15A)
„ 21 (5A)
„ 34 (20A)
z PATS transceiver
z Connectors
z Ignition switch Klj . 1 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING

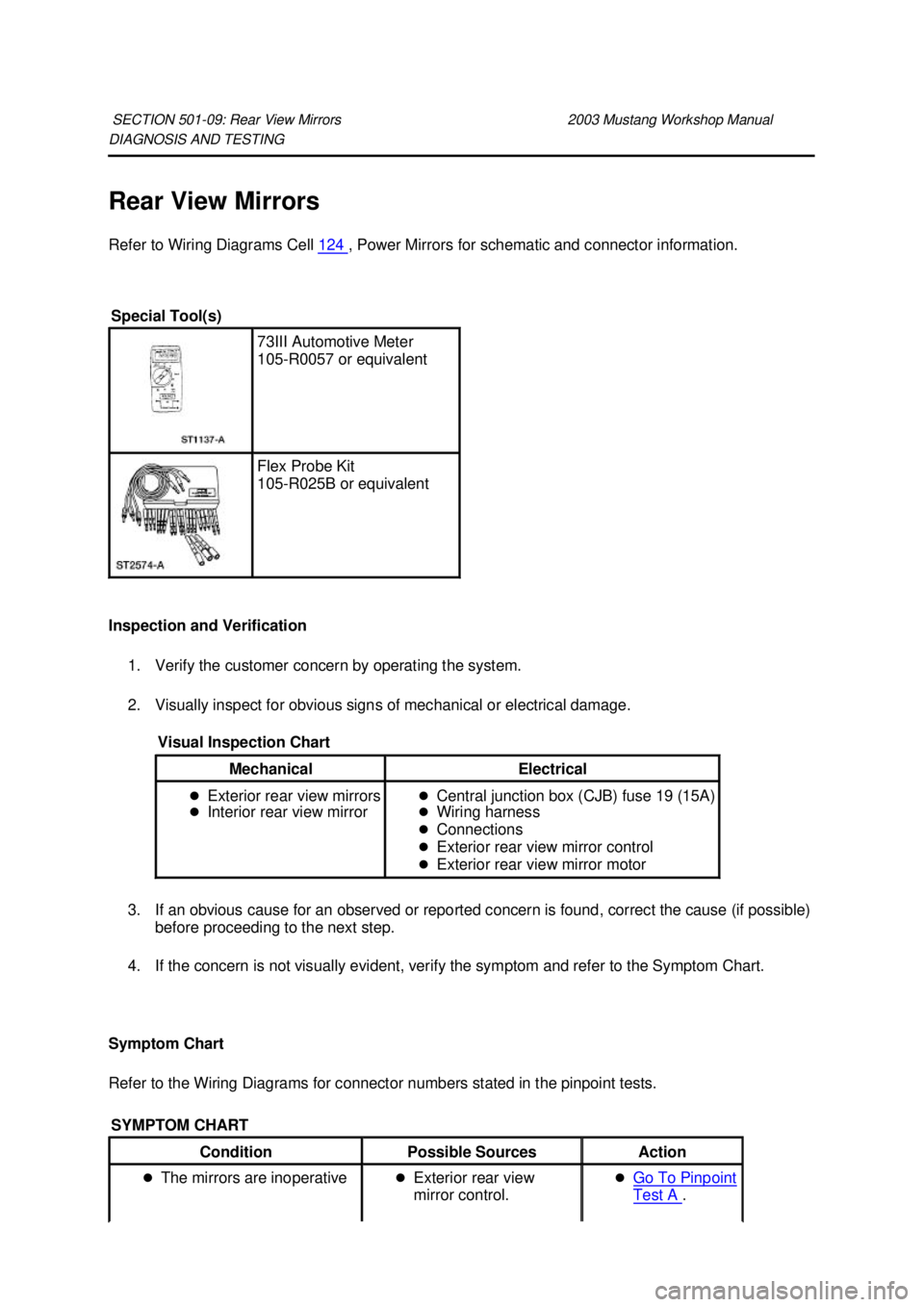

Rear View Mirrors
Refer to Wiring Diagrams Cell
124 , Power Mirrors for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
Symptom Chart
Refer to the Wiring Diagrams for connector numbers stated in the pinpoint tests. SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Flex Probe Kit
105-
R025B or equivalent
Visual Inspection Chart Mechanical Electrical
z
Exterior rear view mirrors
z Interior rear view mirror z
Central junction box (CJB) fuse 19 (15A)
z Wiring harness
z Connections
z Exterior rear view mirror control
z Exterior rear view mirror motor
SYMPTOM CHART Condition
Possible Sources Action
z The mirrors are inoperative zExterior rear view
mirror control. z
Go To Pinpoint Test A . Klj . 1 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING

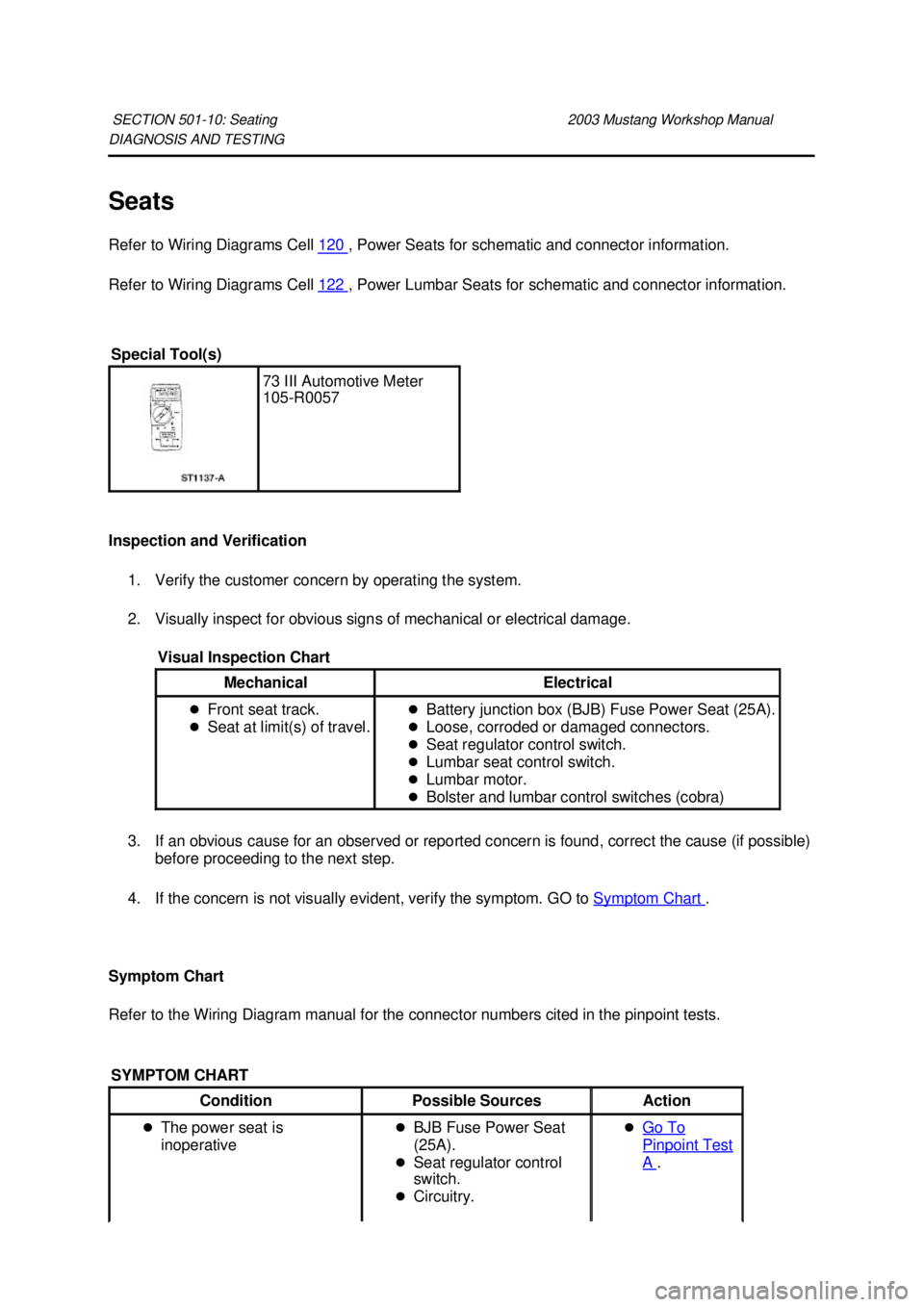

Seats
Refer to Wiring Diagrams Cell
120 , Power Seats for schematic and connector information.
Refer to Wiring Diagrams Cell 122 , Power Lumbar Seats for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom. GO to Symptom Chart .
Symptom Chart
Refer to the Wiring Diagram manual for the connector numbers cited in the pinpoint tests. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Front seat track.
z Seat at limit(s) of travel. z
Battery junction box (BJB) Fuse Power Seat (25A).
z Loose, corroded or damaged connectors.
z Seat regulator control switch.
z Lumbar seat control switch.
z Lumbar motor.
z Bolster and lumbar control switches (cobra)
SYMPTOM CHART Condition
Possible Sources Action
z The power seat is
inoperative z
BJB Fuse Power Seat
(25A).
z Seat regulator control
switch.
z Circuitry. z
Go To Pinpoint Test
A . Klj . 1 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

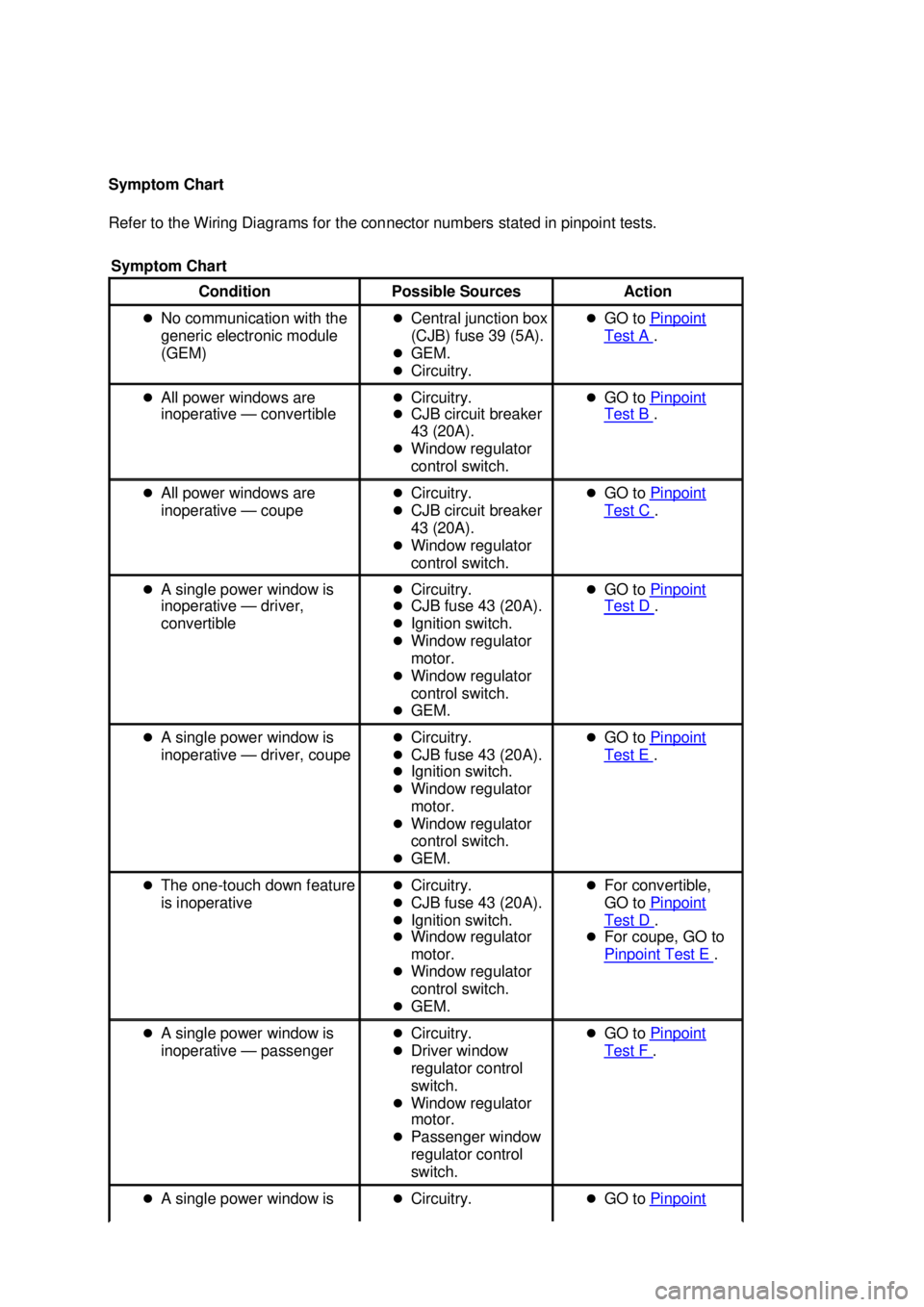

Symptom Chart
Refer to the Wiring Diagrams for the connector numbers stated in pinpoint tests.
Symptom Chart Condition
Possible Sources Action
z No communication with the
generic electronic module
(GEM) z
Central junction box
(CJB) fuse 39 (5A).
z GEM.
z Circuitry. z
GO to Pinpoint Test A .
z All power windows are
inoperative — convertible z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test B .
z All power windows are
inoperative — coupe z
Circuitry.
z CJB circuit breaker
43 (20A).
z Window regulator
control switch. z
GO to Pinpoint Test C .
z A single power window is
inoperative — driver,
convertible z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test D .
z A single power window is
inoperative — driver, coupe z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
GO to Pinpoint Test E .
z The one- touch down feature
is inoperative z
Circuitry.
z CJB fuse 43 (20A).
z Ignition switch.
z Window regulator
motor.
z Window regulator
control switch.
z GEM. z
For convertible,
GO to Pinpoint Test D .
z For coupe, GO to
Pinpoint Test E .
z A single power window is
inoperative — passenger z
Circuitry.
z Driver window
regulator control
switch.
z Window regulator
motor.
z Passenger window
regulator control
switch. z
GO to Pinpoint Test F .
z A single power window is zCircuitry. zGO to Pinpoint Klj . 5 ba
322003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING

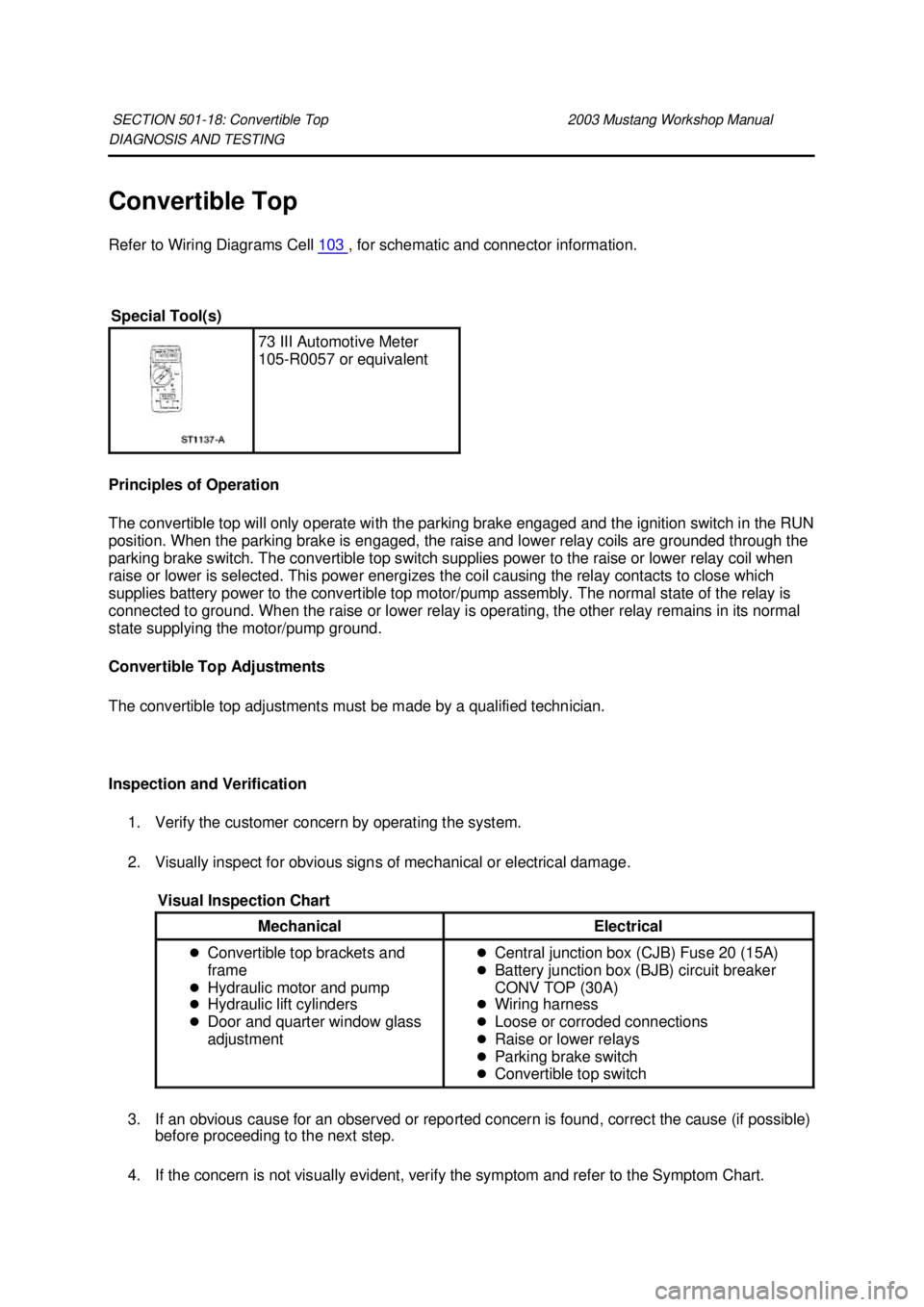

Convertible Top
Refer to Wiring Diagrams Cell
103 , for schematic and connector information.
Principles of Operation
The convertible top will only operate with the parking brake engaged and the ignition switch in the RUN
position. When the parking brake is engaged, the raise and lower relay coils are grounded through the
parking brake switch. The convertible top switch supplies power to the raise or lower relay coil when
raise or lower is selected. This power energizes the coil causing the relay contacts to close which
supplies battery power to the convertible top motor/pump assembly. The normal state of the relay is
connected to ground. When the raise or lower relay is operating, the other relay remains in its normal
state supplying the motor/pump ground.
Convertible Top Adjustments
The convertible top adjustments must be made by a qualified technician.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart.
SECTION 501-
18: Convertible Top 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057 or equivalent
Visual Inspection Chart Mechanical Electrical
z
Convertible top brackets and
frame
z Hydraulic motor and pump
z Hydraulic lift cylinders
z Door and quarter window glass
adjustment z
Central junction box (CJB) Fuse 20 (15A)
z Battery junction box (BJB) circuit breaker
CONV TOP (30A)
z Wiring harness
z Loose or corroded connections
z Raise or lower relays
z Parking brake switch
z Convertible top switch Klj . 1 ba
102003 Mustang Workshop Manual
