Engines need oil to lubricate the following internal components:
zcylinder block cylinder walls
z pistons and piston, pin and rings (6102)
z intake and exhaust valve stems
z intake and exhaust valve guides
z all internal engine components
When the pistons move downward, a thin film of oil is left on the cylinder walls. As the vehicle is
operated, some oil is also drawn into the combustion chambers past the intake and exhaust valve
stem seals and burned.
The following is a partial list of conditions that can affect oil consumption rates:
zengine duty cycle
z operator driving habits
z ambient temperature
z quality and viscosity of the oil
Operation under varying conditions can frequently be misleading. A vehicle that has been run for
several thousand miles on short trips or in below- freezing ambient temperatures may have consumed
a "normal" amount of oil. However, when checking the engine oil level, it may measure up to the FULL
or MAX on the oil level dipstick due to dilution (condensation and fuel) in the engine crankcase. The
vehicle might then be driven at high speeds on the highway where the condensation and fuel boil off.
The next time the engine oil is checked, it may appear that a liter (quart) of oil was used in about 160
km (100 miles). This perceived 160 km (100 miles) per liter (quart) oil consumption rate causes
customer concern even though the actual overall oil consumption rate is about 2,400 km (1,500 miles)
per liter (quart).
Make sure the selected engine oil meets the current recommended API performance category with
SAE viscosity grade as shown in the vehicle Owner's Guide. It is also important that the engine oil is
changed at the intervals specified. Refer to the vehicle Owner's Guide.
Oil Pressure Test
1. Disconnect and remove the oil pressure sensor (9278) from the engine.
2. Connect the Oil Pressure Gauge to the oil pressure sender oil galley port.
3. Run the engine until normal operating temperature is reached.
4. Run the engine at the specified rpm and record the gauge reading.
5. The oil pressure should be within specifications; refer to the specification chart in the appropriate engine section.
6. If the pressure is not within specification, check the following possible sources: zinsufficient oil
z oil leakage
z worn or damaged oil pump
z oil pump screen cover and tube (6622)
z excessive main bearing clearance Klj . 13 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Ignition
The ignition coil (12029), which is mounted on the upper intake manifold, can be described as a coil
pack containing three separate coil units. Each coil unit is individually controlled by the powertrain
control module (PCM) (12A650) through separate wire leads. Each coil unit activates two spark plugs
wired in a series by the spark plug wires (12286).
zOne spark plug activates on the compression stroke and uses the majority of the ignition coil's
stored energy.
z The other spark plug activates on the exhaust stroke and uses very little of the ignition coil's
stored energy.
z Because the pairs of spark plugs are connected in a series, one spark will travel from ground to
the electrode while the other spark will travel from the electrode to ground.
The spark plug (12405):
zchanges the high voltage pulse into a spark which ignites the fuel and air mixture.
z originally equipped on the vehicle has a platinum- enhanced active electrode for long life.
The crankshaft position (CKP) sensor (6C315):
NOTE: Initial engine ignition timing is set at 10 degrees ± 2 degrees before top dead center (BTDC)
and is not adjustable.
zis a variable reluctance sensor triggered by a 36- minus-1 tooth trigger pulse wheel located on
the crankshaft (6303) inside the engine front cover (6019).
The sine wave type signal generated from the crankshaft position sensor provides two types of
information:
zposition of the crankshaft in 10 degree increments
z the crankshaft speed (rpm)
The powertrain control module (PCM) (12A650) uses this information to determine ignition coil turn ON
and turn OFF times and misfire detection.
For additional information, refer to Section 303 - 14 .
SECTION 303-
07A: Engine Ignition — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Ignition
Eight separate ignition coils (12029):
zare mounted directly above each spark plug (12405).
z are controlled by the powertrain control module (PCM) for correct firing sequence.
The spark plug:
zchanges the high voltage pulse into a spark which ignites the fuel and air mixture.
z originally equipped on the vehicle has a platinum- enhanced active electrode for long life.
Crankshaft position (CKP) sensor (6C315):
NOTE: Initial engine ignition timing is set at 10 degrees ± 2 degrees before top dead center (BTDC)
and is not adjustable. For additional information, refer to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
zis a variable reluctance sensor triggered by a 36- minus-1 tooth trigger pulse wheel located on
the crankshaft (6303) inside the engine front cover (6019).
The sine wave type signal generated from the crankshaft position sensor provides two types of
information:
zposition of the crankshaft in 10 degree increments
z the crankshaft speed (rpm)
The powertrain control module (PCM) (12A650) uses this information to determine ignition coil turn ON
and turn OFF times and misfire detection.
For additional information, refer to Section 303 - 14 .
SECTION 303-
07B: Engine Ignition — 4.6L (2V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
a
MERCON® V is not interchangeable at this time with the current MERCON® fluids. Check the
transmission fluid level indicator to determine the correct fluid and refer to the Workshop/Owner
publication to determine the correct service interval for the specific vehicle. SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual General Specifications
Item Specification
Fluid
a Motorcraft MERCON® V Transmission Fluid XT
-5-QM MERCON®
V Fluid Capacities
3.8L engine 13.2L (13.9 quarts)
4.6L engine 12.0L (12.8 quarts)
Fluid Filter
Inline Transmission Fluid Filter Kit XC3Z-
7B155- AA Inline Transmission Fluid Filter XC3Z-
7B155- BA Lubricant
Ford Multi-Purpose Grease D0AZ-19584-
AA ESB-
M1C93- B
Torque Converter End Play Item Specification
New or remanufactured 0.355-
1.04 mm (0.014- 0.074 in) Used 0.355-
1.87 mm (0.014- 0.074 in)
Band and Clutch Application Chart Gear Overdrive
Band Low
Reverse Band Forward
Clutch Direct
Clutch Interm
Friction Clutch Reverse
Clutch Interm
One-Way
Clutch Planetary
One- Way
Clutch 1st Gear
Manual Low A A H
2nd Gear
Manual Low A A A H
1st Gear —
(D)
(Overdrive) A H
2nd Gear —
(
D)
(Overdrive) A A H
3rd Gear —
(
D)
(Overdrive) A A A O/R
4th Gear —
(
D) A A A O/R Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Output State Control (OSC) Mode
Output State Control (OSC) allows the technician to take control of certain parameters to function the
transmission. For example, OSC allows the technician to shift the transmission only when he/she
commands a gear change. If the technician commands 1st gear in OSC, the transmission will remain
in 1st gear until the technician commands the next gear. Another example, the technician can
command a shift solenoid to turn on or off when carrying out an electrical circuit check. OSC has two
modes of operation for transmission, the BENCH MODE and the DRIVE MODE. Each
mode/parameter has a unique set of vehicle operating requirements that the technician is required to
meet before being allowed to operate OSC.
NOTE:
To operate OSC the digital transmission range (TR) sensor must be operational. No Diagnostic
Trouble Codes (DTCs) related to the digital TR sensor can be present.
To operate OSC the vehicle speed source must be operational. No diagnostic codes (DTCs) related to
this source can be present. The vehicle speed source can vary depending on vehicle configuration.
Technicians should verify which input source is applicable for their vehicle application. The following
are potential vehicle speed sources:
„anti- lock braking system (ABS)
„ output shaft speed (OSS) sensor
„ vehicle speed sensor
z The vehicle requirements MUST BE MET when SENDING the OSC value. Refer to individual
test modes for vehicle requirements.
z If the vehicle requirements are NOT MET when SENDING the OSC value, an ERROR
MESSAGE will appear. When the ERROR MESSAGE is received, OSC is aborted and must be
restarted.
z If AFTER SENDING an OSC value, and the vehicle requirements are no longer met, the PCM
will cancel the OSC value and NO ERROR message will appear. Once the vehicle requirements
are met again, the PCM will automatically SEND the previous OSC value without any additional
actions required by the service technician.
z The OSC value XXX may be sent anytime to cancel OSC.
Output State Control (OSC) Procedures
zCarry out visual inspection and vehicle preparation as required.
z Select "Vehicle and Engine Selection" menu.
z Select appropriate vehicle and engine.
z Select "Diagnostic Data Link."
z Select "Powertrain Control Module."
z Select "Output Test Mode."
z Select "KOEO On- Demand Self Test and KOER On- Demand Self Tests."
z Carry out test and record DTCs.
z Repair all NON- Transmission DTCs.
z Repair all digital TR Sensor DTCs.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Fluid Pan, Gasket and Filter
1. Normal maintenance requires periodic automatic transmission fluid changes. If a major repair, such as a clutch, band, bearing, etc., is required, the automatic transmission will also have to be
removed for repair. At this time, the torque converter, transmission cooler and tubes must be
thoroughly flushed to remove any dirt. The transmission fluid needs to be changed if evidence
of fluid contamination is found. When used under continuous or severe conditions, the
transmission and torque converter should be drained and refilled with fluid as specified.
2. CAUTION: Do not use any supplemental transmission fluid additives or cleaning
agents. The use of these products could cause internal transmission components to fail;
this will effect the operation of the transmission.
CAUTION: Use of a fluid other than specified could result in transmission failure.
Refer to the vehicle certification label affixed to the LH front door lock face panel or door pillar
for the transmission code.
3. When filling a dry transmission and torque converter, refer to General Specifications chart in this section for capacity. Check the fluid level.
Removal
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. Place a drain pan under the transmission fluid pan.
4. Drain transmission fluid. zLoosen the transmission fluid pan bolts and allow fluid to drain. After fluid is drained
remove the bolts.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Material
Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

GENERAL PROCEDURES

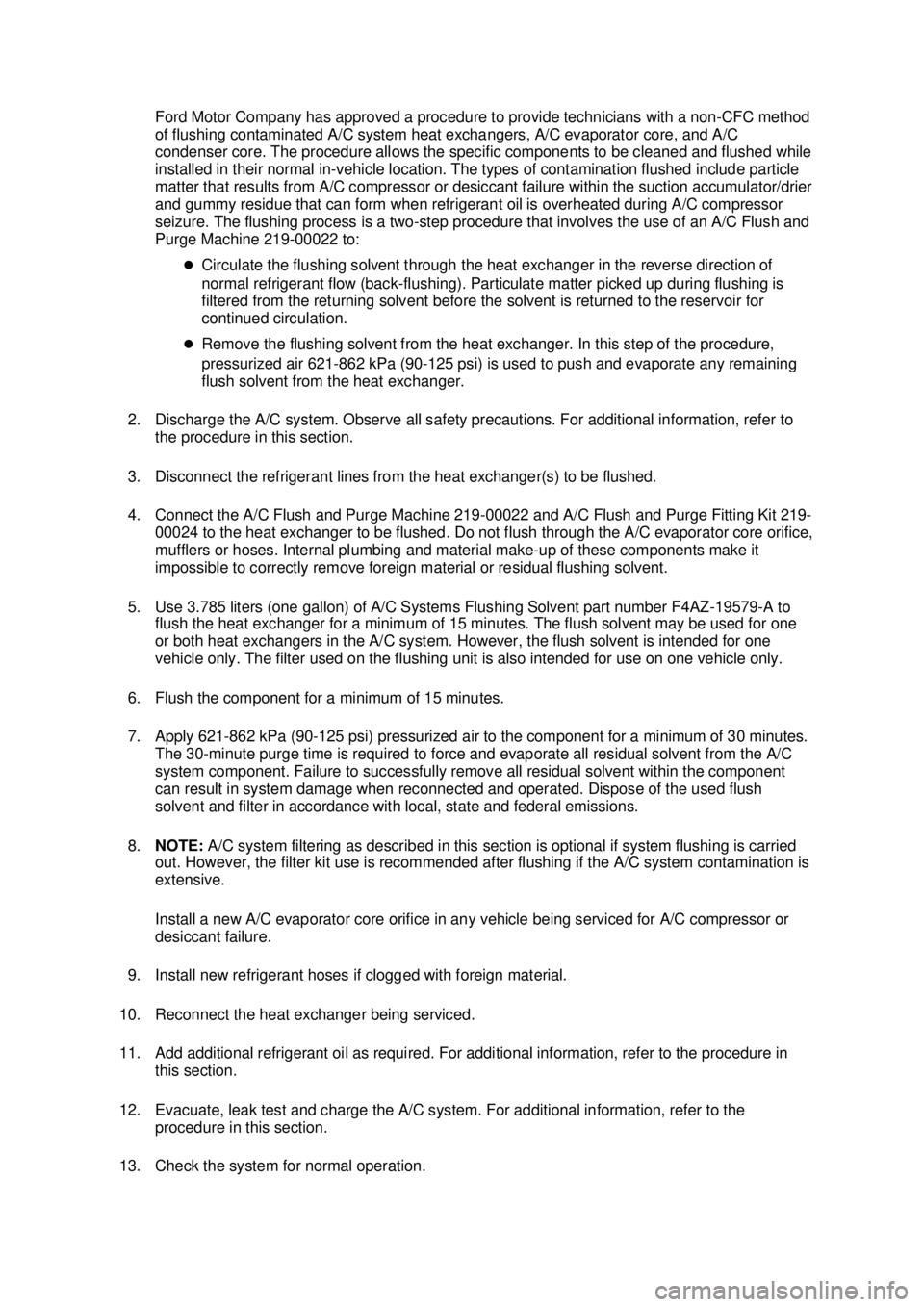

Air Conditioning (A/C) System Flushing
WARNING: Use extreme care and observe all safety and service precautions related to the
use of refrigerants.
WARNING: Due to refrigerant hazards, always wear safety goggles and non- penetrable
gloves when working on or flushing A/C systems.
CAUTION: An A/C refrigerant analyzer must be used before the recovery of any vehicle's
A/C refrigerant. Failure to do so puts the shop's bulk refrigerant at risk of contamination. If the
vehicle's A/C refrigerant is contaminated, refer the customer to the service facility that carried
out the last A/C service. If the customer wishes to pay the additional cost, use the A/C recovery
equipment that is designated for recovering contaminated A/C refrigerant. All contaminated
A/C refrigerant must be disposed of as hazardous waste. For all equipment, follow the
equipment manufacturer's procedures and instructions.
CAUTION: Suction accumulator/drier, muffler, hoses, thermal expansion valve, and fixed
orifice tube should be removed when flushing the A/C system. Internal plumbing of these
devices makes it impossible to correctly remove any residual- flushing agent. Except for the
hoses, these components are typically discarded after A/C system contamination. Hoses can
normally be reused unless they are clogged with foreign material. The 3.785 liters (1 gallon) of
A/C Systems Flushing Solvent F4AZ-19579- A and FL1-A filter used in A/C Flush and Purge
Machine 219- 00022 are intended for use on one vehicle only. They may be used to flush both
the A/C condenser core and the A/C evaporator core on an individual vehicle, but under no
circumstances should they be used on more than one vehicle.
1. NOTE: Prior to using the A/C Flush and Purge Machine 219- 00022 for the first time, review the
operating instructions.
NOTE: Only the A/C Flush and Purge Machine kit 219- 00023, which includes A/C Flush and
Purge Machine 219- 00022, A/C Flush and Purge Fitting Kit 219- 00024, and the Ford Part
number F4AZ-19579- A A/C Systems Flushing Solvent, is approved for use on Ford vehicles. No
other flushing device or solvent is approved for flushing heat exchangers. Use of any other
flusher or solvent may cause damage to the A/C system and the flushing unit.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
A/C Flush and Purge Machine
219-
00022 (part of 219- 00023)
or equivalent A/C Flush and Purge Fitting Kit
219-
00024 (part of 219- 00023)
or equivalent Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Ford Motor Company has approved a procedure to provide technicians with a non-
CFC method
of flushing contaminated A/C system heat exchangers, A/C evaporator core, and A/C
condenser core. The procedure allows the specific components to be cleaned and flushed while
installed in their normal in- vehicle location. The types of contamination flushed include particle
matter that results from A/C compressor or desiccant failure within the suction accumulator/drier
and gummy residue that can form when refrigerant oil is overheated during A/C compressor
seizure. The flushing process is a two- step procedure that involves the use of an A/C Flush and
Purge Machine 219- 00022 to:
z Circulate the flushing solvent through the heat exchanger in the reverse direction of
normal refrigerant flow (back- flushing). Particulate matter picked up during flushing is
filtered from the returning solvent before the solvent is returned to the reservoir for
continued circulation.
z Remove the flushing solvent from the heat exchanger. In this step of the procedure,
pressurized air 621- 862 kPa (90-125 psi) is used to push and evaporate any remaining
flush solvent from the heat exchanger.
2. Discharge the A/C system. Observe all safety precautions. For additional information, refer to the procedure in this section.
3. Disconnect the refrigerant lines from the heat exchanger(s) to be flushed.
4. Connect the A/C Flush and Purge Machine 219- 00022 and A/C Flush and Purge Fitting Kit 219-
00024 to the heat exchanger to be flushed. Do not flush through the A/C evaporator core orifice,
mufflers or hoses. Internal plumbing and material make- up of these components make it
impossible to correctly remove foreign material or residual flushing solvent.
5. Use 3.785 liters (one gallon) of A/C Systems Flushing Solvent part number F4AZ-19579- A to
flush the heat exchanger for a minimum of 15 minutes. The flush solvent may be used for one
or both heat exchangers in the A/C system. However, the flush solvent is intended for one
vehicle only. The filter used on the flushing unit is also intended for use on one vehicle only.
6. Flush the component for a minimum of 15 minutes.
7. Apply 621- 862 kPa (90-125 psi) pressurized air to the component for a minimum of 30 minutes.
The 30- minute purge time is required to force and evaporate all residual solvent from the A/C
system component. Failure to successfully remove all residual solvent within the component
can result in system damage when reconnected and operated. Dispose of the used flush
solvent and filter in accordance with local, state and federal emissions.
8. NOTE: A/C system filtering as described in this section is optional if system flushing is carried
out. However, the filter kit use is recommended after flushing if the A/C system contamination is
extensive.
Install a new A/C evaporator core orifice in any vehicle being serviced for A/C compressor or
desiccant failure.
9. Install new refrigerant hoses if clogged with foreign material.
10. Reconnect the heat exchanger being serviced.
11. Add additional refrigerant oil as required. For additional information, refer to the procedure in this section.
12. Evacuate, leak test and charge the A/C system. For additional information, refer to the procedure in this section.
13. Check the system for normal operation. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
