2003 FORD MUSTANG automatic transmission

The clutch control system engages and disengages the clutch. The clutch control system disengages
the clutch when the clutch pedal is depressed and engages the clutch when the clutch pedal is
released. Clutch pedal motion is transmitted by the clutch release lever cable to the clutch release
lever. The clutch release hub and bearing engages the clutch pressure plate diaphragm spring,
releasing the pressure on the clutch disc which in turn disengages the transmission from the engine.
The clutch adjusts automatically to compensate for clutch disc wear. The clutch linkage is self-
adjusting.
The clutch pedal position (CPP) switch prevents the starter motor from engaging unless the clutch
pedal is depressed all the way to the floor. The switch plunger is contacted by the clutch pedal and
extends as the clutch pedal is pressed. The clutch pedal position switch is electrically connected in line
with the ignition switch and the starter motor relay coil. The CPP also turns off the speed control when
the clutch pedal is depressed. 4 7L583 Clutch pedal quadrant and pawl assembly Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

z

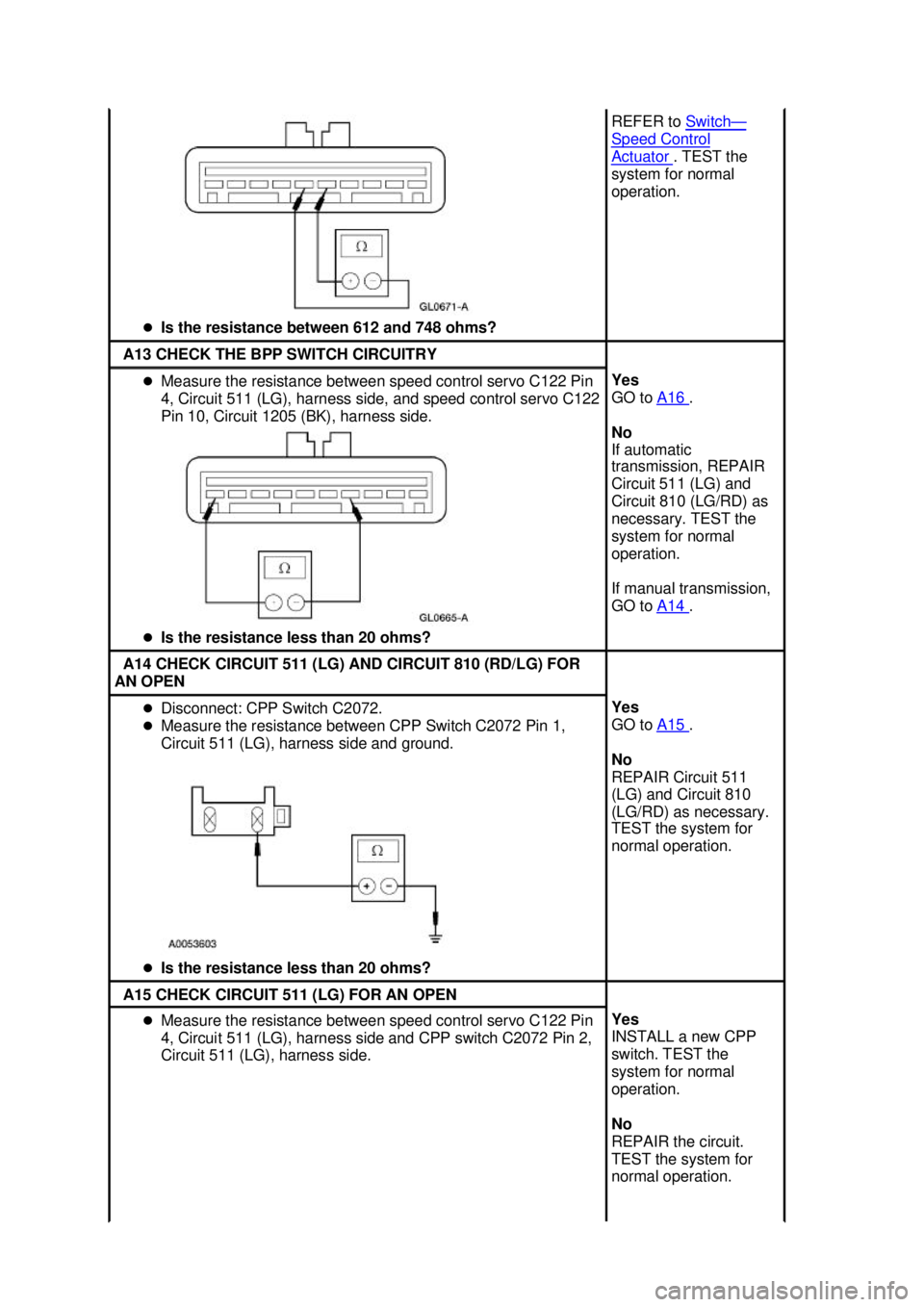

Is the resistance between 612 and 748 ohms? REFER to
Switch —
Speed Control
Actuator . TEST the
system for normal
operation. A13 CHECK THE BPP SWITCH CIRCUITRY
z
Measure the resistance between speed control servo C122 Pin
4, Circuit 511 (LG), harness side, and speed control servo C122
Pin 10, Circuit 1205 (BK), harness side.
z Is the resistance less than 20 ohms? Yes
GO to
A16 .
No
If automatic
transmission, REPAIR
Circuit 511 (LG) and
Circuit 810 (LG/RD) as
necessary. TEST the
system for normal
operation.
If manual transmission,
GO to A14 .
A14 CHECK CIRCUIT 511 (LG) AND CIRCUIT 810 (RD/LG) FOR
AN OPEN z
Disconnect: CPP Switch C2072.
z Measure the resistance between CPP Switch C2072 Pin 1,
Circuit 511 (LG), harness side and ground.
z Is the resistance less than 20 ohms? Yes
GO to
A15 .
No
REPAIR Circuit 511
(LG) and Circuit 810
(LG/RD) as necessary.
TEST the system for
normal operation. A15 CHECK CIRCUIT 511 (LG) FOR AN OPEN
z
Measure the resistance between speed control servo C122 Pin
4, Circuit 511 (LG), harness side and CPP switch C2072 Pin 2,
Circuit 511 (LG), harness side. Yes
INSTALL a new CPP
switch. TEST the
system for normal
operation.
No
REPAIR the circuit.
TEST the system for
normal operation. Klj . 8 ba
132003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Instrument Cluster—
Cobra 14 — Traction control indicator
15 — Overdrive off (O/D OFF) indicator (automatic
transmission)
16 — LOW FUEL level indicator
17 — SERVICE ENGINE SOON indicator
18 — THEFT indicator
19 — AIR BAG warning indicator
20 — Charging system indicator
21 — Safety belt warning indicator
Item Part
Number Description
1 — Fuel gauge
2 — Engine coolant temperature gauge
3 — Speedometer
4 — Turn signal/hazard indicator
5 — High beam indicator
6 — Tachometer
7 — Odometer
8 — Trip odometer reset button
9 — Boost gauge
10 — Oil pressure gauge
11 — CHECK FUEL CAP indicator
12 — BRAKE warning indicator Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

13 — ABS warning indicator
14 — Traction control indicator
15 — Overdrive off (O/D OFF) indicator (automatic
transmission)
16 — LOW FUEL level indicator
17 — SERVICE ENGINE SOON indicator
18 — THEFT indicator
19 — AIR BAG warning indicator
20 — Charging system indicator
21 — Safety belt warning indicator Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

GENERAL PROCEDURES
Belt Minder Deactivating/Activating
Preparation
1. Before deactivating/activating the belt minder, set the parking brake.
2. Place the gearshift in P (Park) (automatic transmission) or the neutral position (manual transmission).
3. Place the ignition switch in the OFF position.
4. Close all the vehicle doors.
5. Unbuckle the driver safety belt.
6. Place the parklamps/headlamps switch in the OFF position. (If the vehicle is equipped with Autolamps, this will not affect the procedure.)
Deactivating/Activating 1. Turn the ignition switch to the RUN position. (Do not start the engine.)
2. Wait until the safety belt warning lamp turns off. (approximately one to two minutes)
3. NOTE: Steps 3 through 5 must be completed within 60 seconds or the procedure must be
repeated.
Buckle then unbuckle the safety belt three times, ending with the safety belt unbuckled. This
portion of the procedure can be done before or during belt minder warning activation.
4. Turn the parklamps/headlamps on then off.
5. Buckle then unbuckle the safety belt three times ending with the safety belt unbuckled. After this step the safety belt warning lamp will be illuminated for three seconds.
6. Within seven seconds of the safety belt warning lamp turning off, buckle then unbuckle the safety belt. This will enable the belt minder if disabled or disable the belt minder if enabled.
7. The following sequence of events confirm the belt minder is enabled: zflashing of the safety belt warning belt lamp four times per second for three seconds
z three seconds with the safety belt lamp off
z flashing the safety belt lamp four times per second for three seconds again
8. The safety belt lamp flashing four times per second for three seconds provides confirmation that the belt minder is disabled. 9. After confirmation, the deactivation/activation procedure is complete. SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Reversing Lamps
Refer to Wiring Diagrams Cell
93 , Backup Lamps for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the reversing lamps.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:
3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
Symptom Chart SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged digital transmission range (DTR)
sensor (automatic transmission [A/T])
z Damaged reversing lamp switch (manual
transmission [M/T]) z
Blown central junction box (CJB)
Fuse 11 (15A)
z Damaged wiring harness
z Loose or corroded connections
z Damaged reversing lamp
z Damaged DTR sensor (automatic
transmission [A/T])
z Damaged reversing lamp switch
(manual transmission [M/T])
Symptom Chart Condition
Possible Sources Action
z The reversing lamps are
inoperative z
CJB Fuse 11 (15A).
z Bulbs.
z Circuitry.
z DTR sensor (A/T).
z Reversing lamp
switch (M/T). z
GO to Pinpoint Test R . Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Instrument Panel —
Center Finish Panel
Removal and Installation
All vehicles 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
Vehicles with automatic transmission 2. Place the selector lever in the 1 position.
Vehicles with manual transmission
3. Remove the gearshift lever handle.
All vehicles
4. Remove the floor console finish panel. zDisconnect the electrical connector.
5. Remove the instrument panel center finish panel. zDisconnect the electrical connector.
6. To install, reverse the removal procedure.
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

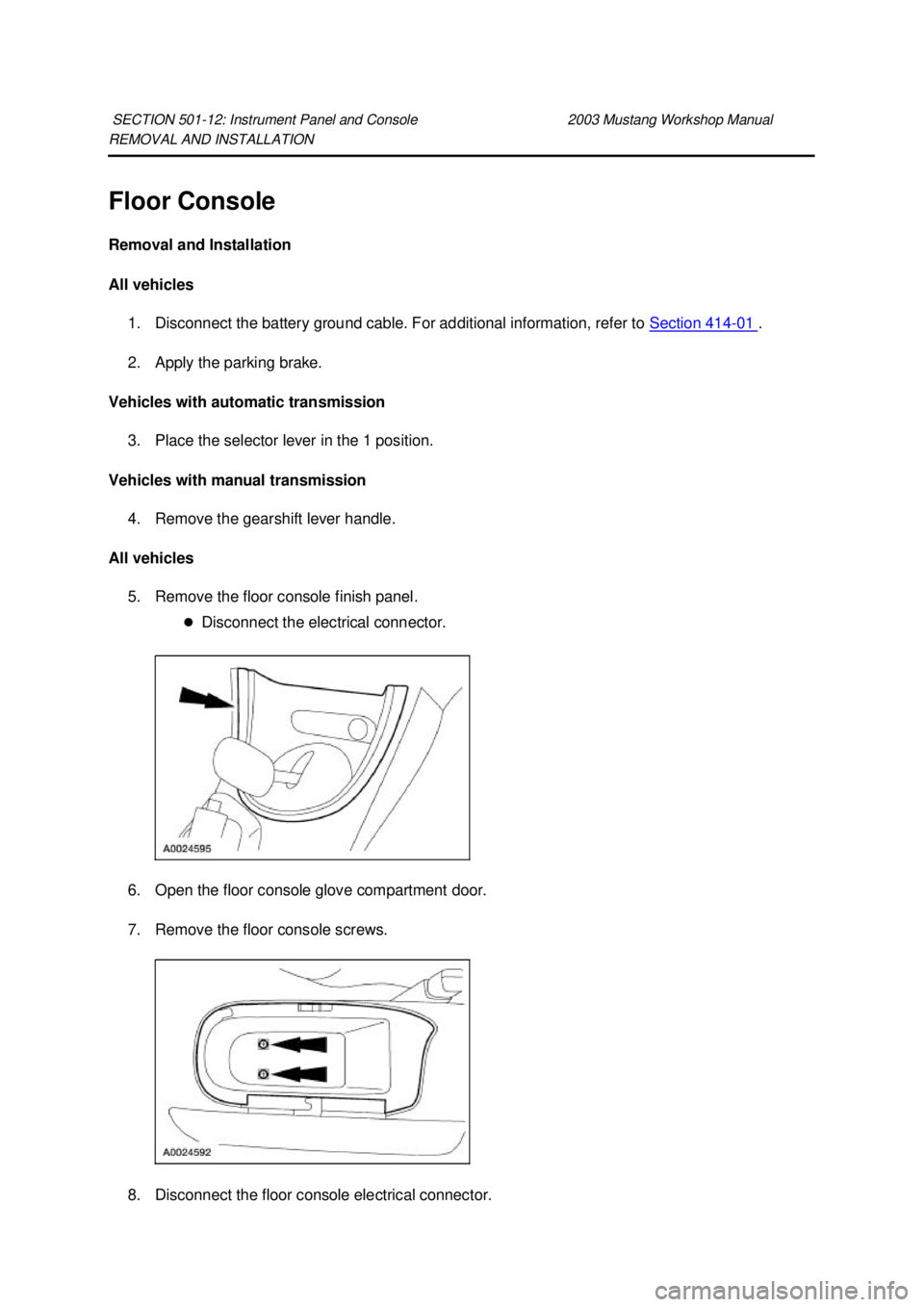

Floor Console
Removal and Installation
All vehicles
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Apply the parking brake.
Vehicles with automatic transmission 3. Place the selector lever in the 1 position.
Vehicles with manual transmission 4. Remove the gearshift lever handle.
All vehicles 5. Remove the floor console finish panel. zDisconnect the electrical connector.
6. Open the floor console glove compartment door.
7. Remove the floor console screws.
8. Disconnect the floor console electrical connector.
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
