2003 FORD MUSTANG engine

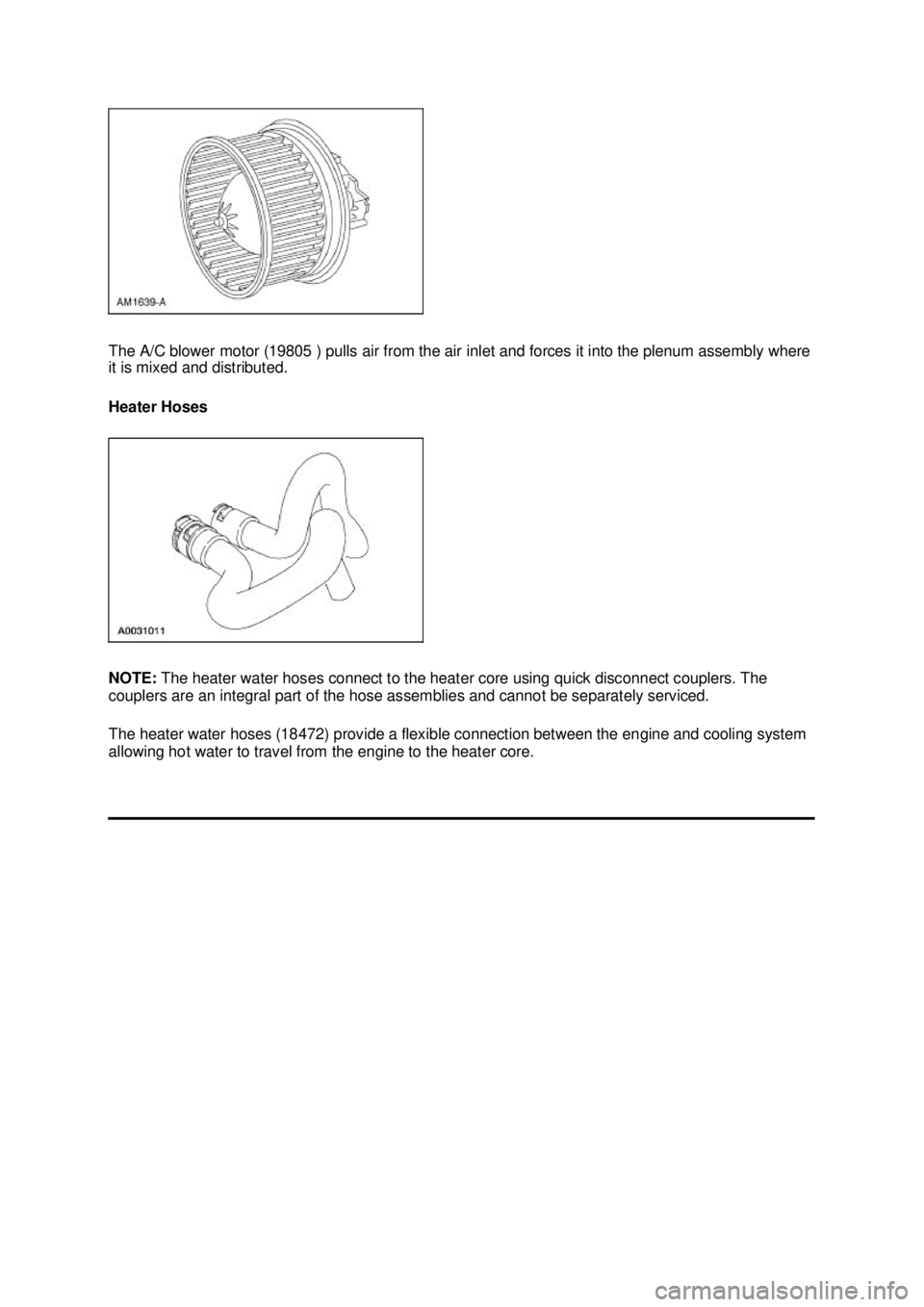

The A/C blower motor (19805 ) pulls air from the air inlet and forces it into the plenum assembly where
it is mixed and distributed.
Heater Hoses
NOTE:
The heater water hoses connect to the heater core using quick disconnect couplers. The
couplers are an integral part of the hose assemblies and cannot be separately serviced.
The heater water hoses (18472) provide a flexible connection between the engine and cooling system
allowing hot water to travel from the engine to the heater core. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricant
PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-
DA (MC YN-12-
C) WSH-
M1C231-
B
Torque Specifications Description Nm lb-
ft lb-
in A/C compressor mounting bolts 25 18 —
A/C manifold retaining bolt 20 15 —
3.8L engine A/C compressor mounting bracket bolts 47 35 —
3.8L engine A/C compressor mounting bracket nut 25 18 —
A/C compressor clutch retaining bolt 13 10 —
Suction accumulator/drier clamp screw 8 — 71
Coolant bottle bolts 10 — 89
Peanut fittings 8 — 71
Radiator bracket bolts 9 — 81
Condenser core bracket bolts 5 — 44
A/C muffler bracket nut 25 18 — Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Instrument Cluster
The instrument cluster (10849) consists of the following components:
Instrument Cluster—
Base 3.8L Engine
SECTION 413-
01: Instrument Cluster 2003 Mustang Workshop Manual Item Part
Number Description
1 — Fuel gauge
2 — Engine coolant temperature gauge
3 — Speedometer
4 — Turn signal/hazard indicator
5 — High beam indicator
6 — Tachometer
7 — Odometer
8 — Trip odometer reset button
9 — Voltmeter gauge
10 — Oil pressure gauge
11 — CHECK FUEL CAP indicator
12 — BRAKE warning indicator
13 — ABS warning indicator
14 — Traction control indicator
15 — Overdrive off (O/D OFF) indicator (automatic Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Instrument Cluster—
Base 4.6L Engine transmission)
16 — LOW FUEL level indicator
17 — SERVICE ENGINE SOON indicator
18 — THEFT indicator
19 — AIR BAG warning indicator
20 — Charging system indicator
21 — Safety belt warning indicator
Item Part
Number Description
1 — Fuel gauge
2 — Engine coolant temperature gauge
3 — Speedometer
4 — Turn signal/hazard indicator
5 — High beam indicator
6 — Tachometer
7 — Odometer
8 — Trip odometer reset button
9 — Voltmeter gauge
10 — Oil pressure gauge
11 — CHECK FUEL CAP indicator
12 — BRAKE warning indicator
13 — ABS warning indicator Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Instrument Cluster—
Cobra 14 — Traction control indicator
15 — Overdrive off (O/D OFF) indicator (automatic
transmission)
16 — LOW FUEL level indicator
17 — SERVICE ENGINE SOON indicator
18 — THEFT indicator
19 — AIR BAG warning indicator
20 — Charging system indicator
21 — Safety belt warning indicator
Item Part
Number Description
1 — Fuel gauge
2 — Engine coolant temperature gauge
3 — Speedometer
4 — Turn signal/hazard indicator
5 — High beam indicator
6 — Tachometer
7 — Odometer
8 — Trip odometer reset button
9 — Boost gauge
10 — Oil pressure gauge
11 — CHECK FUEL CAP indicator
12 — BRAKE warning indicator Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

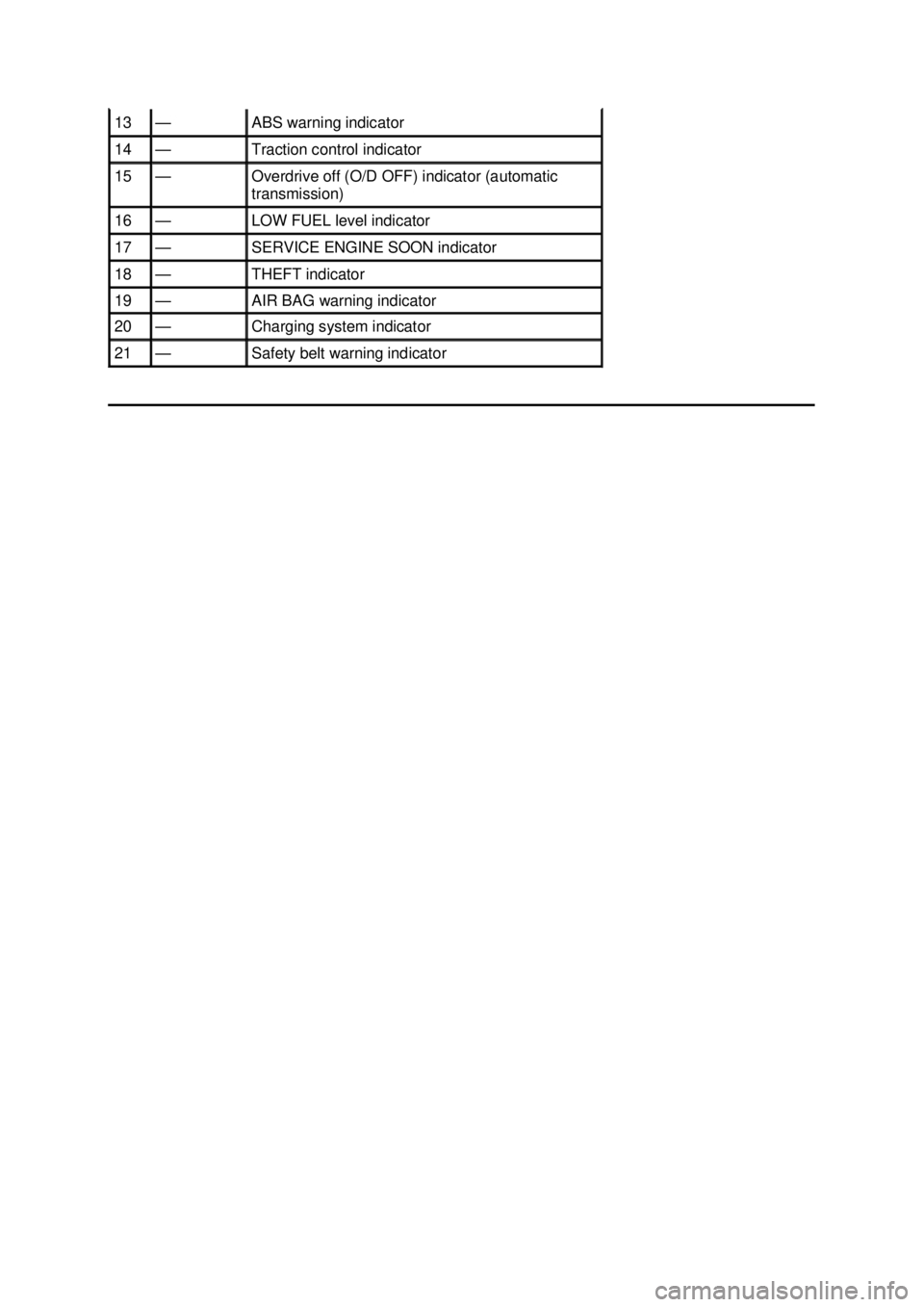

13 — ABS warning indicator
14 — Traction control indicator
15 — Overdrive off (O/D OFF) indicator (automatic
transmission)
16 — LOW FUEL level indicator
17 — SERVICE ENGINE SOON indicator
18 — THEFT indicator
19 — AIR BAG warning indicator
20 — Charging system indicator
21 — Safety belt warning indicator Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Instrument Cluster
Refer to Wiring Diagrams Cell
60 , Instrument Cluster for schematic and connector information.
Principles of Operation
NOTE: A new instrument cluster must be reconfigured. Refer to Section 418 - 01 .
The instrument cluster is a hybrid electronic cluster (HEC). The instrument cluster uses both hardwired
and the standard corporate protocol (SCP) communication network to transmit and receive
information. As a technician it is very important to understand:
zwhere the input originates from.
z all information necessary in order for a feature to operate.
z which module(s) receive(s) the input or command message.
z does the module which received the input control the output of the feature, or does it output a
message over the SCP network to another module?
z which module controls the output of the feature.
The instrument cluster carries out a display prove- out to verify that the warning/indicator miniature
bulbs for monitored systems are functioning correctly. When the ignition switch is in the ON position
with the engine off, the following warning indicators will prove out:
zanti- lock brake (ABS) warning indicator
SECTION 413-
01: Instrument Cluster 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Instrument Gauge System
Tester
014-
R1063 or equivalent 73III Automotive Meter
105-
R0057 or equivalent Klj . 1 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
air bag warning indicator
z BRAKE warning indicator
z charging system indicator
z fail safe cooling warning indicator
z low coolant level indicator
z low fuel warning indicator
z traction control indicator
Instrument Cluster Replacement
When it is necessary to install a new instrument cluster, contact the Instrument Cluster Program.
Gauge Indication Systems
Tachometer
Engine rpm information is relayed to the instrument cluster from the powertrain control module (PCM)
over the standard corporate protocol (SCP) network.
Speedometer
The instrument cluster receives the vehicle speed signal from the PCM over the SCP network and
displays it on the speedometer gauge. If the instrument cluster receives no vehicle speed signal after
one second, the speedometer defaults to 0.0 km/h (0.0 mph).
Odometer
The instrument cluster receives an odometer message from the PCM and stores the mileage in
memory. When the instrument cluster fails to receive the odometer message for more than two
seconds, the odometer will display dashes.
Fuel Gauge
The fuel sender is hardwired to the fuel gauge. When the instrument cluster fails to receive the fuel
level signal for more than 33 seconds, the fuel level gauge will move below E (empty). If the fuel level
signal operates correctly for more than 33 seconds, the fuel gauge will return to the correct position.
Fuel fills of less than 9.5 liters (2.5 gallons) require at least 10 minutes to update the fuel gauge
indication.
Engine Coolant Temperature Gauge
Engine coolant temperature information is received by the instrument cluster from the PCM over the
SCP network. Engine coolant temperatures above 121°C (250°F) will cause the gauge to indicate
above the normal band. If the engine coolant temperature information is missing or invalid for five
seconds, the temperature gauge will indicate below the cold (C) position.
Voltage Gauge (except Cobra)
The voltage gauge displays the system voltage as measured at the instrument cluster run input. Boost Gauge (Cobra only) Klj . 2 ba
