2003 FIAT PALIO window

READY TO GO
Sit comfortably in your car and get ready to...
read.
The following pages tell you everything you need to
know to start off in the best way: that is to say, in
total safety, right from the start.
In a few minutes you will be confident with warning
lights, instruments and main devices.
All adjustments must be made when the car is sta-
tionary.DASHBOARD INSTRUMENT HOLDER ......... PAGE 9
INSTRUMENT PANEL .......................................... PAGE 10
KEYS ............................................................................ PAGE 11
SEATS ........................................................................ PAGE 11
HEAD RESTS ........................................................... PAGE 11
SAFETY BELTS ........................................................ PAGE 12
STEERING COLUMN STALKS ........................... PAGE 13
REARVIEW MIRRORS ........................................... PAGE 14
MANUAL CLIMATE CONTROL ........................ PAGE 14
HAZARD LIGHTS .................................................. PAGE 14
COMMAND SWITCHES .......................................PAGE 15
ELECTRIC WINDOW WINDER ....................... PAGE 15
BOOT ........................................................................ PAGE 16
ENGINE BONNET ............................................... PAGE 16
DOORS ..................................................................... PAGE 17
AT THE FILLING STATION .................................. PAGE 18
8
1-19 03/03/2003 05:44 PM Page 8

9
1.Adjustable side air vents - 2.Vents for air dispatch to side windows - 3.Adjustable central air vents - 4.Commands and
pilot lights -
5.Sound system seat - 6.Switch for hazard lights - 7. Digital clock - 8.Command lever of windscreen/rear win-
dow wiper and washer -
9.Instrument panel and pilot lights - 10.Air bag - 11.External light command lever - 12.Object box -
13.Climate command - 14.Cigar lighter - 15.Ashtray - 16. Horn Pad - 17.Ignition switch - 18.Access to the fuse box -
19.Lever for opening hood to access engine.
P4E02269
DASHBOARD INSTRUMENT HOLDER
The presence and the position of the instruments and indicators may vary according to the version of your car.
fig. 1
1-19 03/03/2003 05:44 PM Page 9

13
STEERING COL-
UMN STALKS
RIGHT-HAND STALK fig. 12
In position A= left turn indicator
lights on.
In position
B= right turn indicator
lights on.
Pulled towards the steering wheel
= flicks.
Ring turned on
O= lights switched
off.
Ring turned on 3
= parking
lights on.
Ring turned on
2= Low beams.
With ring turned on
2& stalk
towards the dashboard = high beams.
Fig. 11
To fasten:
insert tongue A in B
on the buckle.
To loosen: press button C.
fig. 11
P4E01355
fig. 12
P4E02023
LEFT-HAND STALK fig. 13
Position A = Windscreen wipers
OFF.
Position
B= Intermittent wipe.
Position
C = Slow continuous
wipe.
Position
D = Quick continuous
wipe.
Position
E(not fixed) = Quick con-
tinuous wipe. This is a unique anti-
panic feature.
Stalk pulled towards the steering
wheel = windscreen washer activated.
Thrust towards the dashboard =
rear window washer/wiper.
Ring on
Oposition = Rearwind
screen wiper OFF.
Ring at
' '
position = Rear wind-
screen wiper ON.
fig. 13
P4E01682
1-19 03/03/2003 05:44 PM Page 13

15
COMMAND
SWITCHES
Switches fig. 17.
A - Rear windscreen heater switch.
B - Front fog light switch with LED.
C - A/C on/off switch.
ELECTRIC WIN-
DOW WINDER
FRONT ELECTRICAL WIN-
DOW WINDERS
Press the switch fig. 18 to lower
the window. Raise the switch to
wind up the window.
A- Switch for adjusting front left
window.
B - Switch for adjusting front right
window.
Each door handle has a switch on it
to raise/lower its window.
fig. 17
P4E02287
fig. 18
P4E02011
fig. 19
P4E02012
ELECTRIC REAR WINDOWS
fig. 19
A
- Switch on door handle.
B - Rear left-hand window switch.
C - Rear right-hand window switch.
D - Rear window enable switch.
1-19 03/03/2003 05:44 PM Page 15

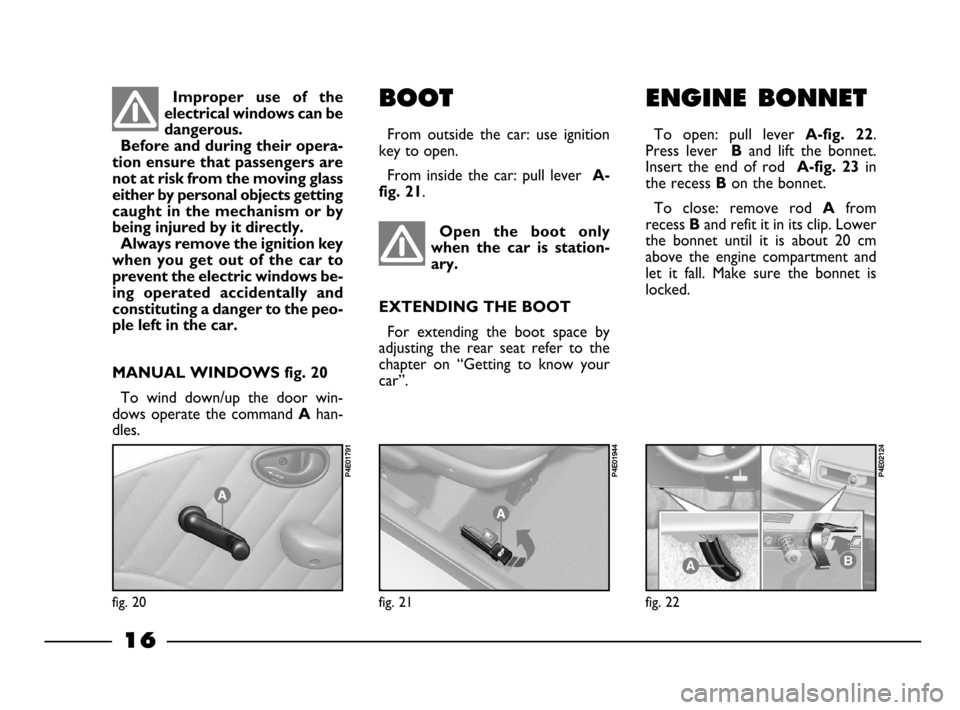

16
ENGINE BONNET
To open: pull lever A-fig. 22.
Press lever
Band lift the bonnet.
Insert the end of rod
A-fig. 23in
the recess
Bon the bonnet.
To close: remove rod
Afrom
recess
Band refit it in its clip. Lower
the bonnet until it is about 20 cm
above the engine compartment and
let it fall. Make sure the bonnet is
locked.
fig. 22
P4E02124
Open the boot only
when the car is station-
ary.
EXTENDING THE BOOT
For extending the boot space by
adjusting the rear seat refer to the
chapter on “Getting to know your
car”.
fig. 21
P4E01944
BOOT
From outside the car: use ignition
key to open.
From inside the car: pull lever
A-
fig. 21
.
Improper use of the
electrical windows can be
dangerous.
Before and during their opera-
tion ensure that passengers are
not at risk from the moving glass
either by personal objects getting
caught in the mechanism or by
being injured by it directly.
Always remove the ignition key
when you get out of the car to
prevent the electric windows be-
ing operated accidentally and
constituting a danger to the peo-
ple left in the car.
fig. 20
P4E01791
MANUAL WINDOWS fig. 20
To wind down/up the door win-
dows operate the command
Ahan-
dles.
1-19 03/03/2003 05:44 PM Page 16

37
HEATING /CLIMATE CONTROL SYSTEM
1 -Windscreen defroster/demister
vents.
2 -Front side window
defroster/demister vents.
3 -Central and side directional vents.
4 -Side vents for sending air to
footwell.
P4E02020
fig. 27
WATER IN DIESEL
FUEL FILTER versions
(amber) (diesel version)
When there is water in the diesel fu-
el filter. have the condense drained
out by a Fiat Dealership.
GLOW PLUGS
(amber)
(diesel version)
When the ignition key is turned to
the
MARposition. The warning light
will go out when the glowplugs reach
the correct temperature.
The warning light has a diagnostic
function to signal pre-heating system
failures (cut-off or short-circuited
glow plugs, blown pre-heating control
unit power fuse, tripped pre-heating
control unit circuit surge and current
protections).
If the warning light flashes for 60 sec-
onds just before the engine is started,
the vehicle can still be started but a
Fiat Dealershipshould be contact-
ed as soon as possible to have the
anamoly rectified.
20-63 03/03/2003 06:02 PM Page 37

38
MANUAL CLIMATE
CONTROL SYSTEM
The system is filled with
R134a refrigerant which
will not pollute the envi-
ronment in the event of leakage.
Under no circumstances should
R12 fluid be used as it is incom-
patible with the system compo-
nents.
fig. 30
P4E02285
DIRECTIONAL AND AD-
JUSTABLE AIR VENTS fig. 28
The vents can be rotated upwards or
downwards.
A- Control for allowing adjusting air
flow:
– turned to
Ovent open;
– turned to
ç
vent closed.
B - Control for adjusting direction of
air flow.
C - Side window fixed vent fig. 29.
fig. 28
P4E02288
fig. 29
P4E02022
20-63 03/03/2003 06:02 PM Page 38

40
RAPID DEMISTING/DEFROST-
ING
The climate system is very useful for
accelerating the demisting, because it
dehumidifies the air. It is sufficient to
adjust the controls for the demisting
operation and activate the climate
control system, pressing the button √
.
Windscreen and side windows
1)
Air temperature knob: pointer in
the red sector (fully turned to the
right) on cold days or in the blue sec-
tor (fully turned to the left) on hot
days.
2)Fan knob: pointer at maximum
speed.
3)Air distribution knob: pointer at
-.
4)Air recirculation switched off,
pointer at -
U.
When the windscreen and the win-
dows have been demisted adjust the
controls to keep the windows as clear
as possible.
Rear window
Press the button
(.
As soon as the rear window is
demisted, we suggest switching off the
device.
VENTILATION
1)
Central and side vents: fully open.
2) Air temperature knob: pointer in
the blue sector.
3) Fan knob: pointer set at the speed
required.
4) Air distribution knob: pointer at
O.
5)Air recirculation pointer: at -
U, equal to air intake from outside.
RECIRCULATION
When the pointer is at T, only in-
ternal air recirculation is activated.
IMPORTANTIn conditions of very
high external air temperature, the re-
circulation operation accelerates the
air cooling. Then, this function is par-
ticularly useful when the outside air
is heavily polluted (in a traffic jam, tun-
nel, etc.). You are advised against us-
ing this function for long periods how-
ever, especially if there are a lot of
people in the car.
IMPORTANTDo not use the re-
circulation function during cold/wet
weather as this will increase the like-
lihood of the windows misting up.
20-63 03/03/2003 06:02 PM Page 40
