2003 DODGE RAM warning

air and boil the moisture out of the system at near
room temperature. To evacuate the refrigerant sys-
tem, use the following procedure:
(1) Connect a R-134a refrigerant recovery/recy-
cling/charging station that meets SAE Standard
J2210 and a manifold gauge set (if required) to the
refrigerant system of the vehicle and recover refrig-
erant.
(2) Open the low and high side valves and start
the charging station vacuum pump. When the suc-
tion gauge reads 88 kPa (26 in. Hg.) vacuum or
greater, close all of the valves and turn off the vac-
uum pump.
(a) If the refrigerant system fails to reach the
specified vacuum, the system has a leak that must
be corrected. See Refrigerant System Leaks in the
Diagnosis and Testing section of this group for the
procedures.
(b) If the refrigerant system maintains the spec-
ified vacuum for five minutes, restart the vacuum
pump, open the suction and discharge valves and
evacuate the system for an additional ten minutes.
(3) Close all of the valves, and turn off the charg-
ing station vacuum pump.
(4) The refrigerant system is now ready to be
charged with R-134a refrigerant(Refer to 24 - HEAT-
ING & AIR CONDITIONING/PLUMBING/REFRIG-
ERANT - STANDARD PROCEDURE).
STANDARD PROCEDURE- REFRIGERANT
RECOVERY
WARNING: (Refer to 24 - HEATING & AIR CONDI-
TIONING/PLUMBING - WARNING) AND (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING - CAU-
TION) BEFORE PERFORMING THE FOLLOWING
OPERATION.
A R-134a refrigerant recovery/recycling/charging
station that meets SAE Standard J2210 must be
used to recover the refrigerant from an R-134a refrig-
erant system. Refer to the operating instructions sup-
plied by the equipment manufacturer for the proper
care and use of this equipment.
STANDARD PROCEDURE- REFRIGERANT
SYSTEM CHARGE
WARNING: (Refer to 24 - HEATING & AIR CONDI-
TIONING/PLUMBING - WARNING) AND (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING - CAU-
TION) BEFORE PERFORMING THE FOLLOWING
OPERATION.
After the refrigerant system has been tested for
leaks and evacuated, a refrigerant charge can beinjected into the system. See Refrigerant Charge
Capacity in the Service Procedures section of this
group for the proper amount of the refrigerant
charge, this fill level can also be found on a label
attached under the hood of the vehicle..
A R-134a refrigerant recovery/recycling/charging
station that meets SAE Standard J2210 must be
used to charge the refrigerant system with R-134a
refrigerant. Refer to the operating instructions sup-
plied by the equipment manufacturer for the proper
care and use of this equipment.
The R-134a refrigerant system charge capacity for
this vehicle is:
²If equipped with a 3.7L or a 4.7L engine charge
to 0.6804 Kg. (24 oz.).
²If equipped with a 5.9L engine charge to 0.7371
Kg. ( 26 oz.).
REFRIGERANT LINE COUPLER
DESCRIPTION
Spring-lock type refrigerant line couplers are used
to connect many of the refrigerant lines and other
components to the refrigerant system. These couplers
require a special tool for disengaging the two coupler
halves.
OPERATION
The spring-lock coupler is held together by a garter
spring inside a circular cage on the male half of the
fitting (Fig. 16). When the two coupler halves are
connected, the flared end of the female fitting slips
behind the garter spring inside the cage on the male
fitting. The garter spring and cage prevent the flared
end of the female fitting from pulling out of the cage.
Three O-rings on the male half of the fitting are
used to seal the connection. These O-rings are com-
patible with R-134a refrigerant and must be replaced
with O-rings made of the same material.
Secondary clips are installed over the two con-
nected coupler halves at the factory for added blowoff
protection.
REMOVAL
WARNING: (Refer to 24 - HEATING & AIR CONDI-
TIONING/PLUMBING - WARNING) (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING - CAU-
TION) BEFORE PERFORMING THE FOLLOWING
OPERATION.
(1) Recover the refrigerant from the refrigerant
system(Refer to 24 - HEATING & AIR CONDITION-
ING/PLUMBING/REFRIGERANT - STANDARD
PROCEDURE).
24 - 52 PLUMBINGDR
REFRIGERANT (Continued)

(2) Remove the secondary clip from the spring-lock
coupler.
(3) Fit the proper size A/C line disconnect tool
(Special Tool Kit 7193 or equivalent) over the spring-
lock coupler cage (Fig. 17).
(4) Close the two halves of the A/C line disconnect
tool around the spring-lock coupler.
(5) Push the A/C line disconnect tool into the open
side of the coupler cage to expand the garter spring.Once the garter spring is expanded and while still
pushing the disconnect tool into the open side of the
coupler cage, pull on the refrigerant line attached to
the female half of the coupler fitting until the flange
on the female fitting is separated from the garter
spring and cage on the male fitting within the dis-
connect tool.
NOTE: The garter spring may not release if the A/C
line disconnect tool is cocked while pushing it into
the coupler cage opening.
(6) Open and remove the A/C line disconnect tool
from the disconnected spring-lock coupler.
(7) Complete the separation of the two halves of
the coupler fitting. Inspect the O-ring seals and mat-
ing areas for damage.
INSTALLATION
WARNING: (Refer to 24 - HEATING & AIR CONDI-
TIONING/PLUMBING - WARNING) AND (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING - CAU-
TION) BEFORE PERFORMING THE FOLLOWING
OPERATION.
(1) Check to ensure that the garter spring is
located within the cage of the male coupler fitting,
and that the garter spring is not damaged.
(a) If the garter spring is missing, install a new
spring by pushing it into the coupler cage opening.
(b) If the garter spring is damaged, remove it
from the coupler cage with a small wire hook (DO
NOT use a screwdriver) and install a new garter
spring.
(2) Clean any dirt or foreign material from both
halves of the coupler fitting.
(3) Install new O-rings on the male half of the cou-
pler fitting.
CAUTION: Use only the specified O-rings as they
are made of a special material for the R-134a sys-
tem. The use of any other O-rings may allow the
connection to leak intermittently during vehicle
operation.
(4) Lubricate the male fitting and O-rings, and the
inside of the female fitting with clean R-134a refrig-
erant oil. Use only refrigerant oil of the type recom-
mended for the compressor in the vehicle.
(5) Fit the female half of the coupler fitting over
the male half of the fitting.
(6) Push together firmly on the two halves of the
coupler fitting until the garter spring in the cage on
the male half of the fitting snaps over the flanged
end on the female half of the fitting.

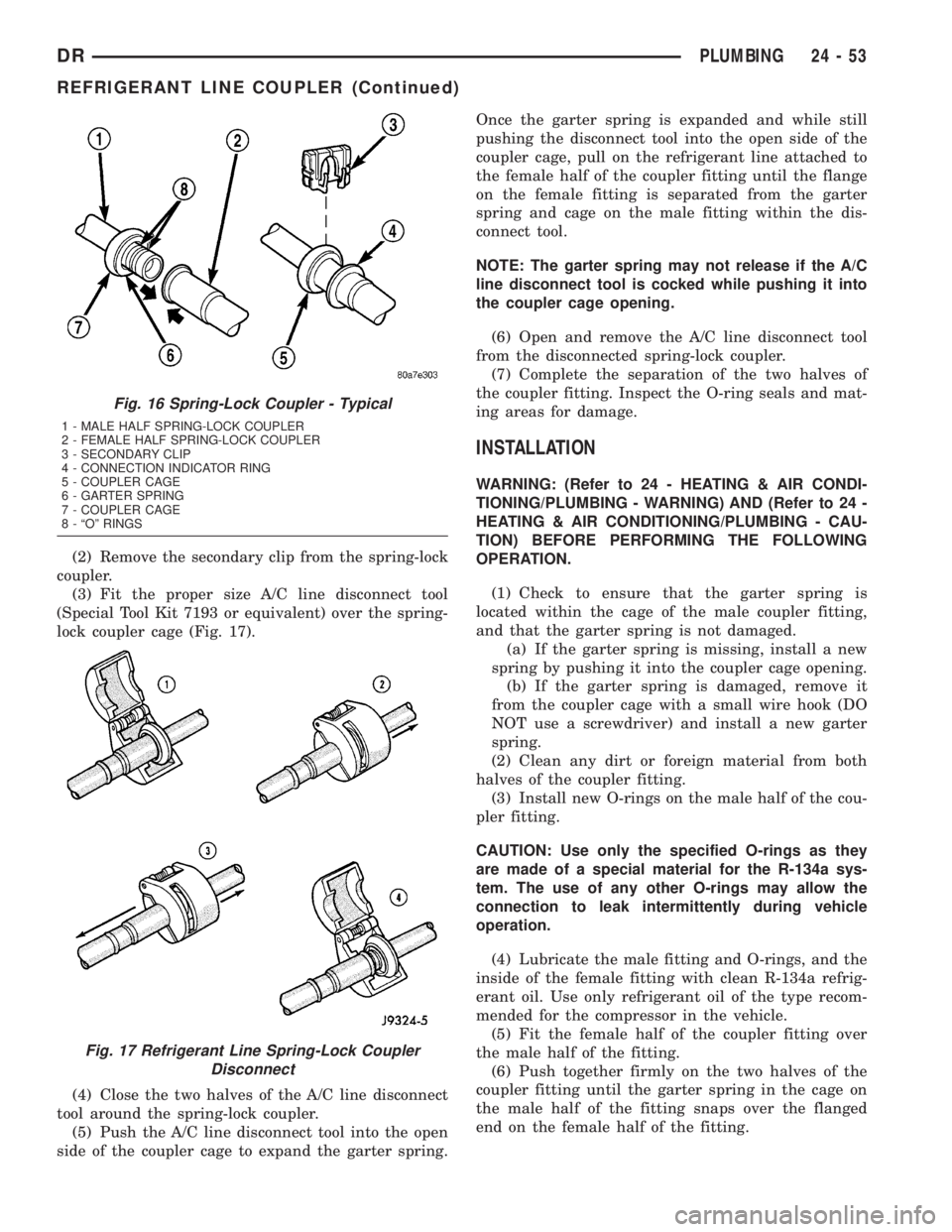

Fig. 16 Spring-Lock Coupler - Typical
1 - MALE HALF SPRING-LOCK COUPLER
2 - FEMALE HALF SPRING-LOCK COUPLER
3 - SECONDARY CLIP
4 - CONNECTION INDICATOR RING
5 - COUPLER CAGE
6 - GARTER SPRING
7 - COUPLER CAGE
8 - ªOº RINGS
Fig. 17 Refrigerant Line Spring-Lock Coupler
Disconnect
DRPLUMBING 24 - 53
REFRIGERANT LINE COUPLER (Continued)

these situations, the effects of another monitor run-
ning could result in an erroneous failure. If thiscon-
flictis present, the monitor is not run until the
conflicting condition passes. Most likely the monitor
will run later after the conflicting monitor has
passed.
For example, if the Fuel System Monitor is in
progress, the Task Manager does not run the EGR
Monitor. Since both tests monitor changes in air/fuel
ratio and adaptive fuel compensation, the monitors
will conflict with each other.
²Suspend
Occasionally the Task Manager may not allow a two
trip fault to mature. The Task Manager willsus-
pendthe maturing of a fault if a condition exists
that may induce an erroneous failure. This prevents
illuminating the MIL for the wrong fault and allows
more precis diagnosis.
For example, if the PCM is storing a one trip fault
for the Oxygen Sensor and the EGR monitor, the
Task Manager may still run the EGR Monitor but
will suspend the results until the Oxygen Sensor
Monitor either passes or fails. At that point the Task
Manager can determine if the EGR system is actu-
ally failing or if an Oxygen Sensor is failing.
MIL Illumination
The PCM Task Manager carries out the illumina-
tion of the MIL. The Task Manager triggers MIL illu-
mination upon test failure, depending on monitor
failure criteria.
The Task Manager Screen shows both a Requested
MIL state and an Actual MIL state. When the MIL is
illuminated upon completion of a test for a third trip,
the Requested MIL state changes to OFF. However,
the MIL remains illuminated until the next key
cycle. (On some vehicles, the MIL will actually turn
OFF during the third key cycle) During the key cycle
for the third good trip, the Requested MIL state is
OFF, while the Actual MILL state is ON. After the
next key cycle, the MIL is not illuminated and both
MIL states read OFF.
Diagnostic Trouble Codes (DTCs)
With OBD II, different DTC faults have different
priorities according to regulations. As a result, the
priorities determine MIL illumination and DTC era-
sure. DTCs are entered according to individual prior-
ity. DTCs with a higher priority overwrite lower
priority DTCs.
Priorities
²Priority 0 ÐNon-emissions related trouble codes
²Priority 1 Ð One trip failure of a two trip fault
for non-fuel system and non-misfire.²Priority 2 Ð One trip failure of a two trip fault
for fuel system (rich/lean) or misfire.
²Priority3ÐTwotrip failure for a non-fuel sys-
tem and non-misfire or matured one trip comprehen-
sive component fault.
²Priority4ÐTwotrip failure or matured fault
for fuel system (rich/lean) and misfire or one trip cat-
alyst damaging misfire.
Non-emissions related failures have no priority.
One trip failures of two trip faults have low priority.
Two trip failures or matured faults have higher pri-
ority. One and two trip failures of fuel system and
misfire monitor take precedence over non-fuel system
and non-misfire failures.
DTC Self Erasure
With one trip components or systems, the MIL is
illuminated upon test failure and DTCs are stored.
Two trip monitors are components requiring failure
in two consecutive trips for MIL illumination. Upon
failure of the first test, the Task Manager enters a
maturing code. If the component fails the test for a
second time the code matures and a DTC is set.
After three good trips the MIL is extinguished and
the Task Manager automatically switches the trip
counter to a warm-up cycle counter. DTCs are auto-
matically erased following 40 warm-up cycles if the
component does not fail again.
For misfire and fuel system monitors, the compo-
nent must pass the test under a Similar Conditions
Window in order to record a good trip. A Similar Con-
ditions Window is when engine RPM is within  375
RPM and load is within  10% of when the fault
occurred.
NOTE: It is important to understand that a compo-
nent does not have to fail under a similar window of
operation to mature. It must pass the test under a
Similar Conditions Window when it failed to record
a Good Trip for DTC erasure for misfire and fuel
system monitors.
DTCs can be erased anytime with a DRB III. Eras-
ing the DTC with the DRB III erases all OBD II
information. The DRB III automatically displays a
warning that erasing the DTC will also erase all
OBD II monitor data. This includes all counter infor-
mation for warm-up cycles, trips and Freeze Frame.
Trip Indicator
TheTripis essential for running monitors and
extinguishing the MIL. In OBD II terms, a trip is a
set of vehicle operating conditions that must be met
for a specific monitor to run. All trips begin with a
key cycle.
Good Trip
The Good Trip counters are as follows:
25 - 6 EMISSIONS CONTROLDR
EMISSIONS CONTROL (Continued)

CHECKING ENGINE OIL PRESSURE -
DIAGNOSIS AND TESTING....9-150,9-214,9-64
CHECKING TRANSMISSION CLUTCH
OPERATION - DIAGNOSIS AND
TESTING, AIR......................21-494
CHECKS - DIAGNOSIS AND TESTING,
PRELIMINARY........................7-10
CHILD RESTRAINT ANCHOR -
DESCRIPTION.......................8O-14
CHILD RESTRAINT ANCHOR -
INSTALLATION......................8O-17
CHILD RESTRAINT ANCHOR -
OPERATION.........................8O-16
CHILD RESTRAINT ANCHOR - REMOVAL . . 8O-16
CHIME CONDITIONS - DIAGNOSIS AND
TESTING............................8B-2
CHIME/BUZZER - DESCRIPTION..........8B-1
CHIME/BUZZER - OPERATION............8B-1
CIGAR LIGHTER OUTLET - DESCRIPTION . 8W-97-2
CIGAR LIGHTER OUTLET - DIAGNOSIS
AND TESTING.....................8W-97-2
CIGAR LIGHTER OUTLET - OPERATION . 8W-97-2
CIRCUIT - DIAGNOSIS AND TESTING,
AMBIENT TEMPERATURE SENSOR......8M-11
CIRCUIT - OPERATION, FUEL DRAIN.....14-78
CIRCUIT ACTUATION TEST MODE -
DESCRIPTION........................25-1
CIRCUIT FUNCTIONS - DESCRIPTION . . 8W-01-6
CIRCUIT INFORMATION - DESCRIPTION . 8W-01-5
CIRCUIT SENSE - DESCRIPTION,
IGNITION...........................8E-10
CIRCUIT SENSE - OPERATION, IGNITION . . 8E-12
CIRCUITS - OPERATION, NON-
MONITORED.........................25-8
CLAMPS - DESCRIPTION, HOSE...........7-3
CLAMPS - OPERATION, HOSE.............7-5
CLEANING/REVERSE FLUSHING -
STANDARD PROCEDURE, COOLING
SYSTEM............................7-17
CLEARANCE - STANDARD PROCEDURE,
CONNECTING ROD BEARING AND
CRANKSHAFT JOURNAL...............9-321
CLEARANCE - STANDARD PROCEDURE,
MAIN BEARING......................9-322
CLEARANCE LAMP - INSTALLATION, CAB . 8L-10
CLEARANCE LAMP - REMOVAL, CAB.....8L-10
CLOCKSPRING - DESCRIPTION.........8O-18
CLOCKSPRING - INSTALLATION.........8O-21
CLOCKSPRING - OPERATION...........8O-18
CLOCKSPRING - REMOVAL............8O-20
CLOCKSPRING CENTERING - STANDARD
PROCEDURE........................8O-19
CLUSTER - ASSEMBLY, INSTRUMENT....8J-15
CLUSTER - DESCRIPTION, INSTRUMENT . . . 8J-2
CLUSTER - DIAGNOSIS AND TESTING,
INSTRUMENT........................8J-10
CLUSTER - DISASSEMBLY, INSTRUMENT . . 8J-14
CLUSTER - INSTALLATION, INSTRUMENT . 8J-16
CLUSTER - OPERATION, INSTRUMENT.....8J-6
CLUSTER - REMOVAL, INSTRUMENT.....8J-14
CLUSTER BEZEL - INSTALLATION........23-50
CLUSTER BEZEL - REMOVAL...........23-50
CLUTCH - 5.9L DIESEL - DESCRIPTION,
FAN DRIVE VISCOUS...................7-55
CLUTCH - 5.9L DIESEL - OPERATION,
FAN DRIVE VISCOUS...................7-55
CLUTCH - ASSEMBLY, FRONT....21-206,21-386
CLUTCH - ASSEMBLY, LOW/REVERSE . . . 21-561
CLUTCH - ASSEMBLY, REAR.....21-250,21-428
CLUTCH - CLEANING, LOW/REVERSE....21-561
CLUTCH - CLEANING, REAR.....21-250,21-428
CLUTCH - DESCRIPTION.................6-1
CLUTCH - DESCRIPTION, A/C
COMPRESSOR........................24-9
CLUTCH - DESCRIPTION, FAN DRIVE
VISCOUS............................7-54
CLUTCH - DESCRIPTION, FRONT . 21-204,21-384
CLUTCH - DESCRIPTION, OVERDRIVE . . . 21-218,
21-396
CLUTCH - DESCRIPTION, REAR . . 21-248,21-426
CLUTCH - DIAGNOSIS AND TESTING.......6-2
CLUTCH - DISASSEMBLY, FRONT . 21-205,21-384
CLUTCH - DISASSEMBLY, LOW/REVERSE
. 21-560
CLUTCH - DISASSEMBLY, REAR
. . 21-249,21-427
CLUTCH - INSPECTION, A/C
COMPRESSOR
.......................24-12
CLUTCH - INSPECTION, FRONT
. . 21-206,21-385
CLUTCH - INSPECTION, LOW/REVERSE
. . 21-561CLUTCH - INSPECTION, REAR . . . 21-250,21-428
CLUTCH - INSTALLATION, A/C
COMPRESSOR.......................24-12
CLUTCH - OPERATION..................6-1
CLUTCH - OPERATION, A/C
COMPRESSOR........................24-9
CLUTCH - OPERATION, FAN DRIVE
VISCOUS............................7-54
CLUTCH - OPERATION, FRONT . . . 21-204,21-384
CLUTCH - OPERATION, OVERDRIVE....21-218,
21-396
CLUTCH - OPERATION, REAR....21-249,21-427
CLUTCH - REMOVAL, A/C COMPRESSOR . . 24-10
CLUTCH - SPECIFICATIONS...............6-6
CLUTCH - WARNING....................6-2
CLUTCH AND BAND OPERATION -
DIAGNOSIS AND TESTING, AIR
TESTING TRANSMISSION.......21-143,21-324
CLUTCH ASSEMBLY - ASSEMBLY, INPUT . 21-552
CLUTCH ASSEMBLY - DESCRIPTION,
INPUT............................21-549
CLUTCH ASSEMBLY - DISASSEMBLY,
INPUT............................21-550
CLUTCH ASSEMBLY - OPERATION,
INPUT............................21-549
CLUTCH BREAK-IN - STANDARD
PROCEDURE, A/C COMPRESSOR........24-10
CLUTCH CAM/OVERDRIVE PISTON
RETAINER - ASSEMBLY,
OVERRUNNING...............21-239,21-416
CLUTCH CAM/OVERDRIVE PISTON
RETAINER - CLEANING, OVERRUNNING. . . 21-238,
21-416
CLUTCH CAM/OVERDRIVE PISTON
RETAINER - DESCRIPTION,
OVERRUNNING...............21-237,21-415
CLUTCH CAM/OVERDRIVE PISTON
RETAINER - DISASSEMBLY,
OVERRUNNING...............21-238,21-415
CLUTCH CAM/OVERDRIVE PISTON
RETAINER - INSPECTION,
OVERRUNNING...............21-238,21-416
CLUTCH CAM/OVERDRIVE PISTON
RETAINER - OPERATION,
OVERRUNNING...............21-237,21-415
CLUTCH COIL - DIAGNOSIS AND
TESTING, A/C COMPRESSOR...........24-10
CLUTCH DISC - INSTALLATION............6-6
CLUTCH DISC - REMOVAL...............6-6
CLUTCH HOUSING - DIAGNOSIS AND
TESTING.............................6-8
CLUTCH HOUSING - INSTALLATION.......6-10
CLUTCH HOUSING - REMOVAL...........6-10
CLUTCH OPERATION - DIAGNOSIS AND
TESTING, AIR CHECKING
TRANSMISSION.....................21-494
CLUTCH PEDAL POSITION SWITCH -
DESCRIPTION........................6-14
CLUTCH PEDAL POSITION SWITCH -
DIAGNOSIS AND TESTING..............6-14
CLUTCH PEDAL POSITION SWITCH -
OPERATION..........................6-14
CLUTCH RELAY - DESCRIPTION, A/C
COMPRESSOR.......................24-13
CLUTCH RELAY - DIAGNOSIS AND
TESTING, COMPRESSOR...............24-13
CLUTCH RELAY - INSTALLATION, A/C
COMPRESSOR.......................24-14
CLUTCH RELAY - OPERATION, A/C
COMPRESSOR.......................24-13
CLUTCH RELAY - REMOVAL, A/C
COMPRESSOR.......................24-14
CLUTCH RELEASE BEARING -
INSTALLATION........................6-11
CLUTCH RELEASE BEARING - REMOVAL . . . 6-11
CLUTCHES - DESCRIPTION, HOLDING . . . 21-546
CLUTCHES - OPERATION, HOLDING.....21-546
COAT HOOK - INSTALLATION...........23-67
COAT HOOK - REMOVAL...............23-67
CODE - DESCRIPTION, PAINT...........23-74
CODE PLATE - DESCRIPTION, BODY
....Intro.-4
CODES - DESCRIPTION, DIAGNOSTIC
TROUBLE
............................25-1
CODES - SPECIFICATIONS, PAINT
........23-74
CODES - STANDARD PROCEDURE,
ERASING TRANSMITTER
..............8M-12
CODES - STANDARD PROCEDURE,
SETTING TRANSMITTER
..............8M-12COIL - DESCRIPTION, IGNITION.........8I-19
COIL - DIAGNOSIS AND TESTING, A/C
COMPRESSOR CLUTCH...............24-10
COIL - INSTALLATION, IGNITION.........8I-24
COIL - OPERATION, IGNITION...........8I-20
COIL - REMOVAL, IGNITION............8I-23
COIL CAPACITOR - DESCRIPTION,
IGNITION...........................8I-33
COIL CAPACITOR - INSTALLATION,
IGNITION...........................8I-33
COIL CAPACITOR - OPERATION,
IGNITION...........................8I-33
COIL CAPACITOR - REMOVAL, IGNITION . . . 8I-33
COIL RESISTANCE, 3.7L V-6 - IGNITION....8I-6
COIL RESISTANCE, 4.7L V-8 - IGNITION....8I-6
COIL RESISTANCE, 5.7L V-8 - IGNITION....8I-6
COIL RESISTANCE, 5.9L - IGNITION.......8I-6
COIL RESISTANCE, 8.0L V-10 ENGINE -
IGNITION............................8I-6
COLUMN - DESCRIPTION...............19-6
COLUMN - DIAGNOSIS AND TESTING,
STEERING...........................19-7
COLUMN - INSTALLATION...............19-9
COLUMN - REMOVAL..................19-7
COLUMN OPENING COVER -
INSTALLATION, STEERING.............23-61
COLUMN OPENING COVER - REMOVAL,
STEERING..........................23-61
COLUMN OPENING SUPPORT BRACKET
- INSTALLATION, STEERING..............23-62
COLUMN OPENING SUPPORT BRACKET
- REMOVAL, STEERING................23-61
COMBUSTION PRESSURE LEAKAGE -
DIAGNOSIS AND TESTING, CYLINDER....9-182,
9-231,9-359,9-8,9-92
COMMUNICATION - DESCRIPTION........8E-1
COMMUNICATION - OPERATION..........8E-2
COMPASS CALIBRATION - STANDARD
PROCEDURE.........................8M-3
COMPASS DEMAGNETIZING -
STANDARD PROCEDURE...............8M-4
COMPASS MINI-TRIP COMPUTER -
DIAGNOSIS AND TESTING..............8M-7
COMPASS VARIATION ADJUSTMENT -
STANDARD PROCEDURE...............8M-4
COMPASS/MINI-TRIP COMPUTER -
DESCRIPTION........................8M-6
COMPASS/MINI-TRIP COMPUTER -
INSTALLATION.......................8M-7
COMPASS/MINI-TRIP COMPUTER -
OPERATION.........................8M-7
COMPASS/MINI-TRIP COMPUTER -
REMOVAL...........................8M-7
COMPRESSION PRESSURE - DIAGNOSIS
AND TESTING, CYLINDER . . . 9-182,9-231,9-359,
9-8,9-92
COMPRESSION/LEAKAGE TESTS -
DIAGNOSIS AND TESTING, CYLINDER....9-288
COMPRESSOR CLUTCH - DESCRIPTION,
A/C ................................24-9
COMPRESSOR CLUTCH - INSPECTION,
A/C................................24-12
COMPRESSOR CLUTCH - INSTALLATION,
A/C
................................24-12
COMPRESSOR CLUTCH - OPERATION,
A/C
................................24-9
COMPRESSOR CLUTCH - REMOVAL, A/C
. . 24-10
COMPRESSOR CLUTCH BREAK-IN -
STANDARD PROCEDURE, A/C
...........24-10
COMPRESSOR CLUTCH COIL -
DIAGNOSIS AND TESTING, A/C
..........24-10
COMPRESSOR CLUTCH RELAY -
DESCRIPTION, A/C
...................24-13
COMPRESSOR CLUTCH RELAY -
DIAGNOSIS AND TESTING
.............24-13
COMPRESSOR CLUTCH RELAY -
INSTALLATION, A/C
...................24-14
COMPRESSOR CLUTCH RELAY -
OPERATION, A/C
.....................24-13
COMPRESSOR CLUTCH RELAY -
REMOVAL, A/C
......................24-14
COMPRESSOR NOISE - DIAGNOSIS AND
TESTING, A/C
.......................24-36
COMPUTER - DESCRIPTION, COMPASS/
MINI-TRIP
..........................8M-6
COMPUTER - DIAGNOSIS AND TESTING,
COMPASS MINI-TRIP
..................8M-7
DRINDEX 7
Description Group-Page Description Group-Page Description Group-Page

FUEL INJECTOR RAIL - DESCRIPTION....14-89
FUEL INJECTOR RAIL - INSTALLATION....14-90
FUEL INJECTOR RAIL - OPERATION......14-89
FUEL INJECTOR RAIL - REMOVAL.......14-89
FUEL LEVEL SENDING UNIT / SENSOR -
DESCRIPTION...................14-68,14-7
FUEL LEVEL SENDING UNIT / SENSOR -
INSTALLATION........................14-8
FUEL LEVEL SENDING UNIT / SENSOR -
OPERATION.....................14-68,14-7
FUEL LEVEL SENDING UNIT / SENSOR -
REMOVAL...........................14-7
FUEL LINE LEAKS - DIAGNOSIS AND
TESTING, HIGH-PRESSURE.............14-69
FUEL LINES - DESCRIPTION........14-69,14-8
FUEL LINES - INSTALLATION...........14-71
FUEL LINES - OPERATION..............14-69
FUEL LINES - REMOVAL...............14-69
FUEL PRESSURE LIMITING VALVE -
DESCRIPTION.......................14-72
FUEL PRESSURE LIMITING VALVE -
INSTALLATION.......................14-73
FUEL PRESSURE LIMITING VALVE -
OPERATION.........................14-72
FUEL PRESSURE LIMITING VALVE -
REMOVAL..........................14-72
FUEL PRESSURE SENSOR -
DESCRIPTION.......................14-72
FUEL PRESSURE SENSOR -
INSTALLATION.......................14-72
FUEL PRESSURE SENSOR - OPERATION....14-72
FUEL PRESSURE SENSOR - REMOVAL....14-72
FUEL PUMP - DESCRIPTION............14-12
FUEL PUMP - OPERATION.............14-12
FUEL PUMP MODULE - DESCRIPTION....14-12
FUEL PUMP MODULE - INSTALLATION . . . 14-13
FUEL PUMP MODULE - OPERATION......14-12
FUEL PUMP MODULE - REMOVAL.......14-12
FUEL PUMP RELAY - DESCRIPTION......14-33
FUEL PUMP RELAY - INSTALLATION.....14-33
FUEL PUMP RELAY - OPERATION........14-33
FUEL PUMP RELAY - REMOVAL.........14-33
FUEL PUMP RELAYS - DIAGNOSIS AND
TESTING, ASD........................8I-7
FUEL RAIL - DESCRIPTION.............14-13
FUEL RAIL - INSTALLATION............14-18
FUEL RAIL - OPERATION...............14-13
FUEL RAIL - REMOVAL................14-13
FUEL REQUIREMENTS - DIESEL ENGINE
- DESCRIPTION........................0-1
FUEL SENSOR - DESCRIPTION, WATER
IN ................................14-77
FUEL SENSOR - OPERATION, WATER IN . . 14-78
FUEL SENSOR - REMOVAL, WATER IN....14-78
FUEL SYSTEM - DESCRIPTION, DIESEL . . . 14-57
FUEL SYSTEM - TORQUE...............14-3
FUEL SYSTEM PARTS - STANDARD
PROCEDURES, CLEANING..............14-58
FUEL SYSTEM PRESSURE, DIESEL.......14-60
FUEL SYSTEM PRESSURE RELEASE -
STANDARD PROCEDURE................14-2
FUEL SYSTEM PRESSURE,
SPECIFICATIONS......................14-3
FUEL SYSTEM PRIMING - STANDARD
PROCEDURE........................14-59
FUEL SYSTEM, SPECIAL TOOLS..........14-5
FUEL SYSTEM, SPECIAL TOOLS -
DIESEL............................14-60
FUEL TANK - DESCRIPTION............14-20
FUEL TANK - OPERATION..............14-20
FUEL TANK MODULE - DESCRIPTION.....14-75
FUEL TANK MODULE - INSTALLATION....14-75
FUEL TANK MODULE - OPERATION......14-75
FUEL TANK MODULE - REMOVAL........14-75
FUEL TRANSFER PUMP - DESCRIPTION . . 14-75
FUEL TRANSFER PUMP - INSTALLATION . . 14-76
FUEL TRANSFER PUMP - OPERATION....14-76
FUEL TRANSFER PUMP - REMOVAL......14-76
FULL SIZE, SPARE WHEEL WITH
MATCHING TIRE - DESCRIPTION........22-15
FUNCTIONS - DESCRIPTION, CIRCUIT . . 8W-01-6
FUSE - DESCRIPTION, IOD
...........8W-97-6
FUSE - INSTALLATION, IOD
..........8W-97-7
FUSE - OPERATION, IOD
.............8W-97-6
FUSE - REMOVAL, IOD
..............8W-97-6
FUSES POWERING SEVERAL LOADS -
STANDARD PROCEDURE, TESTING
FOR A SHORT TO GROUND ON
......8W-01-10GAP AND FLUSH - SPECIFICATIONS......23-95
GAS - DESCRIPTION, FUEL DELIVERY.....14-1
GAS - INSTALLATION............19-30,19-41
GAS - OPERATION, FUEL DELIVERY.......14-2
GAS - REMOVAL................19-29,19-40
GAS ENGINE - DIAGNOSIS AND TESTING . . 11-2
GAS ENGINE - INSTALLATION...........19-24
GAS ENGINE - REMOVAL..............19-23
GASKET - DESCRIPTION, CYLINDER
HEAD COVER........................9-243
GASKET - DIAGNOSIS AND TESTING,
CYLINDER HEAD......................9-20
GASKET - OPERATION, CYLINDER HEAD
COVER.............................9-243
GASKET FAILURE - DIAGNOSIS AND
TESTING, CYLINDER HEAD . . . 9-194,9-243,9-370
GASKET SELECTION - STANDARD
PROCEDURE, HEAD...................9-330
GASKET SURFACE PREPARATION -
STANDARD PROCEDURE, ENGINE........9-10
GASKETS AND SEALERS - STANDARD
PROCEDURE, FORM-IN-PLACE....9-232,9-289,
9-360,9-9,9-93
GAUGE - DESCRIPTION, ENGINE
TEMPERATURE......................8J-23
GAUGE - DESCRIPTION, FUEL...........8J-25
GAUGE - DESCRIPTION, OIL PRESSURE . . 8J-32
GAUGE - DESCRIPTION, VOLTAGE.......8J-40
GAUGE - OPERATION, ENGINE
TEMPERATURE......................8J-23
GAUGE - OPERATION, FUEL............8J-26
GAUGE - OPERATION, OIL PRESSURE....8J-32
GAUGE - OPERATION, VOLTAGE.........8J-41
GAUGES - DIAGNOSIS AND TESTING,
PRESSURE..........................22-7
GAUGES INDICATOR - DESCRIPTION,
CHECK.............................8J-21
GAUGES INDICATOR - OPERATION,
CHECK.............................8J-21
GEAR - DESCRIPTION, CRANKSHAFT.....9-322
GEAR - INDEPENDENT FRONT
SUSPENSION - DESCRIPTION...........19-16
GEAR - INDEPENDENT FRONT
SUSPENSION - INSTALLATION..........19-17
GEAR - INDEPENDENT FRONT
SUSPENSION - REMOVAL..............19-16
GEAR - INSTALLATION................9-322
GEAR - INSTALLATION, PINION
GEAR/RING......................3-42,3-66
GEAR - LINK/COIL - DESCRIPTION.......19-19
GEAR - LINK/COIL - INSTALLATION......19-20
GEAR - LINK/COIL - OPERATION........19-19
GEAR - LINK/COIL - REMOVAL..........19-19
GEAR - REMOVAL....................9-322
GEAR - REMOVAL, PINION GEAR/RING....3-40,
3-65
GEAR HOUSING - INSTALLATION........9-349
GEAR HOUSING - REMOVAL............9-348
GEAR HOUSING COVER - INSTALLATION . . 9-350
GEAR HOUSING COVER - REMOVAL.....9-349
GEAR INPUT SHAFT SEAL -
INSTALLATION, STEERING.............19-28
GEAR INPUT SHAFT SEAL - REMOVAL,
STEERING..........................19-25
GEAR SELECTOR INDICATOR -
DESCRIPTION.......................8J-26
GEAR SELECTOR INDICATOR -
OPERATION.........................8J-27
GEAR SHIFT LEVER - INSTALLATION.....19-12
GEAR SHIFT LEVER - REMOVAL.........19-12
GEAR, SPECIAL TOOLS - POWER
STEERING..........................19-22
GEAR, SPECIFICATIONS - POWER
STEERING..........................19-21
GEAR TO COOLER - INSTALLATION,
RETURN HOSE.................19-43,19-44
GEAR TO COOLER - REMOVAL, RETURN
HOSE..............................19-43
GEAR/RING GEAR - INSTALLATION,
PINION
.........................3-42,3-66
GEAR/RING GEAR - REMOVAL, PINION
....3-40,
3-65
GEAR/RING GEAR/TONE RING -
INSTALLATION, PINION
.......3-123,3-150,3-96
GEAR/RING GEAR/TONE RING -
REMOVAL, PINION
..........3-122,3-149,3-94
GEARSHIFT CABLE - DIAGNOSIS AND
TESTING
..............21-209,21-389,21-544GEARSHIFT CABLE - INSTALLATION....21-210,
21-390,21-545
GEARSHIFT CABLE - REMOVAL . . 21-209,21-389,
21-544
GEARSHIFT CABLE, ADJUSTMENTS.....21-211,
21-391,21-546
GEAR/TONE RING - INSTALLATION,
PINION GEAR/RING..........3-123,3-150,3-96
GEAR/TONE RING - REMOVAL, PINION
GEAR/RING................3-122,3-149,3-94
GEARTRAIN - ASSEMBLY, PLANETARY . . . 21-573
GEARTRAIN - CLEANING, PLANETARY . . . 21-573
GEARTRAIN - DESCRIPTION,
PLANETARY........................21-571
GEARTRAIN - DISASSEMBLY,
PLANETARY........................21-573
GEARTRAIN - INSPECTION, PLANETARY . 21-573
GEARTRAIN - OPERATION, PLANETARY . . 21-571
GEARTRAIN/OUTPUT SHAFT -
ASSEMBLY, PLANETARY........21-245,21-423
GEARTRAIN/OUTPUT SHAFT -
DESCRIPTION, PLANETARY......21-242,21-420
GEARTRAIN/OUTPUT SHAFT -
DISASSEMBLY, PLANETARY.....21-243,21-421
GEARTRAIN/OUTPUT SHAFT -
INSPECTION, PLANETARY.......21-245,21-422
GEARTRAIN/OUTPUT SHAFT -
OPERATION, PLANETARY.......21-243,21-420
GENERAL - WARNINGS.............8W-01-7
GENERATOR / CHARGING SYSTEM -
SPECIFICATIONS, TORQUE.............8F-20
GENERATOR - DESCRIPTION.............8F-22
GENERATOR - INSTALLATION...........8F-25
GENERATOR - OPERATION.............8F-22
GENERATOR - REMOVAL...............8F-22
GENERATOR RATINGS, SPECIFICATIONS . . 8F-20
GENII - ASSEMBLY, TRANSFER CASE -
NV241............................21-604
GENII - CLEANING, TRANSFER CASE -
NV241............................21-602
GENII - DESCRIPTION, TRANSFER CASE
- NV241..............................0-4
GENII - DESCRIPTION, TRANSFER CASE
- NV241...........................21-591
GENII - DIAGNOSIS AND TESTING,
TRANSFER CASE - NV241.............21-592
GENII - DISASSEMBLY, TRANSFER CASE
- NV241...........................21-593
GENII - INSPECTION, TRANSFER CASE -
NV241............................21-602
GENII - INSTALLATION, TRANSFER CASE
- NV241...........................21-614
GENII - OPERATION, TRANSFER CASE -
NV241............................21-591
GENII - REMOVAL, TRANSFER CASE -
NV241............................21-593
GENII - TRANSFER CASE, NV241.......21-614
GLASS - INSTALLATION, BACKLITE VENT . 23-87
GLASS - INSTALLATION, DOOR....23-20,23-30
GLASS - INSTALLATION, SIDE VIEW
MIRROR...........................23-44
GLASS - REMOVAL, BACKLITE VENT.....23-87
GLASS - REMOVAL, DOOR........23-20,23-30
GLASS - REMOVAL, SIDE VIEW MIRROR . . 23-42
GLASS RUN CHANNEL - INSTALLATION . . 23-21,
23-31
GLASS RUN CHANNEL - REMOVAL . 23-21,23-30
GLASS RUN WEATHERSTRIP -
INSTALLATION, FRONT DOOR...........23-92
GLASS RUN WEATHERSTRIP -
INSTALLATION, REAR DOOR............23-93
GLASS RUN WEATHERSTRIP -
REMOVAL, FRONT DOOR..............23-92
GLASS RUN WEATHERSTRIP -
REMOVAL, REAR DOOR...............23-93
GLOVE BOX - INSTALLATION...........23-53
GLOVE BOX - REMOVAL...............23-53
GLOVE BOX LAMP/SWITCH -
INSTALLATION.......................8L-25
GLOVE BOX LAMP/SWITCH - REMOVAL . . . 8L-25
GLOVE BOX LATCH - INSTALLATION
.....23-53
GLOVE BOX LATCH - REMOVAL
.........23-53
GOVERNOR - DESCRIPTION,
ELECTRONIC
.................21-196,21-376
GOVERNOR - INSTALLATION,
ELECTRONIC
.................21-199,21-379
GOVERNOR - OPERATION, ELECTRONIC
. 21-196,
21-377
DRINDEX 15
Description Group-Page Description Group-Page Description Group-Page

PLANETARY GEARTRAIN/OUTPUT SHAFT
- INSPECTION................21-245,21-422
PLANETARY GEARTRAIN/OUTPUT SHAFT
- OPERATION.................21-243,21-420
PLASTIC BODY PANEL REPAIR -
STANDARD PROCEDURE................23-3
PLATE - DESCRIPTION, BODY CODE....Intro.-4
PLATE - DESCRIPTION, ENGINE DATA....9-297
PLATE - INSTALLATION, FLEX . . 9-137,9-205,9-47
PLATE - INSTALLATION, FRONT SKID.....13-24
PLATE - INSTALLATION, SUPPORT........5-29
PLATE - INSTALLATION, TRANSFER
CASE SKID.........................13-26
PLATE - REMOVAL, FLEX.....9-137,9-205,9-47
PLATE - REMOVAL, FRONT SKID........13-24
PLATE - REMOVAL, SUPPORT...........5-29
PLATE - REMOVAL, TRANSFER CASE
SKID..............................13-26
PLATE LAMP - INSTALLATION, LICENSE . . 8L-16
PLATE LAMP - REMOVAL, LICENSE......8L-16
PLATE LAMP UNIT - INSTALLATION,
LICENSE...........................8L-16
PLATE LAMP UNIT - REMOVAL, LICENSE . . 8L-16
PLATES - INSTALLATION, EXTERIOR
NAME.............................23-38
PLATES - REMOVAL, EXTERIOR NAME....23-38
PLUG - DESCRIPTION, SPARK...........8I-27
PLUG - INSTALLATION, CAMSHAFT
CORE HOLE.........................9-201
PLUG - REMOVAL, CAMSHAFT CORE
HOLE..............................9-200
PLUG - REMOVAL, SPARK..............8I-30
PLUG CABLE - DESCRIPTION, SPARK.....8I-33
PLUG CABLE - INSTALLATION, SPARK....8I-35
PLUG CABLE - OPERATION, SPARK.......8I-33
PLUG CABLE - REMOVAL, SPARK........8I-34
PLUG CABLE ORDER, 8.0L V-10 ENGINE
- SPARK .............................8I-5
PLUG CABLE RESISTANCE,
SPECIFICATIONS - SPARK...............8I-5
PLUG CABLES - DIAGNOSIS AND
TESTING, SPARK.....................8I-33
PLUG CONDITIONS - DIAGNOSIS AND
TESTING, SPARK.....................8I-27
PLUGS - INSTALLATION, CORE..........9-130
PLUGS - REMOVAL, CORE.............9-129
PLUGS, SPECIFICATIONS - SPARK........8I-5
PLUMBING - CLEANING, CHARGE AIR
COOLER............................11-16
PLUMBING - DESCRIPTION, CHARGE
AIR COOLER........................11-15
PLUMBING - INSPECTION, CHARGE AIR
COOLER............................11-16
PLUMBING - INSTALLATION, CHARGE
AIR COOLER........................11-16
PLUMBING - OPERATION, CHARGE AIR
COOLER............................11-15
PLUMBING - REMOVAL, CHARGE AIR
COOLER............................11-15
PLY TIRES - DESCRIPTION, RADIAL.......22-6
POLISHING - DESCRIPTION, FINESSE
SANDING/BUFFING...................23-75
PORT - DESCRIPTION, REFRIGERANT
SYSTEM SERVICE.....................24-1
PORT - OPERATION, REFRIGERANT
SYSTEM SERVICE.....................24-2
POSITION SENSOR - DESCRIPTION.....21-618,
21-654
POSITION SENSOR - DESCRIPTION,
ACCELERATOR PEDAL.................14-25
POSITION SENSOR - DESCRIPTION,
CAMSHAFT.........................14-82
POSITION SENSOR - DESCRIPTION,
CAMSHAFT...........................8I-8
POSITION SENSOR - DESCRIPTION,
CRANKSHAFT..................14-26,14-83
POSITION SENSOR - DESCRIPTION,
THROTTLE..........................14-52
POSITION SENSOR - INSTALLATION
....21-619,
21-654
POSITION SENSOR - INSTALLATION,
ACCELERATOR PEDAL
.................14-25
POSITION SENSOR - INSTALLATION,
CAMSHAFT
.........................14-83
POSITION SENSOR - INSTALLATION,
CAMSHAFT
..........................8I-14
POSITION SENSOR - INSTALLATION,
CRANKSHAFT
..................14-30,14-84POSITION SENSOR - INSTALLATION,
THROTTLE..........................14-54
POSITION SENSOR - OPERATION . 21-619,21-654
POSITION SENSOR - OPERATION,
ACCELERATOR PEDAL.................14-25
POSITION SENSOR - OPERATION,
CAMSHAFT.........................14-82
POSITION SENSOR - OPERATION,
CAMSHAFT...........................8I-8
POSITION SENSOR - OPERATION,
CRANKSHAFT..................14-26,14-83
POSITION SENSOR - OPERATION,
THROTTLE..........................14-52
POSITION SENSOR - REMOVAL . . 21-619,21-654
POSITION SENSOR - REMOVAL,
ACCELERATOR PEDAL.................14-25
POSITION SENSOR - REMOVAL,
CAMSHAFT.........................14-83
POSITION SENSOR - REMOVAL,
CAMSHAFT..........................8I-11
POSITION SENSOR - REMOVAL,
CRANKSHAFT..................14-29,14-84
POSITION SENSOR - REMOVAL,
THROTTLE..........................14-53
POSITION SWITCH - DESCRIPTION,
CLUTCH PEDAL.......................6-14
POSITION SWITCH - DIAGNOSIS AND
TESTING, CLUTCH PEDAL...............6-14
POSITION SWITCH - OPERATION,
CLUTCH PEDAL.......................6-14
POTENTIAL - STANDARD PROCEDURE,
TESTING OF VOLTAGE..............8W-01-9
POWER - INSTALLATION, WINDOW
REGULATOR...................23-25,23-34
POWER - REMOVAL, WINDOW
REGULATOR...................23-25,23-34
POWER BRAKE BOOSTER -
DESCRIPTION........................5-25
POWER BRAKE BOOSTER -
INSTALLATION........................5-25
POWER BRAKE BOOSTER - OPERATION . . . 5-25
POWER BRAKE BOOSTER - REMOVAL.....5-25
POWER DISTRIBUTION - DESCRIPTION . 8W-97-1
POWER DISTRIBUTION - OPERATION . . 8W-97-1
POWER DISTRIBUTION SYSTEMS,
SPECIAL TOOLS...................8W-97-2
POWER GROUNDS - DESCRIPTION......8E-10
POWER LOCK SWITCH - DIAGNOSIS
AND TESTING........................8N-4
POWER LOCK SWITCH - INSTALLATION . . . 8N-4
POWER LOCK SWITCH - REMOVAL.......8N-4
POWER LOCKS - DESCRIPTION..........8N-1
POWER LOCKS - DIAGNOSIS AND
TESTING............................8N-3
POWER LOCKS - OPERATION............8N-2
POWER MIRROR SWITCH - DIAGNOSIS
AND TESTING.......................8N-13
POWER MIRROR SWITCH - REMOVAL
. . . 8N-13
POWER MIRRORS - DESCRIPTION
......8N-11
POWER MIRRORS - DIAGNOSIS AND
TESTING
...........................8N-11
POWER MIRRORS - OPERATION
........8N-11
POWER MODULE - DESCRIPTION,
INTEGRATED
......................8W-97-3
POWER MODULE - INSTALLATION,
INTEGRATED
......................8W-97-4
POWER MODULE - OPERATION,
INTEGRATED
......................8W-97-3
POWER MODULE - REMOVAL,
INTEGRATED
......................8W-97-3
POWER OUTLET - DESCRIPTION
......8W-97-7
POWER OUTLET - DIAGNOSIS AND
TESTING
.........................8W-97-7
POWER OUTLET - INSTALLATION
.....8W-97-7
POWER OUTLET - OPERATION
........8W-97-7
POWER OUTLET - REMOVAL
.........8W-97-7
POWER SEAT SYSTEM - DIAGNOSIS
AND TESTING
.......................8N-14
POWER SEAT TRACK - DESCRIPTION
....8N-18
POWER SEAT TRACK - DIAGNOSIS AND
TESTING
...........................8N-18
POWER SEAT TRACK - INSTALLATION
....8N-19
POWER SEAT TRACK - OPERATION
......8N-18
POWER SEAT TRACK - REMOVAL
.......8N-19
POWER SEATS - DESCRIPTION
.........8N-14
POWER SEATS - OPERATION
...........8N-14POWER STEERING FLOW AND
PRESSURE - DIAGNOSIS AND
TESTING............................19-4
POWER STEERING FLUID -
DESCRIPTION.........................0-3
POWER STEERING FLUID LEVEL
CHECKING - STANDARD PROCEDURE....19-42
POWER STEERING GEAR, SPECIAL
TOOLS.............................19-22
POWER STEERING GEAR,
SPECIFICATIONS.....................19-21
POWER STEERING PRESSURE SWITCH -
DESCRIPTION.......................19-45
POWER STEERING PRESSURE SWITCH -
OPERATION.........................19-45
POWER STEERING PUMP - INITIAL
OPERATION - STANDARD PROCEDURE . . . 19-39
POWER STEERING SYSTEM -
DIAGNOSIS AND TESTING..............19-2
POWER STEERING SYSTEM -
STANDARD PROCEDURE, FLUSHING.....19-39
POWER WINDOWS - DESCRIPTION......8N-21
POWER WINDOWS - DIAGNOSIS AND
TESTING...........................8N-21
POWER WINDOWS - OPERATION........8N-21
POWERING SEVERAL LOADS -
STANDARD PROCEDURE, TESTING
FOR A SHORT TO GROUND ON FUSES . 8W-01-10
PRE-ALIGNMENT INSPECTION -
DIAGNOSIS AND TESTING...............2-2
PRECAUTIONS - CAUTION,
REFRIGERANT HOSES/LINES/TUBES......24-33
PRECAUTIONS AND WARNINGS,
WARNING - SAFETY.....................23-1
PRECAUTIONS, STANDARD PROCEDURE
- SAFETY............................8L-7
PRECAUTIONS, WARNING -
WINDSHIELD SAFETY.................23-88
PREFERENCES - STANDARD
PROCEDURE, RKE TRANSMITTER
CUSTOMER..........................8N-9
PRELIMINARY - DIAGNOSIS AND
TESTING..............21-139,21-320,21-491
PRELIMINARY CHECKS - DIAGNOSIS
AND TESTING........................7-10
PREPARATION - STANDARD
PROCEDURE, ENGINE GASKET
SURFACE............................9-10
PRESSURE - DIAGNOSIS AND TESTING,
CHECKING ENGINE OIL.......9-150,9-214,9-64
PRESSURE - DIAGNOSIS AND TESTING,
CYLINDER COMPRESSION . . . 9-182,9-231,9-359,
9-8,9-92
PRESSURE - DIAGNOSIS AND TESTING,
ENGINE OIL...............9-269,9-338,9-396
PRESSURE - DIAGNOSIS AND TESTING,
POWER STEERING FLOW...............19-4
PRESSURE - DIAGNOSIS AND TESTING,
TURBOCHARGER BOOST...............11-10
PRESSURE BLEEDING - STANDARD
PROCEDURE..........................5-5
PRESSURE CAP - DESCRIPTION,
RADIATOR...........................7-60
PRESSURE CAP - OPERATION,
RADIATOR...........................7-61
PRESSURE, DIESEL - FUEL SYSTEM
.....14-60
PRESSURE FOR HIGH SPEEDS -
DESCRIPTION, TIRE
...................22-6
PRESSURE GAUGE - DESCRIPTION, OIL
. . 8J-32
PRESSURE GAUGE - OPERATION, OIL
....8J-32
PRESSURE GAUGES - DIAGNOSIS AND
TESTING
............................22-7
PRESSURE HOSE - INSTALLATION
. . 19-43,19-44
PRESSURE HOSE - REMOVAL
.....19-43,19-44
PRESSURE LEAKAGE - DIAGNOSIS AND
TESTING, CYLINDER COMBUSTION
. 9-182,9-231,
9-359,9-8,9-92
PRESSURE LIMITING VALVE -
DESCRIPTION, FUEL
..................14-72
PRESSURE LIMITING VALVE -
INSTALLATION, FUEL
.................14-73
PRESSURE LIMITING VALVE -
OPERATION, FUEL
....................14-72
PRESSURE LIMITING VALVE - REMOVAL,
FUEL
..............................14-72
PRESSURE (LP) SENSOR -
DESCRIPTION, LINE
.................21-559
DRINDEX 25
Description Group-Page Description Group-Page Description Group-Page

REGULATOR - MANUAL - INSTALLATION,
WINDOW......................23-26,23-35
REGULATOR - MANUAL - REMOVAL,
WINDOW......................23-26,23-35
REGULATOR - OPERATION, FUEL
FILTER/PRESSURE.....................14-6
REGULATOR - OPERATION, VOLTAGE.....8F-27
REGULATOR - POWER - INSTALLATION,
WINDOW......................23-25,23-34
REGULATOR - POWER - REMOVAL,
WINDOW......................23-25,23-34
RELAY - DESCRIPTION..............8W-97-8
RELAY - DESCRIPTION, A/C
COMPRESSOR CLUTCH...............24-13
RELAY - DESCRIPTION, FOG LAMP......8L-11
RELAY - DESCRIPTION, FUEL HEATER....14-64
RELAY - DESCRIPTION, FUEL PUMP.....14-33
RELAY - DESCRIPTION, INTAKE AIR
HEATER ............................14-92
RELAY - DESCRIPTION, MICRO.......8W-97-9
RELAY - DESCRIPTION, PARK LAMP.....8L-19
RELAY - DESCRIPTION, STARTER
MOTOR............................8F-38
RELAY - DESCRIPTION, TRANSMISSION
CONTROL.........................21-581
RELAY - DESCRIPTION, WIPER
HIGH/LOW..........................8R-20
RELAY - DESCRIPTION, WIPER ON/OFF . . . 8R-25
RELAY - DIAGNOSIS AND TESTING....8W-97-8
RELAY - DIAGNOSIS AND TESTING,
COMPRESSOR CLUTCH.................24-13
RELAY - DIAGNOSIS AND TESTING,
FRONT FOG LAMP....................8L-12
RELAY - DIAGNOSIS AND TESTING,
PARK LAMP.........................8L-20
RELAY - DIAGNOSIS AND TESTING,
STARTER ...........................8F-38
RELAY - DIAGNOSIS AND TESTING,
WIPER HIGH/LOW...................8R-21
RELAY - DIAGNOSIS AND TESTING,
WIPER ON/OFF......................8R-26
RELAY - INSTALLATION.............8W-97-9
RELAY - INSTALLATION, A/C
COMPRESSOR CLUTCH...............24-14
RELAY - INSTALLATION, FOG LAMP......8L-13
RELAY - INSTALLATION, FUEL HEATER . . . 14-64
RELAY - INSTALLATION, FUEL PUMP.....14-33
RELAY - INSTALLATION, INTAKE AIR
HEATER ............................14-93
RELAY - INSTALLATION, MICRO......8W-97-10
RELAY - INSTALLATION, PARK LAMP.....8L-21
RELAY - INSTALLATION, STARTER
MOTOR............................8F-39
RELAY - INSTALLATION, WIPER
HIGH/LOW..........................8R-21
RELAY - INSTALLATION, WIPER ON/OFF . . 8R-26
RELAY - OPERATION................8W-97-8
RELAY - OPERATION, A/C COMPRESSOR
CLUTCH............................24-13
RELAY - OPERATION, FOG LAMP........8L-12
RELAY - OPERATION, FUEL HEATER......14-64
RELAY - OPERATION, FUEL PUMP.......14-33
RELAY - OPERATION, INTAKE AIR
HEATER ............................14-92
RELAY - OPERATION, MICRO.........8W-97-9
RELAY - OPERATION, PARK LAMP.......8L-19
RELAY - OPERATION, STARTER MOTOR . . . 8F-38
RELAY - OPERATION, TRANSMISSION
CONTROL.........................21-581
RELAY - OPERATION, WIPER HIGH/LOW . . 8R-20
RELAY - OPERATION, WIPER ON/OFF....8R-25
RELAY - REMOVAL
.................8W-97-9
RELAY - REMOVAL, A/C COMPRESSOR
CLUTCH
............................24-14
RELAY - REMOVAL, FOG LAMP
.........8L-13
RELAY - REMOVAL, FUEL HEATER
.......14-64
RELAY - REMOVAL, FUEL PUMP
........14-33
RELAY - REMOVAL, INTAKE AIR HEATER
. . 14-93
RELAY - REMOVAL, MICRO
.........8W-97-10
RELAY - REMOVAL, PARK LAMP
........8L-20
RELAY - REMOVAL, STARTER MOTOR
....8F-39
RELAY - REMOVAL, WIPER HIGH/LOW
. . . 8R-21
RELAY - REMOVAL, WIPER ON/OFF
......8R-26
RELAYS - DIAGNOSIS AND TESTING,
ASD AND FUEL PUMP
..................8I-7
RELEASE - STANDARD PROCEDURE,
FUEL SYSTEM PRESSURE
..............14-2RELEASE BEARING - INSTALLATION,
CLUTCH.............................6-11
RELEASE BEARING - REMOVAL, CLUTCH . . . 6-11
RELEASE CABLE/HANDLE ASSEMBLY -
INSTALLATION, LATCH................23-47
RELEASE CABLE/HANDLE ASSEMBLY -
REMOVAL, LATCH....................23-47
RELEASE HANDLE - INSTALLATION.......5-38
RELEASE HANDLE - REMOVAL...........5-38
RELEASE HANDLE/LATCH REMOTE -
INSTALLATION.......................23-17
RELEASE HANDLE/LATCH REMOTE -
REMOVAL..........................23-17
RELIEF VALVE - CLEANING, OIL
PRESSURE.........................9-343
RELIEF VALVE - DESCRIPTION, HIGH
PRESSURE.........................24-35
RELIEF VALVE - INSPECTION, OIL
PRESSURE.........................9-343
RELIEF VALVE - INSTALLATION, OIL
PRESSURE.........................9-343
RELIEF VALVE - OPERATION, HIGH
PRESSURE.........................24-36
RELIEF VALVE - REMOVAL, OIL
PRESSURE.........................9-343
REMOTE - INSTALLATION, RELEASE
HANDLE/LATCH......................23-17
REMOTE - REMOVAL, RELEASE
HANDLE/LATCH......................23-17
REMOTE KEYLESS ENTRY MODULE -
DESCRIPTION........................8N-7
REMOTE KEYLESS ENTRY MODULE -
DIAGNOSIS AND TESTING................8N-8
REMOTE KEYLESS ENTRY MODULE -
INSTALLATION.......................8N-8
REMOTE KEYLESS ENTRY MODULE -
OPERATION..........................8N-8
REMOTE KEYLESS ENTRY MODULE -
REMOVAL...........................8N-8
REMOTE KEYLESS ENTRY
TRANSMITTER - DIAGNOSIS AND
TESTING............................8N-8
REMOTE KEYLESS ENTRY
TRANSMITTER - SPECIFICATIONS.......8N-10
REMOTE SWITCHES - DESCRIPTION.....8A-10
REMOTE SWITCHES - DIAGNOSIS AND
TESTING...........................8A-11
REMOTE SWITCHES - INSTALLATION.....8A-12
REMOTE SWITCHES - OPERATION.......8A-10
REMOTE SWITCHES - REMOVAL........8A-12
REMOVAL/INSTALLATION, REMOVAL.....25-13
REMOVAL/INSTALLATION, REMOVAL.....14-64,
14-68,14-77
REPAIR - DESCRIPTION, THREADED
HOLE.............................Intro.-9
REPAIR - STANDARD PROCEDURE,
ALUMINUM THREAD.....21-156,21-337,21-495
REPAIR - STANDARD PROCEDURE, CAM
BORE..............................9-315
REPAIR - STANDARD PROCEDURE,
CYLINDER BORE.....................9-313
REPAIR - STANDARD PROCEDURE,
HYDROFORM FENDER RAIL............13-12
REPAIR - STANDARD PROCEDURE,
PLASTIC BODY PANEL.................23-3
REPAIR DAMAGED OR WORN THREADS
- STANDARD PROCEDURE . . . 9-186,9-232,9-289,
9-361,9-9,9-93
REPAIRING LEAKS - STANDARD
PROCEDURE........................22-10
REQUIREMENTS - DESCRIPTION,
COOLING SYSTEM....................24-1
REQUIREMENTS - DIESEL ENGINE -
DESCRIPTION, FUEL....................0-1
RESERVOIR - DESCRIPTION, VACUUM....8P-9
RESERVOIR - DESCRIPTION, WASHER . . . 8R-15
RESERVOIR - DIAGNOSIS AND TESTING,
VACUUM............................8P-9
RESERVOIR - INSTALLATION...........19-46
RESERVOIR - INSTALLATION, FLUID......5-19
RESERVOIR - INSTALLATION, VACUUM . . . 8P-10
RESERVOIR - OPERATION, VACUUM......8P-9
RESERVOIR - OPERATION, WASHER
.....8R-15
RESERVOIR - REMOVAL
...............19-46
RESERVOIR - REMOVAL, FLUID
..........5-19
RESERVOIR - REMOVAL, VACUUM
.......8P-10
RESERVOIR TO COOLER -
INSTALLATION, RETURN HOSE
.....19-43,19-44RESERVOIR TO COOLER - REMOVAL,
RETURN HOSE.................19-43,19-44
RESISTANCE, 3.7L V-6 - IGNITION COIL....8I-6
RESISTANCE, 4.7L V-8 - IGNITION COIL....8I-6
RESISTANCE, 5.7L V-8 - IGNITION COIL....8I-6
RESISTANCE, 5.9L - IGNITION COIL.......8I-6
RESISTANCE, 8.0L V-10 ENGINE -
IGNITION COIL........................8I-6
RESISTANCE, SPECIFICATIONS - SPARK
PLUG CABLE.........................8I-5
RESISTOR - DIAGNOSIS AND TESTING,
BLOWER MOTOR....................24-18
RESISTOR BLOCK - DESCRIPTION,
BLOWER MOTOR....................24-17
RESISTOR BLOCK - INSTALLATION,
BLOWER MOTOR....................24-18
RESISTOR BLOCK - OPERATION,
BLOWER MOTOR....................24-17
RESISTOR BLOCK - REMOVAL, BLOWER
MOTOR............................24-18
RESTRAINT ANCHOR - DESCRIPTION,
CHILD.............................8O-14
RESTRAINT ANCHOR - INSTALLATION,
CHILD.............................8O-17
RESTRAINT ANCHOR - OPERATION,
CHILD.............................8O-16
RESTRAINT ANCHOR - REMOVAL, CHILD . 8O-16
RESTRAINT DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER A
SUPPLEMENTAL......................8O-7
RESTRAINT SYSTEM - DIAGNOSIS AND
TESTING, SUPPLEMENTAL..............8O-6
RESTRAINT SYSTEM - WARNINGS.......8O-5
RESTRAINTS - DESCRIPTION............8O-2
RESTRAINTS - OPERATION.............8O-4
RESTRAINTS - STANDARD PROCEDURE,
HANDLING NON-DEPLOYED
SUPPLEMENTAL......................8O-6
RETAINER - ASSEMBLY, OVERRUNNING
CLUTCH CAM/OVERDRIVE PISTON.....21-239,
21-416
RETAINER - CLEANING, OVERRUNNING
CLUTCH CAM/OVERDRIVE PISTON.....21-238,
21-416
RETAINER - DESCRIPTION,
OVERRUNNING CLUTCH CAM/
OVERDRIVE PISTON...........21-237,21-415
RETAINER - DISASSEMBLY,
OVERRUNNING CLUTCH CAM/
OVERDRIVE PISTON...........21-238,21-415
RETAINER - INSPECTION,
OVERRUNNING CLUTCH CAM/
OVERDRIVE PISTON...........21-238,21-416
RETAINER - INSTALLATION, A-PILLAR
WEATHERSTRIP.....................23-91
RETAINER - INSTALLATION,
CRANKSHAFT REAR OIL SEAL.....9-205,9-326,
9-386
RETAINER - INSTALLATION, DRIP RAIL
WEATHERSTRIP.....................23-92
RETAINER - OPERATION, OVERRUNNING
CLUTCH CAM/OVERDRIVE PISTON.....21-237,
21-415
RETAINER - REMOVAL, A-PILLAR
WEATHERSTRIP.....................23-91
RETAINER - REMOVAL, CRANKSHAFT
REAR OIL SEAL............9-204,9-326,9-386
RETAINER - REMOVAL, DRIP RAIL
WEATHERSTRIP.....................23-92
RETAINER/BULKHEAD - ASSEMBLY, 4C . . 21-538
RETAINER/BULKHEAD - DISASSEMBLY,
4C ...............................21-538
RETRACTOR - DESCRIPTION,
AUTOMATIC LOCKING.................8O-13
RETRACTOR - INSTALLATION, FRONT
CENTER SEAT BELT..................8O-26
RETRACTOR - INSTALLATION, REAR
CENTER SEAT BELT..................8O-40
RETRACTOR - INSTALLATION, REAR
OUTBOARD SEAT BELT
................8O-42
RETRACTOR - OPERATION, AUTOMATIC
LOCKING
...........................8O-14
RETRACTOR - REMOVAL, FRONT
CENTER SEAT BELT
..................8O-25
RETRACTOR - REMOVAL, REAR CENTER
SEAT BELT
.........................8O-39
RETRACTOR - REMOVAL, REAR
OUTBOARD SEAT BELT
................8O-41
28 INDEXDR
Description Group-Page Description Group-Page Description Group-Page

RETURN - DESCRIPTION, SENSOR.......8E-10
RETURN HOSE - GEAR TO COOLER -
INSTALLATION..................19-43,19-44
RETURN HOSE - GEAR TO COOLER -
REMOVAL..........................19-43
RETURN HOSE - RESERVOIR TO
COOLER - INSTALLATION.........19-43,19-44
RETURN HOSE - RESERVOIR TO
COOLER - REMOVAL.............19-43,19-44
REVOLUTIONS PER MILE,
SPECIFICATIONS - TIRE...............22-10
RFE TRANSMISSION, SPECIAL TOOLS . . . 21-535
RIGHT - DESCRIPTION, CAMSHAFT(S)....9-117
RIGHT - INSTALLATION.................2-34
RIGHT - INSTALLATION, CAMSHAFT(S) . . . 9-118
RIGHT - INSTALLATION, CYLINDER
HEAD...............................9-32
RIGHT - REMOVAL....................2-34
RIGHT - REMOVAL, CAMSHAFT(S).......9-117
RIGHT - REMOVAL, CYLINDER HEAD......9-32
RIGHT CYLINDER HEAD - INSTALLATION . . 9-111
RIGHT CYLINDER HEAD - REMOVAL.....9-108
RIGHT OUTBOARD - INSTALLATION,
CENTER ANCHOR....................8O-45
RIGHT OUTBOARD - REMOVAL, CENTER
ANCHOR...........................8O-43
RIGHT REAR CABLE - INSTALLATION......5-32
RIGHT REAR CABLE - REMOVAL.........5-31
RIGHT SIDE - INSTALLATION...........9-121
RIGHT SIDE - REMOVAL...............9-121
RING - INSTALLATION, PINION
GEAR/RING GEAR/TONE......3-123,3-150,3-96
RING - REMOVAL, PINION GEAR/RING
GEAR/TONE................3-122,3-149,3-94
RING FITTING - STANDARD
PROCEDURE, PISTON . 9-140,9-207,9-262,9-333,
9-52
RINGS - STANDARD PROCEDURE,
FITTING PISTON.....................9-390
RKE TRANSMITTER BATTERIES -
STANDARD PROCEDURE...............8N-9
RKE TRANSMITTER CUSTOMER
PREFERENCES - STANDARD
PROCEDURE.........................8N-9
RKE TRANSMITTER PROGRAMING -
STANDARD PROCEDURE..............8N-10
ROAD TEST - DIAGNOSIS AND TESTING . . . 8P-3
ROAD TESTING - DIAGNOSIS AND
TESTING..............21-139,21-320,21-491
ROCKER ARM / ADJUSTER ASSEMBLY -
DESCRIPTION.......................9-124
ROCKER ARM / ADJUSTER ASSEMBLY -
INSTALLATION..................9-124,9-249
ROCKER ARM / ADJUSTER ASSEMBLY -
REMOVAL.....................9-124,9-249
ROCKER ARM / ADJUSTER ASSY -
CLEANING..........................9-310
ROCKER ARM / ADJUSTER ASSY -
DESCRIPTION.......................9-310
ROCKER ARM / ADJUSTER ASSY -
INSPECTION........................9-311
ROCKER ARM / ADJUSTER ASSY -
INSTALLATION.............9-198,9-312,9-379
ROCKER ARM / ADJUSTER ASSY -
REMOVAL................9-198,9-310,9-379
ROCKER ARM - DESCRIPTION
.......9-30,9-36
ROCKER ARM - INSTALLATION
..........9-30
ROCKER ARM - REMOVAL
..........9-30,9-36
ROCKER HOUSING - INSTALLATION
......9-304
ROCKER HOUSING - REMOVAL
.........9-304
ROD - CLEANING, PISTON &
CONNECTING
........9-138,9-206,9-261,9-389
ROD - CLEANING, PISTON AND
CONNECTING
........................9-331
ROD - DESCRIPTION, PISTON &
CONNECTING
. . . 9-137,9-205,9-260,9-329,9-388,
9-47
ROD - INSPECTION, CONNECTING
.......9-332
ROD - INSPECTION, PISTON &
CONNECTING
........9-138,9-206,9-261,9-389
ROD - INSTALLATION, PISTON &
CONNECTING
........9-139,9-207,9-261,9-389
ROD - REMOVAL, PISTON &
CONNECTING
. . . 9-137,9-205,9-261,9-330,9-389
ROD BEARING AND CRANKSHAFT
JOURNAL CLEARANCE - STANDARD
PROCEDURE, CONNECTING
............9-321ROD BEARING FITTING - STANDARD
PROCEDURE, CONNECTING . . 9-128,9-251,9-382
ROD BEARING FITTING, STANDARD
PROCEDURE - CONNECTING.............9-48
ROD END - DIAGNOSIS AND TESTING,
OUTER TIE..........................19-31
ROD END - INSTALLATION, OUTER TIE . . . 19-32
ROD END - INSTALLATION, TIE.........19-37
ROD END - REMOVAL, OUTER TIE.......19-31
ROD END - REMOVAL, TIE.............19-36
ROTATION - STANDARD PROCEDURE,
TIRE................................22-2
ROTOR - 5.9L V-8 - DIAGNOSIS AND
TESTING, DISTRIBUTOR...............8I-19
ROUTING, 5.7L V-8 ENGINE - FIRING
ORDER / CABLE.......................8I-4
RUN CHANNEL - INSTALLATION, GLASS . . 23-21,
23-31
RUN CHANNEL - REMOVAL, GLASS . 23-21,23-30
RUN WEATHERSTRIP - INSTALLATION,
FRONT DOOR GLASS.................23-92
RUN WEATHERSTRIP - INSTALLATION,
REAR DOOR GLASS..................23-93
RUN WEATHERSTRIP - REMOVAL,
FRONT DOOR GLASS.................23-92
RUN WEATHERSTRIP - REMOVAL, REAR
DOOR GLASS.......................23-93
RUNOUT - DIAGNOSIS AND TESTING,
TIRE AND WHEEL.....................22-1
RWAL VALVE - DESCRIPTION............5-44
RWAL VALVE - INSTALLATION...........5-45
RWAL VALVE - OPERATION.............5-44
RWAL VALVE - REMOVAL...............5-45
SAFETY CERTIFICATION LABEL -
DESCRIPTION, VEHICLE..............Intro.-1
SAFETY PRECAUTIONS AND WARNINGS,
WARNING...........................23-1
SAFETY PRECAUTIONS, STANDARD
PROCEDURE.........................8L-7
SAFETY PRECAUTIONS, WARNING -
WINDSHIELD........................23-88
SANDING/BUFFING & POLISHING -
DESCRIPTION, FINESSE...............23-75
SCHEDULES - DESCRIPTION,
MAINTENANCE........................0-6
SCHEMATICS AND DIAGRAMS -
HYDRAULIC SCHEMATICS . 21-175,21-355,21-513
SCHEMATICS, SCHEMATICS AND
DIAGRAMS - HYDRAULIC . 21-175,21-355,21-513
SEAL - DIAGNOSIS AND TESTING,
RADIATOR CAP-TO-FILLER NECK.........7-61
SEAL - FRONT - DESCRIPTION,
CRANKSHAFT OIL....................9-254
SEAL - FRONT - INSTALLATION,
CRANKSHAFT OIL . 9-134,9-203,9-255,9-324,9-45
SEAL - FRONT - OPERATION,
CRANKSHAFT OIL....................9-254
SEAL - FRONT - REMOVAL,
CRANKSHAFT OIL . 9-134,9-203,9-254,9-323,9-44
SEAL - FRONT COVER INSTALLED -
INSTALLATION, FRONT OIL.............9-384
SEAL - FRONT COVER INSTALLED -
REMOVAL, FRONT OIL................9-384
SEAL - FRONT COVER REMOVED -
INSTALLATION, FRONT OIL.............9-384
SEAL - FRONT COVER REMOVED -
REMOVAL, FRONT OIL................9-384
SEAL - INSTALLATION, ADAPTER
HOUSING...............21-127,21-539,21-83
SEAL - INSTALLATION, DOOR OPENING . . . 23-92
SEAL - INSTALLATION, EXTENSION
HOUSING.........21-127,21-200,21-380,21-83
SEAL - INSTALLATION, EXTENSION
HOUSING BUSHING............21-616,21-682
SEAL - INSTALLATION, FRONT OUTPUT
SHAFT..........21-618,21-653,21-683,21-717
SEAL - INSTALLATION, OIL PUMP
FRONT............................21-567
SEAL - INSTALLATION, PINION
....3-113,3-140,
3-35,3-60,3-85
SEAL - INSTALLATION, STEERING GEAR
INPUT SHAFT
.......................19-28
SEAL - INSTALLATION, VALVE STEM
.....9-378
SEAL - REAR - DESCRIPTION,
CRANKSHAFT OIL
....................9-255
SEAL - REAR - INSTALLATION,
CRANKSHAFT OIL
....9-136,9-204,9-256,9-325,
9-385,9-46SEAL - REAR - OPERATION,
CRANKSHAFT OIL....................9-255
SEAL - REAR - REMOVAL, CRANKSHAFT
OIL .......9-135,9-204,9-255,9-325,9-385,9-45
SEAL - REMOVAL, ADAPTER HOUSING . . 21-127,
21-539,21-83
SEAL - REMOVAL, DOOR OPENING......23-92
SEAL - REMOVAL, EXTENSION
HOUSING.........21-127,21-200,21-380,21-83
SEAL - REMOVAL, EXTENSION HOUSING
BUSHING....................21-616,21-682
SEAL - REMOVAL, FRONT OUTPUT
SHAFT..........21-617,21-653,21-683,21-717
SEAL - REMOVAL, OIL PUMP FRONT....21-567
SEAL - REMOVAL, PINION....3-113,3-140,3-34,
3-60,3-85
SEAL - REMOVAL, STEERING GEAR
INPUT SHAFT.......................19-25
SEAL AND DUST BOOT - INSTALLATION,
EXTENSION HOUSING..........21-652,21-716
SEAL AND DUST BOOT - REMOVAL,
EXTENSION HOUSING..........21-652,21-716
SEAL AREA LEAKS - DIAGNOSIS AND
TESTING, REAR.............9-135,9-204,9-64
SEAL RETAINER - INSTALLATION,
CRANKSHAFT REAR OIL.....9-205,9-326,9-386
SEAL RETAINER - REMOVAL,
CRANKSHAFT REAR OIL.....9-204,9-326,9-386
SEALER LOCATIONS - SPECIFICATIONS . . 23-103
SEALERS - STANDARD PROCEDURE,
FORM-IN-PLACE GASKETS . . . 9-232,9-289,9-360,
9-9,9-93
SEALS - DESCRIPTION, VALVE GUIDE . . . 9-31,9-36
SEALS - DESCRIPTION, VALVE STEM....9-126,
9-198
SEALS - INSTALLATION, AXLE SHAFT . 3-33,3-58,
3-84
SEALS - REMOVAL, AXLE SHAFT . 3-33,3-58,3-84
SEALS - REMOVAL, VALVE SPRINGS.....9-308
SEALS - REMOVAL, VALVE STEM........9-377
SEAT - FRONT - INSTALLATION.........23-82
SEAT - FRONT - REMOVAL.............23-82
SEAT - INSTALLATION, CENTER.........23-77
SEAT - REAR - INSTALLATION..........23-84
SEAT - REAR - REMOVAL..............23-84
SEAT - REMOVAL, CENTER.............23-76
SEAT BACK - INSTALLATION, CENTER
ARMREST..........................23-78
SEAT BACK - REAR - INSTALLATION.....23-84
SEAT BACK - REAR - REMOVAL.........23-84
SEAT BACK - REMOVAL, CENTER
ARMREST..........................23-77
SEAT BACK CUSHION / COVER - FRONT
- INSTALLATION.....................23-83
SEAT BACK CUSHION / COVER - FRONT
- REMOVAL.........................23-83
SEAT BACK CUSHION / COVER - REAR -
INSTALLATION.......................23-85
SEAT BACK CUSHION / COVER - REAR -
REMOVAL..........................23-85
SEAT BACK HINGE - INSTALLATION,
CENTER............................23-80
SEAT BACK HINGE - REMOVAL, CENTER . . 23-79
SEAT BACK INERTIA HINGE COVER -
INSTALLATION, CENTER
...............23-78
SEAT BACK INERTIA HINGE COVER -
REMOVAL, CENTER
...................23-78
SEAT BACK LID - INSTALLATION,
CENTER
............................23-80
SEAT BACK LID - REMOVAL, CENTER
....23-80
SEAT BACK REAR - FOOTMANS LOOP
BRACKETS - INSTALLATION
............23-85
SEAT BACK REAR - FOOTMANS LOOP
BRACKETS - REMOVAL
................23-85
SEAT BELT - INSTALLATION, FRONT
CENTER
............................8O-27
SEAT BELT - REMOVAL, FRONT CENTER
. . 8O-26
SEAT BELT & RETRACTOR -
INSTALLATION, FRONT CENTER
.........8O-26
SEAT BELT & RETRACTOR -
INSTALLATION, REAR CENTER
..........8O-40
SEAT BELT & RETRACTOR -
INSTALLATION, REAR OUTBOARD
.......8O-42
SEAT BELT & RETRACTOR - REMOVAL,
FRONT CENTER
......................8O-25
SEAT BELT & RETRACTOR - REMOVAL,
REAR CENTER
.......................8O-39
DRINDEX 29
Description Group-Page Description Group-Page Description Group-Page
