2003 DAEWOO MATIZ CD player

DAEWOO M-150 BL2
SECTION 9F
AUDIO SYSTEMS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in B unless otherwise
noted.
TABLE OF CONTENTS
Description and Operation 9F-2. . . . . . . . . . . . . . . . . .
Stereo Cassette AM/FM Radio with CD Changer
and RDS/Audio Security System 9F-2. . . . . . . . . . . . .
Front and Rear Speakers 9F-2. . . . . . . . . . . . . . . . . . .
Roof Antenna 9F-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tape Player and Cassette Care 9F-2. . . . . . . . . . . . .
Compact Disc Care 9F-2. . . . . . . . . . . . . . . . . . . . . . . .
Component Locator 9F-3. . . . . . . . . . . . . . . . . . . . . . . .
Audio Systems 9F-3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Information and Procedures 9F-4. . . . .
Audio System 9F-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Repair Instructions 9F-6. . . . . . . . . . . . . . . . . . . . . . . . .
On–Vehicle Service 9F-6. . . . . . . . . . . . . . . . . . . . . . . . . .
Audio System 9F-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD Changer 9F-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Speakers 9F-8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Speaker Covers 9F-9. . . . . . . . . . . . . . . . . . . . . .
Rear Speakers 9F-9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof Antenna 9F-10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 9F-11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fastener Tightening Specifications 9F-11. . . . . . . . . .
Schematic and Routing Diagrams 9F-12. . . . . . . . . .
Audio System Circuit 9F-12. . . . . . . . . . . . . . . . . . . . . .

9F –2 AUDIO SYSTEMS
DAEWOO M-150 BL2
DESCRIPTION AND OPERATION
STEREO CASSETTE AM/FM RADIO
WITH CD CHANGER AND
RDS/AUDIO SECURITY SYSTEM
The stereo digital logic cassette AM/FM radio with elec-
tronic tape ejection and the stereo digital logic cassette
AM/FM radio with a CD changer located under the front
seat (LH) are optional equipment.
The radio data system (RDS) uses a single button to se-
lect a specific radio station once it is set to the listener’s
preference.
The audio security system is activated whenever the au-
dio system circuit is disconnected from the battery. A
four-digit security code must be entered in order for the
audio system to be functional once again. The security
code is stamped on a card located in the vehicle (usually
in the glove box). One of the following security code en-
tering procedures can be followed.
With RDS
1. With the ignition switch in the I or II position, turn the
radio ON. At this time, “CODE” will be shown on the
radio display.
2. Press the P-UP button until the correct first digit is
shown on the display.
3. Press the P-DN button to move over to the second
digit and then press P-UP once again to enter the cor-
rect second digit.
4. Use steps two and three to enter the third and fourth
digits using the same method.
5. After entering the correct four-digit security code,
press the TP button. “CODE OK” will briefly appear
on the radio display, and the system is ready for use.
Wrong Code
If the wrong code is entered, “ERROR 1” will appear on
the display. After this, “CODE” will appear once again,
and the correct security code can be entered. The timebetween each new coding attempt is doubled; a total of
ten coding attempts can be made.
FRONT AND REAR SPEAKERS
All audio systems use four speakers: two speakers
mounted in the front doors and two speakers mounted in
the rear parcel side shelf.
ROOF ANTENNA
Roof antenna is located on the roof and is designed to
separate the antenna pole from the antenna base. The
antenna pole should be removed to prevent the painting
damage before washing the vehicle. The roof antenna
cannot be adjusted.
TAPE PLAYER AND CASSETTE CARE
The head and the capstan are the two parts of the tape
player that should be cleaned. This service should be
performed every 100 hours of cassette operation.
In order to clean the head and the capstan, use a cotton
swab dipped in rubbing alcohol.
A cassette cleaning kit may also be used to clean the
head and the capstan. Follow the cleaning kit instruc-
tions to clean the tape player.
Do not touch the tape head with magnetized tools. If the
head becomes magnetized, it will degrade cassettes
played in the player. No service is performed on the cas-
settes. The cassette manufacturer handles warranties
of the cassettes. Store cassettes away from extreme
heat and direct sunlight.
COMPACT DISC CARE
Handle discs carefully. Store the discs in protective
cases away from the sun, heat, and dust. If the surface
is soiled, dampen a clean, soft cloth in a solution of mild
neutral detergent and wipe the disc clean. Mini discs
(about 3 inches in diameter), will not eject and should
not be used.

9F –4 AUDIO SYSTEMS
DAEWOO M-150 BL2

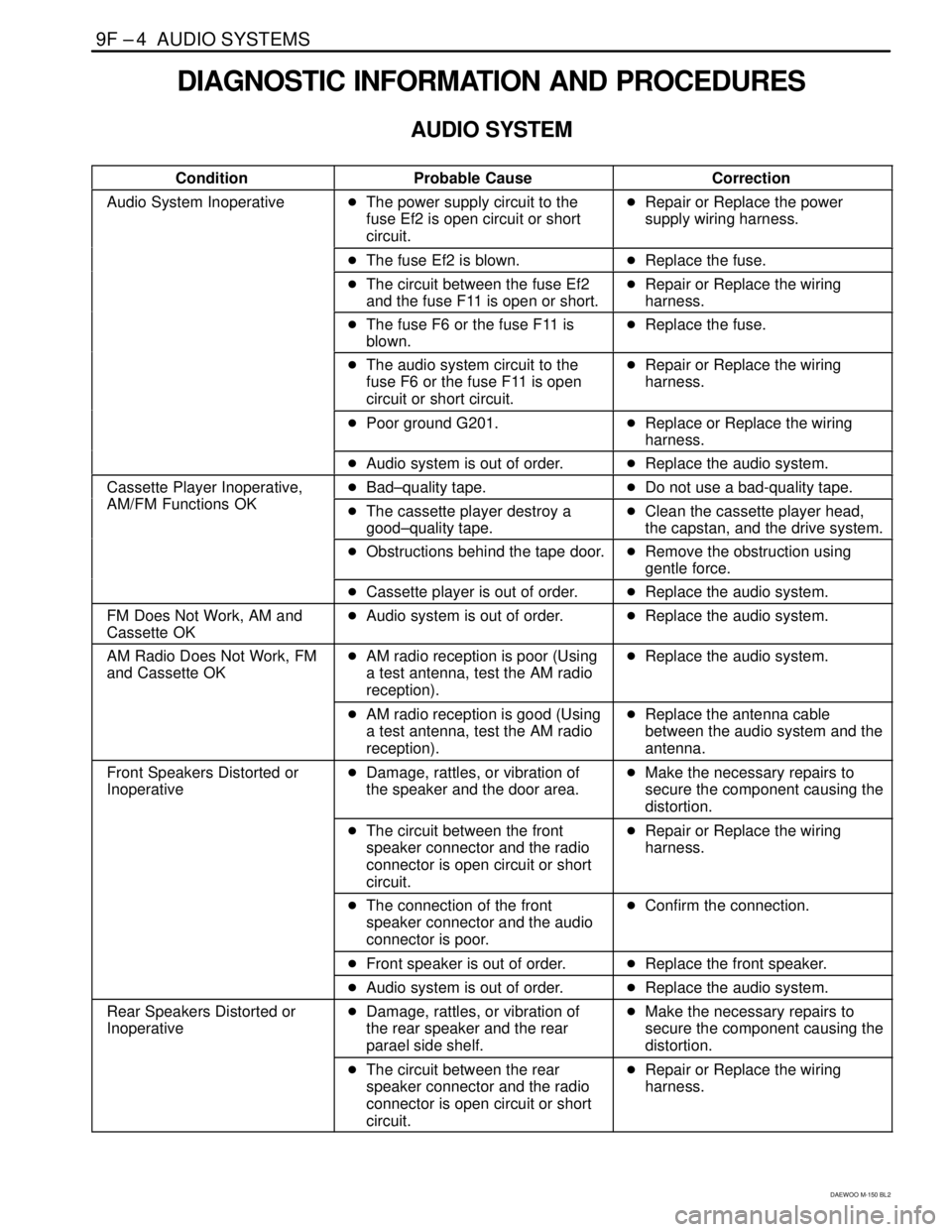

DIAGNOSTIC INFORMATION AND PROCEDURES
AUDIO SYSTEM
ConditionProbable CauseCorrection
Audio System Inoperative
The power supply circuit to the
fuse Ef2 is open circuit or short
circuit.
Repair or Replace the power
supply wiring harness.

The fuse Ef2 is blown.
Replace the fuse.

The circuit between the fuse Ef2
and the fuse F11 is open or short.
Repair or Replace the wiring
harness.

The fuse F6 or the fuse F11 is
blown.
Replace the fuse.

The audio system circuit to the
fuse F6 or the fuse F11 is open
circuit or short circuit.
Repair or Replace the wiring
harness.

Poor ground G201.
Replace or Replace the wiring
harness.

Audio system is out of order.
Replace the audio system.
Cassette Player Inoperative,
Bad–quality tape.
Do not use a bad-quality tape.
AM/FM Functions OK
The cassette player destroy a
good–quality tape.
Clean the cassette player head,
the capstan, and the drive system.

Obstructions behind the tape door.
Remove the obstruction using
gentle force.

Cassette player is out of order.
Replace the audio system.
FM Does Not Work, AM and
Cassette OK
Audio system is out of order.
Replace the audio system.
AM Radio Does Not Work, FM
and Cassette OK
AM radio reception is poor (Using
a test antenna, test the AM radio
reception).
Replace the audio system.

AM radio reception is good (Using
a test antenna, test the AM radio
reception).
Replace the antenna cable
between the audio system and the
antenna.
Front Speakers Distorted or
Inoperative
Damage, rattles, or vibration of
the speaker and the door area.
Make the necessary repairs to
secure the component causing the
distortion.

The circuit between the front
speaker connector and the radio
connector is open circuit or short
circuit.
Repair or Replace the wiring
harness.

The connection of the front
speaker connector and the audio
connector is poor.
Confirm the connection.

Front speaker is out of order.
Replace the front speaker.

Audio system is out of order.
Replace the audio system.
Rear Speakers Distorted or
Inoperative
Damage, rattles, or vibration of
the rear speaker and the rear
parael side shelf.
Make the necessary repairs to
secure the component causing the
distortion.

The circuit between the rear
speaker connector and the radio
connector is open circuit or short
circuit.
Repair or Replace the wiring
harness.
