Page 1103 of 2177

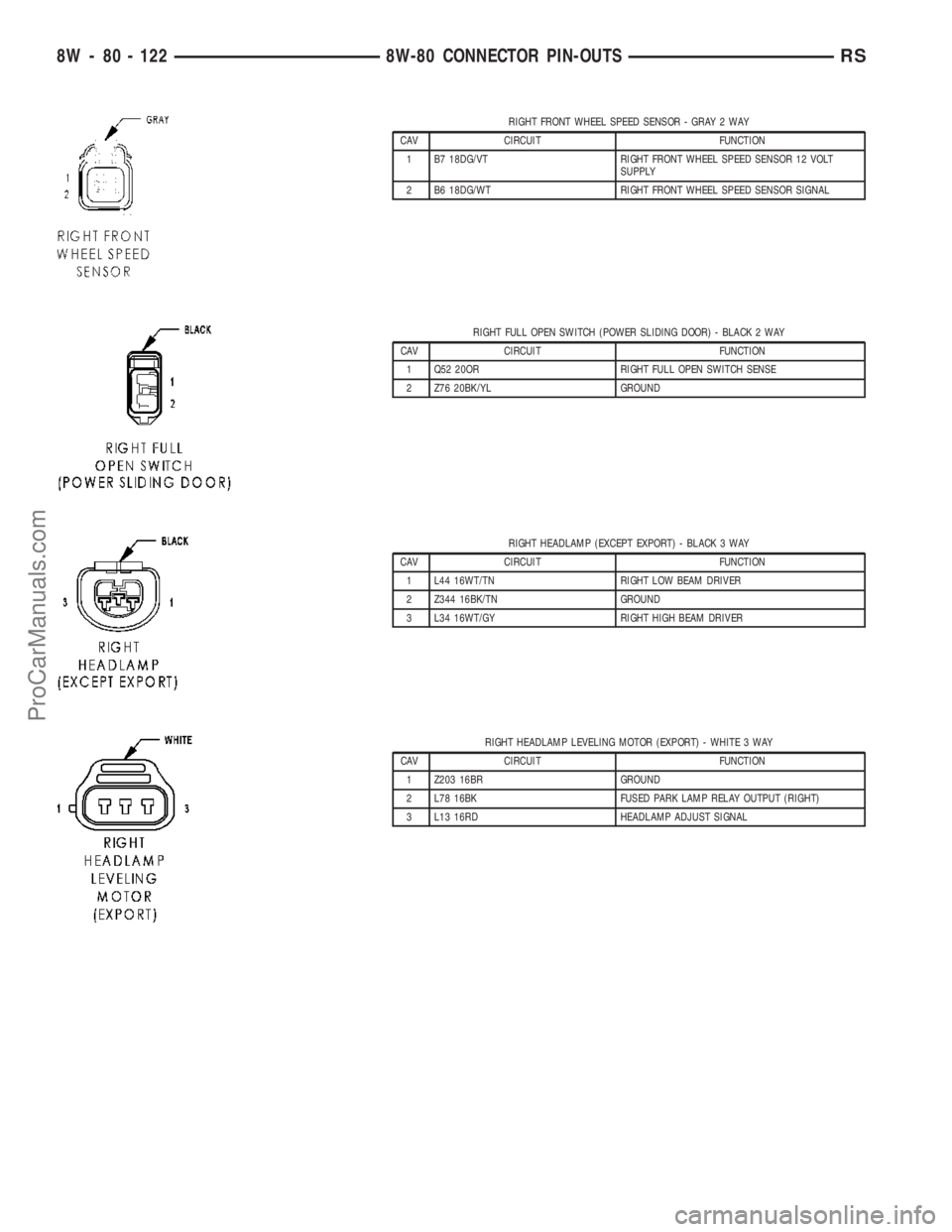

RIGHT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RIGHT HEADLAMP LEVELING MOTOR (EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
8W - 80 - 122 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1105 of 2177

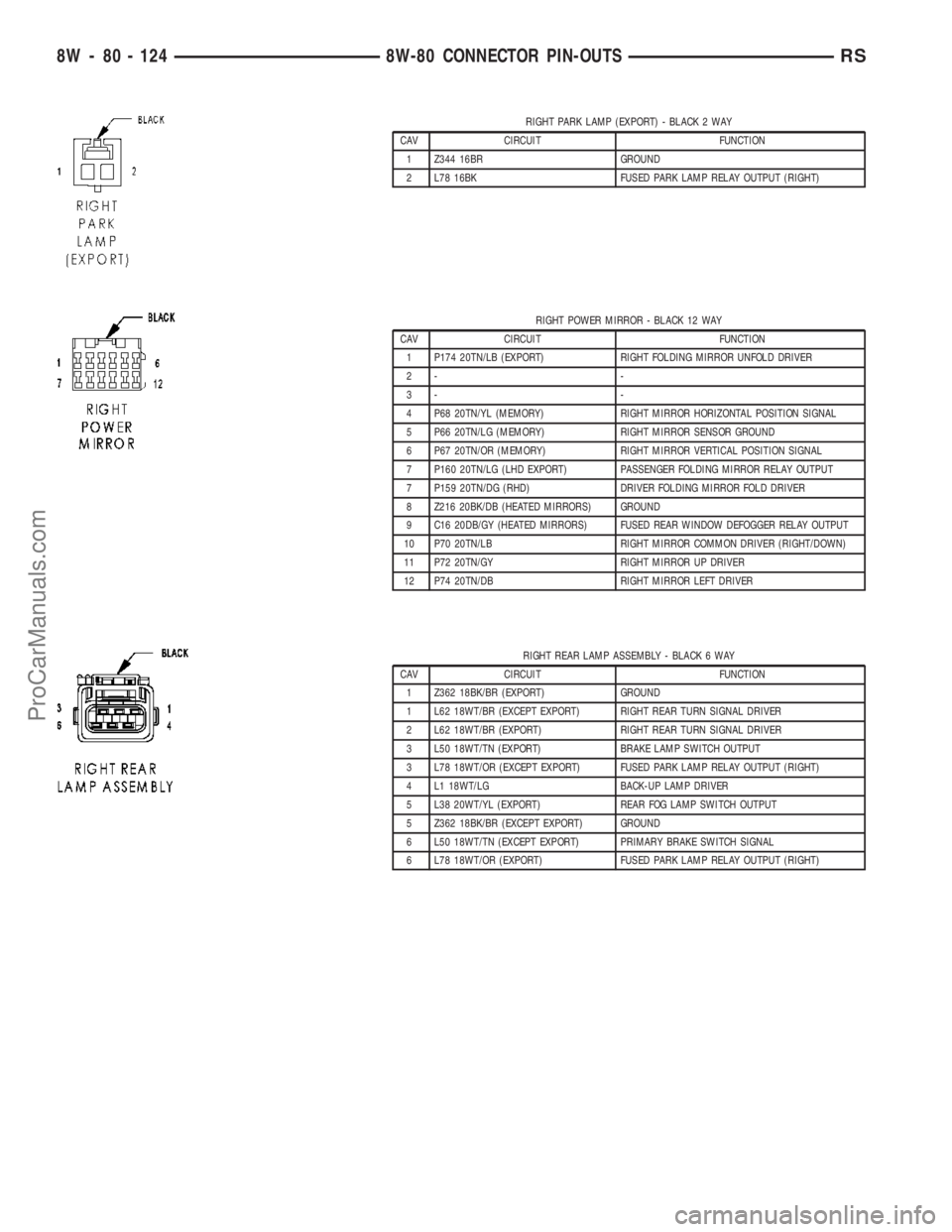

RIGHT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P174 20TN/LB (EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (LHD EXPORT) PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (RHD) DRIVER FOLDING MIRROR FOLD DRIVER
8 Z216 20BK/DB (HEATED MIRRORS) GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR UP DRIVER
12 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z362 18BK/BR (EXPORT) GROUND
1 L62 18WT/BR (EXCEPT EXPORT) RIGHT REAR TURN SIGNAL DRIVER
2 L62 18WT/BR (EXPORT) RIGHT REAR TURN SIGNAL DRIVER
3 L50 18WT/TN (EXPORT) BRAKE LAMP SWITCH OUTPUT
3 L78 18WT/OR (EXCEPT EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
5 Z362 18BK/BR (EXCEPT EXPORT) GROUND
6 L50 18WT/TN (EXCEPT EXPORT) PRIMARY BRAKE SWITCH SIGNAL
6 L78 18WT/OR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
8W - 80 - 124 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1107 of 2177

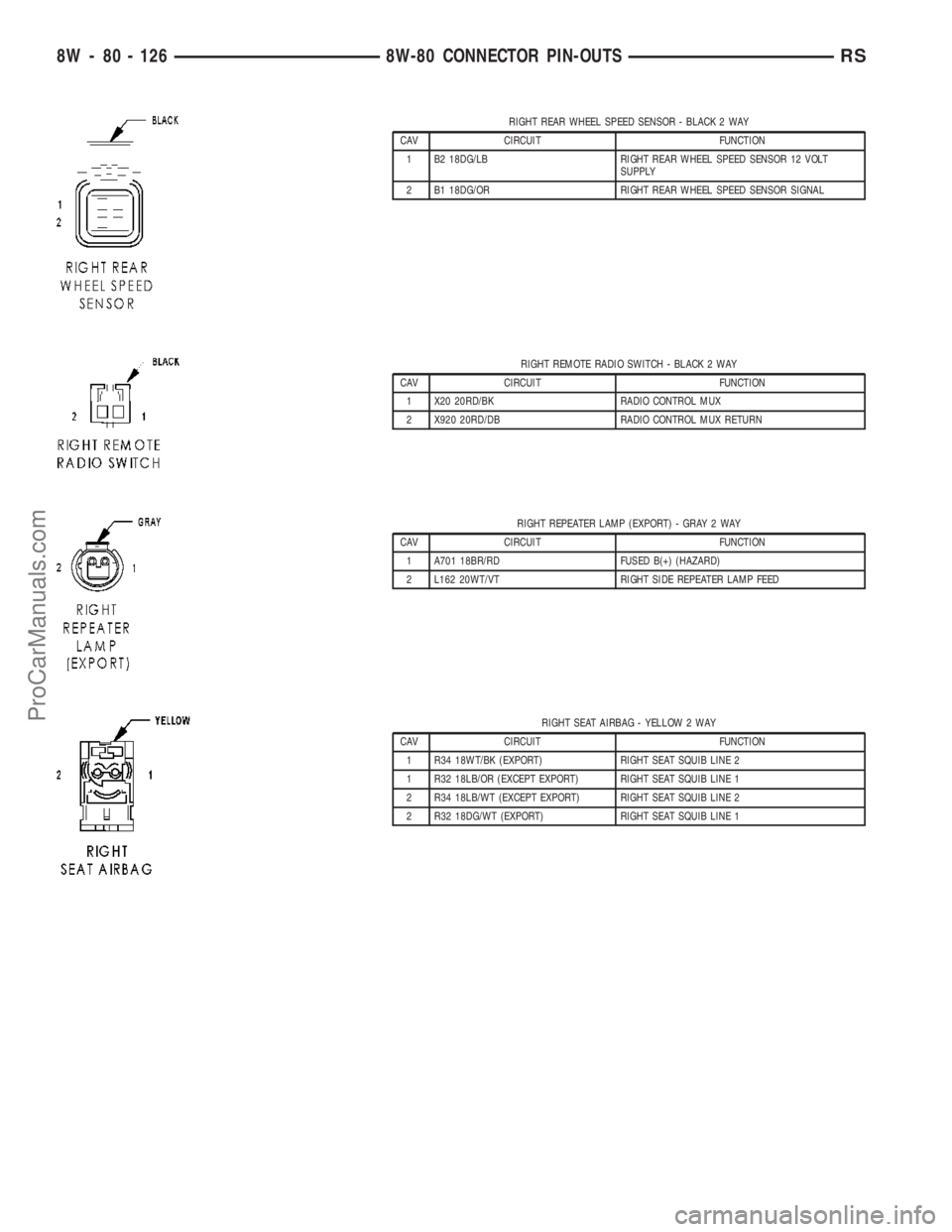

RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
RIGHT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+) (HAZARD)
2 L162 20WT/VT RIGHT SIDE REPEATER LAMP FEED
RIGHT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R34 18WT/BK (EXPORT) RIGHT SEAT SQUIB LINE 2
1 R32 18LB/OR (EXCEPT EXPORT) RIGHT SEAT SQUIB LINE 1
2 R34 18LB/WT (EXCEPT EXPORT) RIGHT SEAT SQUIB LINE 2
2 R32 18DG/WT (EXPORT) RIGHT SEAT SQUIB LINE 1
8W - 80 - 126 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1112 of 2177

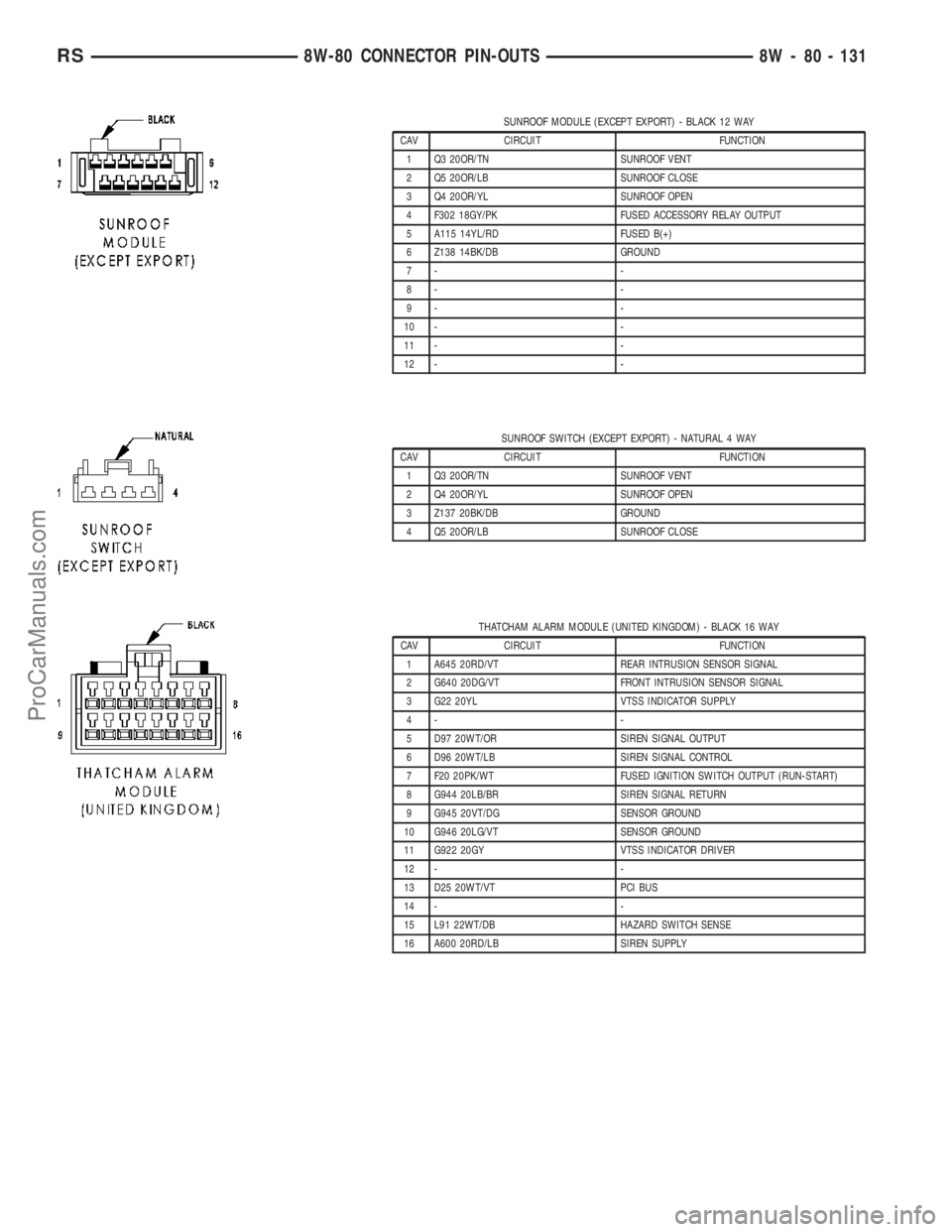

SUNROOF MODULE (EXCEPT EXPORT) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 Q3 20OR/TN SUNROOF VENT
2 Q5 20OR/LB SUNROOF CLOSE
3 Q4 20OR/YL SUNROOF OPEN
4 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
5 A115 14YL/RD FUSED B(+)
6 Z138 14BK/DB GROUND
7- -
8- -
9- -
10 - -
11 - -
12 - -
SUNROOF SWITCH (EXCEPT EXPORT) - NATURAL 4 WAY
CAV CIRCUIT FUNCTION
1 Q3 20OR/TN SUNROOF VENT
2 Q4 20OR/YL SUNROOF OPEN
3 Z137 20BK/DB GROUND
4 Q5 20OR/LB SUNROOF CLOSE
THATCHAM ALARM MODULE (UNITED KINGDOM) - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1 A645 20RD/VT REAR INTRUSION SENSOR SIGNAL
2 G640 20DG/VT FRONT INTRUSION SENSOR SIGNAL
3 G22 20YL VTSS INDICATOR SUPPLY
4- -
5 D97 20WT/OR SIREN SIGNAL OUTPUT
6 D96 20WT/LB SIREN SIGNAL CONTROL
7 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
8 G944 20LB/BR SIREN SIGNAL RETURN
9 G945 20VT/DG SENSOR GROUND
10 G946 20LG/VT SENSOR GROUND
11 G922 20GY VTSS INDICATOR DRIVER
12 - -
13 D25 20WT/VT PCI BUS
14 - -
15 L91 22WT/DB HAZARD SWITCH SENSE
16 A600 20RD/LB SIREN SUPPLY
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 131
ProCarManuals.com
Page 1113 of 2177

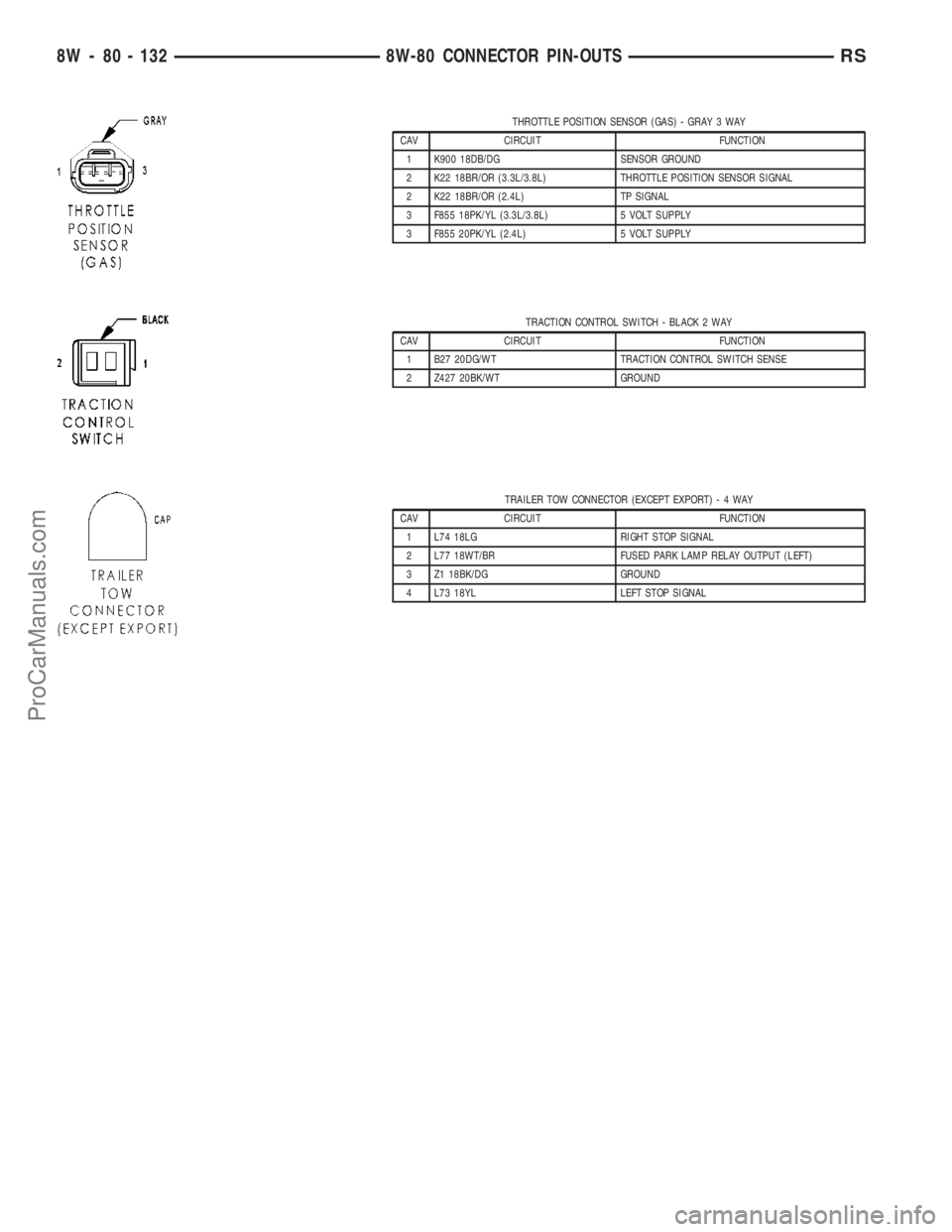

THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K900 18DB/DG SENSOR GROUND
2 K22 18BR/OR (3.3L/3.8L) THROTTLE POSITION SENSOR SIGNAL
2 K22 18BR/OR (2.4L) TP SIGNAL
3 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
3 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
TRACTION CONTROL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
2 Z427 20BK/WT GROUND
TRAILER TOW CONNECTOR (EXCEPT EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 L74 18LG RIGHT STOP SIGNAL
2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 Z1 18BK/DG GROUND
4 L73 18YL LEFT STOP SIGNAL
8W - 80 - 132 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1114 of 2177

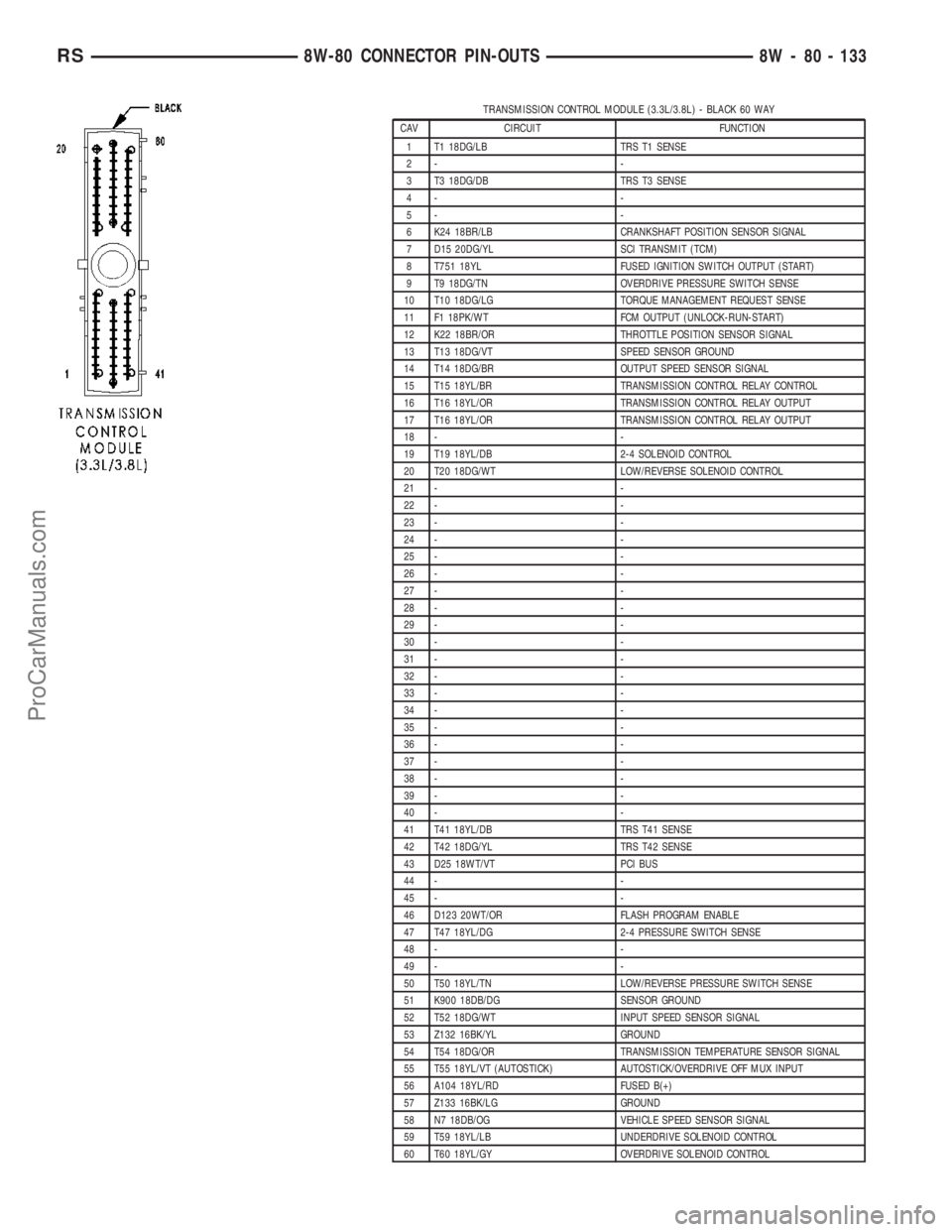

TRANSMISSION CONTROL MODULE (3.3L/3.8L) - BLACK 60 WAY
CAV CIRCUIT FUNCTION
1 T1 18DG/LB TRS T1 SENSE
2- -
3 T3 18DG/DB TRS T3 SENSE
4- -
5- -
6 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
7 D15 20DG/YL SCI TRANSMIT (TCM)
8 T751 18YL FUSED IGNITION SWITCH OUTPUT (START)
9 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
10 T10 18DG/LG TORQUE MANAGEMENT REQUEST SENSE
11 F1 18PK/WT FCM OUTPUT (UNLOCK-RUN-START)
12 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
13 T13 18DG/VT SPEED SENSOR GROUND
14 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
15 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL
16 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
17 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
18 - -
19 T19 18YL/DB 2-4 SOLENOID CONTROL
20 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 - -
30 - -
31 - -
32 - -
33 - -
34 - -
35 - -
36 - -
37 - -
38 - -
39 - -
40 - -
41 T41 18YL/DB TRS T41 SENSE
42 T42 18DG/YL TRS T42 SENSE
43 D25 18WT/VT PCI BUS
44 - -
45 - -
46 D123 20WT/OR FLASH PROGRAM ENABLE
47 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
48 - -
49 - -
50 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
51 K900 18DB/DG SENSOR GROUND
52 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
53 Z132 16BK/YL GROUND
54 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
55 T55 18YL/VT (AUTOSTICK) AUTOSTICK/OVERDRIVE OFF MUX INPUT
56 A104 18YL/RD FUSED B(+)
57 Z133 16BK/LG GROUND
58 N7 18DB/OG VEHICLE SPEED SENSOR SIGNAL
59 T59 18YL/LB UNDERDRIVE SOLENOID CONTROL
60 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 133
ProCarManuals.com
Page 1115 of 2177
TRANSMISSION RANGE SENSOR (EATX) - DK. GRAY 10 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 T13 18DG/VT SPEED SENSOR GROUND
4 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
5 T41 18DG/GY (3.3L/3.8L) TRS T41 SENSE
6- -
7 T1 18DG/LB TRS T1 SENSE
8 T3 18DG/DB TRS T3 SENSE
9 T42 18DG/YL TRS T42 SENSE
10 T41 18YL/DB (3.3L/3.8L) PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
10 T41 18DG/GY (2.4L) TRS T41 SENSE
VEHICLE SPEED SENSOR (MTX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
1 F202 18PK/GY (DIESEL) FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 K900 18DB/DG (2.4L) SENSOR GROUND
2 K900 20DB/DG (DIESEL) SENSOR GROUND
3 N7 18DB/OR (2.4L) VEHICLE SPEED SIGNAL
3 N7 20DB/OR (DIESEL) VEHICLE SPEED SENSOR SIGNAL
WASHER FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z401 20BK/TN (EXPORT) GROUND
1 Z401 18BK/TN (EXCEPT EXPORT) GROUND
2 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
WATER IN FUEL SENSOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F853 20RD WATER IN FUEL SENSOR SIGNAL
2 K900 18RD SENSOR GROUND
WIPER MODULE - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
2 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
3 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
4 Z103 14BK/WT GROUND
8W - 80 - 134 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com
Page 1116 of 2177
8W-91 CONNECTOR/GROUND/SPLICE LOCATION
TABLE OF CONTENTS
page
CONNECTOR/GROUND/SPLICE LOCATION
DESCRIPTION..........................1
CONNECTOR/GROUND/SPLICE
LOCATION
DESCRIPTION
This section provides illustrations identifying con-
nector, ground, and splice locations in the vehicle.
Connector, ground, and splice indexes are provided.Use the wiring diagrams in each section for connec-
tor, ground, and splice identification. Refer to the
appropriate index for the proper figure number. For
items that are not shown in this section N/S is placed
in the Fig. column.
CONNECTORS
CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
A/C Compressor Clutch LTGY Top of A/C Compressor 10, 11, 15, 17, 18
A/C-Heater Control C1 (MTC) BK/RD Rear of Control 19, 22, 24
A/C-Heater Control C2 (MTC) BK/BL Rear of Control 19, 22, 24
A/C Pressure Sensor GY At Throttle Body 10, 15, 16, 17
Accelerator Pedal Position
Sensor (Diesel)BK At Accelerator Pedal 41
Adjustable Pedals Module Near Brake Lamp Switch 40
Adjustable Pedals Switch Left Side Instrument Panel 20
Adjustable Pedals Relay Left Side Engine Compartment 6
Airbag Control Module YL/RD Right Side of Instrument Panel 19, 23, 24
Ambient Temperature Sensor BK On Radiator Closure Panel 1
ATC Remote Sensor Above ATC Control N/S
Automatic Day/Night Mirror BK At Mirror N/S
Autostick Switch BK Rear of Switch 20, 21, 22
Auto Temperature Control C1
(ATC)WT Rear of Control N/S
Auto Temperature Control C2
(ATC)BK Rear of Control N/S
Auto Temperature Control C3
(ATC)Rear of Control N/S
Back-Up Lamp Switch BK On Transmission 16
Battery Temperature Sensor BK At Battery N/S
Blower Motor Resistor C1 (MTC) BK Right Side of HVAC N/S
Blower Motor Resistor C2 (MTC) Right Side of HVAC N/S
Body Control Module C1 BK Under Left Instrument Panel 40, 41
Body Control Module C2 BK/GN Under Left Instrument Panel 40, 41
