2003 CHRYSLER VOYAGER sensor

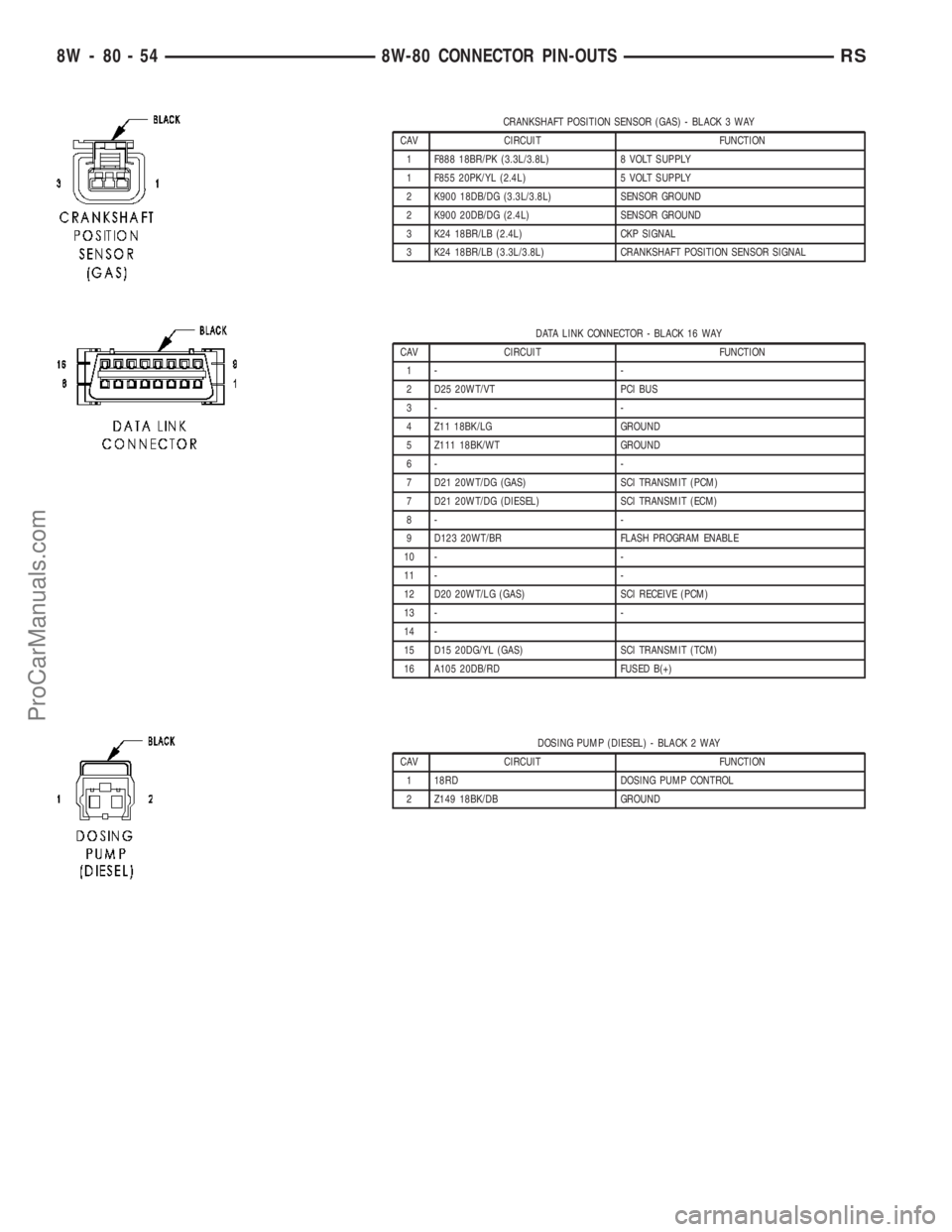

CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK (3.3L/3.8L) 8 VOLT SUPPLY
1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
2 K900 18DB/DG (3.3L/3.8L) SENSOR GROUND
2 K900 20DB/DG (2.4L) SENSOR GROUND
3 K24 18BR/LB (2.4L) CKP SIGNAL
3 K24 18BR/LB (3.3L/3.8L) CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT GROUND
6- -
7 D21 20WT/DG (GAS) SCI TRANSMIT (PCM)
7 D21 20WT/DG (DIESEL) SCI TRANSMIT (ECM)
8- -
9 D123 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 D20 20WT/LG (GAS) SCI RECEIVE (PCM)
13 - -
14 -
15 D15 20DG/YL (GAS) SCI TRANSMIT (TCM)
16 A105 20DB/RD FUSED B(+)
DOSING PUMP (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 18RD DOSING PUMP CONTROL
2 Z149 18BK/DB GROUND
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

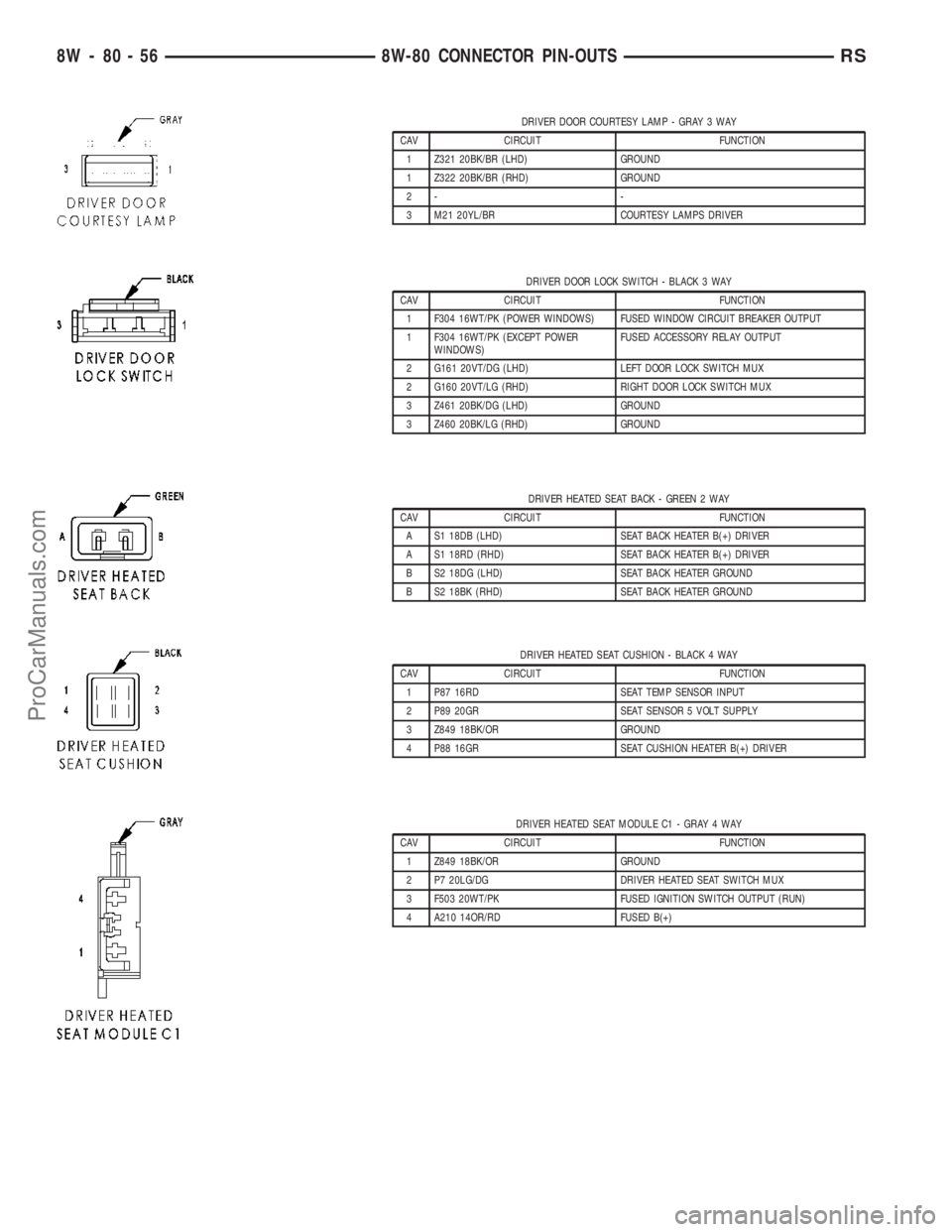

DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z321 20BK/BR (LHD) GROUND
1 Z322 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
1 F304 16WT/PK (EXCEPT POWER
WINDOWS)FUSED ACCESSORY RELAY OUTPUT
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
3 Z461 20BK/DG (LHD) GROUND
3 Z460 20BK/LG (RHD) GROUND
DRIVER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
A S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
B S2 18DG (LHD) SEAT BACK HEATER GROUND
B S2 18BK (RHD) SEAT BACK HEATER GROUND
DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD SEAT TEMP SENSOR INPUT
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z849 18BK/OR GROUND
4 P88 16GR SEAT CUSHION HEATER B(+) DRIVER
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK/OR GROUND
2 P7 20LG/DG DRIVER HEATED SEAT SWITCH MUX
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

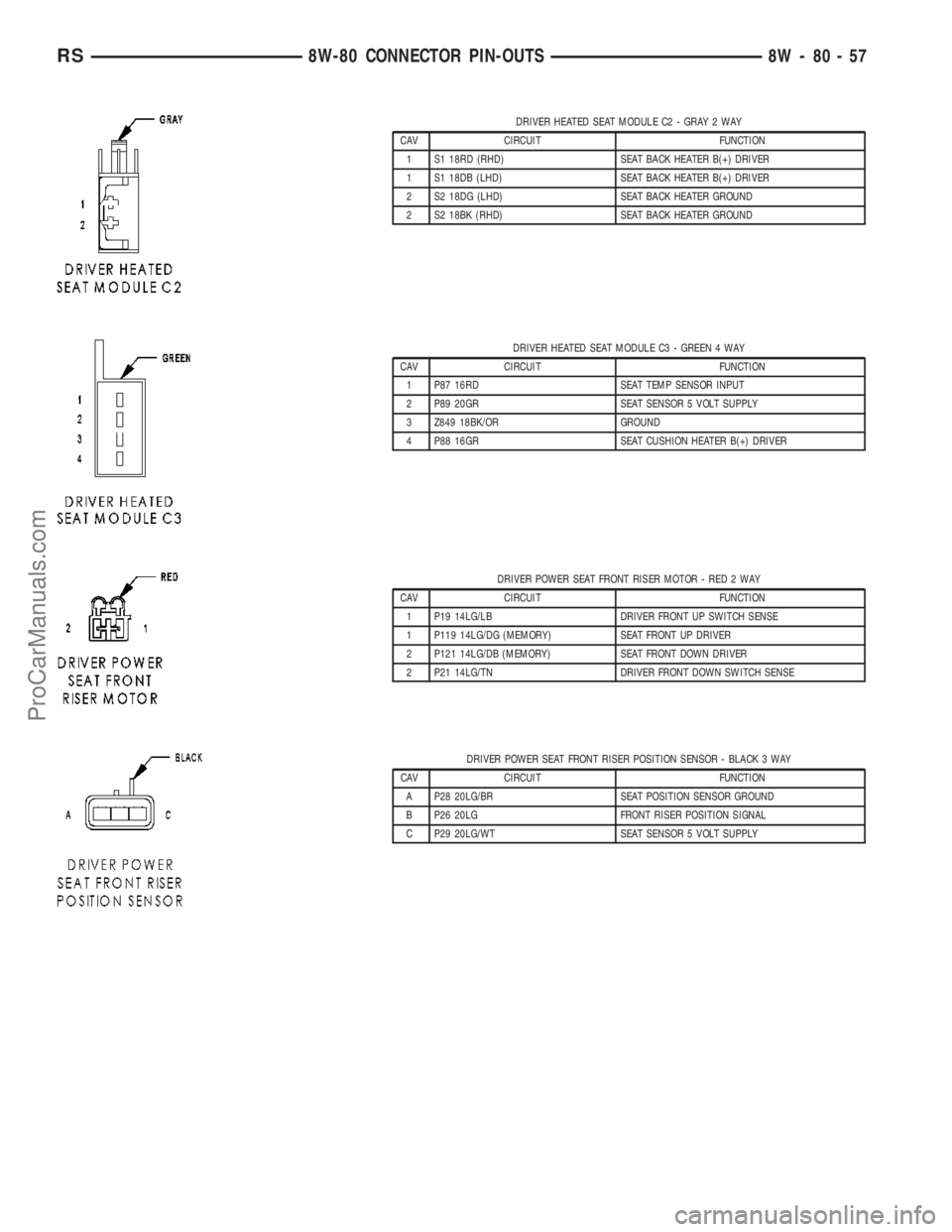

DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
1 S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
2 S2 18DG (LHD) SEAT BACK HEATER GROUND
2 S2 18BK (RHD) SEAT BACK HEATER GROUND
DRIVER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD SEAT TEMP SENSOR INPUT
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z849 18BK/OR GROUND
4 P88 16GR SEAT CUSHION HEATER B(+) DRIVER
DRIVER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P19 14LG/LB DRIVER FRONT UP SWITCH SENSE
1 P119 14LG/DG (MEMORY) SEAT FRONT UP DRIVER
2 P121 14LG/DB (MEMORY) SEAT FRONT DOWN DRIVER
2 P21 14LG/TN DRIVER FRONT DOWN SWITCH SENSE
DRIVER POWER SEAT FRONT RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
RS8W-80 CONNECTOR PIN-OUTS8W-80-57
ProCarManuals.com

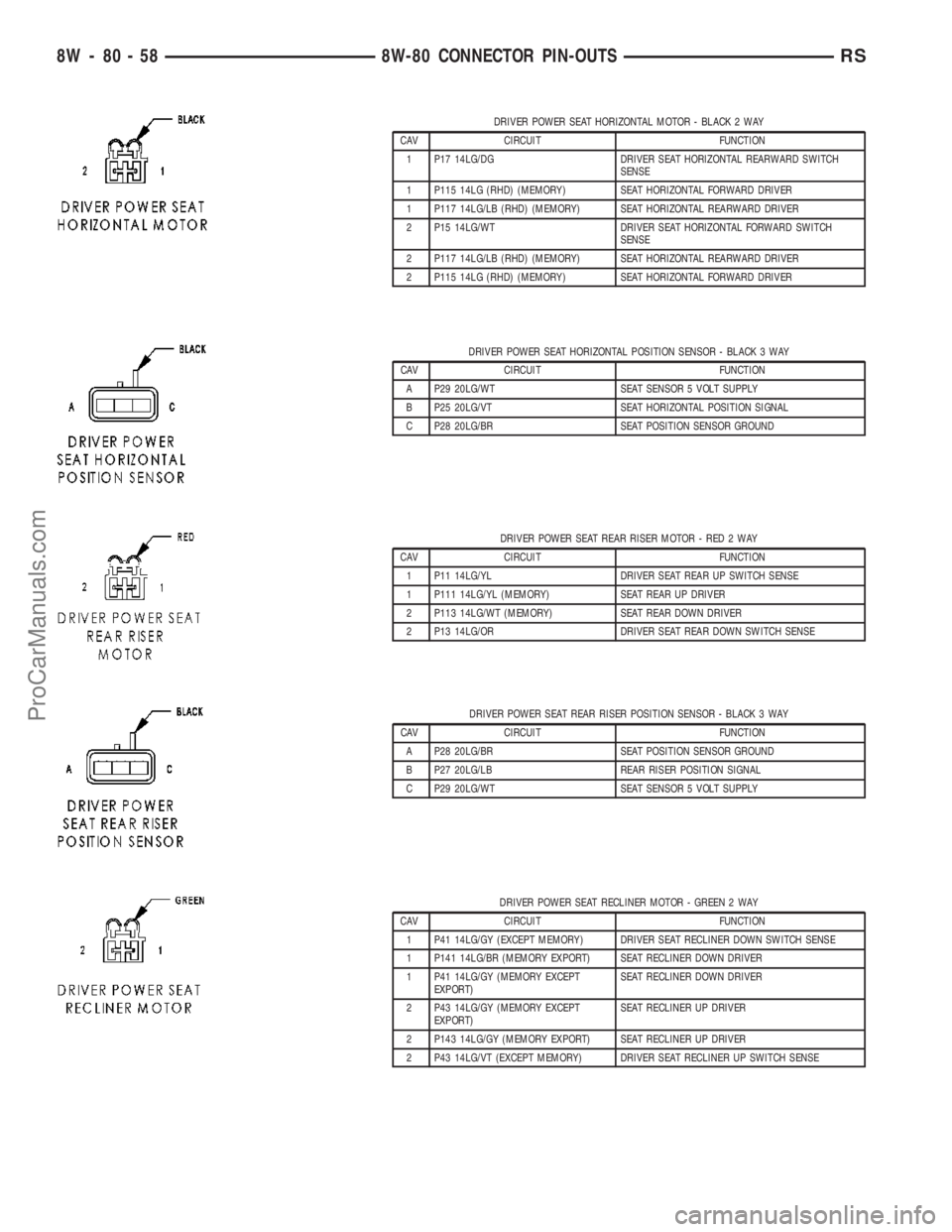

DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
1 P115 14LG (RHD) (MEMORY) SEAT HORIZONTAL FORWARD DRIVER
1 P117 14LG/LB (RHD) (MEMORY) SEAT HORIZONTAL REARWARD DRIVER
2 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
2 P117 14LG/LB (RHD) (MEMORY) SEAT HORIZONTAL REARWARD DRIVER
2 P115 14LG (RHD) (MEMORY) SEAT HORIZONTAL FORWARD DRIVER
DRIVER POWER SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P11 14LG/YL DRIVER SEAT REAR UP SWITCH SENSE
1 P111 14LG/YL (MEMORY) SEAT REAR UP DRIVER
2 P113 14LG/WT (MEMORY) SEAT REAR DOWN DRIVER
2 P13 14LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
DRIVER POWER SEAT REAR RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 14LG/GY (EXCEPT MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
1 P141 14LG/BR (MEMORY EXPORT) SEAT RECLINER DOWN DRIVER
1 P41 14LG/GY (MEMORY EXCEPT
EXPORT)SEAT RECLINER DOWN DRIVER
2 P43 14LG/GY (MEMORY EXCEPT
EXPORT)SEAT RECLINER UP DRIVER
2 P143 14LG/GY (MEMORY EXPORT) SEAT RECLINER UP DRIVER
2 P43 14LG/VT (EXCEPT MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
8W - 80 - 58 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

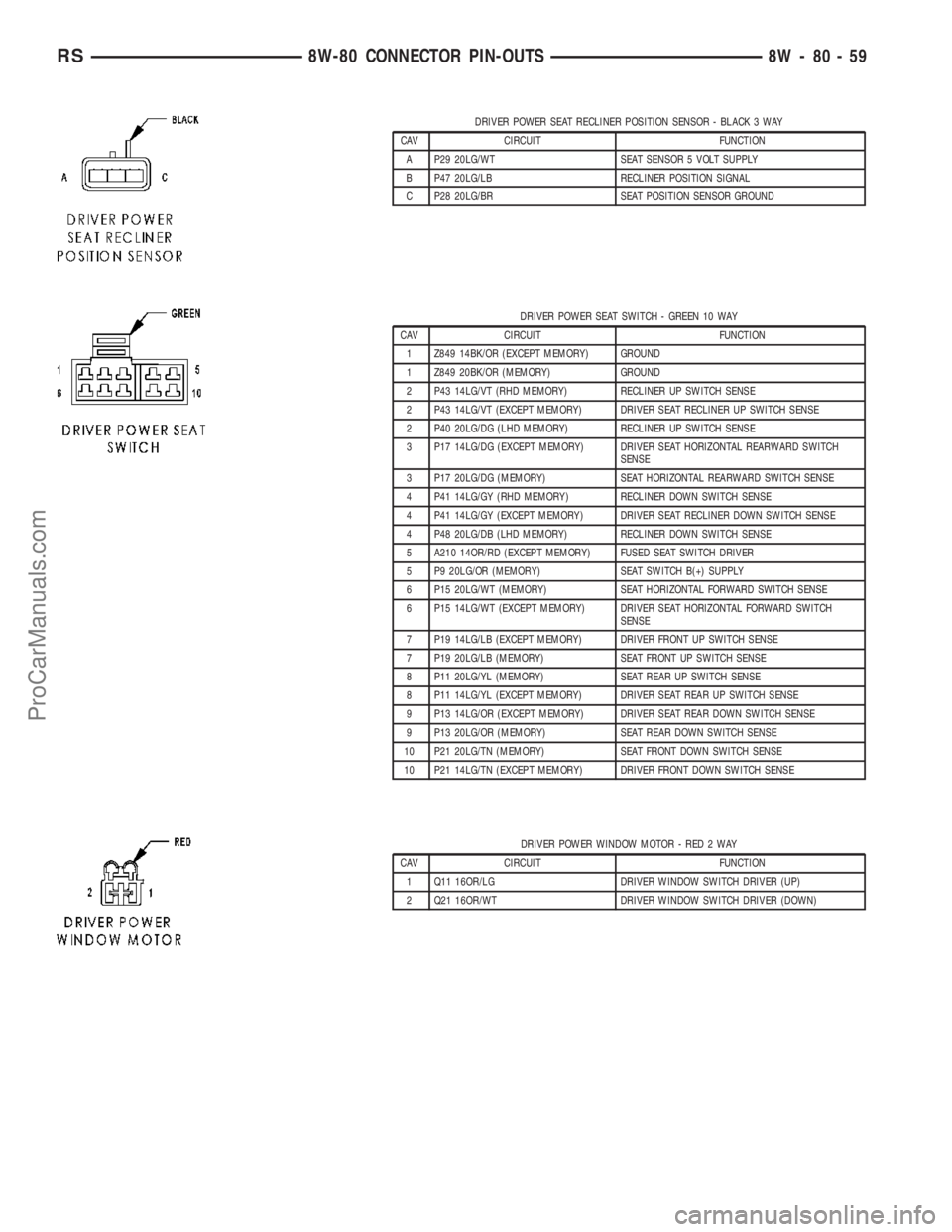

DRIVER POWER SEAT RECLINER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR (EXCEPT MEMORY) GROUND
1 Z849 20BK/OR (MEMORY) GROUND
2 P43 14LG/VT (RHD MEMORY) RECLINER UP SWITCH SENSE
2 P43 14LG/VT (EXCEPT MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
2 P40 20LG/DG (LHD MEMORY) RECLINER UP SWITCH SENSE
3 P17 14LG/DG (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
3 P17 20LG/DG (MEMORY) SEAT HORIZONTAL REARWARD SWITCH SENSE
4 P41 14LG/GY (RHD MEMORY) RECLINER DOWN SWITCH SENSE
4 P41 14LG/GY (EXCEPT MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
4 P48 20LG/DB (LHD MEMORY) RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD (EXCEPT MEMORY) FUSED SEAT SWITCH DRIVER
5 P9 20LG/OR (MEMORY) SEAT SWITCH B(+) SUPPLY
6 P15 20LG/WT (MEMORY) SEAT HORIZONTAL FORWARD SWITCH SENSE
6 P15 14LG/WT (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
7 P19 14LG/LB (EXCEPT MEMORY) DRIVER FRONT UP SWITCH SENSE
7 P19 20LG/LB (MEMORY) SEAT FRONT UP SWITCH SENSE
8 P11 20LG/YL (MEMORY) SEAT REAR UP SWITCH SENSE
8 P11 14LG/YL (EXCEPT MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
9 P13 14LG/OR (EXCEPT MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
9 P13 20LG/OR (MEMORY) SEAT REAR DOWN SWITCH SENSE
10 P21 20LG/TN (MEMORY) SEAT FRONT DOWN SWITCH SENSE
10 P21 14LG/TN (EXCEPT MEMORY) DRIVER FRONT DOWN SWITCH SENSE
DRIVER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q11 16OR/LG DRIVER WINDOW SWITCH DRIVER (UP)
2 Q21 16OR/WT DRIVER WINDOW SWITCH DRIVER (DOWN)
RS8W-80 CONNECTOR PIN-OUTS8W-80-59
ProCarManuals.com

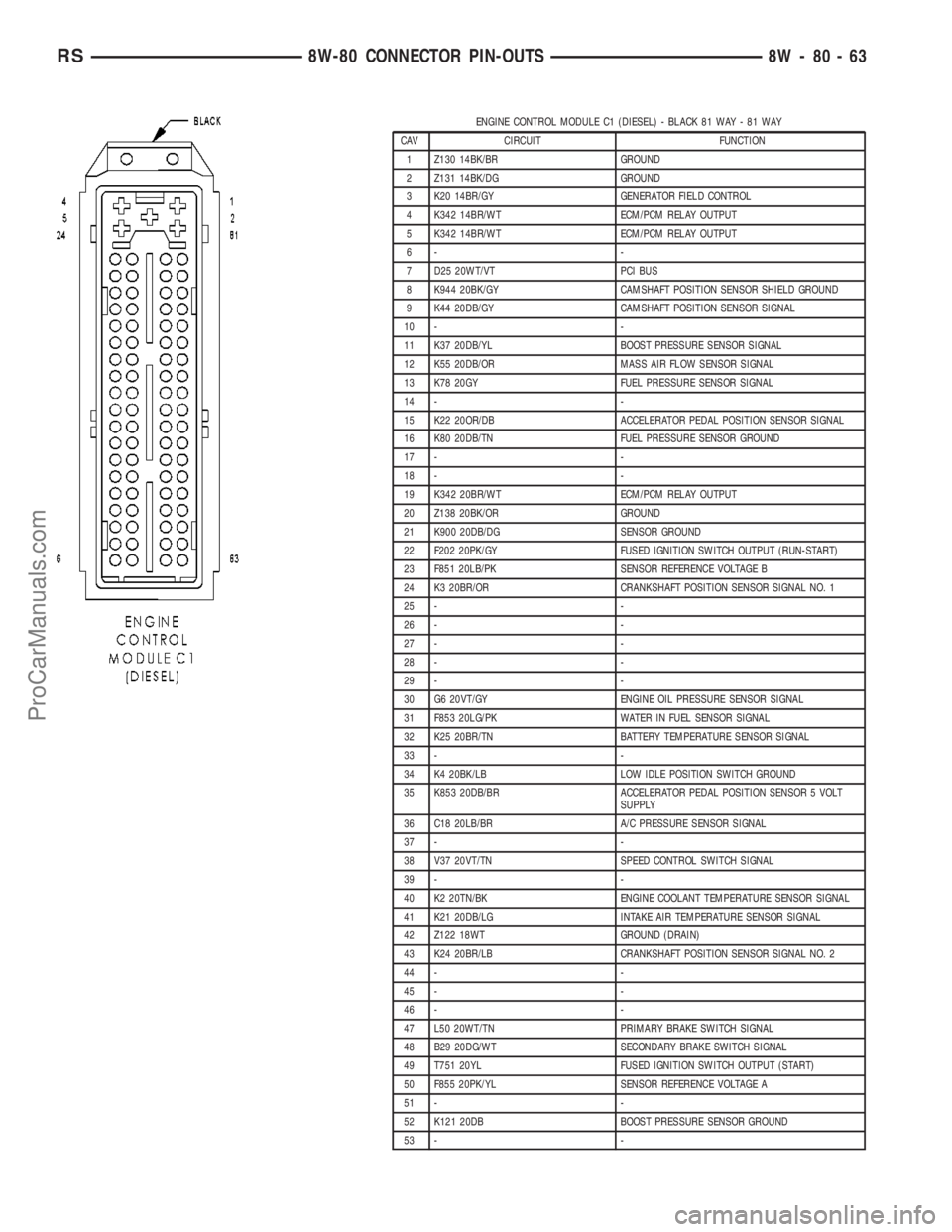

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - 81 WAY
CAV CIRCUIT FUNCTION
1 Z130 14BK/BR GROUND
2 Z131 14BK/DG GROUND
3 K20 14BR/GY GENERATOR FIELD CONTROL
4 K342 14BR/WT ECM/PCM RELAY OUTPUT
5 K342 14BR/WT ECM/PCM RELAY OUTPUT
6- -
7 D25 20WT/VT PCI BUS
8 K944 20BK/GY CAMSHAFT POSITION SENSOR SHIELD GROUND
9 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
10 - -
11 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
12 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
13 K78 20GY FUEL PRESSURE SENSOR SIGNAL
14 - -
15 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
16 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
17 - -
18 - -
19 K342 20BR/WT ECM/PCM RELAY OUTPUT
20 Z138 20BK/OR GROUND
21 K900 20DB/DG SENSOR GROUND
22 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
23 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
24 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
25 - -
26 - -
27 - -
28 - -
29 - -
30 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
31 F853 20LG/PK WATER IN FUEL SENSOR SIGNAL
32 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
33 - -
34 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
35 K853 20DB/BR ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
36 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
37 - -
38 V37 20VT/TN SPEED CONTROL SWITCH SIGNAL
39 - -
40 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
41 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
42 Z122 18WT GROUND (DRAIN)
43 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
44 - -
45 - -
46 - -
47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL FUSED IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
RS8W-80 CONNECTOR PIN-OUTS8W-80-63
ProCarManuals.com

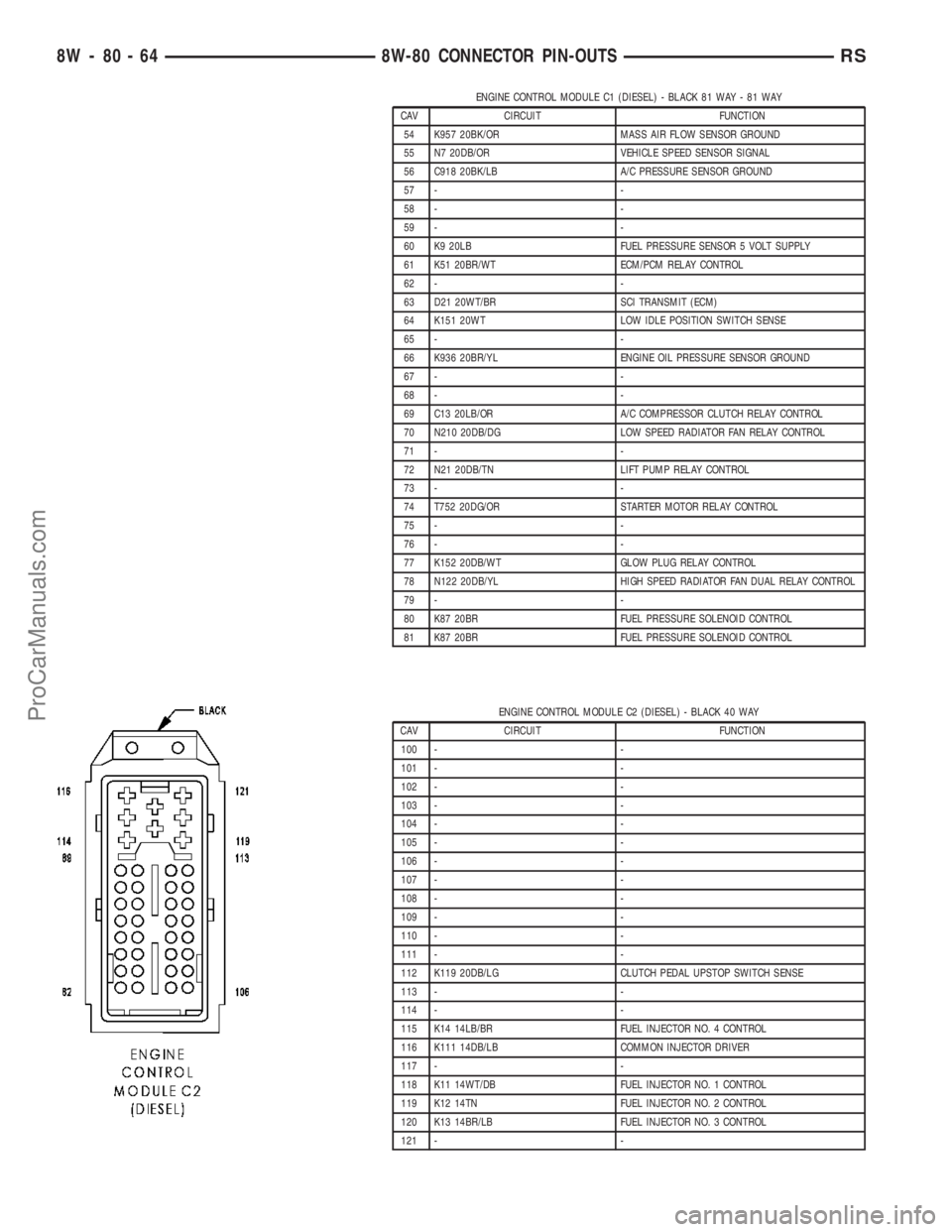

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - 81 WAY
CAV CIRCUIT FUNCTION
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 - -
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/BR SCI TRANSMIT (ECM)
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
100 - -
101 - -
102 - -
103 - -
104 - -
105 - -
106 - -
107 - -
108 - -
109 - -
110 - -
111 - -
112 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
113 - -
114 - -
115 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
116 K111 14DB/LB COMMON INJECTOR DRIVER
117 - -
118 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
119 K12 14TN FUEL INJECTOR NO. 2 CONTROL
120 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
121 - -
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

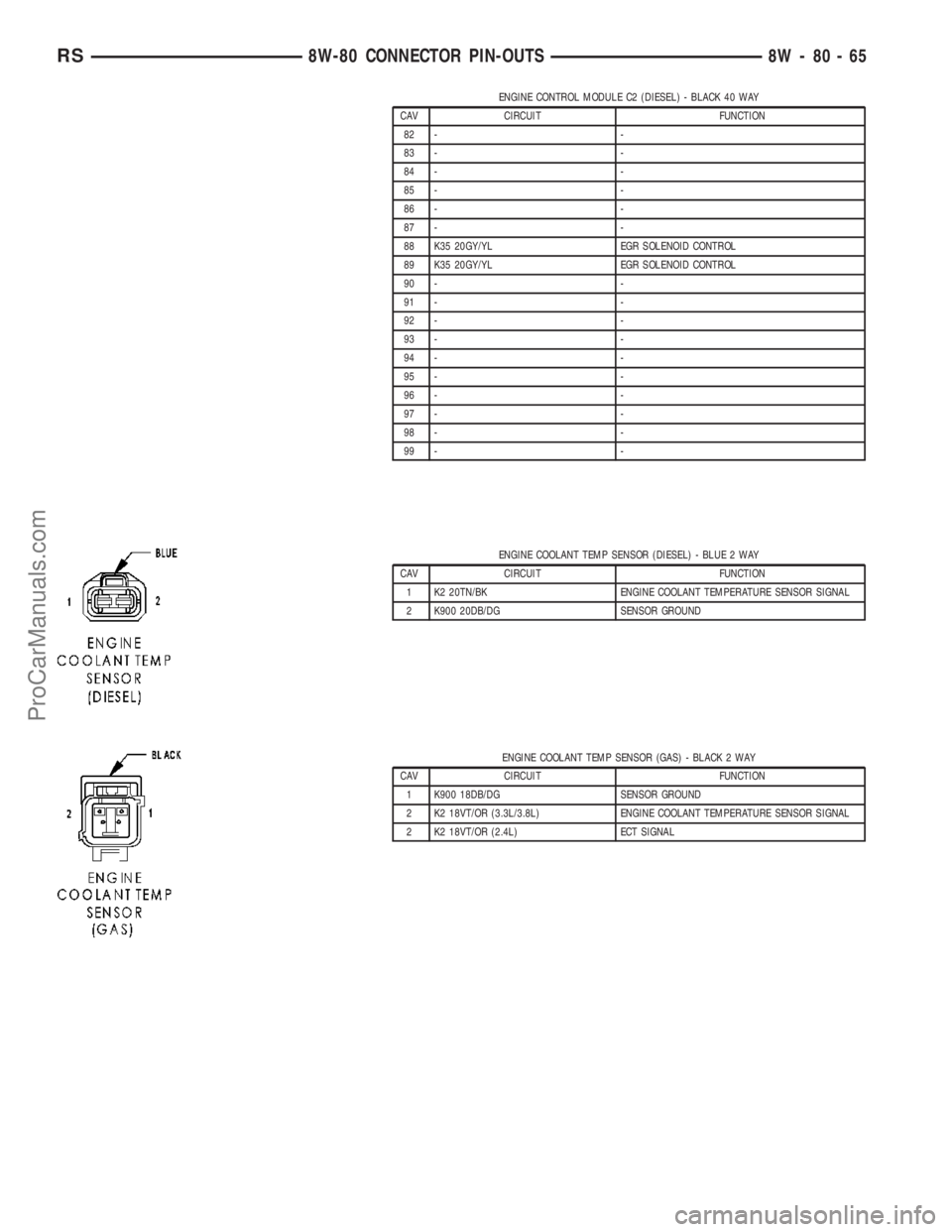

ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
82 - -
83 - -
84 - -
85 - -
86 - -
87 - -
88 K35 20GY/YL EGR SOLENOID CONTROL
89 K35 20GY/YL EGR SOLENOID CONTROL
90 - -
91 - -
92 - -
93 - -
94 - -
95 - -
96 - -
97 - -
98 - -
99 - -
ENGINE COOLANT TEMP SENSOR (DIESEL) - BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K900 20DB/DG SENSOR GROUND
ENGINE COOLANT TEMP SENSOR (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K900 18DB/DG SENSOR GROUND
2 K2 18VT/OR (3.3L/3.8L) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K2 18VT/OR (2.4L) ECT SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-65
