2003 CHEVROLET IMPALA Owners Manual

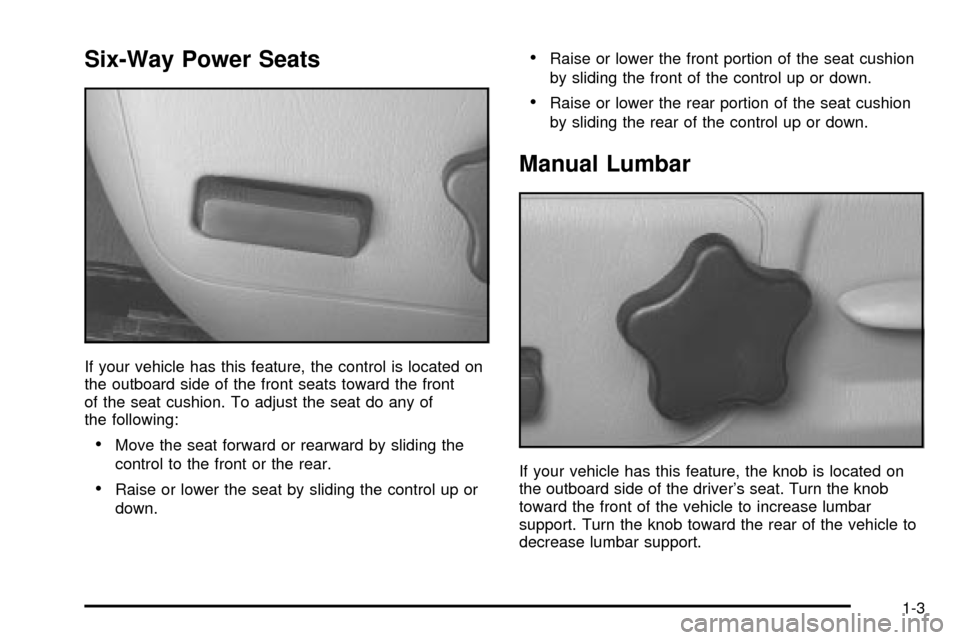

Six-Way Power Seats
If your vehicle has this feature, the control is located on
the outboard side of the front seats toward the front
of the seat cushion. To adjust the seat do any of
the following:
·Move the seat forward or rearward by sliding the
control to the front or the rear.
·Raise or lower the seat by sliding the control up or
down.
·Raise or lower the front portion of the seat cushion
by sliding the front of the control up or down.
·Raise or lower the rear portion of the seat cushion
by sliding the rear of the control up or down.
Manual Lumbar
If your vehicle has this feature, the knob is located on
the outboard side of the driver's seat. Turn the knob
toward the front of the vehicle to increase lumbar
support. Turn the knob toward the rear of the vehicle to
decrease lumbar support.
1-3

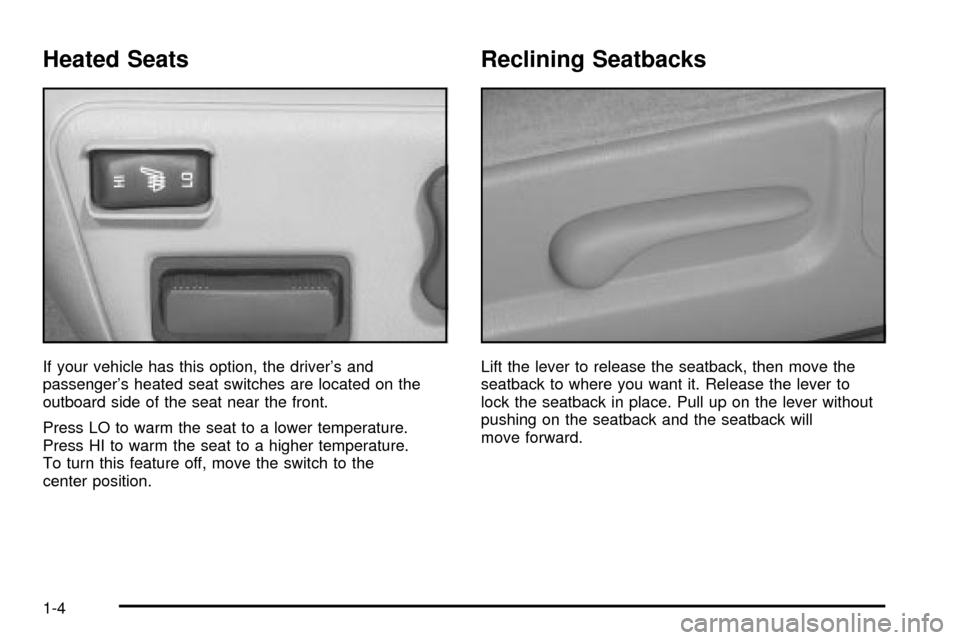

Heated Seats
If your vehicle has this option, the driver's and
passenger's heated seat switches are located on the
outboard side of the seat near the front.
Press LO to warm the seat to a lower temperature.
Press HI to warm the seat to a higher temperature.
To turn this feature off, move the switch to the
center position.
Reclining Seatbacks
Lift the lever to release the seatback, then move the
seatback to where you want it. Release the lever to
lock the seatback in place. Pull up on the lever without
pushing on the seatback and the seatback will
move forward.
1-4

But don't have a seatback reclined if your vehicle
is moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can't do their job
when you're reclined like this.
The shoulder belt can't do its job. In a crash,
you could go into it, receiving neck or
other injuries.
The lap belt can't do its job either. In a crash
the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
1-5

Head RestraintsAdjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
1-6

Rear Seats
Split Folding Rear Seat
If your vehicle has this feature you can fold either side
of the seatback down for more cargo space. Make
sure the front seat isn't reclined. If it is, the rear seatback
won't fold down all the way.
To lower the rear seatback, follow these steps:
1. Remove the rear
center lap-shoulder belt
latch by using a
pointed object to press
the release button.2. Pull forward on the
seat tab located on the
outboard side of the
seatback cushion
and fold the seatback
down. This will
allow you direct access
to the trunk.
1-7

To raise the rear seatback, follow these steps:
1. Raise the seatback up and make sure it latches.
Push and pull on the seatback to be sure it is
locked in position.
2. Reconnect the center
safety belt latch plate
to the buckle.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person
wearing the belt could be seriously injured.
CAUTION: (Continued)
CAUTION: (Continued)
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
Make sure the safety belt label is pointing to the release
button, and that both are facing the front of the
vehicle. Make sure the belt is not twisted. Push and pull
on the latch plate to be sure it is secure.
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
When the seat is not in use, it should be kept in the
upright locked position.
1-8

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Don't let anyone ride where he or she can't
wear a safety belt properly. If you are in a
crash and you're not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers' belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
1-9

Your vehicle has a light
that comes on as a
reminder to buckle up. See
Safety Belt Reminder
Light on page 3-32.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here's why:
They work.
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it's just a seat on
wheels.
1-10
