2003 CHEVROLET EXPRESS CARGO VAN Owners Manual

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
·Passengers Ð especially children Ð can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren't locked. So,
wear safety belts properly and lock the
doors whenever you drive.
·Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
·Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
If your vehicle is equipped with keyless entry, see
Remote Keyless Entry System on page 2-3for more
information.
From the outside, use your key.
To lock the door from
the inside, slide the
manual lever on your door
down. To unlock the
door, slide the manual
lever up.
2-7

Power Door Locks
Press the bottom side of the power door lock switch to
lock all the doors at once. Press the top side of the
power door lock switch to unlock all the doors at once.
When a door is locked, the inside door handle will
not work.
Cargo Door Relocking
This feature protects the owner from having an
unsecured side cargo door. If the side cargo door is
open when the lock button is pressed on the door or the
remote keyless entry transmitter, all doors will lock
and then re-lock again after the cargo door is closed. If
the cargo door is not closed within several minutes,
the re-lock will not occur.
Rear Door Security Locks
Security locks are located on the passenger side rear
door, the side sliding door or the front portion of
the 60/40 side swing-out door.
With this feature, you can
lock these doors so they
can't be opened from
the inside by passengers.
Rear Cargo Door
2-8

Move the lever down to engage the security feature.
Move the lever up to return the door locks to normal
operation
Move the button to the left
to engage the security
feature. Move the button to
the right to return the
door locks to normal
operation.Move the button to the
right to engage the
security feature. Move the
button to the left to
return the door locks to
normal operation.
Right±hand 60/40
Swing-Out Side Door
Left±hand 60/40
Swing-Out Side Door
2-9

Move the button up to
engage the security
feature. Move the button
down to return the
door locks to normal
operation.Lockout Protection
This feature protects you from locking your key in the
vehicle when the key is in the ignition and a door
is open.
If the power lock switch is pressed when either the
driver's, passenger's, or rear door is open, all the doors
will lock and then the driver's door will unlock. This
feature does not include the side cargo door.
Leaving Your Vehicle
If you are leaving your vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door. Side Sliding Door
2-10

Sliding Side Door

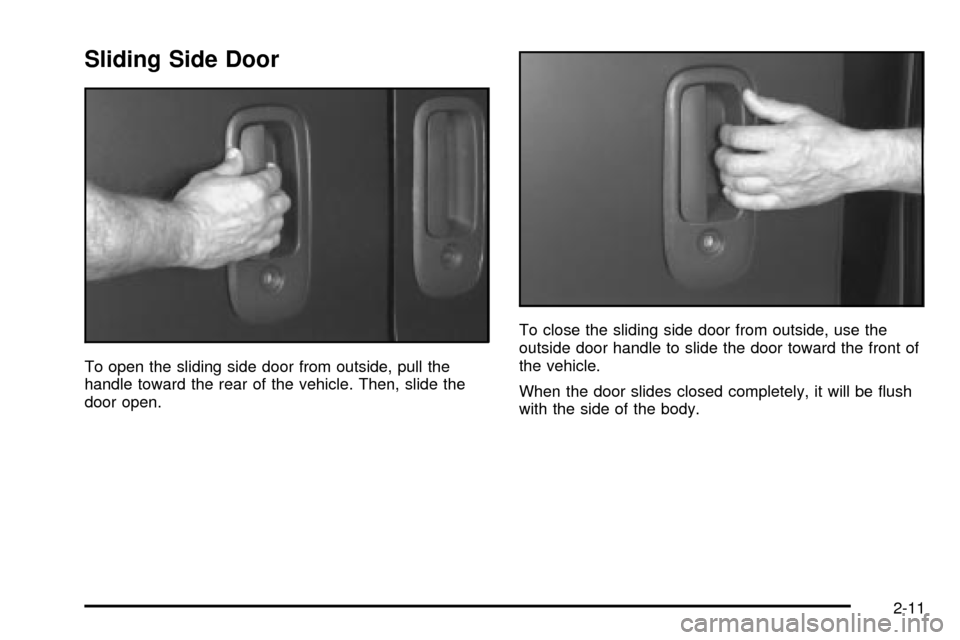

To open the sliding side door from outside, pull the
handle toward the rear of the vehicle. Then, slide the
door open.To close the sliding side door from outside, use the
outside door handle to slide the door toward the front of
the vehicle.
When the door slides closed completely, it will be ¯ush
with the side of the body.
2-11

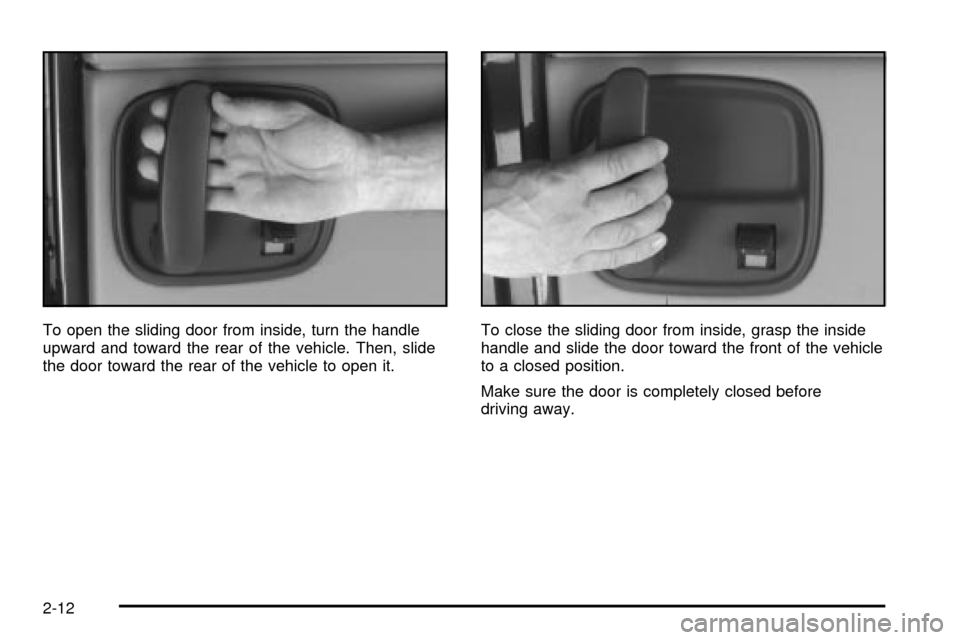

To open the sliding door from inside, turn the handle
upward and toward the rear of the vehicle. Then, slide
the door toward the rear of the vehicle to open it.To close the sliding door from inside, grasp the inside
handle and slide the door toward the front of the vehicle
to a closed position.
Make sure the door is completely closed before
driving away.
2-12

60/40 Swing-Out Side Door

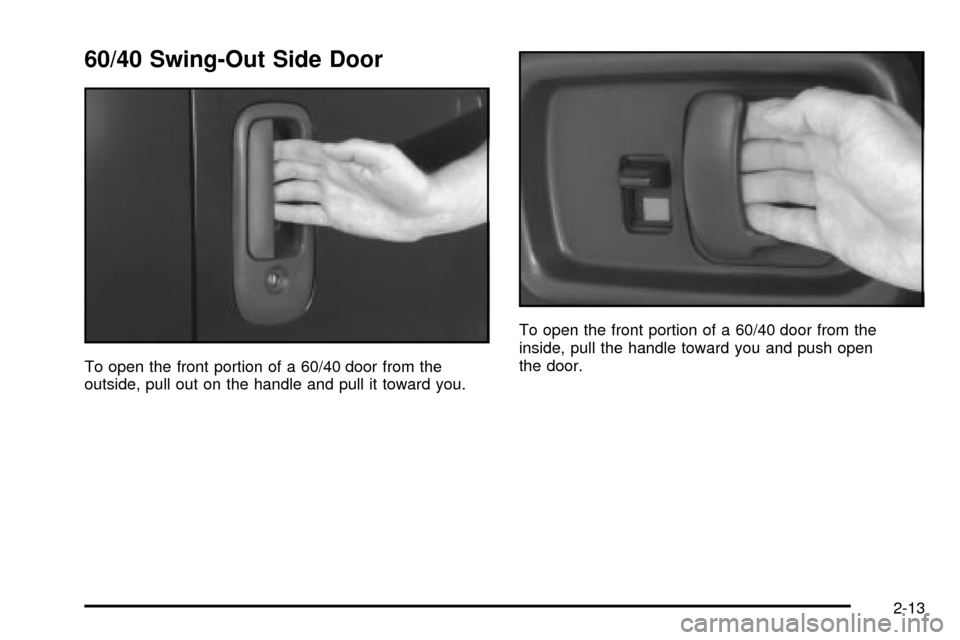

To open the front portion of a 60/40 door from the
outside, pull out on the handle and pull it toward you.To open the front portion of a 60/40 door from the
inside, pull the handle toward you and push open
the door.
2-13

To open the rear portion of a 60/40 door from the
outside, pull the handle on the side of the rear door and
pull it toward you.
To close the 60/40 side doors, close the rear door ®rst.
Then close the front door. Check to make sure that
both doors are completely closed.
The front side swing-out door has a check strap
assembly in the door frame to keep the door from
opening beyond 90 degrees.
To open the door beyond 90 degrees, close the door
partially, pull the check strap toward you and then open
the door. When you close the door, the check strap
will automatically re-engage.
Rear Doors
{CAUTION:
Unlocked doors can be dangerous.
·Passengers Ð especially children Ð can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren't locked. So,
wear safety belts properly and lock the
doors whenever you drive.
·Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
·Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.
2-14
