2003 BMW M3 CONVERTIBLE key

33
Opening and closing – via the door lockTurning the key in the door lock once
unlocks the driver's door, the fuel filler
door and the glove compartment.
Turning the key a second time unlocks
the passenger's door and the luggage
compartment lid.
You can have a signal set to con-
firm that the vehicle's locks have
engaged securely. operate the power windows and the
convertible top with the door lock.
>To open: with the door closed after
turning the key for the second time,
hold the key in the Unlock position
>To fasten: with the door closed, hold
the key in the Lock position.
Whenever closing the windows or
sliding/tilt sunroof you should
always monitor their path and progress
to ensure that no one is injured occur.
Releasing the key stops the opera-
tion. Turn the key all the way to the left or
right to unlock/lock the driver's door.
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 33 Tuesday, July 30, 2002 9:28 AM

34
Opening and closing – from the insideWith this button you operate the central
locking system whenever the doors are
closed. The doors and luggage com-
partment lid are unlocked or locked
only. The anti-theft alarm system is not
activated.
If only the driver's door was
unlocked from the outside and
you press the button, then, with the
driver's door still open, the passenger's
door, the luggage compartment lid, the
fuel filler door and the glove compart-
ment will unlock, too.
If the driver's door is closed, it will be
locked.<
If you desire, the central locking
system can be activated automati-
cally as soon as you begin to drive. You
may also have this adjusted so that it is
specific to keys.<
To unlock and open the doors>Either unlock the doors together with
the button for the central locking sys-
tem and then pull each of the release
handles above the armrests or
>pull the release handle for each door
twice: the first pull unlocks the door,
and the second one opens it.To lock>Either use the central locking button
to lock all doors at once
or
>press the individual door lock buttons
down. As an added design feature to
prevent the driver from being inad-
vertently locked out of the vehicle,
the driver's door lock button will not
engage as long as the door is open.
Since passengers or animals
remaining in the vehicle might be
able to lock the doors from the inside,
always take the vehicle's keys with you
so that the vehicle can be opened again
from the outside at any time.<
handbook.book Page 34 Tuesday, July 30, 2002 9:28 AM

35
Luggage compartment lidThe lockOnly the master keys fit in the lock for
the luggage compartment lid, refer to
page 30.To secure separatelyLock the glove compartment using the
master key.
The luggage compartment lid is locked
and disconnected from the central lock-
ing system. If you surrender only the
door and ignition key – refer to page 30
– this will prevent unauthorized access
via the luggage compartment lid, which
is an advantage for valet parking, for
instance.
To open from the outsidePress the button in the handle recess –
see arrow: the luggage compartment lid
opens slightly.
The luggage compartment is lighted
when the luggage compartment lid is
opened.Manual operationIn the event of electrical malfunction
Turn the master key to the right as far
as it will go, the luggage compartment
lid will open slightly.
The luggage compartment lid is locked
again as soon as you close the lid.
To open from the insideIf the luggage compartment lid has not
been locked separately, you can open it
with this button in the footwell on the
driver's side when the vehicle is sta-
tionary.
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 35 Tuesday, July 30, 2002 9:28 AM

38
When opening the convertible top,
refer to page 41, make sure that
the luggage compartment is set up for
this, otherwise you may damage some-
thing.<
Alarm system*The conceptThe vehicle alarm system responds:
>When a door, the hood or the lug-
gage compartment lid are opened
>To movement inside the vehicle –
interior motion sensor
>Altering the vehicle tilt, e.g. as would
occur while attempting to steal the
wheels or tow the vehicle – tilt alarm
sensor system
>To interruption of battery voltage.
The system responds to unauthorized
vehicle entry and attempted theft by
simultaneously activating the following:
>Sounding an acoustic alarm for
30 seconds
>Activating the hazard warning flash-
ers for approx. five minutes
>Flashing the high beams on and off in
rhythm with the hazard warning flash-
ers.To arm and disarm the alarm
systemWhen the vehicle is locked or unlocked
by using a key or with the remote con-
trol, the alarm system is also simulta-
neously armed or disarmed.You can have a signal set as
acknowledgment for both arming
and disarming the alarm.<
You can also open the luggage com-
partment lid when the system is armed
by pressing the button of the remote
control, refer to page 32. When it is
closed, the lid is once again secured.
Luggage compartment
handbook.book Page 38 Tuesday, July 30, 2002 9:28 AM

39
Indicator lamp displays>The indicator lamp below the interior
rearview mirror flashes continuously:
the system is armed
>The indicator lamp flashes when it is
armed: the door(s), the hood or lug-
gage compartment lid are not com-
pletely closed. Even if you do not
close the alerted area, the remaining
areas are deadlocked, and the indi-
cator lamp flashes continuously after
ten seconds. However, the interior
motion sensor is not activated
>If the indicator lamp goes out when
the system is disarmed: no manipula-
tion or attempted intrusions have
been detected in the period since the
system was armed
>If the indicator lamp flashes for
ten seconds when the system is dis-
armed: an attempted entry has been
detected in the period since the sys-
tem was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Avoiding unintentional alarmsThe tilt alarm sensor and interior motion
sensor may be deactivated at the same
time. You can do this to prevent a false
alarm from being triggered in garages
with elevator ramps, for instance, or
when the vehicle is transported by train:
Lock the vehicle twice to arm the sys-
tem. Press button on the remote control
twice in succession or lock the vehicle
twice with the key.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated as long as the system is
armed.Interior motion sensor*Deactivate the interior motion sensor –
see Avoiding unintentional alarms – if
persons or animals are left in the vehi-
cle.
The tilt and interior motion sen-
sors are inadvertently switched off
when convenience closing of the win-
dows is interrupted within the first
10 seconds and then started again. If
this happens, they must be disarmed
and reactivated.<
Alarm system*
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 39 Tuesday, July 30, 2002 9:28 AM

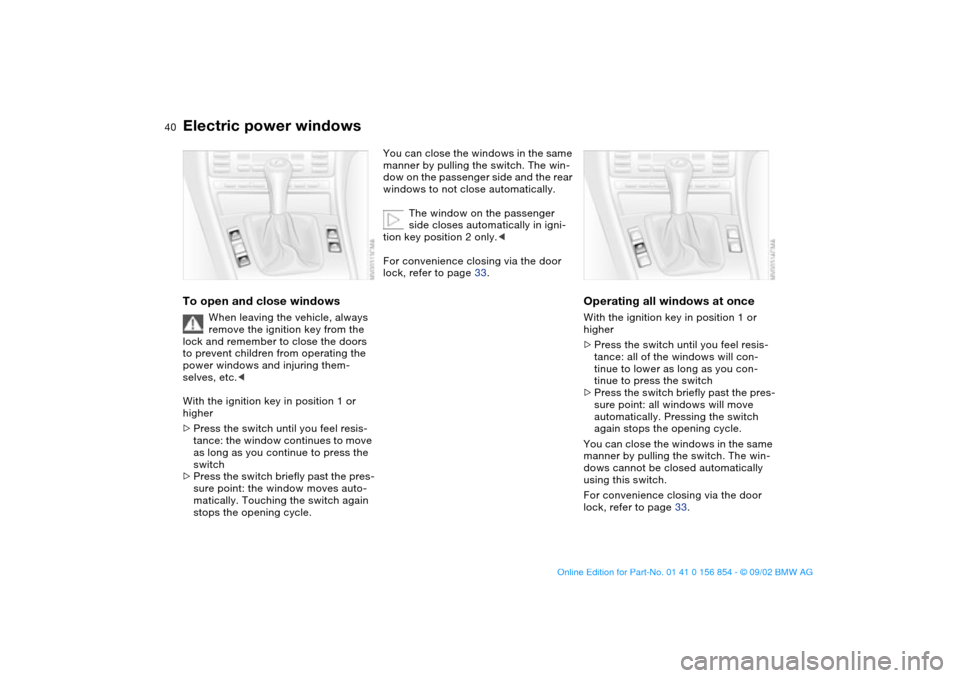

40
Electric power windowsTo open and close windows
When leaving the vehicle, always
remove the ignition key from the
lock and remember to close the doors
to prevent children from operating the
power windows and injuring them-
selves, etc.<
With the ignition key in position 1 or
higher
>Press the switch until you feel resis-
tance: the window continues to move
as long as you continue to press the
switch
>Press the switch briefly past the pres-
sure point: the window moves auto-
matically. Touching the switch again
stops the opening cycle.
You can close the windows in the same
manner by pulling the switch. The win-
dow on the passenger side and the rear
windows to not close automatically.
The window on the passenger
side closes automatically in igni-
tion key position 2 only.<
For convenience closing via the door
lock, refer to page 33.
Operating all windows at onceWith the ignition key in position 1 or
higher
>Press the switch until you feel resis-
tance: all of the windows will con-
tinue to lower as long as you con-
tinue to press the switch
>Press the switch briefly past the pres-
sure point: all windows will move
automatically. Pressing the switch
again stops the opening cycle.
You can close the windows in the same
manner by pulling the switch. The win-
dows cannot be closed automatically
using this switch.
For convenience closing via the door
lock, refer to page 33.
handbook.book Page 40 Tuesday, July 30, 2002 9:28 AM

42
Driving with the opening or clos-
ing operation not completely
ended can lead to damage and/or inju-
ries.
Traffic laws applicable in your area take
precedence when you operate the con-
vertible top, otherwise you may be
breaking the law.
Do not lay objects on the convertible
top, since they would fall off when the
convertible top is operated and cause
damage or injuries.
Do not reach into the convertible top
mechanism during opening and closing.
Keep children away from the moving
parts of the convertible top during
operation.<
If possible, only operate the con-
vertible top with the vehicle
stopped, as otherwise the process may
be interrupted.
If you set the convertible top in motion
with the vehicle stationary and then
have to start suddenly – for instance, at
a traffic light – you can still complete
the operation by driving as slowly as
possible and again pressing and main-
taining pressure on the button.
Before closing the convertible top,
remove any objects from the windshield
frame that could keep the convertible
top from closing properly.<
To close the electric power win-
dows while driving, always be
sure to first close either the rear win-
dows, or all 4 windows at the same
time, otherwise, at high speed, the win-
dows may not close tightly.<
At higher speeds, the ensuing
vacuum in the passenger com-
partment can cause the convertible top
to begin fluttering. Increase the air sup-
ply via the ventilation controls so that a
vacuum does not occur in the vehicle.<
1To close
2To openLocks and security systemsFrom ignition key position 1 or higher,
with the vehicle stationary
If at all possible, only operate the con-
vertible top if the engine is running. This
saves unnecessary battery wear.
1. Read and comply with the preceding
safety precautions
2. Before opening the convertible top,
make sure that the convertible top
compartment panel in the luggage
compartment is lowered, refer to
page 37
3. Make sure that the luggage compart-
ment lid is closed
Convertible top
handbook.book Page 42 Tuesday, July 30, 2002 9:28 AM

43
4. Press and hold the corresponding
button for convertible top operation.
The red indicator lamp will light up
while the convertible top is in motion.
It goes out as soon as the opening or
closing operation has been com-
pleted.
If the red indicator lamp flashes after
the button is released, then the
opening or closing operation is not
yet completed. The sequence can be
continued in the desired direction by
pressing this button.
If the yellow indicator lamp lights up
continuously with the button
pressed, then the convertible top
compartment panel is raised and the
convertible top cannot be moved,
refer to step 2.
The automatic sequence will be
interrupted immediately if you
release the button that operates the
top. The sequence can be continued in
the desired direction by pressing this
button.<
During convertible top operation
the rear window moves toward the
passenger compartment. To prevent
injuries, make sure that the closing path
of the convertible top is unobstructed.<
When operating the convertible top, the
windows will lower slightly when you
press the button, and after the opening
or closing operation has finished, they
will go back up, if you keep holding the
button down for more than 2 seconds
after the indicator lamp has gone out.
The luggage compartment lid cannot be
opened while the convertible top is in
motion.
Do not close the side power win-
dows using the buttons if the con-
vertible top operation has been inter-
rupted.<
If the convertible top has been
stored in the convertible top com-
partment for longer periods, e.g. during
the winter months while the hardtop is
being used, it may be necessary to
manually support the first automatic
closing operation: if the convertible top
should halt right before the closing
phase is completed, press against the
front part of the convertible top frame
from the outside to help the closing
process along. Keep pressing the but-
ton while doing so until the top starts
up again on its own.<
Operate the convertible top manu-
ally in emergency situations only
to avoid causing damage due to incor-
rect operation.<
If the opening or closing operation
is interrupted, the convertible top
remains in the respective position for
15 minutes, and the sequence can be
continued in the desired direction with
the button. After that, the convertible
top can be moved again and, if it is an
emergency situation, you may have to
help the top along manually. This can
also be done in ignition key position 0.
In certain cases, the luggage compart-
ment lid cannot be opened if the open-
ing or closing operation has been inter-
rupted.<
Convenience operation from the
driver's door lockRefer to page 33.
Convertible top
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 43 Tuesday, July 30, 2002 9:28 AM
