2003 BMW 325Ci Owners Manual

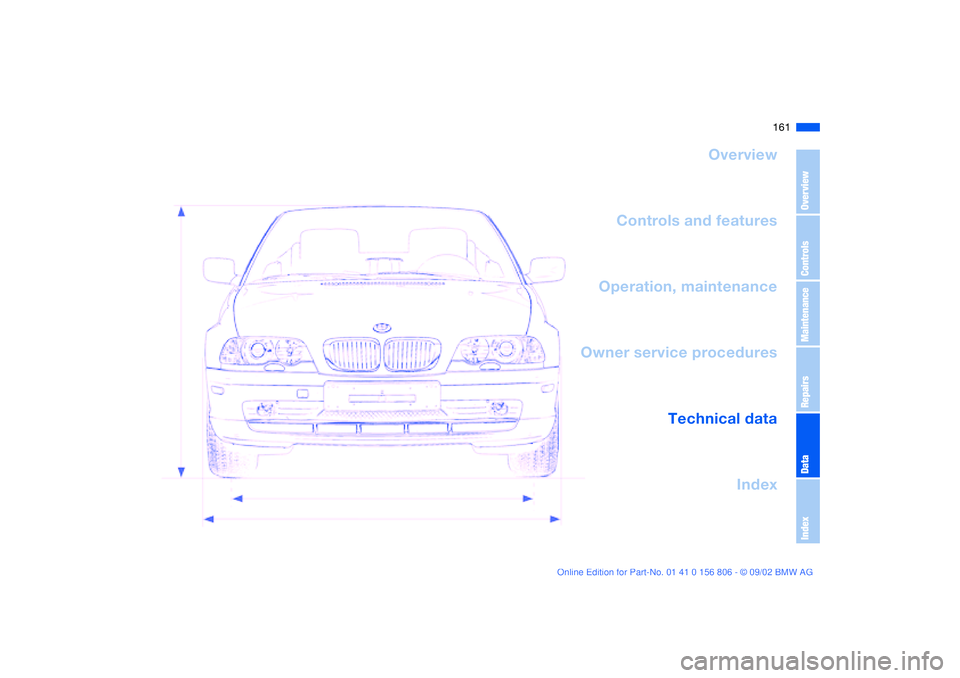

161
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 161 Wednesday, July 31, 2002 9:29 AM

162

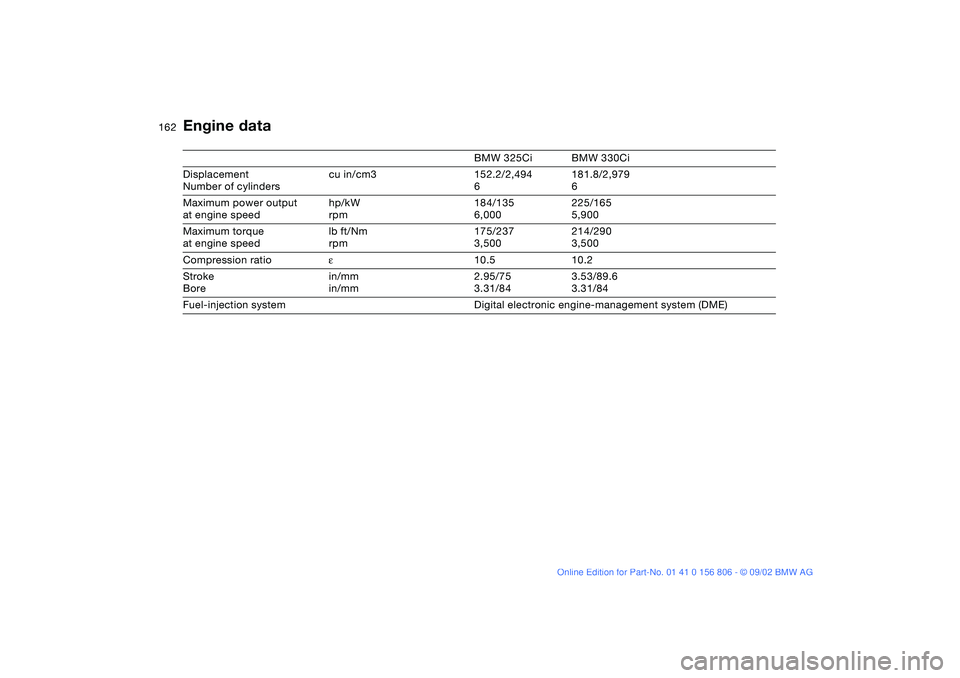

Engine data
BMW 325Ci BMW 330Ci
Displacement
Number of cylinderscu in/cm3 152.2/2,494
6181.8/2,979
6
Maximum power output
at engine speedhp/kW
rpm184/135
6,000225/165
5,900
Maximum torque
at engine speedlb ft/Nm
rpm175/237
3,500214/290
3,500
Compression ratioε10.5 10.2
Stroke
Borein/mm
in/mm2.95/75
3.31/843.53/89.6
3.31/84
Fuel-injection system Digital electronic engine-management system (DME)
handbook.book Page 162 Wednesday, July 31, 2002 9:29 AM

163

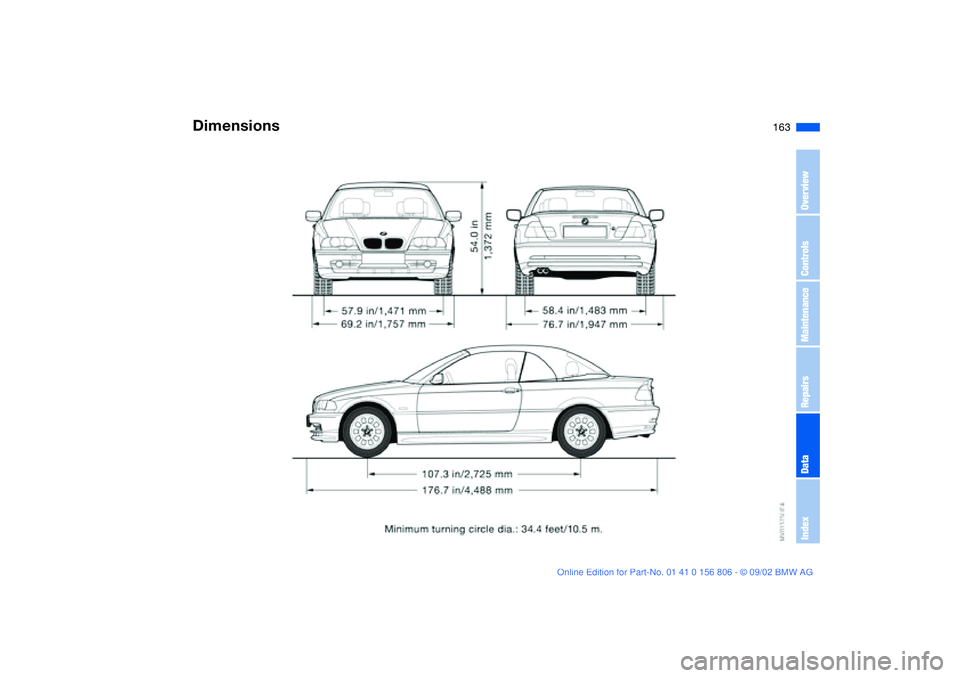

Dimensions
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 163 Wednesday, July 31, 2002 9:29 AM

164

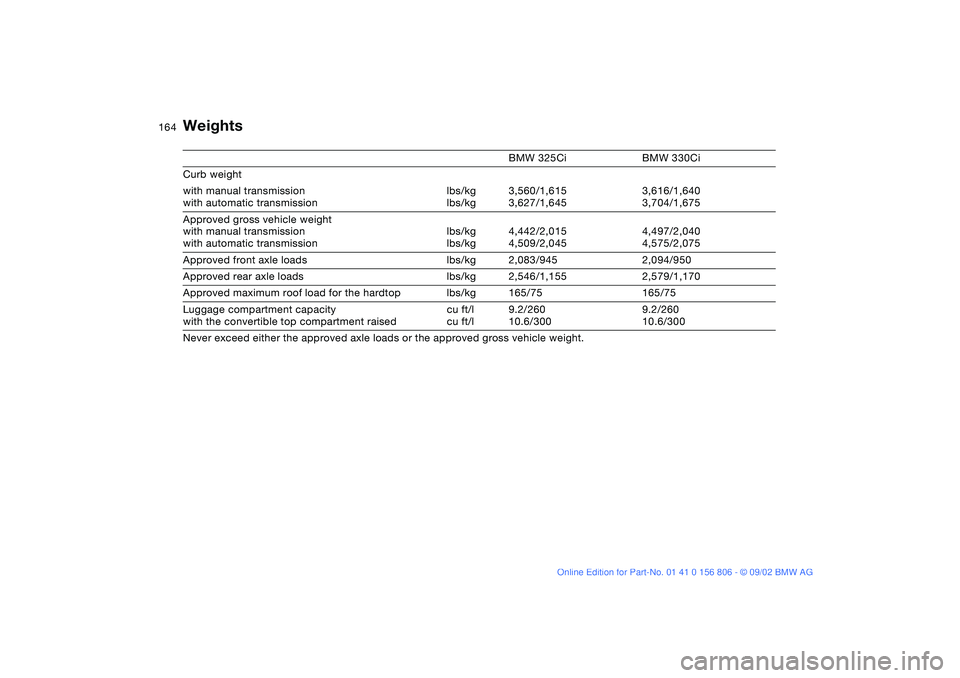

Weights
BMW 325Ci BMW 330Ci
Curb weight
with manual transmission
with automatic transmissionlbs/kg
lbs/kg3,560/1,615
3,627/1,6453,616/1,640
3,704/1,675
Approved gross vehicle weight
with manual transmission
with automatic transmissionlbs/kg
lbs/kg4,442/2,015
4,509/2,0454,497/2,040
4,575/2,075
Approved front axle loads lbs/kg 2,083/945 2,094/950
Approved rear axle loads lbs/kg 2,546/1,155 2,579/1,170
Approved maximum roof load for the hardtop lbs/kg 165/75 165/75
Luggage compartment capacity
with the convertible top compartment raisedcu ft/l
cu ft/l9.2/260
10.6/3009.2/260
10.6/300
Never exceed either the approved axle loads or the approved gross vehicle weight.
handbook.book Page 164 Wednesday, July 31, 2002 9:29 AM

165

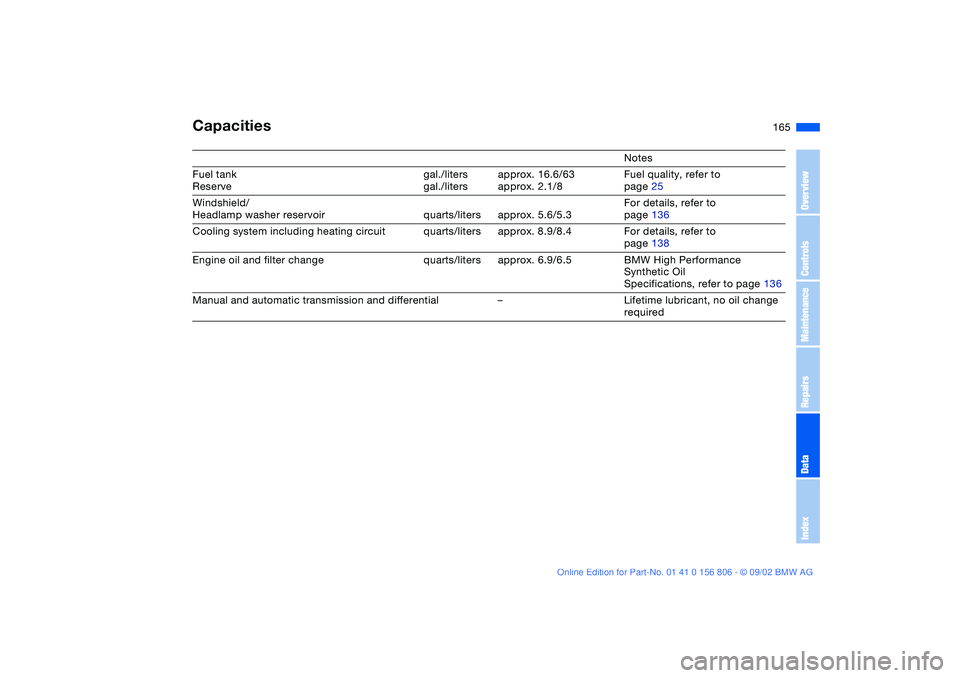

Capacities
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel quality, refer to
page 25
Windshield/
Headlamp washer reservoir quarts/liters approx. 5.6/5.3For details, refer to
page 136
Cooling system including heating circuit quarts/liters approx. 8.9/8.4 For details, refer to
page 138
Engine oil and filter change quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Specifications, refer to page 136
Manual and automatic transmission and differential – Lifetime lubricant, no oil change
required
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 165 Wednesday, July 31, 2002 9:29 AM

166handbook.book Page 166 Wednesday, July 31, 2002 9:29 AM

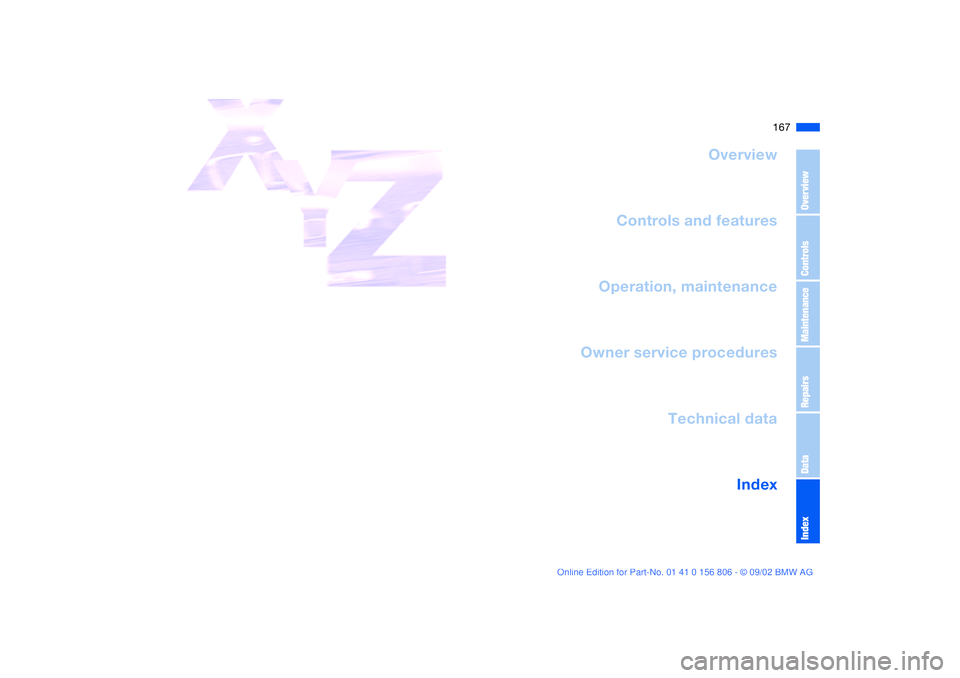

167
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 167 Wednesday, July 31, 2002 9:29 AM

Everything from A to ZA
ABS Antilock Brake
System 123
indicator lamp 19
Accessories 5
Activated-charcoal filter 108
ADB Automatic Differential
Braking 88
Adding brake fluid 134, 139
Air conditioning
100, 102, 106
Air distribution 102
automatic 106
individual 106
Air nozzles 100, 104
Air outlets 100, 104
Air pressure 127
check 25
Air supply 102, 106
Air supply/Blower
recirculated-air mode 107
Airbags 61
warning lamp 18
Alarm system 38
avoiding false alarm 39
indicator lamp 39
interior protection 38
tilt alarm sensor 38
Antifreeze 138
Antilock Brake System
(ABS) 123
indicator lamp 19Anti-theft system 30, 38
Armrest 112
ASC+T Automatic Stability
Control plus Traction 88
indicator lamp 19
Ashtray
front 113
rear 114
AUC Automatic recircu-
lated-air control 107
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate
control 104
Automatic cruise control 79
Automatic curb monitor 58
Automatic Differential Brak-
ing (ADB) 88
Automatic dimming, interior
rearview mirror 60
Automatic headlamp
control 96
Automatic recirculated-air
control (AUC) 107
Automatic Stability Control
plus Traction (ASC+T) 88
indicator lamp 19
Automatic transmission with
Steptronic 74
indicator lamps 19Auxiliary terminal for jump-
starting 134, 157
Average fuel
consumption 86
Average speed 86
Avoiding unintentional
alarms 39
Axle loads 164
B
Backrest
unlock 55
Backup lamps 73
replacing bulb 149
Battery 156
charge 156
charge current 18
charge indicator lamp 18
Belts 56
Beverage holder 113
Blower 100, 102, 106
BMW High Performance
Synthetic Oils 137
BMW Maintenance
System 140
BMW Universal
Transmitter 110
Bore 162
Bottle holder, see Beverage
holder 113
Brake
warning lamp 18Brake fluid level 124
warning lamp 18, 139
Brake hydraulics
warning lamp 18
Brake lamps
replacing bulb 149
Brake pads 124
indicator lamp 19
Brakes
driving notes 123
malfunctions 124
parking brake 72
Break-in procedures 122
Bulb, replacing 147
C
California Proposition
65 warning 141
Can holder, see Beverage
holder 113
Capacities 165
Car care, refer to Caring for
your vehicle brochure
Car radio
refer to the Owner's Man-
ual for Radio
Car telephone
refer to the separate
Owner's Manual
Car vacuum cleaner, con-
necting 114
handbook.book Page 168 Wednesday, July 31, 2002 9:29 AM
