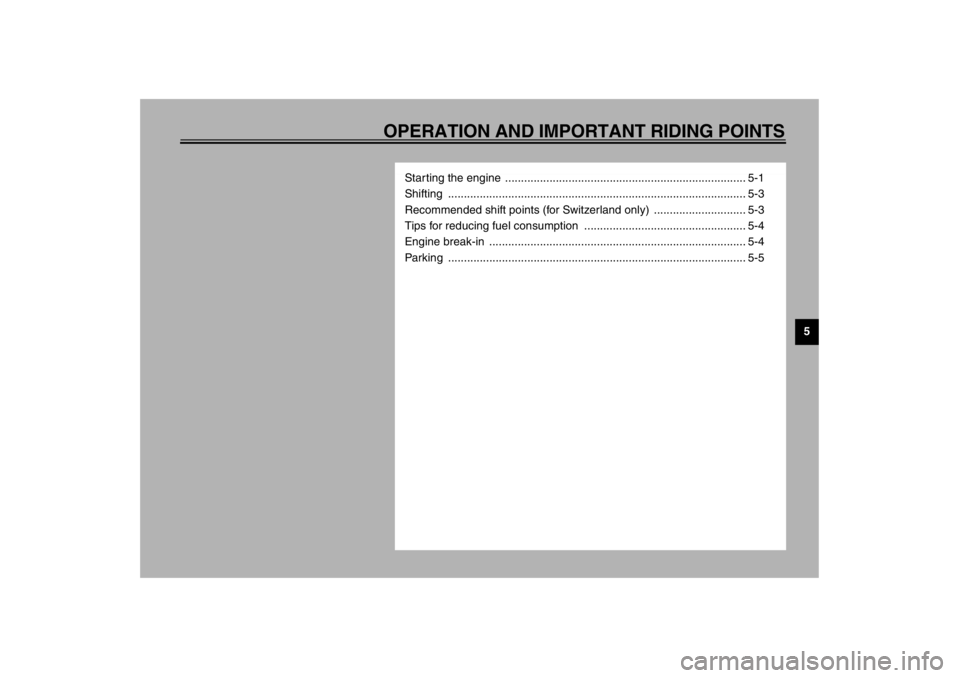

OPERATION AND IMPORTANT RIDING POINTS
5
Starting the engine ............................................................................ 5-1
Shifting .............................................................................................. 5-3
Recommended shift points (for Switzerland only) ............................. 5-3
Tips for reducing fuel consumption ................................................... 5-4
Engine break-in ................................................................................. 5-4
Parking .............................................................................................. 5-5
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU03952
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Thoroughly warm up the engine.


Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU01128
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1,600 km. For this rea-
son, you should read the following ma-
terial carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full-throttle oper-
ation or any condition that might result
in engine overheating must be avoided.
EAU04315
0–1,000 km
Avoid prolonged operation above
4,000 r/min.
1,000–1,600 km
Avoid prolonged operation above
6,000 r/min.
ECA00058
CAUTION:_ After 1,000 km of operation, the en-
gine oil must be changed, and the
oil filter element replaced. _1,600 km and beyond
The vehicle can now be operated nor-
mally.
EC000053
CAUTION:_

Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
_
U5PSE0.book Page 4 Thursday, December 13, 2001 4:29 PM

10-INDEXAAir filter element, cleaning ...................... 6-16
Anti-theft alarm ........................................3-6BBattery ................................................... 6-33
Brake and clutch levers, checking and
lubricating ............................................ 6-29
Brake and shift pedals, checking and
lubricating ............................................ 6-29
Brake fluid, changing ............................. 6-26
Brake fluid level, checking...................... 6-25
Brake lever...............................................3-8
Brake light switch (rear), adjusting ......... 6-23
Brake pads, checking............................. 6-24
Brake pedal..............................................3-8
Brake pedal position, adjusting .............. 6-23CCables, checking and lubricating............ 6-28
Care.........................................................7-1
Clutch lever ..............................................3-7
Clutch lever free play, adjusting ............. 6-22
Conversion table ......................................8-5
Coolant .................................................. 6-12
Changing .......................................... 6-13
Checking .......................................... 6-12
Coolant temperature gauge .....................3-5
Cowlings and panels, removing and
installing ................................................6-5DDimmer switch .........................................3-6
Drive chain, lubricating ........................... 6-28
Drive chain slack ................................... 6-26
Adjusting .......................................... 6-27
Checking .......................................... 6-26EEngine break-in ....................................... 5-4
Engine oil and oil filter element ................ 6-9
Engine stop switch................................... 3-7
Engine trouble warning light .................... 3-3FFront fork, adjusting ............................... 3-13
Front fork, checking ............................... 6-31
Fuel ......................................................... 3-9
Fuel consumption, tips for reducing ......... 5-4
Fuel level warning symbol ....................... 3-2
Fuel tank breather hose
(Germany only) ................................... 3-10
Fuel tank cap ........................................... 3-9
Fuses, replacing .................................... 6-34HHandlebar switches ................................. 3-6
Hazard switch .......................................... 3-6
Headlight bulb, replacing ....................... 6-35
High beam indicator light ......................... 3-2
Horn switch ............................................. 3-6IIdentification numbers ............................. 9-1
Idling speed, adjusting ........................... 6-17
Ignition circuit cut-off system.................. 3-18
Indicator and warning lights ..................... 3-2
KKey identification number .........................9-1LLight switch ..............................................3-7
Luggage strap holders ...........................3-17MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level warning light ...............................3-3PParking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-6
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list ............................4-1RRear suspension, lubricating ..................6-30SSafety information ....................................1-1
Seat .......................................................3-11
Shifting .....................................................5-3
Shift pedal ................................................3-8
Shift points (for Switzerland only) .............5-3
Shock absorber assembly, adjusting ......3-15
Sidestand ...............................................3-17
