INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU02925

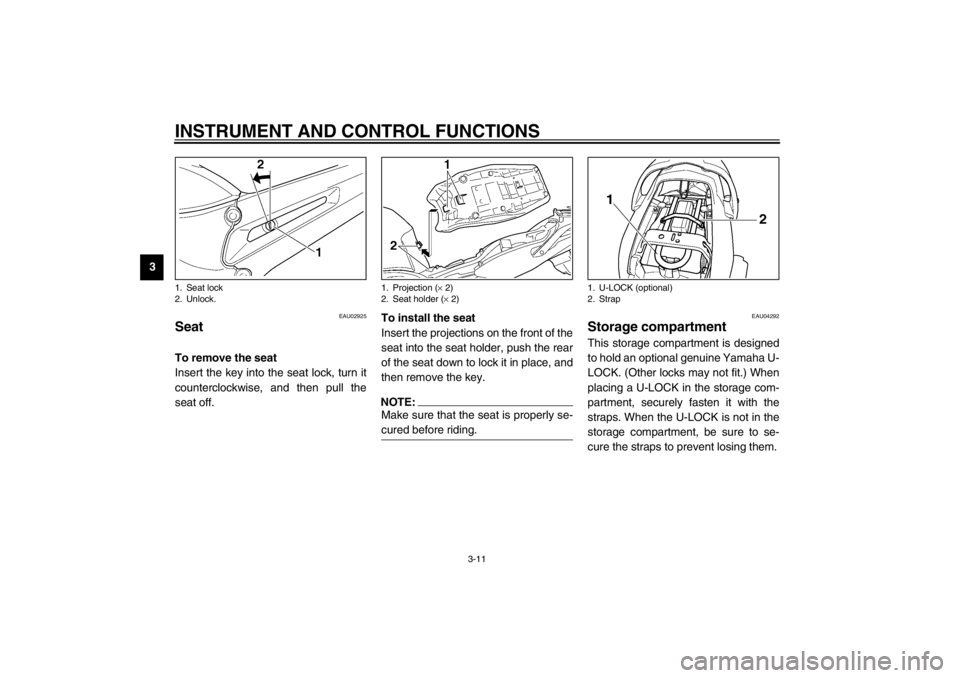

Seat To remove the seat
Insert the key into the seat lock, turn it
counterclockwise, and then pull the
seat off.To install the seat
Insert the projections on the front of the
seat into the seat holder, push the rear
of the seat down to lock it in place, and
then remove the key.
NOTE:_ Make sure that the seat is properly se-
cured before riding. _
EAU04292
Storage compartment This storage compartment is designed
to hold an optional genuine Yamaha U-
LOCK. (Other locks may not fit.) When
placing a U-LOCK in the storage com-
partment, securely fasten it with the
straps. When the U-LOCK is not in the
storage compartment, be sure to se-
cure the straps to prevent losing them.
1. Seat lock
2. Unlock.
1. Projection (× 2)
2. Seat holder (× 2)
1. U-LOCK (optional)
2. Strap
U5PSE0.book Page 11 Thursday, December 13, 2001 4:29 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU00658
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
EW000082
WARNING
_

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
_
CE-01E
CE-07EEWA00012
WARNING
_ Because loading has an enormous
impact on the handling, braking, per-
formance and safety characteristics
of your motorcycle, you should keep
the following precautions in mind.

NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider, pas-
senger, cargo, and accessories
does not exceed the specified
maximum load for the vehicle.


Do not carry along loosely
packed items, which can shift
during a ride.


Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.


Adjust the suspension and tire
air pressure with regard to the
load.


Check the tire condition and air
pressure before each ride.
_
Tire air pressure
(measured on cold tires)
Load* Front Rear
Up to 90 kg250 kPa
(2.50 kgf/cm
2,
2.50 bar)250 kPa
(2.50 kgf/cm
2,
2.50 bar)
90 kg–maximum250 kPa
(2.50 kgf/cm
2,
2.50 bar)290 kPa
(2.90 kgf/cm
2,
2.90 bar)
High-speed riding250 kPa
(2.50 kgf/cm
2,
2.50 bar)250 kPa
(2.50 kgf/cm
2,
2.50 bar)
Maximum load* 203 kg
* Total weight of rider, passenger, cargo and
accessories
U5PSE0.book Page 19 Thursday, December 13, 2001 4:29 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EW000080
WARNING
_

The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.


After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.


Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.


Use only the tire valves and
valve cores listed below to
avoid tire deflation during a
high-speed ride.
_
CE-10E
CE-14EEAU00684
WARNING
@ This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.

Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.


Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
after installing a new tire.


The tires must be warmed up
before a high-speed run.


Always adjust the tire air pres-
sure according to the operating
conditions.
@
FRONT
Manufacturer Size Model
Dunlop
120/70 ZR18 (59W)
D220FSTJ
Metzeler
120/70 ZR18 M/C (59W)
MEZ4J
REAR
Manufacturer Size Model
Dunlop
160/60 ZR17 (69W)
D220STJ
Metzeler
160/60 ZR17 M/C (69W)
MEZ4J
FRONT & REAR
Tire air valve TR412
Valve core #9000A (original)
U5PSE0.book Page 21 Thursday, December 13, 2001 4:29 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU02939
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @Check the inner tubes for scratches,
damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:@ If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it. @
EAU00794
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @
U5PSE0.book Page 31 Thursday, December 13, 2001 4:29 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
63. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU04136*
Replacing a headlight bulb This motorcycle is equipped with
quartz bulb headlights. If a headlight
bulb burns out, replace it as follows.
1. Disconnect the headlight coupler,
and then remove the bulb cover.2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
EW000119
WARNING
_ Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down. _3. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Headlight bulb holder
2. headlight coupler
1. Headlight bulb holder
U5PSE0.book Page 35 Thursday, December 13, 2001 4:29 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
6 To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU01617
Front wheel To remove the front wheel
EW000122
WARNING
_

It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no danger
of it falling over.
_1. Loosen the front wheel axle pinch
bolt, then the brake caliper bolts.
2. Loosen the wheel axle with a 19-mm
hexagon wrench.3. Lift the front wheel off the ground
according to the procedure on
page 6-37.
4. Remove the brake hose holders
by removing the bolts.
5. Remove the brake calipers by re-
moving the bolts.
6. Pull the wheel axle out, and then
remove the wheel.
ECA00046
CAUTION:_ Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will be
forced shut. _
1. Wheel axle
2. Front wheel axle pinch bolt
1. Bolt (× 2)
2. Brake caliper
U5PSE0.book Page 38 Thursday, December 13, 2001 4:29 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6
EAU04376
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Install the brake calipers by install-
ing the bolts.NOTE:_ Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs. _5. Install the brake hose holders by
installing the bolts.
6. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the specified
torques.7. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU04455
Rear wheel To remove the rear wheel
EW000122
WARNING
_

It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no danger
of it falling over.
_
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf)
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf)
Brake caliper bolt:
40 Nm (4.0 m·kgf)
1. Bolt (× 2)
2. Quick fastener (× 3)
