2002 YAMAHA BT1100 oil type

EAU00462
1. Engine oil filler cap
PERIODIC MAINTENANCE AND MINOR REPAIR
1
NOTE:
Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in a
false reading.
2. Start the engine, warm it up for sever-
al minutes, and then turn it off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located at
the bottom-left side of the crankcase.
NOTE:
The engine oil should be between the min-
imum and maximum level marks.
4. If the engine oil is below the minimum
level mark, add sufficient oil of the
recommended type to raise it to the
correct level.To change the engine oil without oil
filter element replacement
1. Start the engine, warm it up for sever-
al minutes, and then turn it off.
2. Place an oil pan under the engine to
collect the used oil.
3. Remove the engine oil filler cap and
drain bolt to drain the oil from the
crankcase.
6-7
6
2
31
EAU01712
Engine oil and oil filter element
The engine oil level should be checked be-
fore each ride. In addition, the oil must be
changed and the oil filter element replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level sur-
face and hold it in an upright position.
1. Engine oil level window
2. Maximum level mark
3. Minimum level mark

EAU00462PERIODIC MAINTENANCE AND MINOR REPAIR
3
1 2
To check the final gear oil level
1. Place the motorcycle on a level sur-
face and hold it in an upright position.
NOTE:
•The final gear oil level must be
checked on a cold engine.
•Make sure that the motorcycle is posi-
tioned straight up when checking the
oil level. A slight tilt to the side can
result in a false reading.2. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
NOTE:
The oil level should be at the brim of the
filler hole.
3. If the oil is below the brim of the filler
hole, add sufficient oil of the recom-
mended type to raise it to the correct
level.
To change the final gear oil
1. Place an oil pan under the final gear
case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final gear
case.
6-9
6
1. Final gear oil drain bolt
2. Final gear oil filler bolt
3. Oil level
EAU04083
Final gear oil
The final gear case must be checked for oil
leakage before each ride. If any leakage is
found, have a Yamaha dealer check and
repair the motorcycle. In addition, the final
gear oil level must be checked and the oil
changed as follows at the intervals speci-
fied in the periodic maintenance and lubri-
cation chart.
EW000066WARNING0
•Make sure that no foreign material
enters the final gear case.
• Make sure that no oil gets on the
tire or wheel.

EAU00462PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
Observe these precautions:
•When checking the fluid level, make
sure that the top of the brake fluid
reservoir is level.
•Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing leak-
age and poor braking performance.
•Refill with the same type of brake flu-
id. Mixing fluids may result in a harm-
ful chemical reaction and lead to poor
braking performance.
•Be careful that water does not enter
the brake fluid reservoir when refill-
ing. Water will significantly lower the
boiling point of the fluid and may re-
sult in vapor lock.
•Brake fluid may deteriorate painted
surfaces or plastic parts. Always
clean up spilled fluid immediately.
•As the brake pads wear, it is normal
for the brake fluid level to gradually
go down. However, if the brake fluid
level goes down suddenly, have a
Yamaha dealer check the cause.

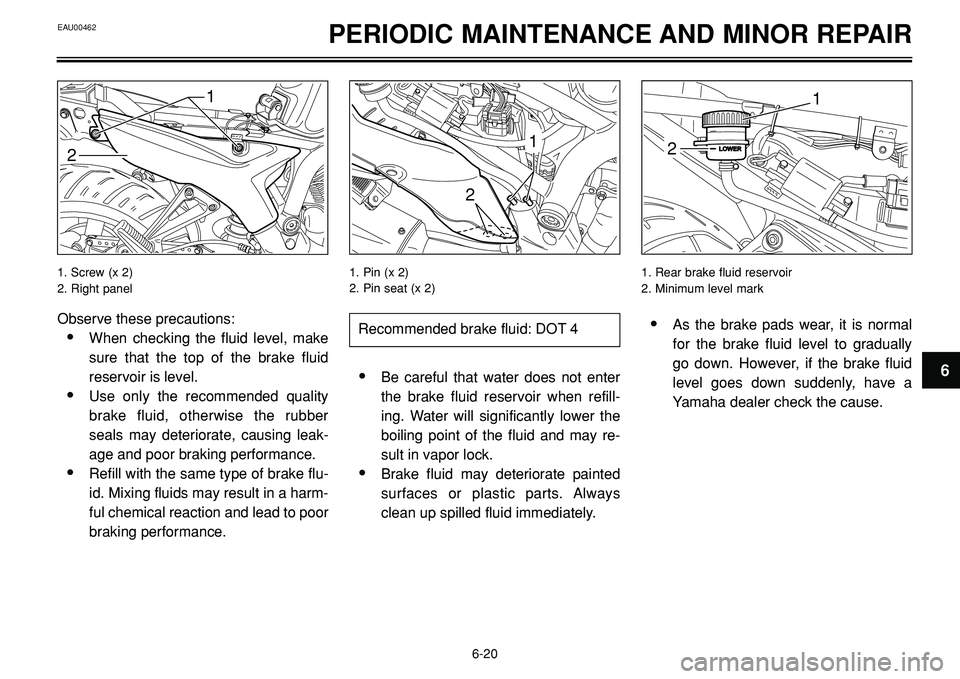

6-20
6
1. Screw (x 2)
2. Right panel
2
1
1. Pin (x 2)
2. Pin seat (x 2)
Recommended brake fluid: DOT 4
21
1. Rear brake fluid reservoir
2. Minimum level mark

SPECIFICATIONSEAU01038
8-1
8
Specifications
ModelBT1100
Dimensions
Overall length 2,200 mm
Overall width 800 mm
Overall height 1,140 mm
Seat height 812 mm
Wheelbase 1,530 mm
Ground clearance 168 mm
Minimum turning radius 2,980 mm
Basic weight
(with oil and full fuel tank)250.5 kg
Engine
Engine type Air-cooled 4-stroke,
SOHC
Cylinder arrangement V type 2-cylinder
Displacement 1,063 cm
3
Bore x stroke 95.0 x 75.0 mm
Compression ratio 8.3 : 1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended API Service SE, SF, SG or
engine oil classification higher
Be sure to use motor oils that do not contain anti-friction modifiers.
Passenger car motor oils (often labeled “ENERGY CONSERVING II”)
contain anti-friction additives which will cause clutch and/ or starter
clutch slippage, resulting in reduced component life and poor
engine performance.8
Quantity
Without oil filter
cartridge replacement 3.0 L
With oil filter cartridge
replacement 3.1 L
Total amount
(dry engine) 3.6 L
CAUTION:
-20-10 0 1020304050°C
SAE 10W-30
SAE 10W-40
SAE 20W-40
SAE 15W-50
SAE 15W-40

SPECIFICATIONSEAU01038
8-2
8
Final gear oil
Type Hypoid gear oil SAE 80
(API GL4) or multigrade hypoid
gear oil SAE 80W-90
Quantity 0.2 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 20 L
Fuel reserve amount 5.8 L
Carburetor
Manufacturer MIKUNI
Model x quantity BSR37 x 2
Spark plug
Manufacturer/model NGK / BPR7ES or
DENSO / W22EPR-U
Gap 0.7–0.8 mm
Clutch type Wet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction
ratio 1.660
Secondary reduction
system Shaft drive
Secondary reduction
ratio 2.875
Transmission type Constant mesh 5-speed
Operation Left footGear ratio 1st2,353
2nd1,667
3rd1,286
4th1,032
5th0,853
Chassis
Frame type Twin tube Backbone
Caster angle 25°
Trail 106 mm
Tires
Front
Type Tubeless
Size 120/70-ZR17 (58W)
Manufacturer/ Dunlop / D205F TL
model Metzeler / MEZ3F TL
Rear
Type Tubeless
Size 170/60-ZR17 (72W)
Manufacturer/ Dunlop / D205 TL
model Metzeler / MEZ3 TL
Maximum load* 200 kg

SPECIFICATIONS
8-3
8
EAU01038
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 230 kPa; 2.30 kg/cm
2; 2.30 bar
Rear 250 kPa; 2.50 kg/cm
2; 2.50 bar
90 kg–maximum*
Front 250 kPa; 2.50 kg/cm
2; 2.50 bar
Rear 270 kPa; 2.70 kg/cm
2; 2.70 bar
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 x MT 3.50
Rear
Type Cast wheel
Size 17 x MT 5.50
Brakes
Front:
Type Dual disc brake
Operation Right hand
Fluid DOT 4Rear:
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front: Telescopic fork
Rear: Swingarm
(link suspension)
Spring/shock absorber
Front: Coil spring / oil damper
Rear: Coil spring / gas-oil damper,
spring preload adjustable
Wheel travel
Front: 130 mm
Rear: 113 mm
Electrical system
Ignition system Transistorized coil ignition
(digital)
Charging system
Type A.C. magneto
Standard output 14V, 350W at 5,000 r/min

SPECIFICATIONS
8-4
8
EAU01038
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeQuartz bulb (halogen)
Bulb voltage, wattage x quantity
Headlight 12 V 60 W / 55 W x 1
Auxiliary light 12 V 5 W x 1
Tail/brake light 12 V 5 W / 21 W
Turn signal indicator light 12 V 10 W x 4
Meter lighting 14 V - 1.2 W x 4
Oil level warning light LED x 1
Neutral indicator light LED x 1
Turn signal light LED x 1
High beam indicator light LED x 1
Fuel level warning light LED x 1
Fuses
Main fuse 30 A
Backup fuse (odometer) 5 A
Ignition fuse 10 A
Headlight fuse 15 A
Carburetor heater fuse 15 A
Signaling system fuse 10 A
