2002 VOLVO S60 Owners Manual

*The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle
with the retailer and when ordering parts.
pg. 195 Dimensions, weights
Dimensions
Length 180 in. (458 cm)
Width 71 in. (180 cm)
Height 56.2 in. (143 cm)
Wheelbase 107 in. (272 cm)
Front track 61.5 in. (156 cm)
Rear track 61.4 (156 cm)
Turning circle, between curbs 35.4- 38.7 ft. (10.8- 11.8 m)
Cargo capacity, trunk SAE V1 - 13.9 (394)
Weights
Gross vehicle weight *
5 cyl. (manual transmission)
USA 4360 lbs
Canada 1980 kg
5 cyl. (automatic transmission)
USA 4400 lbs
Canada 1996 kg
5 cyl. turbo (manual transmission)
USA 4430 lbs
Canada 2110 kg
5 cyl. turbo (automatic transmission)
USA 4470 lbs
Canada 2030 kg
ProCarManuals.com

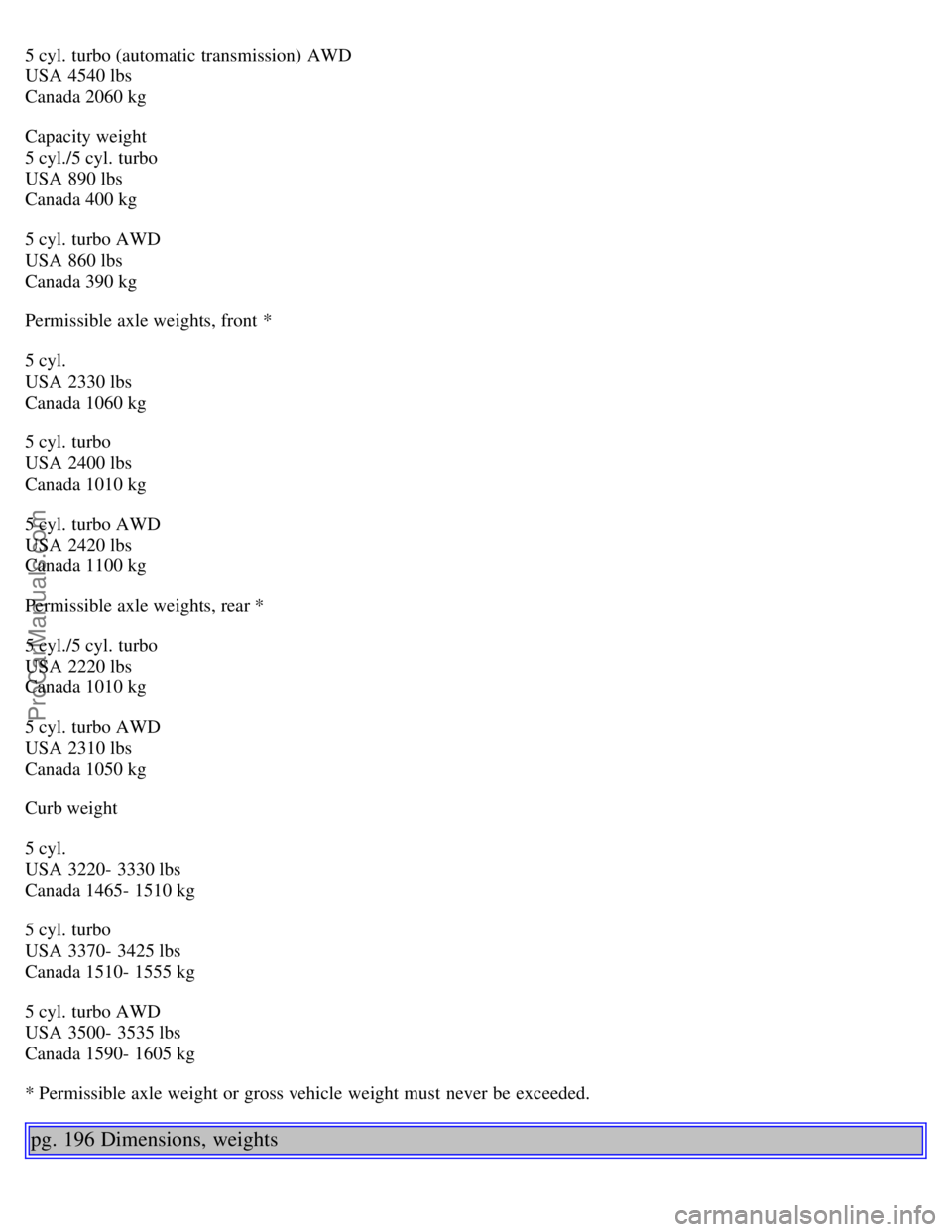

5 cyl. turbo (automatic transmission) AWD
USA 4540 lbs
Canada 2060 kg
Capacity weight
5 cyl./5 cyl. turbo
USA 890 lbs
Canada 400 kg
5 cyl. turbo AWD
USA 860 lbs
Canada 390 kg
Permissible axle weights, front *
5 cyl.
USA 2330 lbs
Canada 1060 kg
5 cyl. turbo
USA 2400 lbs
Canada 1010 kg
5 cyl. turbo AWD
USA 2420 lbs
Canada 1100 kg
Permissible axle weights, rear *
5 cyl./5 cyl. turbo
USA 2220 lbs
Canada 1010 kg
5 cyl. turbo AWD
USA 2310 lbs
Canada 1050 kg
Curb weight
5 cyl.
USA 3220- 3330 lbs
Canada 1465- 1510 kg
5 cyl. turbo
USA 3370- 3425 lbs
Canada 1510- 1555 kg
5 cyl. turbo AWD
USA 3500- 3535 lbs
Canada 1590- 1605 kg
* Permissible axle weight or gross vehicle weight must never be exceeded.
pg. 196 Dimensions, weights
ProCarManuals.com

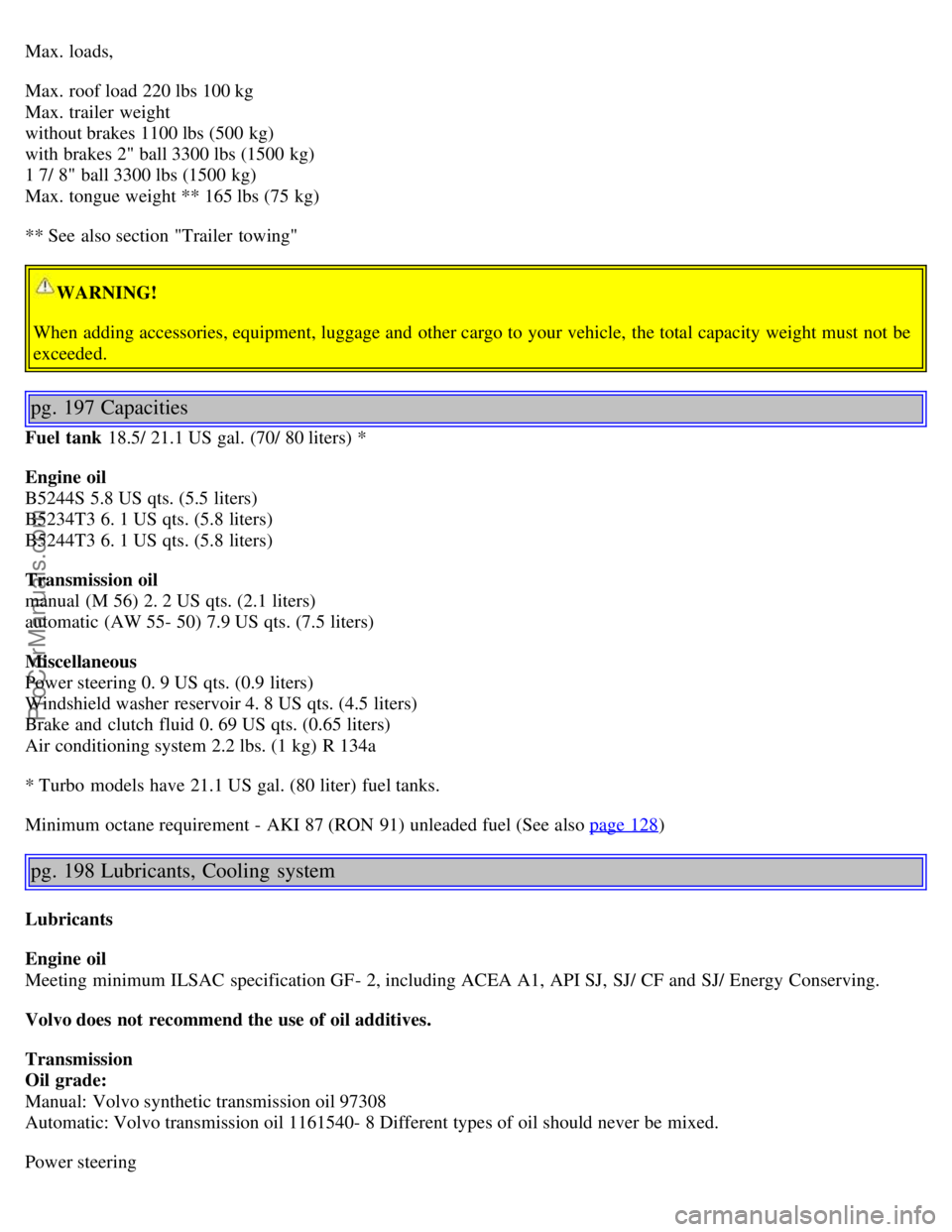

Max. loads,
Max. roof load 220 lbs 100 kg
Max. trailer weight
without brakes 1100 lbs (500 kg)
with brakes 2" ball 3300 lbs (1500 kg)
1 7/ 8" ball 3300 lbs (1500 kg)
Max. tongue weight ** 165 lbs (75 kg)
** See also section "Trailer towing"
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total capacity weight must not be
exceeded.
pg. 197 Capacities
Fuel tank 18.5/ 21.1 US gal. (70/ 80 liters) *
Engine oil
B5244S 5.8 US qts. (5.5 liters)
B5234T3 6. 1 US qts. (5.8 liters)
B5244T3 6. 1 US qts. (5.8 liters)
Transmission oil
manual (M 56) 2. 2 US qts. (2.1 liters)
automatic (AW 55- 50) 7.9 US qts. (7.5 liters)
Miscellaneous
Power steering 0. 9 US qts. (0.9 liters)
Windshield washer reservoir 4. 8 US qts. (4.5 liters)
Brake and clutch fluid 0. 69 US qts. (0.65 liters)
Air conditioning system 2.2 lbs. (1 kg) R 134a
* Turbo models have 21.1 US gal. (80 liter) fuel tanks.
Minimum octane requirement - AKI 87 (RON 91) unleaded fuel (See also page 128
)
pg. 198 Lubricants, Cooling system
Lubricants
Engine oil
Meeting minimum ILSAC specification GF- 2, including ACEA A1, API SJ, SJ/ CF and SJ/ Energy Conserving.
Volvo does not recommend the use of oil additives.
Transmission
Oil grade:
Manual: Volvo synthetic transmission oil 97308
Automatic: Volvo transmission oil 1161540- 8 Different types of oil should never be mixed.
Power steering
ProCarManuals.com

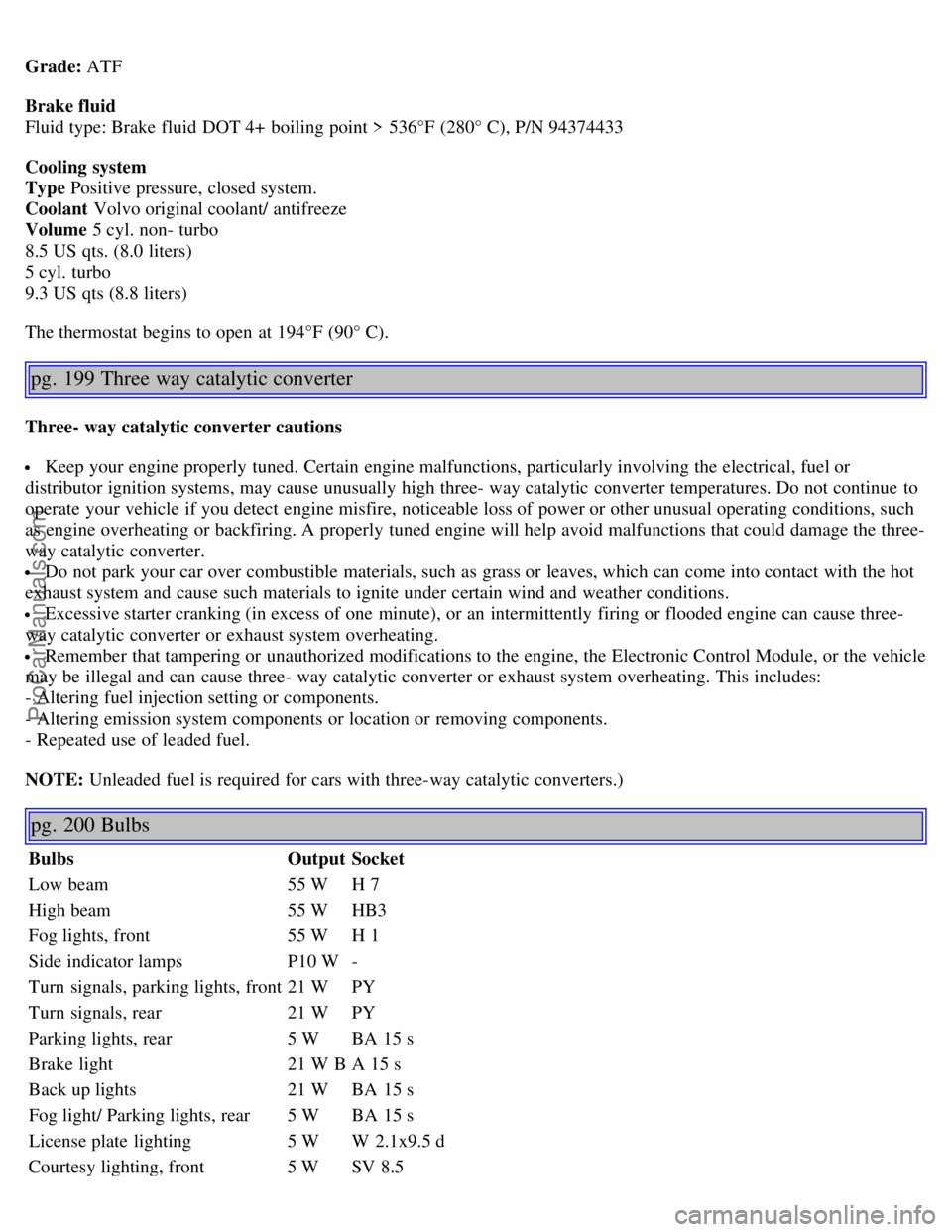

Grade: ATF
Brake fluid
Fluid type: Brake fluid DOT 4+ boiling point > 536°F (280° C), P/N 94374433
Cooling system
Type Positive pressure, closed system.
Coolant Volvo original coolant/ antifreeze
Volume 5 cyl. non- turbo
8.5 US qts. (8.0 liters)
5 cyl. turbo
9.3 US qts (8.8 liters)
The thermostat begins to open at 194°F (90° C).
pg. 199 Three way catalytic converter
Three- way catalytic converter cautions
Keep your engine properly tuned. Certain engine malfunctions, particularly involving the electrical, fuel or
distributor ignition systems, may cause unusually high three- way catalytic converter temperatures. Do not continue to
operate your vehicle if you detect engine misfire, noticeable loss of power or other unusual operating conditions, such
as engine overheating or backfiring. A properly tuned engine will help avoid malfunctions that could damage the three-
way catalytic converter.
Do not park your car over combustible materials, such as grass or leaves, which can come into contact with the hot
exhaust system and cause such materials to ignite under certain wind and weather conditions.
Excessive starter cranking (in excess of one minute), or an intermittently firing or flooded engine can cause three-
way catalytic converter or exhaust system overheating.
Remember that tampering or unauthorized modifications to the engine, the Electronic Control Module, or the vehicle
may be illegal and can cause three- way catalytic converter or exhaust system overheating. This includes:
- Altering fuel injection setting or components.
- Altering emission system components or location or removing components.
- Repeated use of leaded fuel.
NOTE: Unleaded fuel is required for cars with three-way catalytic converters.)
pg. 200 Bulbs
Bulbs OutputSocket
Low beam 55 WH 7
High beam 55 WHB3
Fog lights, front 55 WH 1
Side indicator lamps P10 W-
Turn signals, parking lights, front 21 WPY
Turn signals, rear 21 WPY
Parking lights, rear 5 WBA 15 s
Brake light 21 W BA 15 s
Back up lights 21 WBA 15 s
Fog light/ Parking lights, rear 5 WBA 15 s
License plate lighting 5 WW 2.1x9.5 d
Courtesy lighting, front 5 WSV 8.5
ProCarManuals.com

Trunk lighting5 WSV 8.5
Glove compartment lighting 2 WBA 9 s
Vanity mirror 1.2 WSV 5.5
pg. 201 Suspension
Wheel dimension 15"16"
Rim diameter (mm) 415440
tire side diameter(mm) 515540
Toe- in front (degrees) 0.1°± 0. 1°0.1°± 0. 1°
Toe- in rear (degrees) 0.2°+± 0.2°0.2+± 0. 2°
Toe- in front (mm) rim measurement 2. 2± 0. 72.3± 0.8
tire side measurement 2.7± 0.92. 8± 0. 9
Toe- in rear (mm) rim measurement 1. 4± 1. 41.5± 1.5
tire side measurement 1.8± 1.81. 9± 1. 9
Rear suspension
Individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Power-assisted
rack and pinion steering. Safety type steering column.
pg. 202 Electrical system
Electrical system
12- volt system with voltage controlled generator. Single wire system in which the chassis and engine block are used
as conductors, grounded on the chassis.
Battery
Voltage 12 V
Cold start capacity (CCA) 600 A
Reserve capacity (RC) 115 min
If you must replace your battery, be sure to replace it with a battery of the same cold start capacity and reserve
capacity as the original (See the decal on the battery).
Generator max. current 140 A
Starter motor, power 1.4 kW
Spark plugs P/ N272313- 8 or equivalent
Gap 0.028- 0.032 in. 0.7- 0.8 mm
Tightening torque 22 ft. lbs. (30 Nm)
Firing order 1- 2- 4- 5- 3
WARNING!
The distributor ignition system operates at very high voltages. Special safety precautions must be followed to
prevent injury. Always turn the ignition off when:
áReplacing distributor ignition components e. g. plugs, coil, etc.
ProCarManuals.com

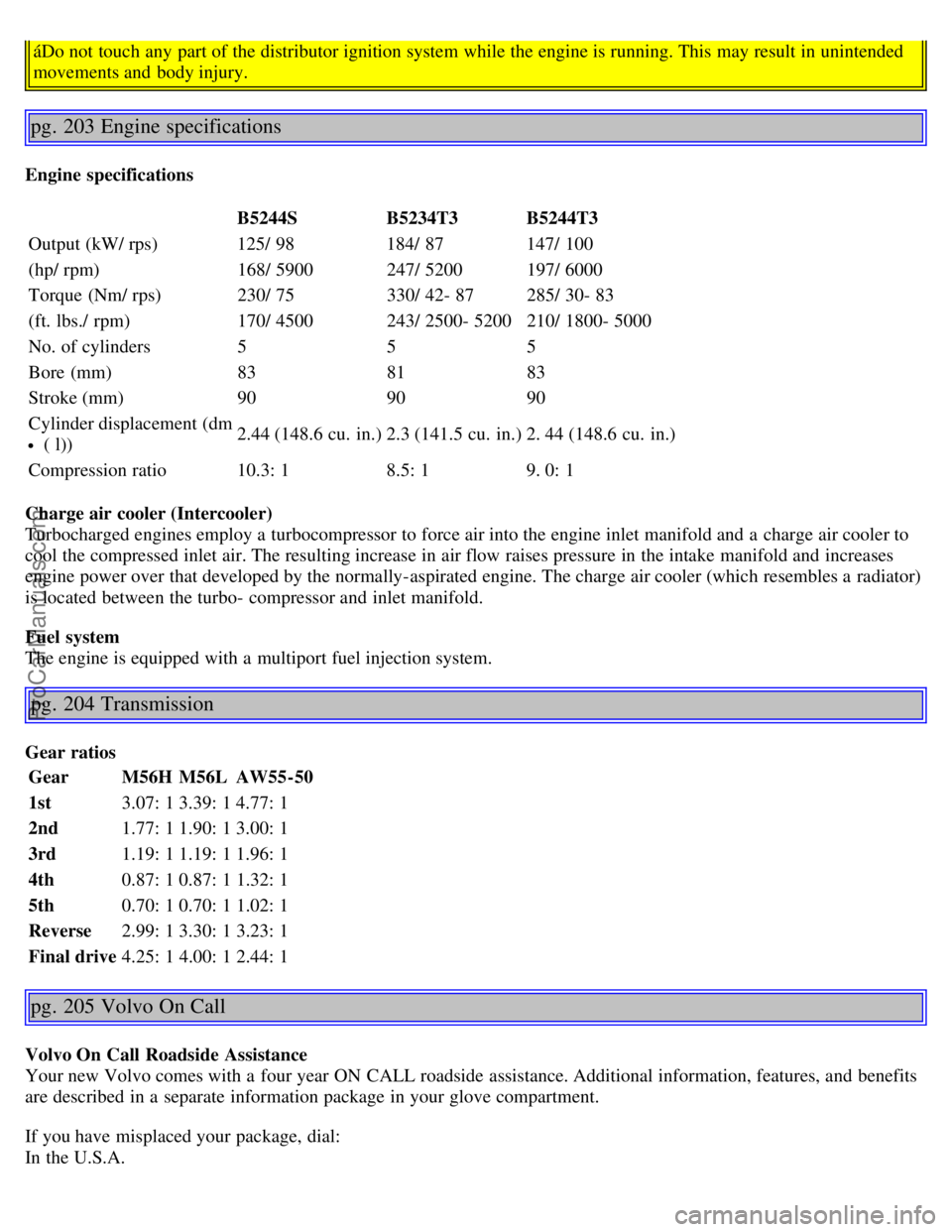

áDo not touch any part of the distributor ignition system while the engine is running. This may result in unintended
movements and body injury.
pg. 203 Engine specifications
Engine specificationsB5244SB5234T3B5244T3
Output (kW/ rps) 125/ 98184/ 87147/ 100
(hp/ rpm) 168/ 5900247/ 5200197/ 6000
Torque (Nm/ rps) 230/ 75330/ 42- 87285/ 30- 83
(ft. lbs./ rpm) 170/ 4500243/ 2500- 5200210/ 1800- 5000
No. of cylinders 555
Bore (mm) 838183
Stroke (mm) 909090
Cylinder displacement (dm
( l)) 2.44 (148.6 cu. in.)
2.3 (141.5 cu. in.)2. 44 (148.6 cu. in.)
Compression ratio 10.3: 18.5: 19. 0: 1
Charge air cooler (Intercooler)
Turbocharged engines employ a turbocompressor to force air into the engine inlet manifold and a charge air cooler to
cool the compressed inlet air. The resulting increase in air flow raises pressure in the intake manifold and increases
engine power over that developed by the normally-aspirated engine. The charge air cooler (which resembles a radiator)
is located between the turbo- compressor and inlet manifold.
Fuel system
The engine is equipped with a multiport fuel injection system.
pg. 204 Transmission
Gear ratios Gear M56HM56LAW55-50
1st 3.07: 13.39: 14.77: 1
2nd 1.77: 11.90: 13.00: 1
3rd 1.19: 11.19: 11.96: 1
4th 0.87: 10.87: 11.32: 1
5th 0.70: 10.70: 11.02: 1
Reverse 2.99: 13.30: 13.23: 1
Final drive 4.25: 14.00: 12.44: 1
pg. 205 Volvo On Call
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits
are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
ProCarManuals.com

1-800-638-6586 (1-800-63-VOLVO)
In Canada:
1-800263-0475

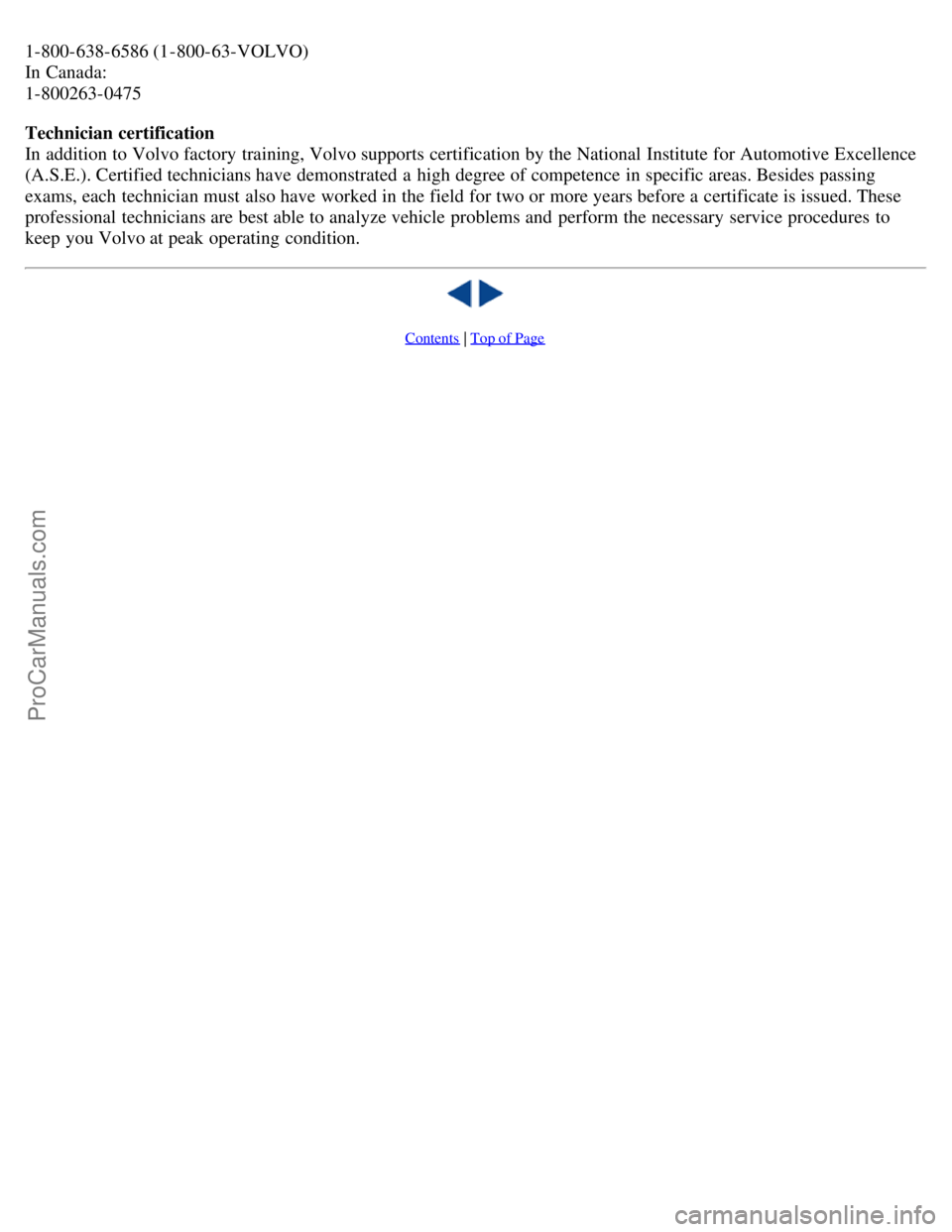

Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institute for Automotive Excellence
(A.S.E.). Certified technicians have demonstrated a high degree of competence in specific areas. Besides passing
exams, each technician must also have worked in the field for two or more years before a certificate is issued. These
professional technicians are best able to analyze vehicle problems and perform the necessary service procedures to
keep you Volvo at peak operating condition.
