2002 TOYOTA RAV4 Owners Manual

’02 Rav4_U (L/O 0108)
322002 MY RAV4_U (OM42503U)
BEFORE FOLDING UP REAR SEAT
Stow the rear center seat belt, do the
following:1. Pull the seat belt out of its cover a little and insert the concave end tab
into the higher slot of the cover.2. Insert the round end tab into thecover. You will hear a click when the
tabs are locked in the seat belt cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
FOLDING UP REAR SEATS
1. Hold the center of the lever and pull it up. Then slide the front seat fully
forward.
Folding up the rear seats will enlarge the
luggage compartment. See “Luggage stow-
age precautions” on page 164 in Section
2 for precautions in loading luggage.
—Folding up rear seats

’02 Rav4_U (L/O 0108)
332002 MY RAV4_U (OM42503U)
2. Hold the center of the lever and pullit up. Then slide the rear seat fully
backward and pull it forward slightly
till it locks.3. Lower the head restraint to the low-est position. Pull up the strap to
unlock the seatback and fold the
seatback forward until it locks.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.
4. Pull up the seat cushion lock releaselever and swing the whole seat up
and forward.

’02 Rav4_U (L/O 0108)
342002 MY RAV4_U (OM42503U)
5. Make sure the front legs are lockedand the seat is securely locked in
position.RETURNING REAR SEATS
1. To unlock the seat, hold the upper back of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.2. Pull the seatback lock release strapand swing the seatback up.

’02 Rav4_U (L/O 0108)
352002 MY RAV4_U (OM42503U)
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.1. Fold up rear seats. (See “—Foldingup rear seats” on page 32 in this
section for instructions.)2. Unlock the seat by pulling the lockrelease lever. Pull the seat toward
you slightly and lift.
Removing the rear seats will enlarge the
luggage compartment. See “Luggage stow-
age precautions” on page 164 in Section
2 for precautions in loading luggage.
—Removing rear seats

’02 Rav4_U (L/O 0108)
362002 MY RAV4_U (OM42503U)
CAUTION
When removing the seat, observe the
following precautions in order to pre-
vent personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
NOTICE
Avoid putting heavy loads on the re-
moved seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.1. While pulling up the lock release le-
ver, place the rear hinge into the
rear hook on the floor.2. Push the seat forward until it locks.
—Reinstalling rear seats

’02 Rav4_U (L/O 0108)
372002 MY RAV4_U (OM42503U)
3. To unlock the seat, hold the upperback of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.4. Pull the seatback lock release strapand swing the seatback up.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
When removing or reinstalling the
seat, observe the following precau-
tions in order to prevent personal in-
jury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.

’02 Rav4_U (L/O 0108)
382002 MY RAV4_U (OM42503U)
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent rear
seat occupants from using seat
belts properly.
For flattening seatbacks, do the follow-
ing: 1. Hold the center of the lever and pull it up. Then slide the rear seat fully
backward and pull it forward slightly
till it locks.2. Remove the head restraint. Hold thecenter of the lever and pull it up.
Then slide the seat further forward
than the frontmost lock position.
Flattening seatbacks
(front seat only)

’02 Rav4_U (L/O 0108)
392002 MY RAV4_U (OM42503U)

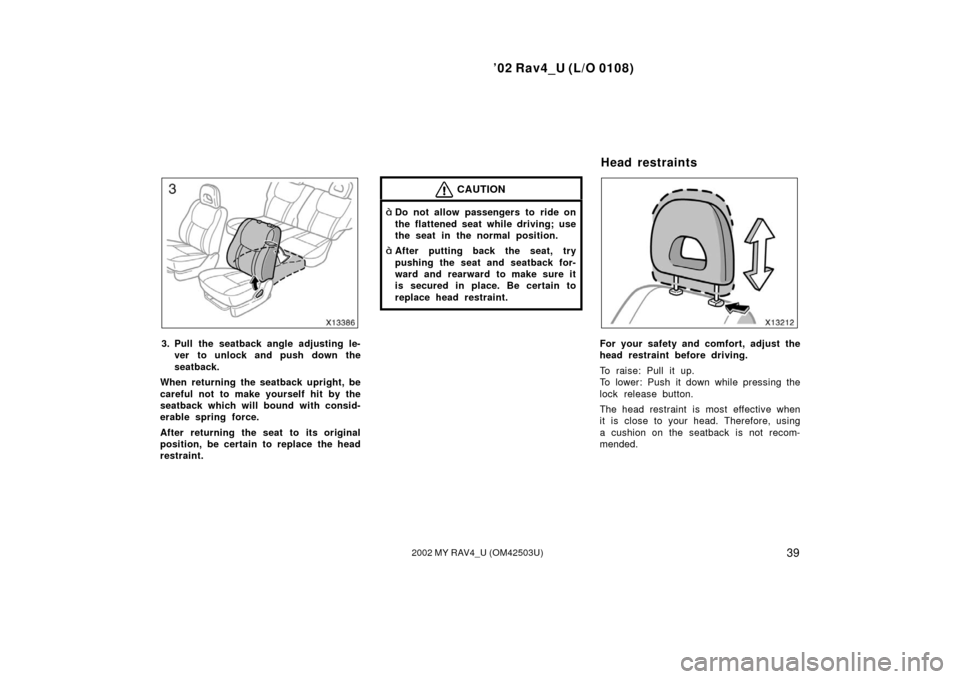

3. Pull the seatback angle adjusting le-ver to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
Head restraints
