2002 TOYOTA LAND CRUISER Owners Manual

’02 L/C U (L/O 0108)
61
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all 50 states in the U.S.A.
now require the use of a child restraint
system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See ”Seat belts” in this
section for details.

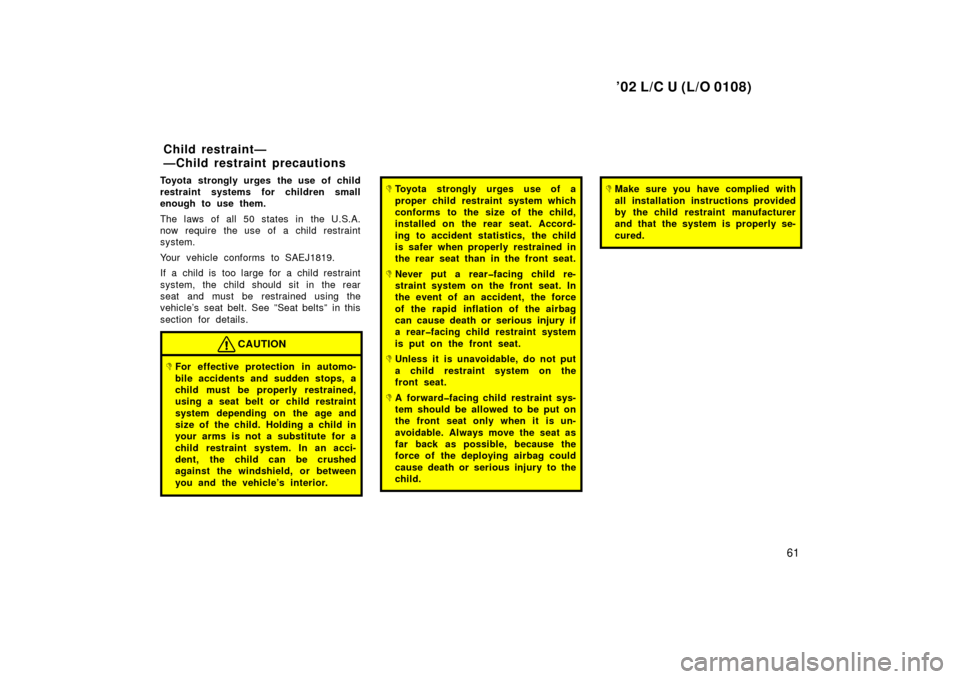

CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never put a rearfacing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rearfacing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put
a child restraint system on the
front seat.
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured.
Child restraint—
—Child restraint precautions

’02 L/C U (L/O 0108)
62
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer ’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than

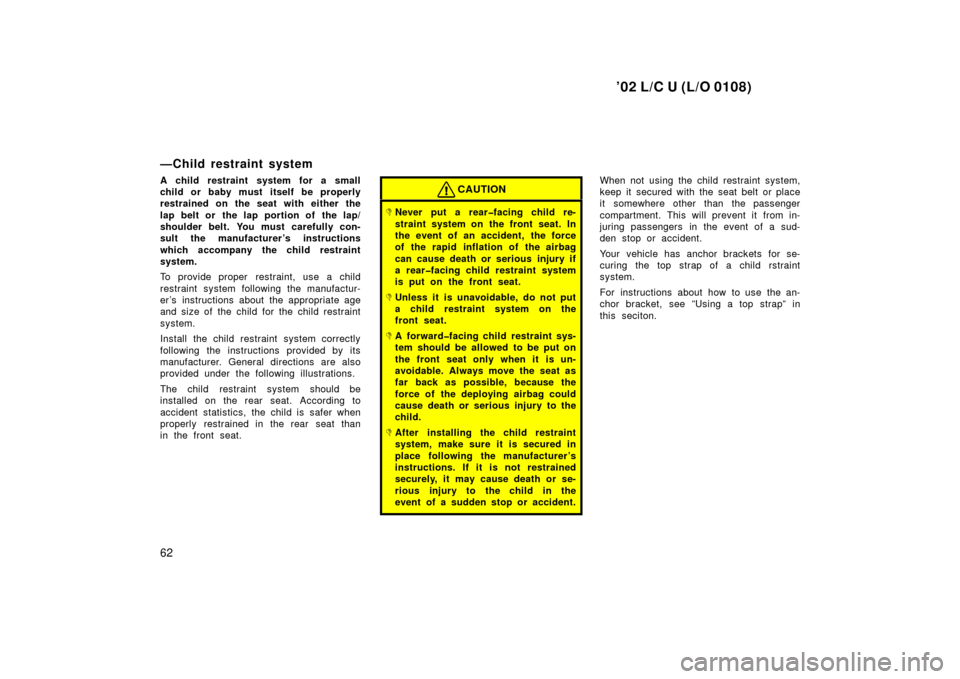

in the front seat.CAUTION
Never put a rearfacing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rearfacing child restraint system
is put on the front seat.
Unless it is unavoidable, do not put
a child restraint system on the
front seat.
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
After installing the child restraint
system, make sure it is secured in
place following the manufacturer ’s
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.
Your vehicle has anchor brackets for se-
curing the top strap of a child rstraint
system.
For instructions about how to use the an-
chor bracket, see ”Using a top strap” in
this seciton.

’02 L/C U (L/O 0108)
63

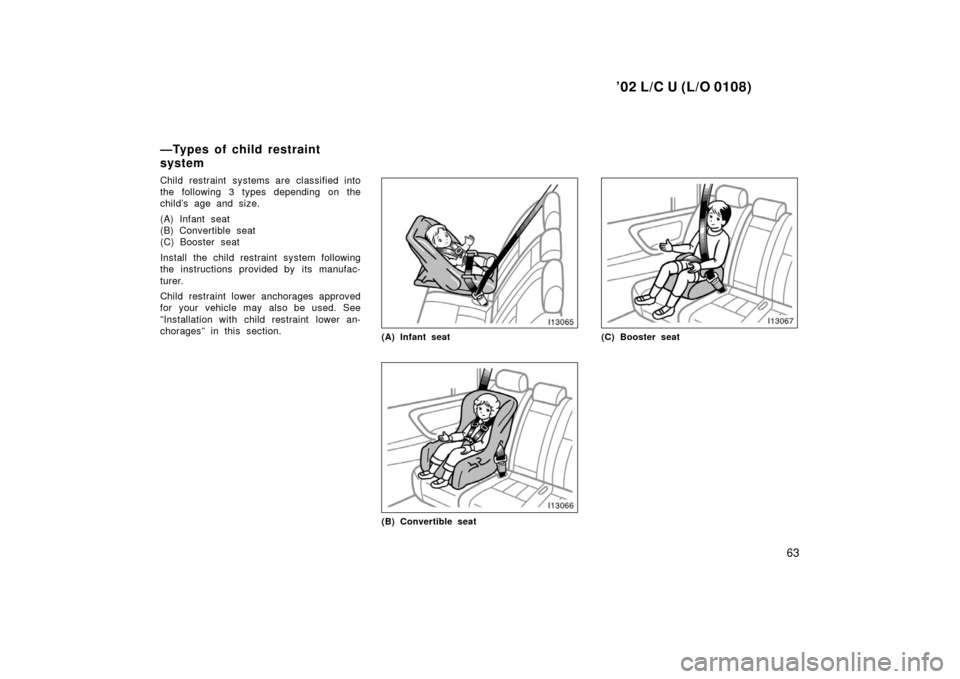

Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Child restraint lower anchorages approved
for your vehicle may also be used. See
”Installation with child restraint lower an-
chorages” in this section.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system

’02 L/C U (L/O 0108)
64

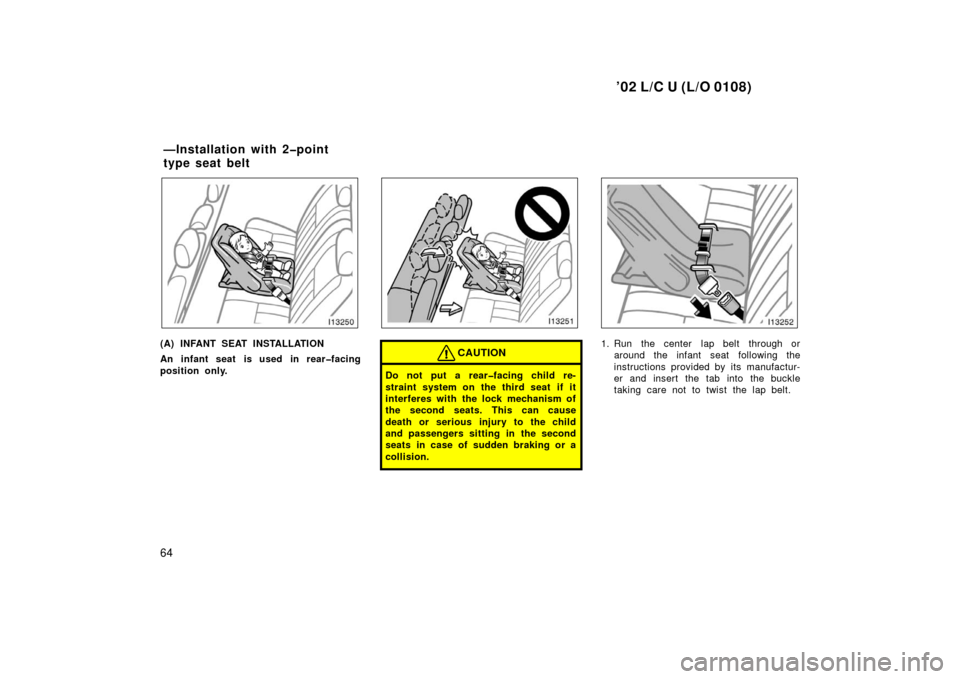

(A) INFANT SEAT INSTALLATION
An infant seat is used in rearfacing
position only.CAUTION
Do not put a rearfacing child re-
straint system on the third seat if it
interferes with the lock mechanism of
the second seats. This can cause
death or serious injury to the child
and passengers sitting in the second
seats in case of sudden braking or a
collision.
1. Run the center lap belt through oraround the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the lap belt.
—Installation with 2point
type seat belt

’02 L/C U (L/O 0108)
65

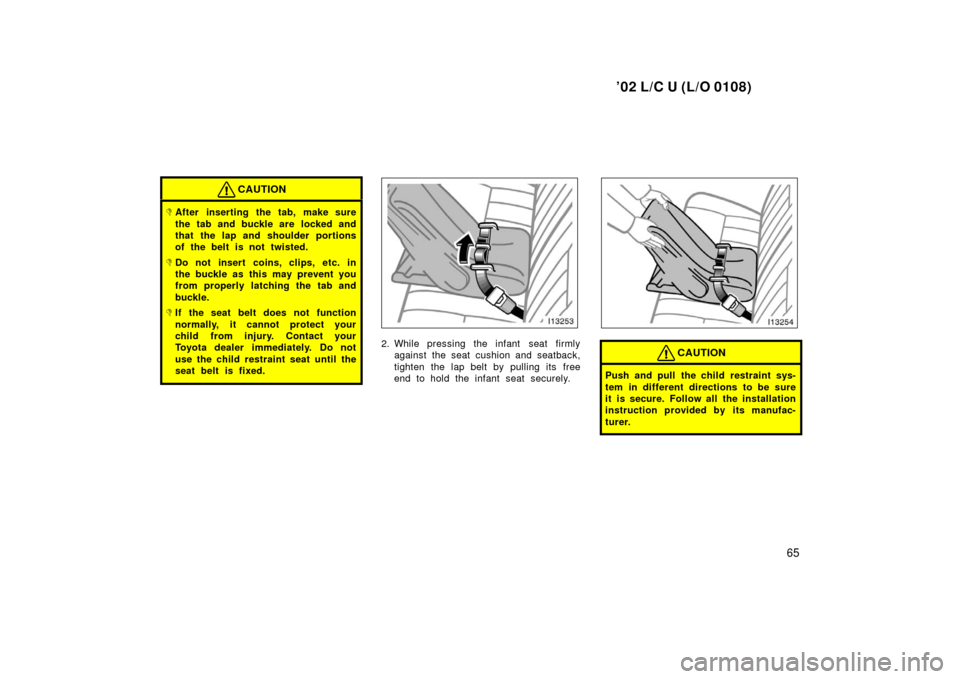

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2. While pressing the infant seat firmlyagainst the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instruction provided by its manufac-
turer.

’02 L/C U (L/O 0108)
66
3. To remove the infant seat, press thebucklerelease button.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s
instruction about the applicable child’s
age and size as well as directions for
installing the child restraint system.CAUTION
Do not put a rearfacing child re-
straint system on the third seat if it
interferes with the lock mechanism of
the second seats. This can cause
death or serious injury to the child
and passengers sitting second seats
in case of sudden braking or a colli-
sion.

’02 L/C U (L/O 0108)
67

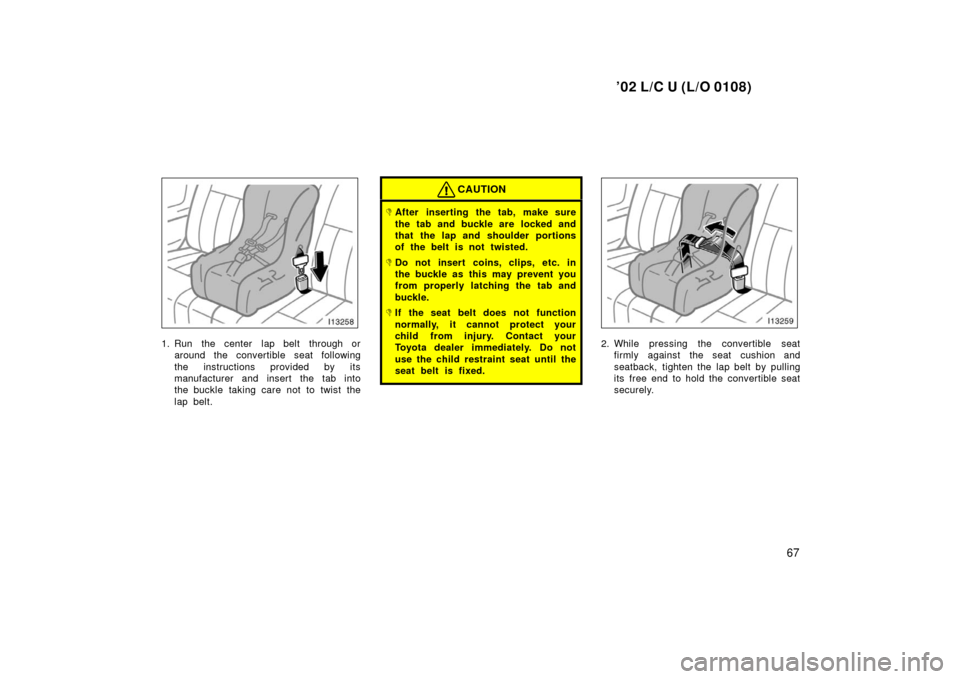

1. Run the center lap belt through oraround the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2. While pressing the convertible seatfirmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.

’02 L/C U (L/O 0108)
68

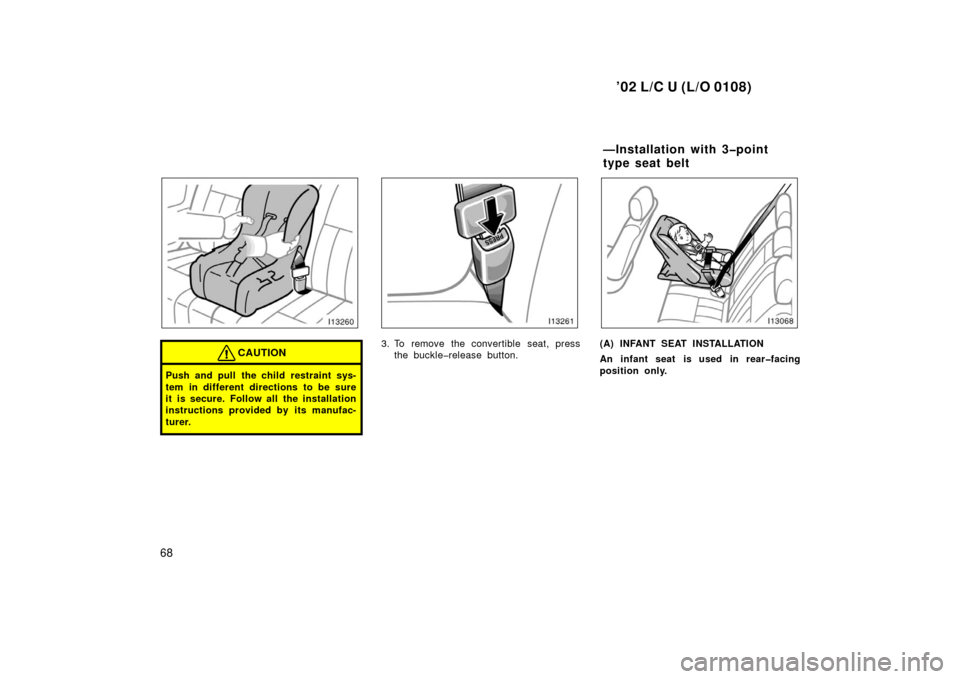

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the convertible seat, pressthe bucklerelease button.(A) INFANT SEAT INSTALLATION
An infant seat is used in rearfacing
position only.
—Installation with 3point
type seat belt
