2002 TOYOTA LAND CRUISER Owners Manual

’02 L/C U (L/O 0108)
261
2. Turn the bulb base counterclockwiseto the front of the vehicle as shown.3. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.4. Install a new bulb base by turning it clockwise to the front of the vehicle.
LEFT–HAND HEADLIGHT: Install the
washer inlet securely.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’02 L/C U (L/O 0108)
262
—Front fog lights
1. Turn the bulb base counterclockwiseto the front of the vehicle as shown.2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb base by turning it clockwise to the front of the vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’02 L/C U (L/O 0108)
263
Use a Phillips–head screwdriver.
—Parking lights
Use a Phillips–head screwdriver.

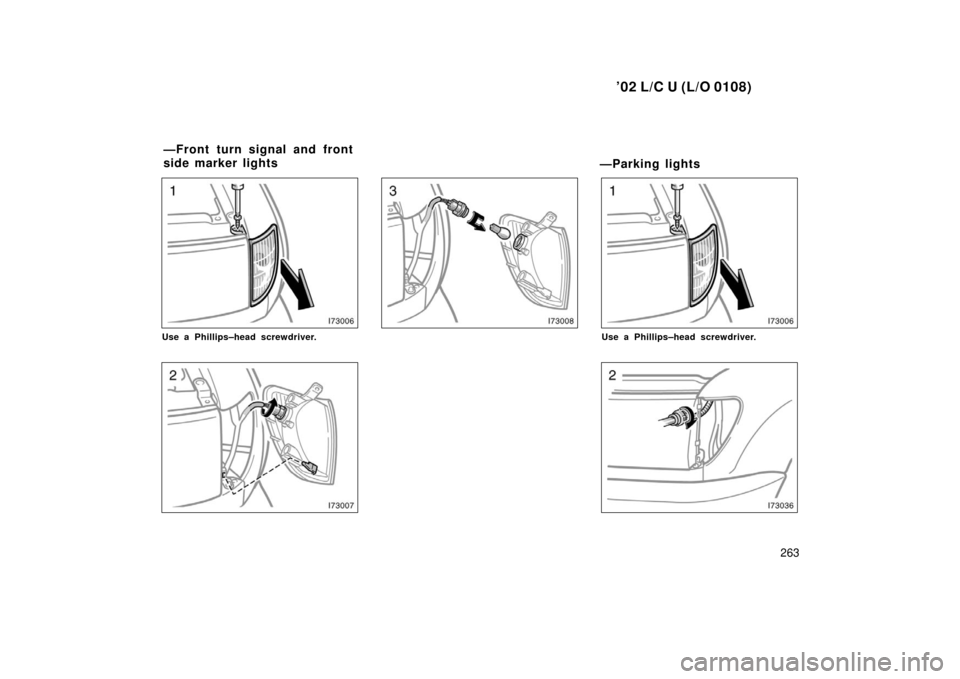

—Front turn signal and front
side marker lights

’02 L/C U (L/O 0108)
264
Use a Phillips–head screwdriver.
—Stop and tail lights

’02 L/C U (L/O 0108)
265

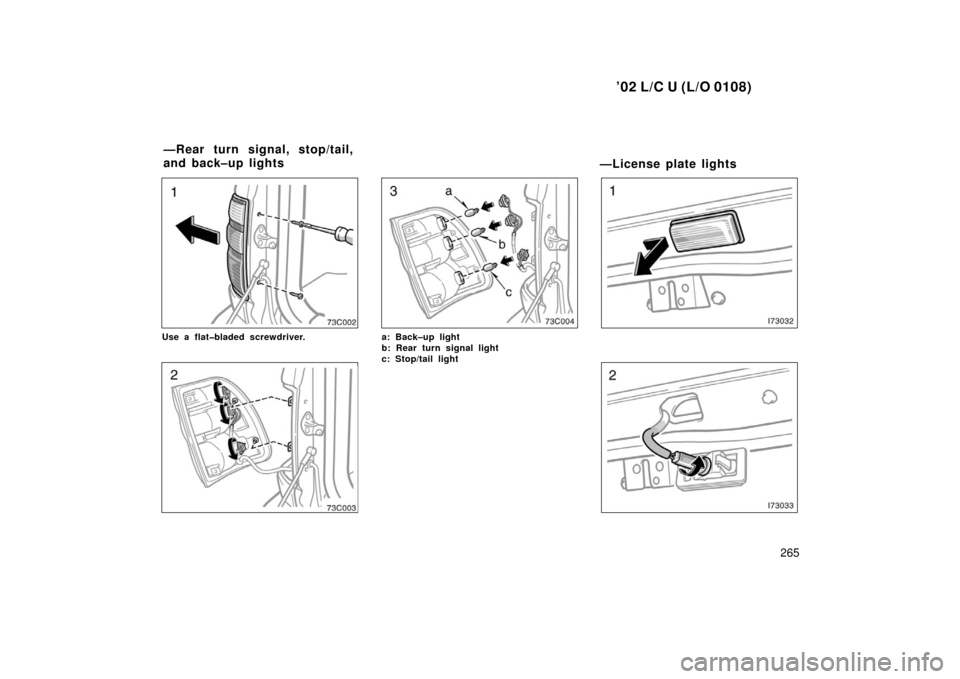

Use a flatbladed screwdriver.a: Back–up light
b: Rear turn signal light
c: Stop/tail light

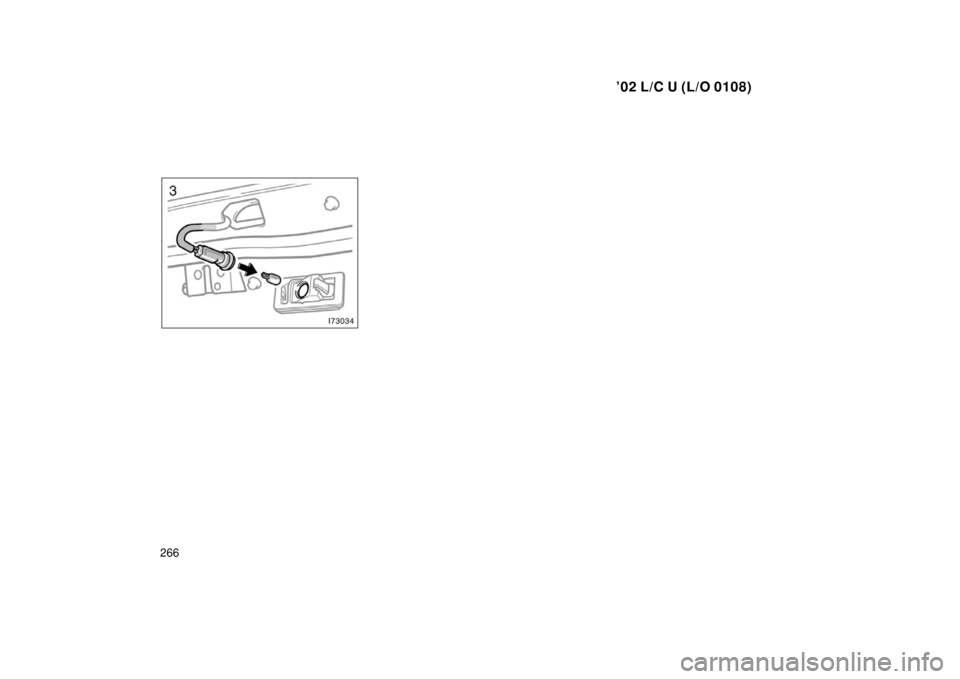

—License plate lights
—Rear turn signal, stop/tail,
and back–up lights

’02 L/C U (L/O 0108)
266

’02 L/C U (L/O 0108)
267
SPECIFICATIONS
Dimensions and weight268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Engine 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 269
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’02 L/C U (L/O 0108)
268
Dimensions and weight
Overall length mm (in.) 4890 (192.5)
Overall width mm (in.) 1940 (76.4)
Overall height mm (in.) 1875 (73.8)
∗1
Wheelbase mm (in.) 2850 (112.2)
Front tread mm (in.) 1620 (63.8)
Rear tread mm (in.) 1615 (63.6)
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 590 (1300)
562 (1240)
∗2
∗ 1
: Unladen vehicle∗2: With third seats
Engine
Model:
2UZFE
Type: 8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0  84.0 (3.70  3.30)
Displacement, cm
3 (cu. in.):
4664 (284.6)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.): 96 (25.4, 21.1)
