Page 273 of 286

TOYOTA LAND CRUISER 2002 J100 Owners Manual ’02 L/C U (L/O 0108)
269
Service specifications

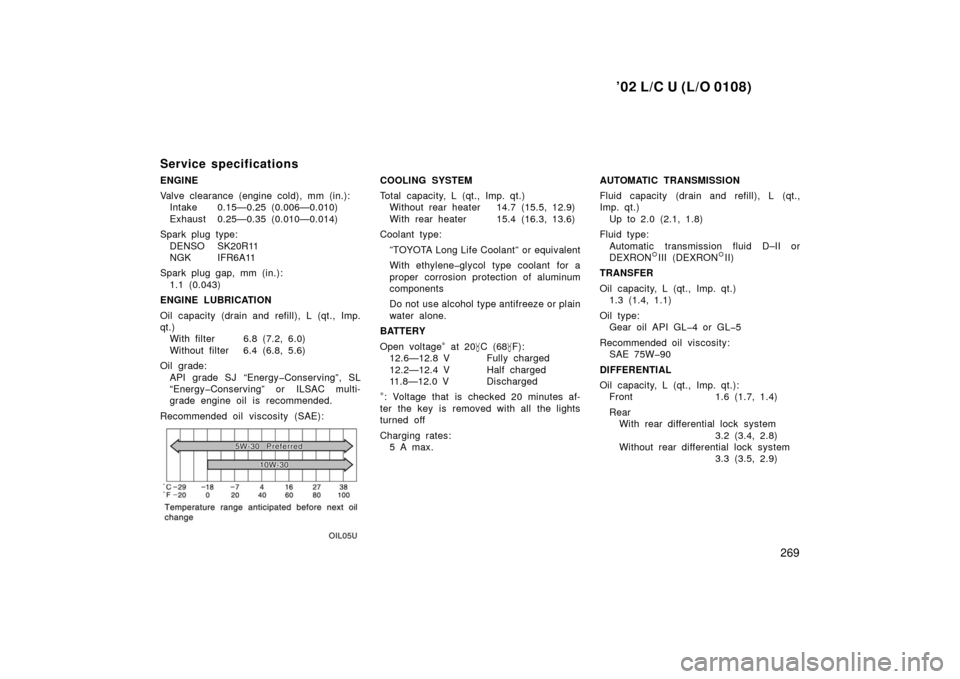

ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
N

Page 276 of 286

TOYOTA LAND CRUISER 2002 J100 Owners Manual ’02 L/C U (L/O 0108)
272
16. HEAD (RH�UPR) 20 A: Right�hand
headlight (high beam)
17. HEAD (LH�LWR) 10 A: Left�hand headlight (low beam), front fog lights
18. HEAD (RH�LWR) 10 A: Right�hand headligh

’02 L/C U (L/O 0108)
272
16. HEAD (RHUPR) 20 A: Righthand
headlight (high beam)
17. HEAD (LHLWR) 10 A: Lefthand headlight (low beam), front fog lights
18. HEAD (RHLWR) 10 A: Righthand headlight (low beam)
19. MIRR 10 A: Power rear view mirror
20. SRS 15 A: SRS airbag system, seat
belt pretensioners
21. CIGAR 15 A: Cigarette lighter, car au-
dio system, power antenna
22. IGN 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, antilock brake system, SRS
airbag system, seat belt pretensioners,
discharge warning light
23. DOME 10 A: Interior lights, personal
lights
24. AHCIG 20 A: No circuit
25. DIFF 20 A: Rear differential lock sys-
tem 26. GAUGE 15 A:
Gauges and meters,
service reminder indicators and warning
buzzer (except discharge, open door
and SRS airbag warning lights), back
up lights, air conditioning system, elec-
tronically controlled automatic transmis-
sion system, wireless remote control
system, daytime r unning light system
27. WIPER 25 A: Windshield wipers and
washer, rear window wiper and washer
28. I/UP 7.5 A: Engine idle up system
29. FR FOG 15 A: Front fog lights
30. STOP 15 A: Stop lights, high mounted
stoplight
31. RR A.C 30 A: Air conditioning system
32. DEFOG 20 A: Rear window defogger
33. ECUB 15 A: Power tilt and telescopic
steering system, daytime running light
system, theft deterrent system
34. TAIL 15 A: Tail lights, license plate
lights, parking lights, instrument panel
lights
35. AHCB 15 A: No circuit
36. OBD 10 A: Onboard diagnosis system
37. RR HTR 10 A: Air conditioning system 38. ECUIG 15 A:
Antilock brake system,
shift lock system, power seats, power
antenna, power tilt and telescopic
steering system
39. PWR OUTLET 15 A: Power outlets
Fuses (type B)
40. ABS NO.1 50 A: Antilock brake sys-
tem
41. AHC 50 A: No circuit
42. ACC 50 A: All components in ”PWR
OUTLET” fuse
43. ABS NO.2 40 A: Antilock brake sys-
tem
44. STARTER 30 A: Starting system
45. POWER 40 A: Power door lock control
system, power wi ndows, electric moon
roof, power seat, power tilt and tele-
scopic steering system
Fuses (type C)
46. MAIN 100 A: No circuit
47. ALT 140 A: All components in ”J/B
NO.2”, ”MIR HTR”, ”AM1 NO.1”, ”ACC”,
”CDS FAN”, ”HTR” and ”ABS NO.1”
fuses
48. J/B NO.2 100 A: All components in
”ECUB”, ”FR FOG”, ”DEFOG”, ”AHC
B
”, ”TAIL”, ”STOP”, ”DOME”, ”POWER”,
”OBD”, ”RR A.C” and ”RR HTR” fuses

Page 281 of 286

TOYOTA LAND CRUISER 2002 J100 Owners Manual ’02 L/C U (L/O 0108)
277
Tread wear—The tread wear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. F

’02 L/C U (L/O 0108)
277
Tread wear—The tread wear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (11/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, C— The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction. Temperature A, B, C—
The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades
B and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.

Page 283 of 286

TOYOTA LAND CRUISER 2002 J100 Owners Manual ’02 L/C U (L/O 0108)
v
Publication No. OM60945U
Part No. 01999-60945
Printed in Japan 01−0108 −00
(U)
Quick index
If a service reminder indicator or warning buzzer comes on cxlix . . .
If y

Page 285 of 286

TOYOTA LAND CRUISER 2002 J100 Owners Manual ’02 L/C U (L/O 0108)
vii
Where to obtain the Repair Manual
The repair manual for LAND CRUISER, written
in English, may be purchased as applicable from
any Toyota dealer.
Pub. Name: 2002 LAND CRUISER
