TRACK (Track up/down button):
compact disc auto changer
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, quickly push the down side of the
button one time.
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off.
By pushing “TRAF” button, “TRAF SEEK”
appears on the display and the radio will
start seeking any traffic program station.
When a traffic program station is found,
“< >” will be displayed () and you
will hear a beep.
After the traffic announcement program is
over, a beep sounds and the display re-
turns to the previous mode.If no traffic program station is found, “NO
TRAF INFO” appears on the display for a
few seconds and the display returns to
the previous mode. However, if the
“TRAF” button is pushed when the cas-
sette player or compact disc player is on,
the radio will start seeking traffic program
stations.
TA volume memory function—The volume
level when receiving the traffic announce-
ment is memorized.
When “TA” is received next time, the sys-
tem compares the volume before “TA” is
received and the memorized TA volume
and automatically selects the louder vol-
ume. However, the range of volume
memory is limited: if the volume received
previously is less than the minimum, this
volume will be used.
You can adjust the volume independently
from the memorized TA volume range
while receiving a TA station.
Traffic announcement can be canceled by
turning RDS off, or pressing the “TRAF”
button again.TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.
TYPE (Program Types)
When you push the “TYPE” button while
receiving an RDS station, the current pro-
gram type appears on the display.
Each time you push the “TYPE” button,
the program type changes as in the fol-
lowing:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC
ALERT (Emergency message)
ALERT: If an emergency broadcast is re-
ceived during reception of anything other
than AM broadcasting, you will hear a
beep and “ALERT” appears on the display.

AP_Camry_U (L/O 0201)
1392002 MY CAMRY_U (OM33567U)
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi
−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Car audio system operating
hints

AP_Camry_U (L/O 0201)
1462002 MY CAMRY_U (OM33567U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

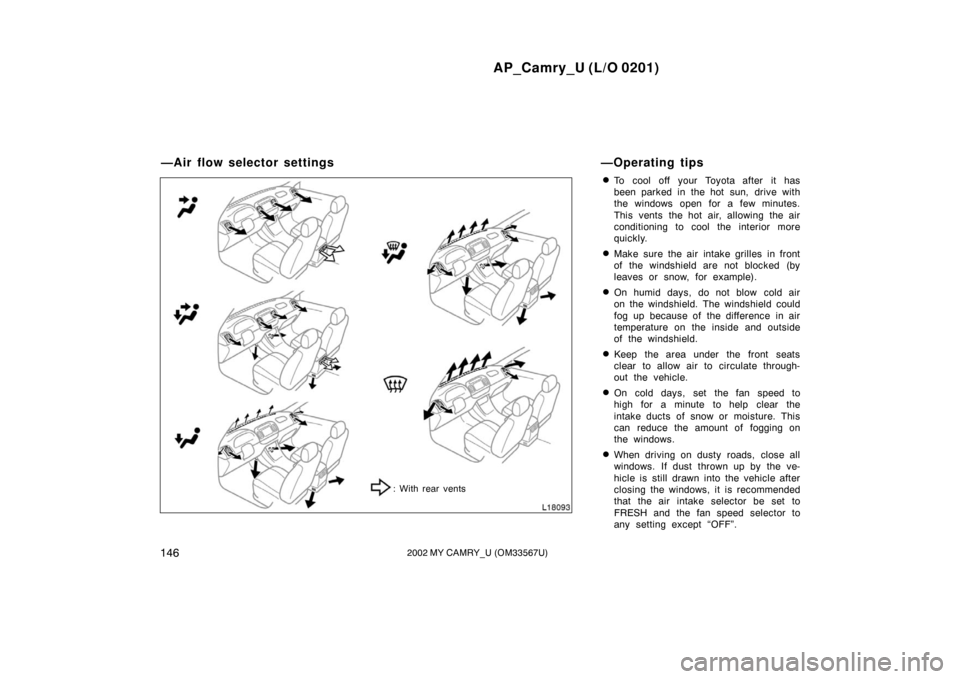

—Air flow selector settings
: With rear vents
—Operating tips

AP_Camry_U (L/O 0201)
1532002 MY CAMRY_U (OM33567U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
—Air flow selector settings
: With rear vents
—Operating tips

AP_Camry_U (L/O 0201)
1602002 MY CAMRY_U (OM33567U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature gauge 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi −information display 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Compass 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power outlets 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Garage door opener 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Glove box 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Front cup holder 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear cup holder 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Storage box 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Luggage net 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear sunshade 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 177
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

AP_Camry_U (L/O 0201)
1612002 MY CAMRY_U (OM33567U)
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.With multiinformation display
Without multiinformation display
The outside temperature gauge indi-
cates outside air temperatures when the
ignition switch is on.
Without multi−information display—To se-
lect “ C” or “ F”, push the “E/M” button.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F).
If there is some abnormality in the con-
nection of the outside air temperature
sensor, “ −−” will appear on the display. If
“ −−” appears on the display, contact your
Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition is quickly
turned to “ON”. It is normal if it goes out
soon.
Clock Outside temperature gauge

AP_Camry_U (L/O 0201)
1622002 MY CAMRY_U (OM33567U)
The following information is displayed
on the clock/outside temperature gauge
when you push the “CLOCK/INFO” but-
ton with the ignition switch turned on.
Each time you push the “MODE/RESET”
button, the display toggles through this
information.1. Instantaneous fuel consumption
2. Average fuel consumption
3. Driving range
4. Average vehicle speed
5. Driving time
The displayed values in the multi −informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
Push the “CLOCK/INFO” button once
again, the display will return to the clock
and outside temperature gauge.
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
Multiinformation display

AP_Camry_U (L/O 0201)
1682002 MY CAMRY_U (OM33567U)

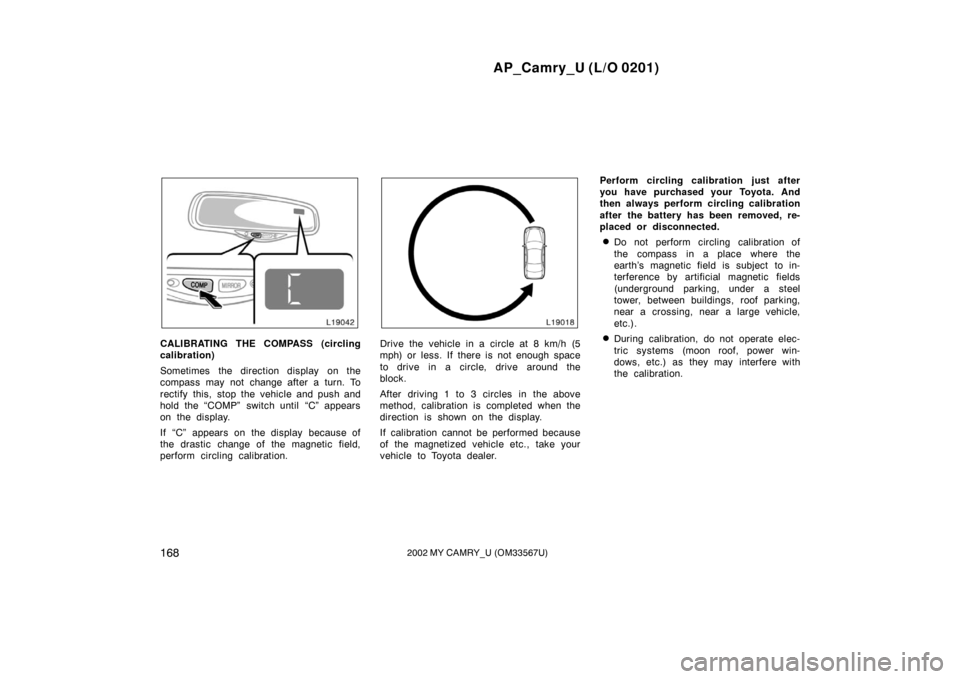

CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “COMP” switch until “C” appears
on the display.
If “C” appears on the display because of
the drastic change of the magnetic field,
perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
