2002 TOYOTA CAMRY lock

AP_Camry_U (L/O 0201)
722002 MY CAMRY_U (OM33567U)

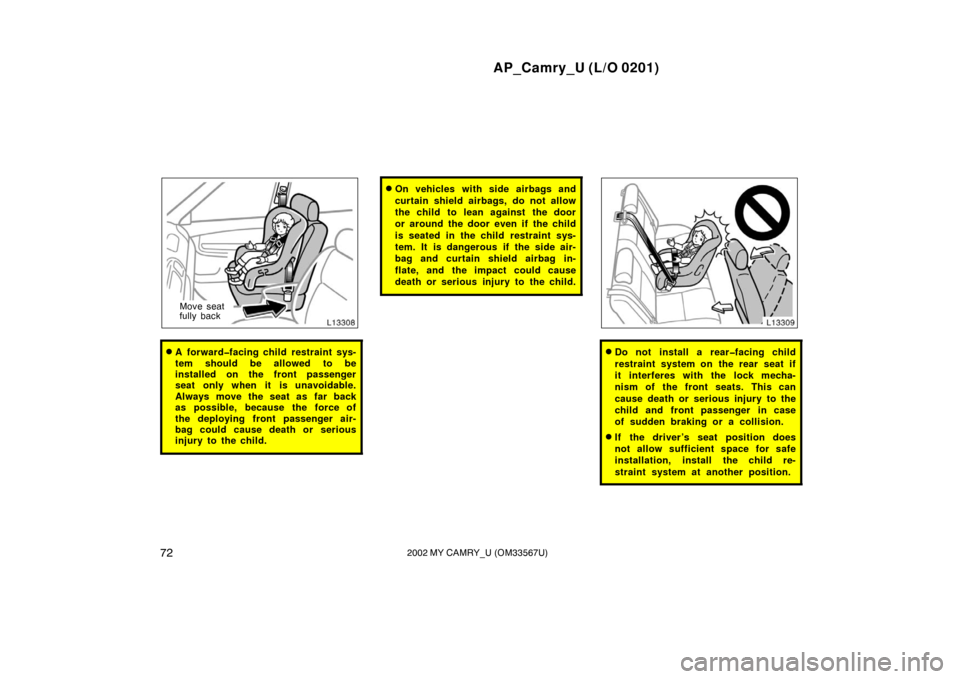

Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the door
or around the door even if the child
is seated in the child restraint sys-
tem. It is dangerous if the side air-
bag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not install a rearfacing child
restraint system on the rear seat if
it interferes with the lock mecha-
nism of the front seats. This can
cause death or serious injury to the
child and front passenger in case
of sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system at another position.

AP_Camry_U (L/O 0201)
732002 MY CAMRY_U (OM33567U)

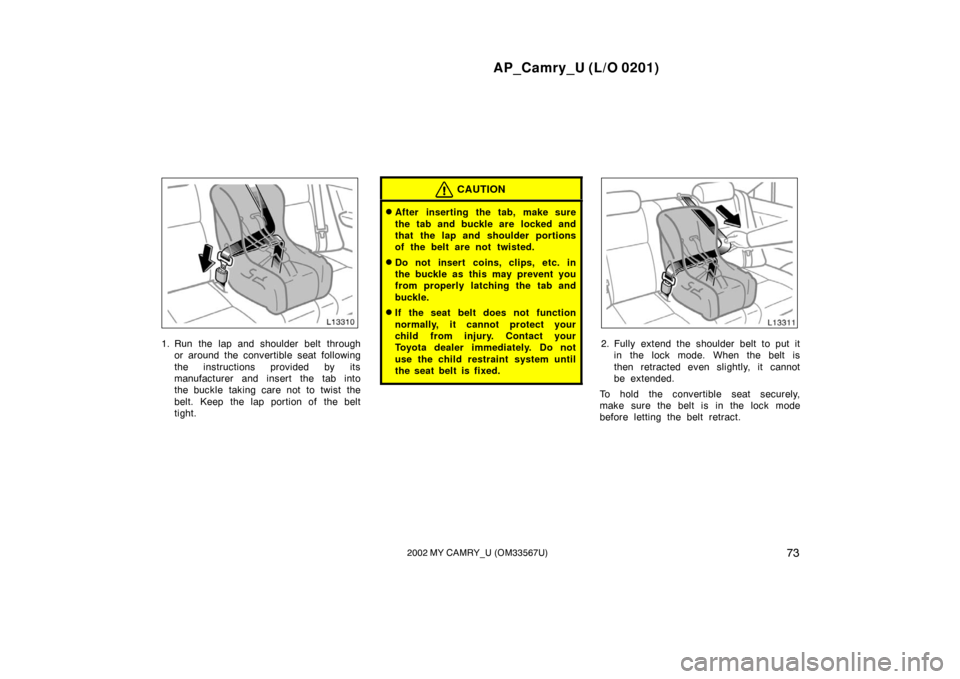

1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

AP_Camry_U (L/O 0201)
762002 MY CAMRY_U (OM33567U)

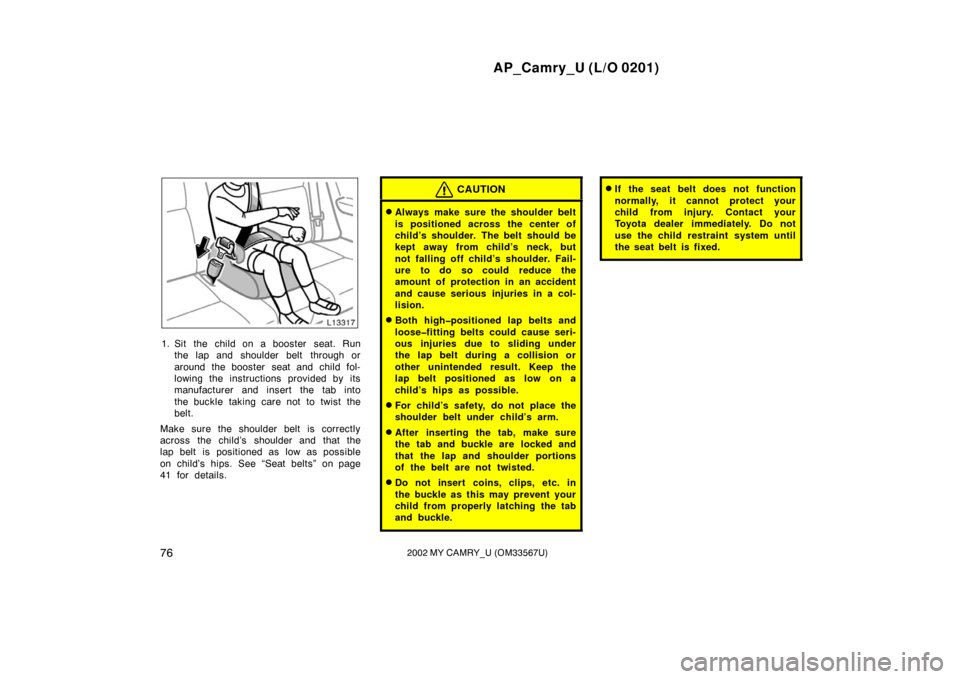

1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
41 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint system until
the seat belt is fixed.

AP_Camry_U (L/O 0201)
802002 MY CAMRY_U (OM33567U)
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages around the tag on the
seat cushion.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages around the tag on the
seat cushion.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 77 in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. This can cause death or
serious injury to the child and front
passenger in case of sudden brak-
ing or a collision.

AP_Camry_U (L/O 0201)
812002 MY CAMRY_U (OM33567U)

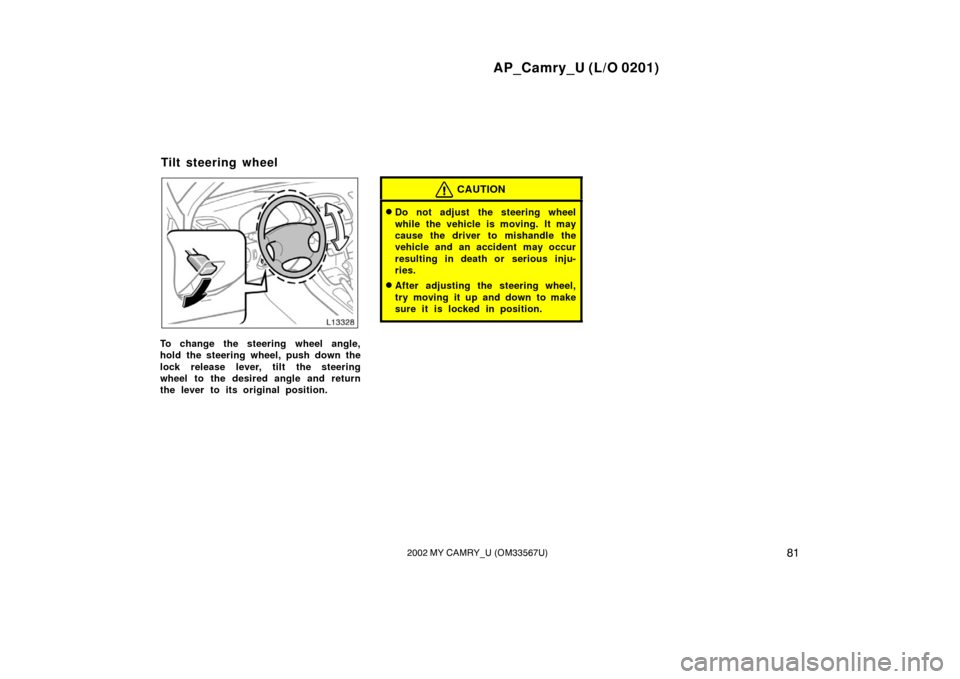

To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Tilt steering wheel

AP_Camry_U (L/O 0201)
872002 MY CAMRY_U (OM33567U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Automatic light cut off system
Position 1—
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position.Position 2—
The lights automatically turn off after 30
seconds in the following conditions:
When the ignition key is turned to the
“ACC” or “LOCK” position with all the
doors and trunk lid closed
When any of the door or trunk lid is
opened and closed with the ignition key
in the “ACC” or “LOCK” position
The lights can be turned off immediately
by pushing the “LOCK” switch on the wire-
less remote control transmitter with all the
doors locked and the trunk lid closed.
If any of the door or trunk lid is kept
opened, the lights automatically turn off
after 20 minutes.
To turn on the lights again, turn the igni-
tion key to the “ON” position or actuate
the headlight switch. If you are going to
park for over one week, make sure the
headlight switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light (DRL) system
Daytime Running Light (DRL) system can
make it easier for others to see the front
of your vehicle during the day. The DRL
system can be helpful in many different
driving conditions, but they can be espe-
cially helpful in the short periods after
dawn and before sunset.
The DRL system will make your headlights
come on at a reduced brightness when:
The light switch is in “DRL” position.
The ignition is on with the engine run-
ning.
The headlight switch is off.
The parking brake is released.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.
To turn off the DRL system, twist the knob
to the position 3 (“DRL OFF”) or turn the
ignition switch off.
Headlights and turn signals
(without automatic light
control system)

AP_Camry_U (L/O 0201)
892002 MY CAMRY_U (OM33567U)
The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
Automatic light cut off system
Position 1 or position 3 with the tail
lights on—
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position.Position 2 or position 3 with the head-
lights on—
The lights automatically turn off after 30
seconds in the following conditions:
When the ignition key is turned to the
“ACC” or “LOCK” position with all the
doors and trunk lid closed
When any of the door or trunk lid is
opened and closed with the ignition key
in the “ACC” or “LOCK” position
When the doors are locked by wireless
remote control transmitter, the lights auto-
matically turn off immediately.
If any of the door or trunk lid is kept
opened, the lights automatically turn off
after 20 minutes.
To turn on the lights again, turn the igni-
tion key to the “ON” position or actuate
the headlight switch. If you are going to
park for over one week, make sure the
headlight switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light (DRL) system
Daytime Running Light (DRL) system can
make it easier for others to see the front
of your vehicle during the day. The DRL
system can be helpful in many different
driving conditions, but they can be espe-
cially helpful in the short periods after
dawn and before sunset.
The DRL system will make your headlights
come on at a reduced brightness when:
The ignition is on with the engine run-
ning.
The headlight switch is off.
The parking brake is released.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.

AP_Camry_U (L/O 0201)
922002 MY CAMRY_U (OM33567U)
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the doors is opened. The light goes off
when all the doors are closed.ILLUMINATED ENTRY SYSTEM
With the switch in the “DOOR” position,
the light comes on when any door is
opened. After all the doors are closed, the
light remains on for about 15 seconds and
then goes out.
However, in the following cases, the light
go off immediately.
All the doors are closed when the igni-
tion key is in the “ACC” or “ON” posi-
tion.
The ignition key is turned to the “ACC”,
“ON”, or “START” after all the side
doors are closed.
All the doors are closed and locked.
When all the doors are unlocked with the
key or wireless remote control transmitter
simultaneously, the ignition switch light
comes on for about 15 seconds and then
fade out, even if the door is not opened.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at “DOOR” position
for 20 minutes or more.
For easy access to the ignition switch,
the ignition switch light comes on when
any of the doors are opened.
The light remains on for about 15 seconds
after all the doors are closed.
However, in the following cases, the light
go off immediately.
All the doors are closed when the igni-
tion key is in the “ACC” or “ON” posi-
tion.
The ignition key is turned to the “ACC”,
“ON”, or “START” after all the side
doors are closed.
All the doors are closed and locked.
Interior light Ignition switch light
