2002 TOYOTA CAMRY fuse

AP_Camry_U (L/O 0201)
1692002 MY CAMRY_U (OM33567U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and pay attention to people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Instrument panel
Rear console box
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlets are not in use. Insert-
ing a foreign object other than the
appropriate plug that fits the outlet,
or allowing any liquid into the out-
let may cause electrical failure or
short circuits.
Power outlets

AP_Camry_U (L/O 0201)
2422002 MY CAMRY_U (OM33567U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 246
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parts and tools 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

AP_Camry_U (L/O 0201)
2432002 MY CAMRY_U (OM33567U)

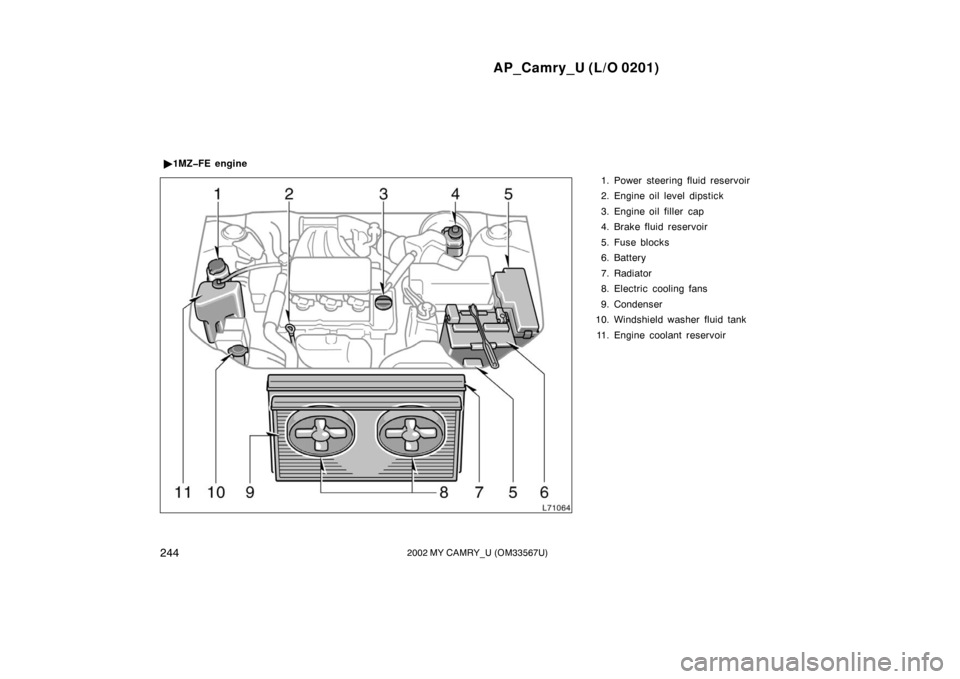

1. Power steering fluid reservoir
2. Engine oil filler cap
3. Engine oil level dipstick
4. Brake fluid reservoir
5. Fuse block
6. Battery
7. Radiator
8. Electric cooling fans
9. Condenser
10. Windshield washer fluid tank
11. Engine coolant reservoir
Engine compartment overview
 2AZFE engine

AP_Camry_U (L/O 0201)
2442002 MY CAMRY_U (OM33567U)
1. Power steering fluid reservoir
2. Engine oil level dipstick
3. Engine oil filler cap
4. Brake fluid reservoir
5. Fuse blocks
6. Battery
7. Radiator
8. Electric cooling fans
9. Condenser
10. Windshield washer fluid tank
11. Engine coolant reservoir

1MZFE engine

AP_Camry_U (L/O 0201)
2452002 MY CAMRY_U (OM33567U)

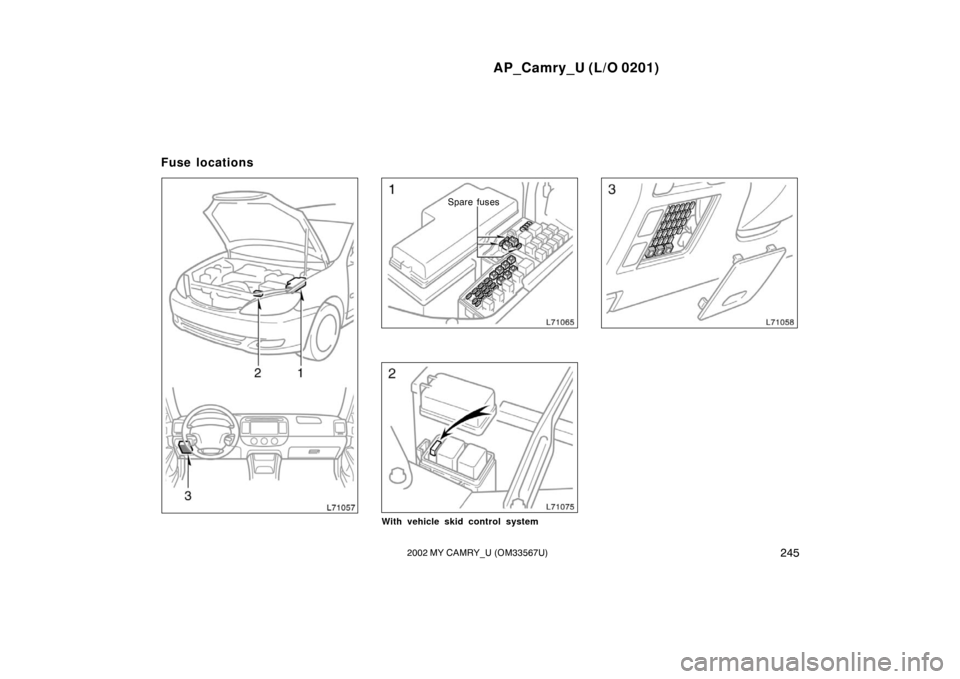

Spare fuses
With vehicle skid control system
Fuse locations

AP_Camry_U (L/O 0201)
2492002 MY CAMRY_U (OM33567U)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 266 in
Section 7 −3.)
Tools:
Screwdriver
Flat −bladed screwdriver

AP_Camry_U (L/O 0201)
2622002 MY CAMRY_U (OM33567U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition263
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 265
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

AP_Camry_U (L/O 0201)
2652002 MY CAMRY_U (OM33567U)
Ty p e A
Ty p e B
Ty p e CGood Blown
Good Blown Good Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 245 in Sec-
tion 7
−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 278 in Section 8 of this manual for
the functions controlled by each circuit. Type A fuses can be pulled out by the
pull
−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the
“MIR −HTR”, “CIG” or “POWER POINT”
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to, the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses
