2002 TOYOTA CAMRY Navigation Manual

Camry_Navi_U (L/O 0108)
502002 MY CAMRY NAVI_U (OM33559U)
2Detour route suggested by the sys-
tem
L00086

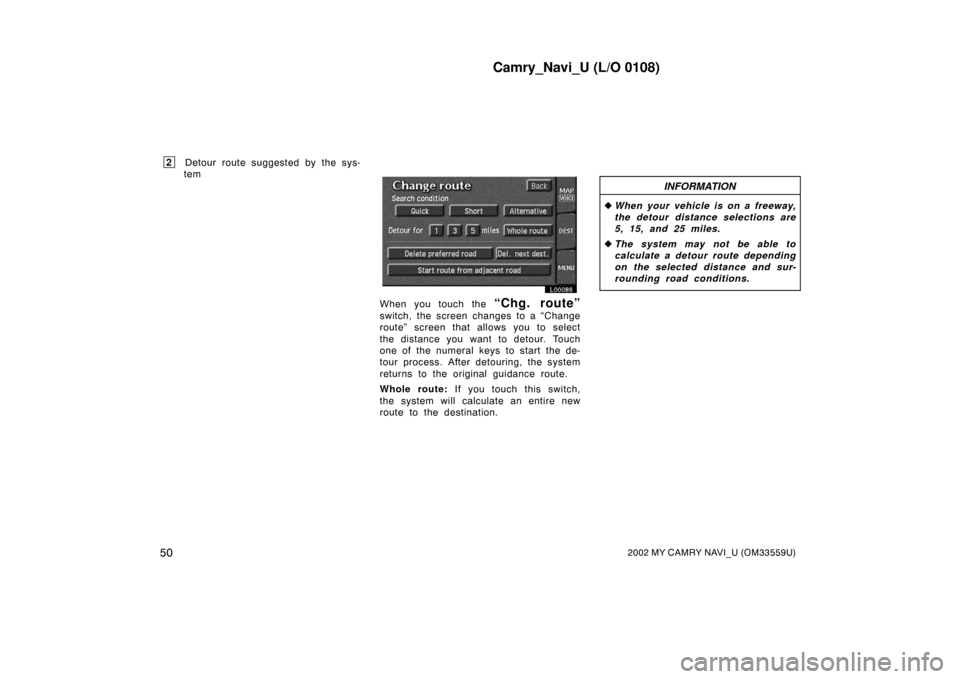

When you touch the “Chg. route”
switch, the screen changes to a “Change
route” screen that allows you to select
the distance you want to detour. Touch
one of the numeral keys to start the de-
tour process. After detouring, the system
returns to the original guidance route.
Whole route: If you touch this switch,
the system will calculate an entire new
route to the destination.
INFORMATION
 When your vehicle is on a freeway,
the detour distance selections are
5, 15, and 25 miles.
 The system may not be able to
calculate a detour route depending
on the selected distance and sur-
rounding road conditions.

Camry_Navi_U (L/O 0108)
512002 MY CAMRY NAVI_U (OM33559U)
Points of interest such as gas stations
and restaurants can be displayed on
the map screen. You can also set their
location as a destination and use them
for route guidance.
L00074
To display a particular type of point of
interest on the screen, touch the
“POI” switch on the map screen.
L00087
A window with a limited choice of points
of interest will be displayed. When you
touch your desired type of point of inter-
est, symbols will appear on the map
screen indicating where the POI address-
es are located.
L00088
More: If you cannot find your desired
point of interest on the limited choice
screen, touch this switch. The screen
then displays the complete POI listing
screen.
You can display up to 5 categories of
icons on the screen.
L00089
When you select a point of interest type
from either the limited list or the com-
plete list, the screen will display symbols
at those locations on the map screen.
Touching the
“Delete” switch will de-
lete the last selected icon.
Local POI list: If you want to search the
nearest point of interest, touch this
switch. Then choose one of the catego-
ries. The system will list the points within
20 miles.
You can sort the local POI list three dif-
ferent ways as follows.
Icon: In the order of the POI icons
Dist: In the order of distance from your
current location.
Name: In alphabetical order by name
Displaying POI

Camry_Navi_U (L/O 0108)
522002 MY CAMRY NAVI_U (OM33559U)
By turning the “Route” switch on, you
can search for POIs on the route when
in the route guidance mode.
Touch the
of your desired point of
interest. Points of interest which you
chose are displayed on the map screen.
To turn off the symbols of the points
of interest on the map screen, touch
the
“POI off” switch.
Setting a POI as a destination
You can select one of the points of
interest symbols on the map screen as
a destination and use it for a route
guidance.
L00090
Directly touch the symbol of the point
of interest that you want to set as a
destination. The map will shift so that the symbol is
centered on the screen and overlaps with
the cursor
. At this time, the distance
from your current position will be dis-
played on the screen. The distance
shown is as measured in a straight line
from the current vehicle position to the
POI.
The name of the point of interest and the
“Info.” switch on the screen are dis-
played at the top of the screen. When
you touch the
“Info.” switch on the
screen, the information such as the name
and address, etc. are displayed.
When your desired point of interest
overlaps with the cursor, touch the
“Enter” switch. The screen changes
and displays the map location of the
selected destination and route prefer-
ence. (See “(a) Entering destination”
on page 25.) You can change from the map screen
to a “Turn List” sc
reen that displays
the list of the roads up to your des-
tination. This list can be used for a
route guidance.
L00059
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Route overview” switch.
Tu r n l i s t

Camry_Navi_U (L/O 0108)
532002 MY CAMRY NAVI_U (OM33559U)
L00091

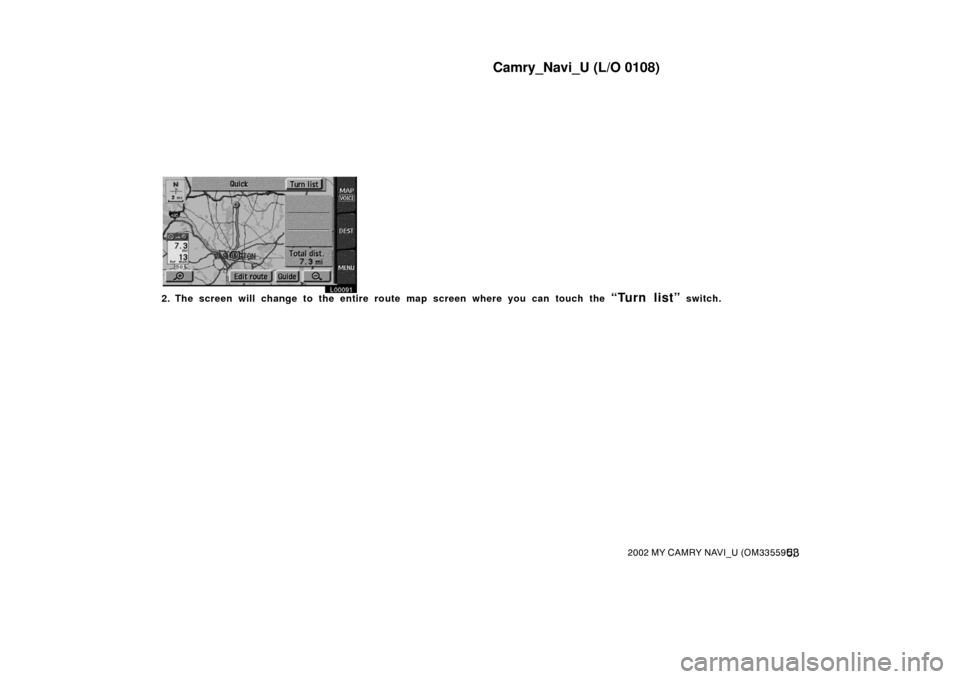

2. The screen will change to the entire route map screen where you can touch the “Turn list” switch.

Camry_Navi_U (L/O 0108)
542002 MY CAMRY NAVI_U (OM33559U)
L00092

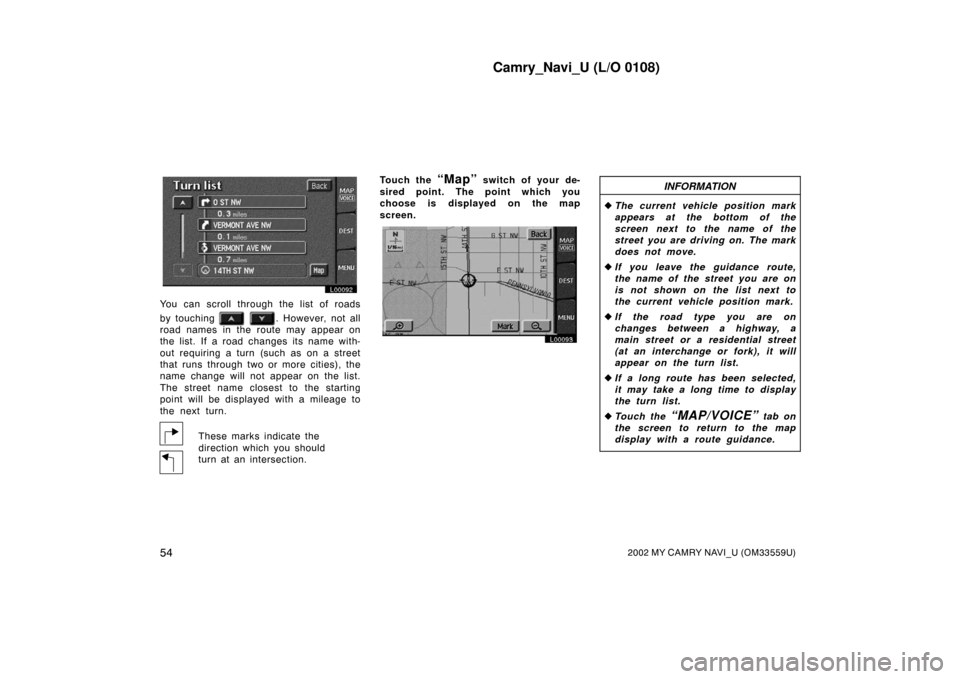

You can scroll through the list of roads
by touching
. However, not all
road names in the route may appear on
the list. If a road changes its name with-
out requiring a turn (such as on a street
that runs through two or more cities), the
name change will not appear on the list.
The street name closest to the starting
point will be displayed with a mileage to
the next turn.
These marks indicate the
direction which you should
turn at an intersection. Touch the
“Map” switch of your de-
sired point. The point which you
choose is displayed on the map
screen.
L00093
INFORMATION
 The current vehicle position mark
appears at the bottom of the
screen next to the name of the
street you are driving on. The mark
does not move.
 If you leave the guidance route,
the name of the street you are on
is not shown on the list next to
the current vehicle position mark.
 If the road type you are on
changes between a highway, a
main street or a residential street
(at an interchange or fork), it will
appear on the turn list.
 If a long route has been selected,
it may take a long time to display
the turn list.
 Touch the
“MAP/VOICE” tab on
the screen to return to the map
display with a route guidance.

Camry_Navi_U (L/O 0108)
552002 MY CAMRY NAVI_U (OM33559U)
You can select the single screen map
or the dual screen map. You can also
change the half of the screen to the
guidance screen by touching the map/
guidance switch
while the map screen
is displayed. You can choose one of
two types of guidance screens.
L00059
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Map appearance” switch.
Map appearance

Camry_Navi_U (L/O 0108)
562002 MY CAMRY NAVI_U (OM33559U)
L00094
2. The screen will change to the “Map appearance” screen and you can select the map mode and the guidance mode.
Map mode
To display single map screen
To display dual map screen
Guidance modeTo display arrow screen
To display turn list screen
To turn off guidance screen
Single map
L00074
This screen shows the single map. Dual map
L00097
The screen shows the dual map. The
map on the left is the main map. You can
change the scale of the right side map
by touching it. The screen turns into edit
mode. You can also choose to display
POI icons on the right side map.

Camry_Navi_U (L/O 0108)
572002 MY CAMRY NAVI_U (OM33559U)

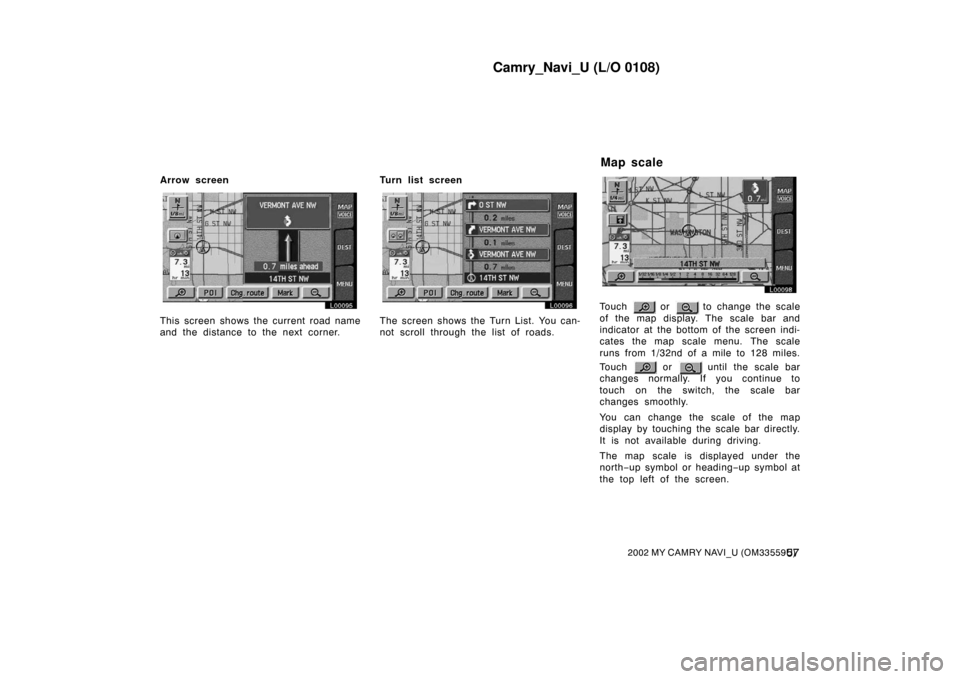

Arrow screen
L00095
This screen shows the current road name
and the distance to the next corner.Turn list screen
L00096
The screen shows the Turn List. You can-
not scroll through the list of roads.
L00098
Touch or to change the scale
of the map display. The scale bar and
indicator at the bottom of the screen indi-
cates the map scale menu. The scale
runs from 1/32nd of a mile to 128 miles.
Touch
or until the scale bar
changes normally. If you continue to
touch on the switch, the scale bar
changes smoothly.
You can change the scale of the map
display by touching the scale bar directly.
It is not available during driving.
The map scale is displayed under the
north −up symbol or heading −up symbol at
the top left of the screen.
Map scale
