2002 SUBARU FORESTER steering

Instruments and controls3-37
–
CONTINUED –
HB4002BA
1. Adjust the seat position. Refer to the “Front seat ” section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in place.
5. Make sure that the steering wheel is securely locked by moving it upand down.
Horn
OM-H0440
To sound the horn, push the horn pad.

7
Starting and operating Fuel7-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel requirements 7-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel filler lid and cap 7-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
State emission testing (U.S. only) 7-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing to drive 7-8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine 7-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine for a manual transmission vehicle 7-9 . . . . . . . . . .
Starting the engine for an automatic transmission vehicle 7-9 . . . . . .
Starting the engine during cold weather below –4
°F (–20°C) 7-10 . . .
Starting a flooded engine 7-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stopping the engine 7-11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 7-11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 7-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selector lever for automatic transmission 7-15 . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift lock release 7-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear viscous limited slip differential (LSD) (if equipped) 7-20 . . .
Power steering 7-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking 7-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking tips 7-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 7-22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disc brake pad wear warning indicators 7-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ABS (Anti-lock Brake System) 7-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) system (if equipped) 7-26 . . . . . .
VDC OFF switch 7-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking your vehicle 7-32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control (if equipped) 7-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting and operating7-11
–
CONTINUED –
Stopping the engine
WARNING
Do not stop the engine when the vehicle is moving. This will
cause loss of power to the power steering and the brake booster,making steering and braking more difficult. It could also result in
accidental activation of the “LOCK” position on the ignition
switch, causing the steering wheel to lock.
The ignition switch should be turned off only when the engine is idling.
Manual transmission
WARNING
Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutralposition. Engine braking has no effect in either of these condi-tions and the risk of an accident is consequently increased.
CAUTION
Shift into reverse ONLY when the vehicle has completelystopped. It may cause damage to the transmission to try shiftinginto reverse when the vehicle is moving.
The manual transmission is a fully synchromeshed 5-forward and 1-re-
verse speed transmission.

Starting and operating7-21
–
CONTINUED –
Power steering
CAUTION
Do not hold the steering wheel at the fully locked position left or right for more than five seconds. This may damage the powersteering pump.
The power steering system operates only when the engine is running.
If you lose power steering assist because the engine stops or the system
fails to function, you can steer but it will take much more effort. NOTE Right after the engine has been started and before it has warmed up, you may hear a noise coming from areas adjacent to the powersteering pump which is located at the right-front area of the enginecompartment. This noise is normal. It does not indicate power steer-ing system trouble. Braking Braking tips
WARNING
Never rest your foot on the brake pedal while driving. This can
cause dangerous overheating of the brakes and needless wearon the brake pads and linings.
When the brakes get wet
When driving in rain or after washing the vehicle, the brakes may get
wet. As a result, brake stopping distance will be longer. To dry the
brakes, drive the vehicle at a safe speed while lightly depressing thebrake pedal to heat up the brakes.

7-24
leave ample distance from other vehicles. When you feel the ABS system operating, you should maintain
constant brake pedal pressure. Do not pump the brake pedal
since doing so may defeat the operation of the ABS system.
The ABS system prevents the lock-up of wheels which may occur during
sudden braking or braking on slippery road surfaces. This helps prevent
the loss of steering control and directional stability caused by wheellock-up.
When the ABS system is operating, you may hear a chattering noise or
feel a slight vibration in the brake pedal. This is normal when the ABSoperates. The ABS system will not operate when the vehicle speed is below
approximately 6 mph (10 km/h). ABS system self-check
You may feel a slight shock in the brake pedal and hear the operating
sound of ABS from the engine compartment just after the vehicle is
started. This is caused by an automatic functional test of the ABS sys-
tem being carried out and does not indicate any abnormal condition. ABS warning light
HB4010GA
The ABS warning light comes on when the ignition switch is turned to the “ON” position and goes out after about two seconds.

7-26
VDC (Vehicle Dynamics Control) system (if equipped)WARNING
Always use the utmost care in driving — overconfidence because
you are driving with a VDC system equipped vehicle could easily lead to a serious accident.
CAUTION
Even if your vehicle is equipped with VDC, winter tires should
be used when driving on snow-covered or icy roads; in addition,
vehicle speed should be reduced considerably. Simply having a
VDC system does not guarantee that the vehicle will be able toavoid accidents in any situation. Activation of the VDC system is an indication that the road
being travelled on has a slippery surface; since having VDC is no
guarantee that full vehicle control will be maintained at all timesand under all conditions, its activation should be seen as a sign
that the speed of the vehicle should be reduced considerably. Whenever suspension components, steering components, or
an axle are removed from a vehicle equipped with VDC, have anauthorized SUBARU dealer perform an inspection of that system. The following precautions should be observed in order to
ensure that the VDC system is operating properly:
–All four wheels should be fitted with tires of the same size,
type, and brand. Furthermore, the amount of wear should bethe same for all four tires.– Keep the tire pressure at the proper level as shown on the
label attached to the vehicle ’s door pillar.
– Use only the special temporary spare tire to replace a flat
tire. With a temporary spare tire, the effectiveness of the VDC
system is reduced and this should be taken into account whendriving with vehicle.

Starting and operating7-27
–
CONTINUED –
In the event of wheelspin and/or skidding on a slippery road surface
and/or during cornering and/or an evasive maneuver, the VDC systemadjusts the engine ’s output and the wheels ’ respective braking forces to
help maintain traction and directional control.
Traction Control Function
The traction control function is designed to prevent spinning of the
driving wheels on slippery road surfaces, thereby helping to maintain
traction and directional control. Activation of this function is shown bysteady illumination of the VDC operation indicator light. Skid Suppression Function
The skid suppression function is designed to help maintain directional
stability by suppressing the wheels ’ tendency to slide sideways dur-
ing steering operations. Activation of this function is shown by flash-ing of the VDC operation indicator light.
NOTE Slight twitching of the brake pedal may be felt when the VDC-sys-
tem operates; a small degree of vehicle or steering wheel shaking may also be noticed in this situation. These are normal characteris-tics of VDC operation and are no cause for alarm. When driving off immediately after starting the engine, a short-
lived operation noise may be noticed coming from the enginecompartment. This noise is generated as a result of a check beingperformed on the VDC system and is normal. Depending on the timing of activation of the brakes, certain situa-
tions may occur just after driving off where the brake pedal seemsto exhibit a jolting motion. This too is a consequence of the VDCoperational check and is normal. Activation of the VDC system will cause operation of the steering
wheel to feel slightly different compared to that for normal condi-tions. Even if the vehicle is equipped with a VDC system, it is important
that winter tires be used when driving on snow-covered or icyroads. (All four wheels should be fitted with tires of the same sizeand brand).

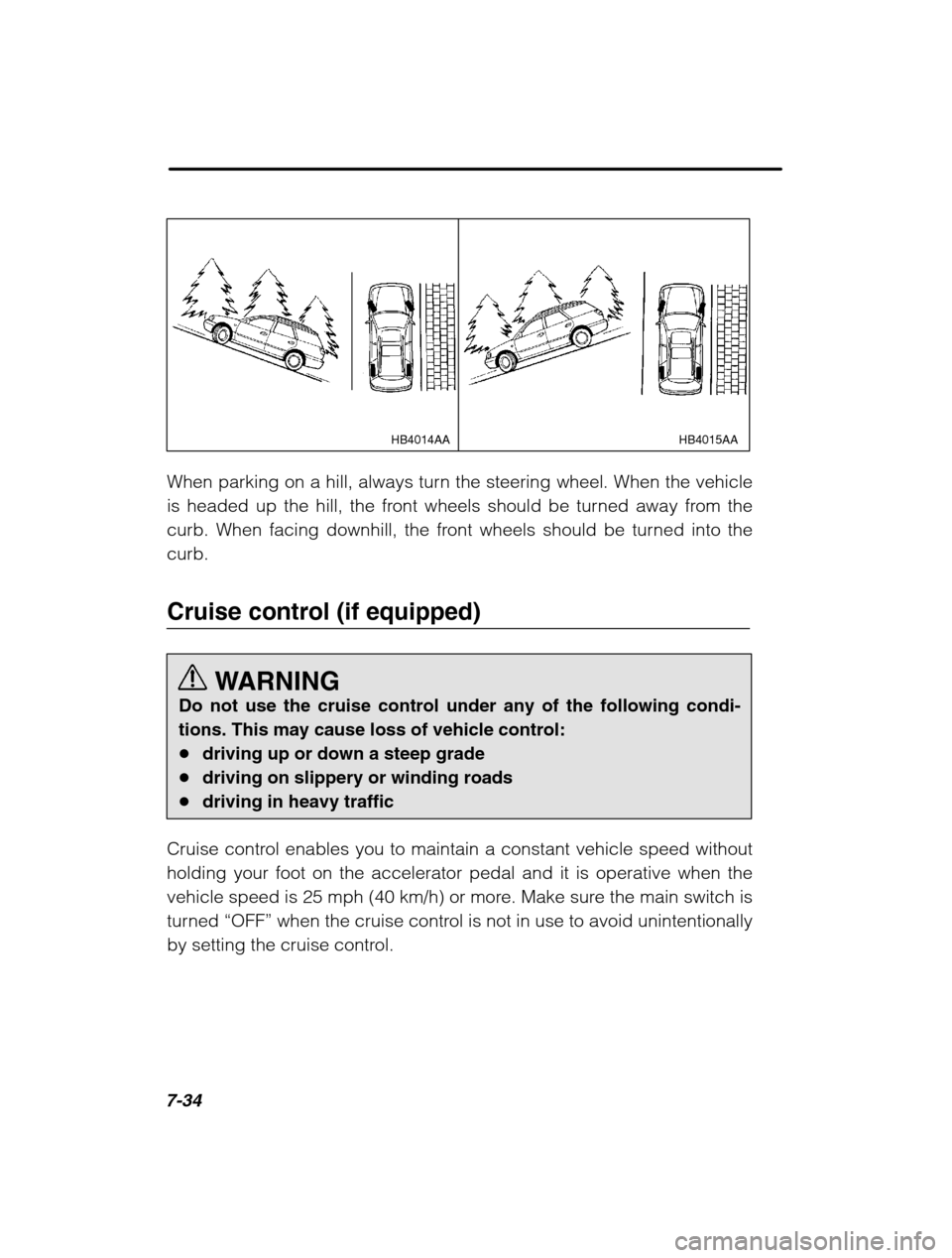

7-34
HB4015AA
HB4014AA
When parking on a hill, always turn the steering wheel. When the vehicle
is headed up the hill, the front wheels should be turned away from the
curb. When facing downhill, the front wheels should be turned into thecurb.
Cruise control (if equipped)
WARNING
Do not use the cruise control under any of the following condi- tions. This may cause loss of vehicle control: driving up or down a steep grade
driving on slippery or winding roads
driving in heavy traffic
Cruise control enables you to maintain a constant vehicle speed without
holding your foot on the accelerator pedal and it is operative when the
vehicle speed is 25 mph (40 km/h) or more. Make sure the main switch is
turned “OFF” when the cruise control is not in use to avoid unintentionally
by setting the cruise control.
